Compact Atom x7425E vehicle computer with 4 M12 LAN ports, NVMe and isolated CAN.
Compact Atom x7425E vehicle computer with 4 M12 LAN ports, NVMe and isolated CAN. Compact Atom x7425E vehicle computer with 4 M12 LAN ports, NVMe and isolated CAN. Compact Atom x7425E vehicle computer with 4 M12 LAN ports, NVMe and isolated CAN.

Nuvo-2860VTC

Compact Atom x7425E vehicle computer with 4 M12 LAN ports, NVMe and isolated CAN.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computers

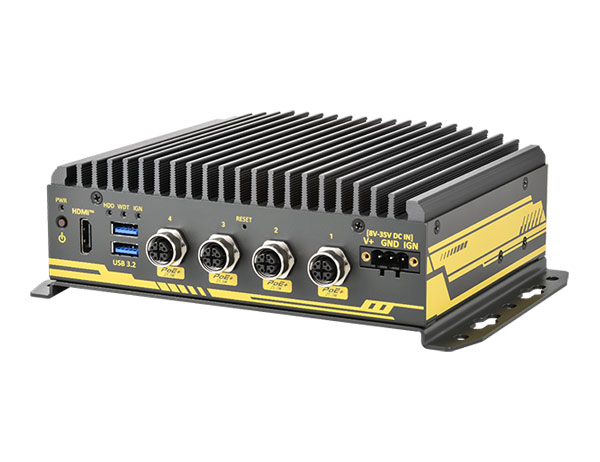

  • The Nuvo-2860VTC is an ultra-compact vehicle computer for mobile gateways, surveillance and passenger information systems. Its quad-core Intel Atom x7425E supports up to 16 GB of DDR5-4800 memory. Four M12 Gigabit LAN ports provide network connectivity. Two isolated CAN interfaces and isolated digital inputs and outputs connect sensors and actuators. M.2 and mini-PCIe slots enable storage and wireless expansion. The computer accepts 8–35 VDC with ignition power control and offers E-Mark certification and EN 50155 EMC compliance. This LAN model complements the series' PoE+ version.
Intel Atom x7425E processor with 4 cores/4 threads, 1.5/3.4 GHz and 12 W TDP; up to 16 GB DDR5-4800; Intel UHD Graphics with 24 EUs. Four M12 X-coded Gigabit Ethernet LAN ports. Two USB 3.2 Gen2x1 ports, HDMI 1.4b, one RS-232/422/485 port, two isolated CAN 2.0 ports and isolated 2 DI/5 DO. One M.2 2280 PCIe Gen3 x2 NVMe socket, one internal 2.5-inch SATA drive bay, one M.2 B-key and two full-size mini-PCIe sockets. 8–35 VDC input with ignition control; 206 x 144 x 65 mm; -40 to 70°C with SSD restrictions. Ordering information distinguishes this LAN model from the PoE+ variant.
  • Processor Intel Alder Lake Atom x7425E; 4 cores, 4 threads; 1.5/3.4 GHz; 12 W TDP
  • Maximum Memory 16 GB DDR5-4800 SDRAM; one SODIMM socket
  • Integrated Graphics Intel UHD Graphics with 24 execution units
  • Trusted Platform Module fTPM 2.0 supported
  • AI Inference Support Intel OpenVINO support for light AI inference applications
  • Ethernet Ports 4 Gigabit Ethernet LAN ports; M12 X-coded connectors; Broadcom BCM5719
  • Ethernet Model Configuration LAN configuration; PoE+ configuration separately listed as Nuvo-2860VTC-PoE
  • USB Ports 2 USB 3.2 Gen2x1 ports; 10 Gbps; screw-lock Type-A connectors
  • Video Output 1 HDMI 1.4b; up to 3840 x 2160 at 30 Hz
  • Serial Port 1 software-programmable RS-232/422/485 port, COM1
  • CAN Ports 2 isolated CAN 2.0 ports; SocketCAN support in Linux
  • Audio Connector 1 shared 3.5 mm jack for microphone input and speaker output
  • Digital I/O Channels 2 isolated digital inputs and 5 isolated digital outputs
  • Digital I/O 2 isolated digital inputs; 5 isolated digital outputs
  • SATA Drive Support 1 internal 2.5-inch SATA HDD or SSD
  • NVMe Storage Socket 1 M.2 2280 M-key socket; PCIe Gen3 x2
  • Mini-PCIe Expansion 2 full-size mini-PCIe sockets with PCIe and USB 2.0; internal micro-SIM support
  • M.2 Cellular Expansion 1 M.2 3042/3052 B-key socket; USB 3 and USB 2; dual internal micro-SIM sockets; for 4G/5G modules
  • DC Input 8–35 VDC through a 3-pin pluggable terminal block
  • Ignition Power Control Built-in ignition control; IGN/GND/V+ terminals
  • Dimensions 206 x 144 x 65 (W x D x H) mm
  • Weight 1.4 kg
  • Mounting Wall mount; mounting provision standard with enclosure
  • Antenna Holes 6
  • Form Factor Ultra-compact wall-mount vehicle computer

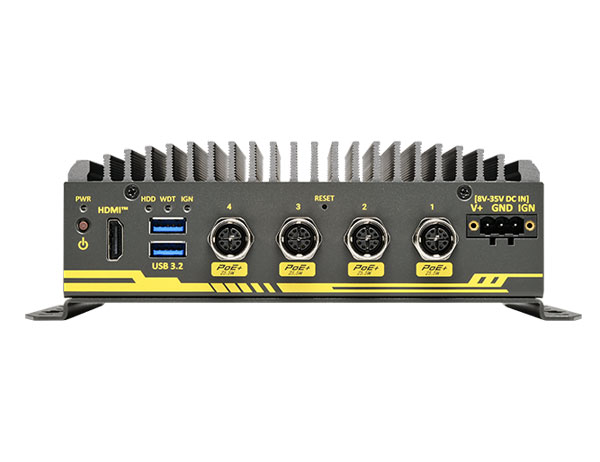

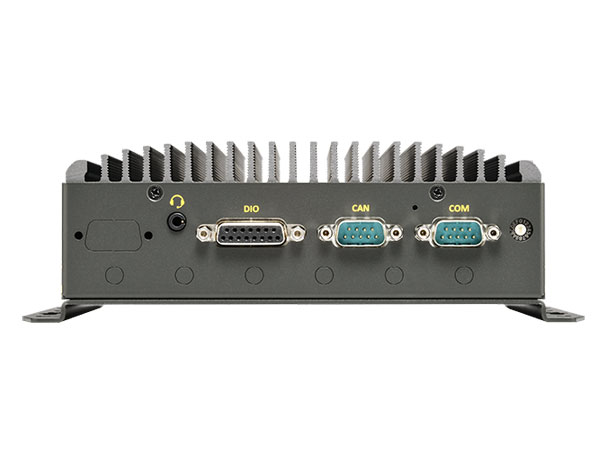

  • Connector 4x M12 X-coded GbE LAN; 2x screw-lock USB Type-A; HDMI; 3.5 mm audio jack; 3-pin DC terminal block; DIO, CAN and COM connectors
  • Dimensions 206 x 144 x 65 mm (W x D x H)
  • Operating Temperature -40 to 70; wide-temperature SSD required below 0°C and above 60°C °C
  • Storage Temperature -40 to 85 °C
  • Humidity 10–90, non-condensing % RH
  • Vibration Compliance EN 50155:2021 / IEC 61373; Category I, Class B, body mounted
  • Shock Compliance EN 50155:2021 / IEC 61373; Category I, Class B, body mounted
  • Operating Temperature -40 to 70°C; wide-temperature SSD required below 0°C and above 60°C
  • EMC Certifications E-Mark; EN 50121 (EN 50155 EMC); CE/FCC Class A according to EN 55032 and EN 55035
  • CPU Performance Compared with Previous Model Up to 1.5x the CPU performance of Nuvo-2610VTC
  • Key Features Quad-core Intel Atom x7425E; up to 16 GB DDR5-4800; 4x M12 Gigabit LAN; dual isolated SocketCAN; isolated 2 DI/5 DO; NVMe and SATA storage; M.2 and mini-PCIe wireless expansion; 8–35 VDC ignition control; E-Mark certified; EN 50155 EMC compliant
  • Accessory Box Kit AccsyBx-mPCIe-HS-Kit-Nuvo-2860VTC: SATA bracket, mini-PCIe heatsink and screw
  • Optional 120 W Power Adapter PA-120W-OW: 120 W AC/DC adapter; 12 V, 10 A output; cord-end terminals; -30 to 70°C
  • Optional 60 W Power Adapter PA-60W-OW: 60 W AC/DC adapter; 12 V, 5 A output; cord-end terminals; -30 to 70°C
  • Optional COM Cable Cbl-DB9F-3DB9M-15CM: DB9 female to three DB9 male connectors; 15 cm; for COM1
  • Optional CAN Cable Cbl-DB9F-2DB9M-15CM: DB9 female to two DB9 male connectors; 15 cm; for CAN1/2
  • Optional M.2 B-Key Adapter mPCIe-M2B: NGFF M.2 B-key to mini-PCIe adapter with dual nano-SIM slots
  • Optional M.2 E-Key Adapter mPCIe-M2E: NGFF M.2 E-key to mini-PCIe adapter
  • Optional M.2 M-Key Adapter mPCIe-M2M: NGFF M.2 M-key to mini-PCIe adapter
  • Source PDF nuvo-2860vtc.pdf
  • Bus Interface PCIe Gen3 x2; mini-PCIe (PCIe + USB 2.0); M.2 B-key (USB 3 + USB 2)
  • Accessories AccsyBx-mPCIe-HS-Kit-Nuvo-2860VTC, PA-120W-OW, PA-60W-OW, Cbl-DB9F-3DB9M-15CM, Cbl-DB9F-2DB9M-15CM, mPCIe-M2B, mPCIe-M2E, mPCIe-M2M
