7-inch open-frame industrial touch monitor
7-inch open-frame industrial touch monitor 7-inch open-frame industrial touch monitor 7-inch open-frame industrial touch monitor 7-inch open-frame industrial touch monitor

OM-070

7-inch open-frame industrial touch monitor
Request a quote
  • Manufacturer Adlink Technology Inc.
  • Category: No category
  • The OM-070 is a compact open-frame industrial monitor designed for integration into machines, operator panels, and kiosk systems. Its 7-inch LCD with LED backlight provides 800 x 480 resolution and up to 50,000 hours of backlight life. A 10-point PCAP touchscreen with anti-fingerprint coating improves usability and cleaning. Video inputs include HDMI and VGA, while touch connectivity is provided through USB Type-B. With front IP65 protection, a wide operating range from -20°C to 70°C, and support for panel, wall, and VESA mounting, it is built for demanding industrial environments.
7-inch open-frame industrial touch monitor with 800 x 480 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 video input, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature -20°C to 70°C.
  • Display Size 7 inch
  • Maximum Resolution 800 x 480
  • Aspect Ratio 5:3
  • Color Depth 16.7M
  • Brightness 400 nits
  • Backlight Life 50000 hours
  • Viewing Angle 89/89/89/89
  • Contrast Ratio 1300:1
  • Bonding Air bonding
  • Touchscreen 10-point PCAP
  • Surface Treatment Anti-fingerprint coating
  • USB Port USB Type-B for touch
  • Video Input HDMI x1; VGA x1
  • Audio No audio
  • Operating Temperature -20 to 70 °C
  • Storage Temperature -20 to 70 °C
  • Humidity 10 to 80 @ 40 non-condensing %
  • Surface Hardness 7H
  • Vibration 1G random 5 to 500Hz
  • Shock 20G acceleration part to part, 11ms
  • IP Rating Front IP65
  • Operating Temperature -20°C to 70°C
  • Certifications CE/FCC
  • Power Input DC 12V 5A Max.
  • Power Consumption 3.7 W
  • Net Weight 0.9 kg
  • Gross Weight 1.4 kg
  • Packing Dimensions 375 x 180 x 243 mm
  • VESA Mount MIS-D 75 x 75 mm; 100 x 100 mm
  • Mounting Panel mount only
  • Panel Mount Clips Qty 8
  • Form Factor Open-frame

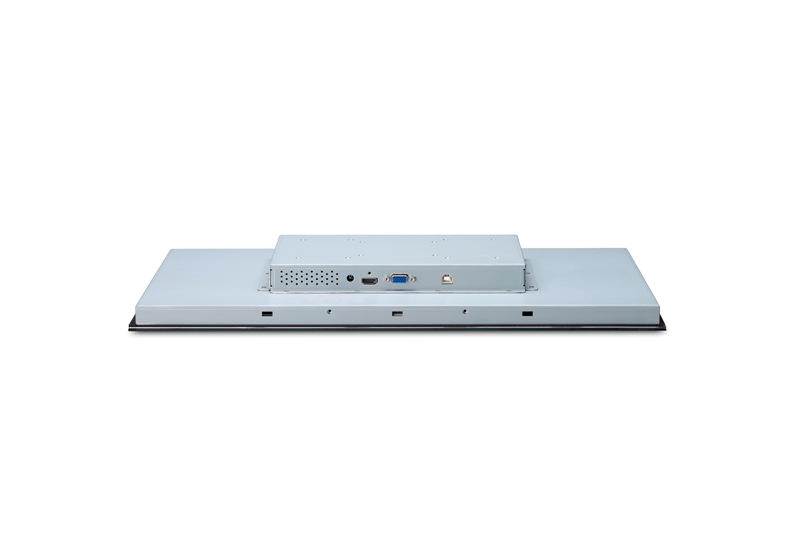

  • Connector USB Type-B; HDMI; VGA
  • Dimensions 175 x 176 x 49.24 mm
  • Resolution 800 x 480
  • Key Features 7-inch LCD; LED backlight; 10-point PCAP touchscreen; anti-fingerprint coating; HDMI input; VGA input; USB Type-B for touch; front IP65; panel mount; VESA mount
  • Accessories 31-62156-1010-A0, 33-50003-0000-A0, 30-01012-0000
