1. Product Overview

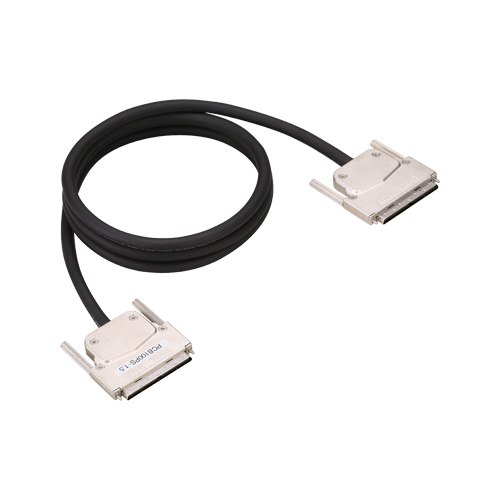

Product Name: Shielded Cable with 100-pin Male-Male Connector
Model: PCB100PS-1.5
Series: PCB100PS Series (available in multiple lengths: 0.5m, 1.5m, 3m, 5m)
Article Number: PCB100PS-1.5
Manufacturer: CONTEC Co., Ltd.
Version: Ver.1.00
The CONTEC PCB100PS-1.5 is a high-quality, shielded interconnection cable designed for use with 100-pin, 0.8mm-pitch connectors. It provides a reliable and noise-resistant connection between CONTEC interface boards and peripheral devices or other compatible equipment. The cable features male connectors on both ends, ensuring secure mating with corresponding female connectors on boards or modules. With a total length of 1.5 meters, the PCB100PS-1.5 offers an optimal balance between flexibility, reach, and signal integrity for industrial and laboratory applications.
2. Key Features
- High-Density 100-Pin Connectivity: Equipped with two 100-pin, 0.8mm-pitch male connectors, the cable supports high signal density for complex data and control interfaces.
- Shielded Construction: The cable incorporates a full shielding layer to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal transmission even in electrically noisy environments.
- Precision Connectors: Uses HDRA-E100MA1 connectors (manufactured by HONDA or equivalent), known for their mechanical robustness and reliable contact performance.
- Multiple Length Options: Available in four standard lengths—0.5m, 1.5m, 3m, and 5m—to accommodate various installation requirements.
- Durable Build: Constructed with high-quality materials, including UL20276-rated conductors, ensuring long-term durability and compliance with safety standards.
- Compact Form Factor: The 0.8mm pitch and 100-pin configuration allow for compact, space-efficient wiring in dense electronic assemblies.
- Secure Connection: Each connector is equipped with M2 thumb screws for mechanical fastening, preventing accidental disconnection due to vibration or movement.
- Compatibility: Designed specifically for CONTEC boards featuring 100-pin 0.8mm-pitch connectors, but also compatible with other devices using the same connector standard.
- Flexible Application: Suitable for signal, control, and data transmission in industrial automation, measurement systems, and embedded control environments.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | PCB100PS-1.5 |
| Cable Length | 1.5 meters |
| Weight | Approx. 350 g |
| Connector Type | 100-pin, 0.8mm-pitch male connector (HDRA-E100MA1 [HONDA] or equivalent) |
| Number of Conductors | 100 cores |
| Conductor Size | AWG #30 |
| Conductor Composition | 7 strands of 0.1mm diameter wire per conductor |
| Cable Type | Shielded multi-core cable |
| Cable Standard | UL20276 |
| Shielding | Overall shield for EMI protection |
| Connector Fastening | M2 thumb screws (x2 per connector) |
| Outer Diameter (Approx.) | 9 mm |
| Connector Dimensions | Width: 46.44 mm |
| Pitch | 0.8 mm |
| Color | Standard industrial gray (subject to change without notice) |
| Operating Temperature Range | Not specified (typical for UL20276: -20°C to +80°C) |
| Version | 1.00 |
Available Models in the Series:
| Model | Length | Weight |
|------------|-------------|-------------|
| PCB100PS-0.5 | 0.5 m | 200 g |
| PCB100PS-1.5 | 1.5 m | 350 g |
| PCB100PS-3 | 3.0 m | 480 g |
| PCB100PS-5 | 5.0 m | 740 g |
4. Functionality
The PCB100PS-1.5 functions as a high-density interconnection cable for transmitting digital or analog signals between two devices equipped with 100-pin 0.8mm-pitch connectors. It is primarily used to connect CONTEC interface boards—such as data acquisition (DAQ) cards, digital I/O modules, or control boards—to external breakout panels, signal conditioning units, or other compatible hardware.
Working Principle:
Each of the 100 conductors within the cable corresponds directly to a pin on the connector, maintaining a one-to-one mapping between both ends. The shielding layer surrounds all conductors, reducing susceptibility to external noise and minimizing signal degradation over the 1.5-meter length. The male connectors ensure a secure and precise fit into corresponding female sockets, while the M2 thumb screws provide mechanical stability.
Typical Use Cases:
- Connecting CONTEC PCI/PCIe or USB I/O boards to external terminal blocks.
- Linking embedded control systems to peripheral modules.
- Establishing signal paths in test and measurement setups.
- Providing interconnections in industrial automation systems.
- Facilitating prototyping and system integration in R&D environments.
Compatibility:
- Fully compatible with CONTEC boards featuring 100-pin 0.8mm-pitch connectors.
- Can be used with other devices or systems that utilize the same connector standard (HDRA-E100MA1 or equivalent).
- Suitable for both digital and analog signal transmission, depending on the connected hardware.
5. Components & Accessories
Included Components:
- One (1) shielded cable assembly, model PCB100PS-1.5.
- Two (2) 100-pin 0.8mm-pitch male connectors (HDRA-E100MA1 or equivalent).
- Four (4) M2 thumb screws (two per connector) for secure attachment.
Optional Accessories (not included):
- Compatible 100-pin female connectors or breakout boards.
- Mounting brackets or cable clamps for strain relief.
- Extension cables (other PCB100PS series lengths).
- Protective caps for unused connectors.
Connector Details:
- Connector Type: 100-pin male, 0.8mm pitch.
- Manufacturer: HONDA (HDRA-E100MA1) or equivalent.
- Mechanical Retention: M2 thumb screws for locking.
- Contact Material: High-conductivity metal alloy (typically gold-plated contacts for signal reliability).
6. Installation & Setup
Requirements:
- Devices or boards equipped with compatible 100-pin 0.8mm-pitch female connectors.
- Adequate clearance for connector width (46.44 mm) and cable bend radius.
- Proper grounding to ensure shielding effectiveness.
Installation Steps:
1. Preparation: Verify that both devices to be connected are powered off.
2. Alignment: Align the male connector of the PCB100PS-1.5 with the female connector on the device, ensuring correct pin orientation.
3. Connection: Insert the connector gently but firmly until fully seated.
4. Securing: Tighten the M2 thumb screws on both sides to secure the connection mechanically.
5. Verification: Confirm that the cable is not under tension and that the shielding braid is properly grounded if required.
6. Power On: Once all connections are secure, power on the devices and verify signal integrity.
Mounting Options:
- Direct plug-in connection to board-mounted connectors.
- Can be routed through cable management systems or conduits.
- Suitable for both stationary and semi-flexible installations.
Configuration:
No software configuration is required; the cable provides a direct electrical connection between corresponding pins.
7. Performance & Capabilities
Signal Integrity:
The shielded design minimizes electromagnetic interference and crosstalk, maintaining high signal fidelity across all 100 channels. The short 1.5m length further reduces propagation delay and attenuation, making it suitable for high-speed digital signals.
Transmission Capacity:
Supports up to 100 individual signal lines, allowing simultaneous transmission of multiple digital or analog signals. The AWG30 conductors are optimized for low-current, high-density signal applications.
Mechanical Durability:
The cable’s robust construction and strain-relieved connectors ensure long service life even under frequent connection cycles. The M2 thumb screws prevent accidental disconnection due to vibration or movement.
Flexibility:
Despite its shielding, the cable maintains moderate flexibility, allowing easy routing in control cabinets or test setups.
Limitations:
- Not intended for high-power transmission; designed for signal-level applications only.
- Maximum recommended length is 5 meters (PCB100PS-5) to maintain signal quality.
- Environmental specifications (temperature, humidity) depend on installation conditions and UL20276 cable rating.
Efficiency:
The cable’s low-resistance conductors and shielding contribute to efficient signal transfer with minimal loss, ensuring reliable operation in demanding environments.
8. Standards & Compliance
Applicable Standards:
- UL20276: Compliance with UL standards for electronic cables, ensuring flame resistance and insulation integrity.
- Connector Standard: 0.8mm-pitch 100-pin interface (HDRA-E100MA1 or equivalent), conforming to industry mechanical and electrical specifications.
- RoHS Compliance: Expected to comply with Restriction of Hazardous Substances (RoHS) directives, as typical for CONTEC products.
- EMI Shielding: Designed to meet general industrial EMI suppression requirements.
Regulatory Compliance:
- Manufactured under CONTEC’s quality management system, ensuring consistency and reliability.
- Specifications, color, and design are subject to change without notice, in accordance with continuous improvement policies.
9. Additional Information
Warranty:
Standard CONTEC warranty applies (typically one year from date of purchase, covering manufacturing defects). Users should refer to the official CONTEC warranty policy for details.
Support:
Technical documentation, connection diagrams, and support resources are available through CONTEC’s official website and technical support channels. Assistance includes product selection guidance, compatibility verification, and troubleshooting.
Maintenance:
- Periodically inspect connectors for dust or debris.
- Avoid excessive bending or pulling on the cable.
- Ensure thumb screws remain tightened during operation.
- Store in a dry, temperature-controlled environment when not in use.
Updates & Revisions:
Product version 1.00 is the current release. Future revisions may include design or material updates to improve performance or compliance. Users should verify the latest version before procurement.
Ordering Information:
- Model: PCB100PS-1.5
- Description: Shielded cable, 1.5m, 100-pin male-male connectors
- Manufacturer: CONTEC Co., Ltd.
- Available Lengths: 0.5m (PCB100PS-0.5), 1.5m (PCB100PS-1.5), 3m (PCB100PS-3), 5m (PCB100PS-5)
Summary:
The CONTEC PCB100PS-1.5 is a precision-engineered, shielded 100-pin interconnection cable designed for high-density signal transmission between compatible devices. With its robust construction, EMI shielding, and secure mechanical fastening, it ensures reliable performance in industrial, laboratory, and embedded system environments. The cable’s standardized connectors and multiple length options make it a versatile solution for a wide range of applications requiring stable, high-quality signal connectivity.
