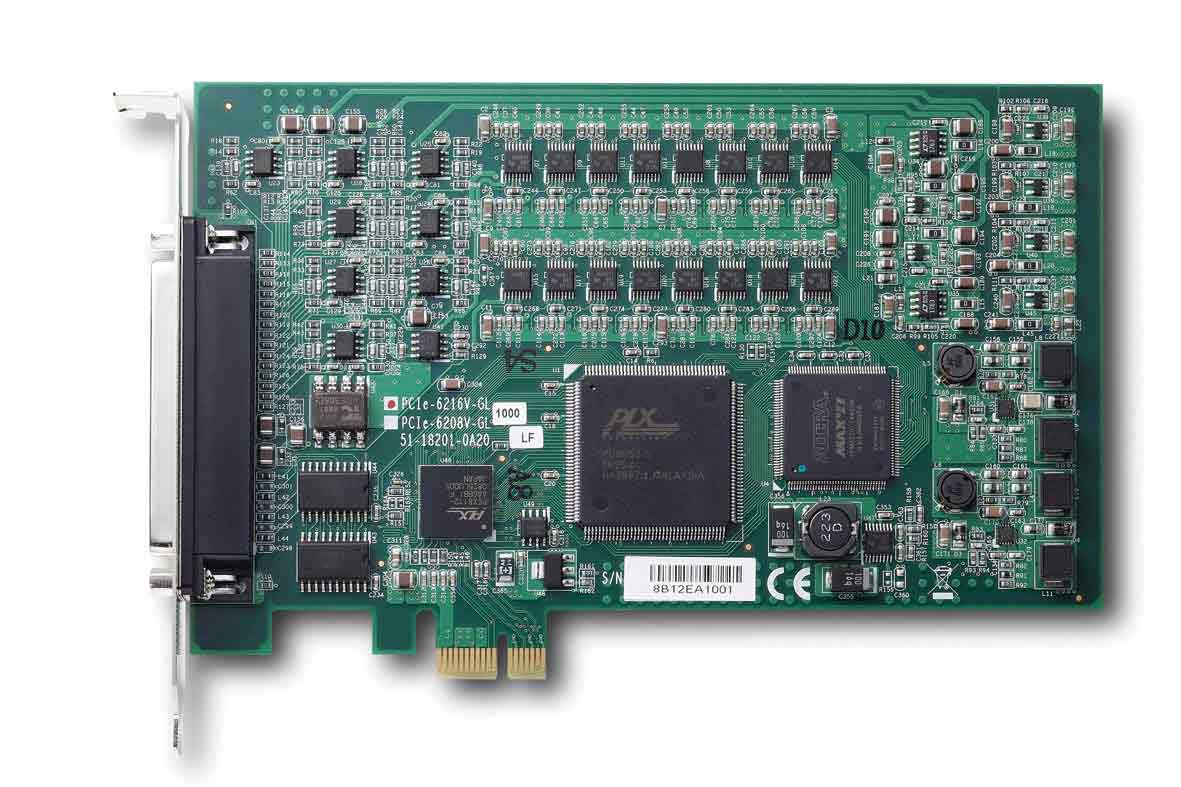

PCIe-6208V-GL - Adlink Technology Inc.

PCIe 8 DA Card 16bit ±10V

PC Add-On Cards are expansion cards that can be added to a computer to provide additional capabilities. D/A Cards are digital-to-analog cards that convert digital signals into analog signals for use with analog devices. D/A Cards General Purpose are cards that are designed for general purpose applications, such as audio, video, and communications. D/A General Purpose PCIe cards are high-speed cards that offer a range of features, including multiple channels and adjustable sample rate..
544,00 €
incl. VAT 647,36 €

Description

  • PCIe bus 8 channel DA card 3,3V (100% compatible with PCI-6208V)
  • 16bit/±10V max ±5mA
  • BB PCM56U or equivalent 2µs settling time
  • 4/4 TTL DIO
  • with DC/DC converter
  • plug and play
  • 37pin D-type
  • 168*112mm
  • Adlink

Details

  • Width: 168 mm
  • Height: 112 mm
  • Weight: 0.9kg
  • Manufacturer: Adlink Technology Inc.
  • Part number: 91-18201-0010
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Data Sheets

Manuals

Downloads

Accessories

  • Exp-8V
    Extra 8Chan Voltage Out for PCI-6208V
  • Exp-8A
    Extra 8Chan Voltage to Current Module (PCI-6208V)
  • ACLD-9188
    Panel for mounting low pass filter etc.
  • ACLD-9137-01
    Direct 37 small screw terminal
  • DIN-37D-01
    37pin D-type panel DIN rail w/o cable
