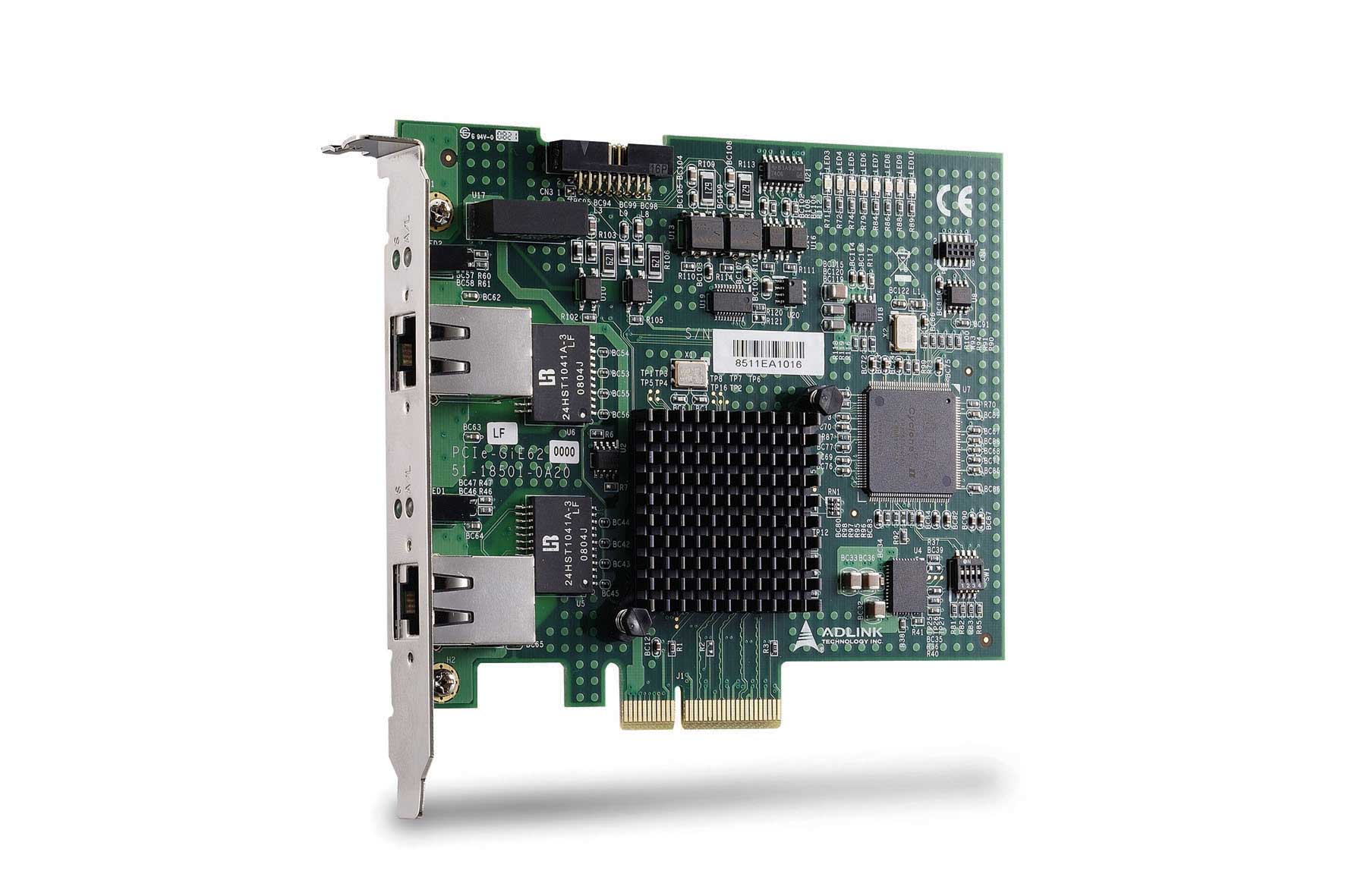

Comprehensive Product Summary: ADLINK PCIe-GIE62 Dual Gigabit Ethernet Vision Interface Card
### 1. Product Overview
Product Name: PCIe-GIE62
Model: PCIe-GIE62
Series: GigE Vision Interface Card Series
Article Number: PCIe-GIE62
Manufacturer: ADLINK Technology Inc.
Part Number: 51-18015-0A10
Manual Revision: 2.00 (July 31, 2007)
The ADLINK PCIe-GIE62 is a high-performance PCI Express x4 lane interface card designed for industrial and scientific imaging applications. It provides two independent Gigabit Ethernet (GbE) ports for connecting multiple GigE Vision cameras, enabling high-speed image acquisition and data transfer. With advanced triggering, isolation, and digital I/O capabilities, the PCIe-GIE62 is optimized for machine vision, automation, and research instrumentation systems.
### 2. Key Features
- Dual Independent Gigabit Ethernet Ports:
Two fully integrated Gigabit Ethernet MAC and PHY interfaces supporting IEEE 802.3, 802.3u, and 802.3ab standards for 10/100/1000 Mbps operation.
- PCI Express x4 Interface:
Compliant with PCI Express x4 specification, ensuring high bandwidth and low latency data transfer between the host system and connected cameras.
- High Data Throughput:
Supports data transfer rates up to 1 GB/s per channel, suitable for high-resolution, high-frame-rate imaging.
- Jumbo Frame Support:
Capable of handling jumbo frames up to 9 KB, improving efficiency in large image data transfers.
- Isolated Digital I/O:
Includes 2 isolated digital inputs and 2 isolated digital outputs for external device control and synchronization.
- Programmable Triggering:
Two isolated trigger inputs and two isolated trigger outputs with programmable delay, pulse width, and polarity for precise timing control.
- Industrial-Grade Design:
Equipped with screw-lock RJ-45 connectors for secure cable attachment in industrial environments.
- Onboard Memory Buffer:
Integrated 128 MB DDR RAM buffer for stable and reliable data streaming.
- Software Support:
Compatible with Windows XP, XP Embedded, and Vista operating systems. Includes driver and function library for easy integration.
- Compact Form Factor:
Dimensions of 129.5 mm (W) × 111.15 mm (L) suitable for standard PC chassis.
### 3. Technical Specifications
Ethernet Interface:
- Two independent Gigabit Ethernet ports (RJ-45)
- IEEE 802.3, 802.3u, 802.3ab compliant
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
- Jumbo frame support up to 9 KB
- Link and activity LEDs for each port
Digital I/O and Triggering:
- 2 isolated digital inputs (photo-coupled)
- Input voltage range: 0–25 V
- Low level: 0–0.5 V
- High level: 2–25 V
- 2 isolated digital outputs (photo-coupled)
- Load voltage range: 3–24 V
- Max sink current: 80 mA
- Output voltage drop: ≤1.0 V
- Leakage current: ≤0.1 mA
- Reverse voltage protection: -6 V
- 2 isolated trigger inputs (photo-coupled)
- Input voltage range: 0–25 V
- Low level: 0–0.5 V
- High level: 2.7–25 V
- Polarity: Positive/Negative selectable
- Minimum pulse width: 0.1 ms
- 2 isolated trigger outputs (photo-coupled)
- Load voltage range: 0–5 V
- Max sink current: 40 mA
- Output voltage drop: ≤0.4 V @16 mA
- Programmable delay: 0–1000 ms (1 ms step)
- Pulse width: 0.1–50 ms (0.1 ms step)
- Polarity: Positive/Negative selectable
Isolation Voltage:
1000 V for 60 seconds between isolated circuits.
Form Factor:
PCI Express x4 interface card.
Dimensions:
129.5 mm (W) × 111.15 mm (L)
Power Requirements:
+12 V @ 0.2 A (max), +3.3 V @ 1.5 A (max)
Operating Environment:
- Temperature: 0°C to 55°C
- Humidity: 5% to 90% RH (non-condensing)
Storage Environment:
- Temperature: 0°C to 85°C
- Humidity: 0% to 95% RH (non-condensing)
### 4. Functionality
The PCIe-GIE62 acts as a dual-channel GigE Vision frame grabber, enabling simultaneous connection and control of up to two GigE Vision cameras. It leverages standard Ethernet technology for long-distance, high-bandwidth image transmission. The card’s isolated digital I/O and trigger functions allow precise synchronization with external devices such as sensors, strobes, or actuators.
Use Cases:
- Machine vision inspection systems
- Automated optical inspection (AOI)
- Scientific and medical imaging
- Industrial automation and robotics
- Research instrumentation requiring synchronized image capture
Compatibility:
- GigE Vision-compliant cameras
- Windows XP, XP Embedded, and Vista operating systems
- PCI Express x4, x8, or x16 slots
### 5. Components & Accessories
Included Components:
- PCIe-GIE62 interface card
- User manual and driver CD
- D-sub 15-pin female extension cable (for GPIO and trigger connections)
Connectors:
- J2 (LAN 1): RJ-45 port with screw lock
- J3 (LAN 2): RJ-45 port with screw lock
- CN3: GPIO & Trigger connector (16-pin header)
- D-sub 15-pin Female: Extension connector for external I/O and trigger signals
LED Indicators:
- LAN 1 (LED1):
- Orange: 1000 Mbps
- Green: 100 Mbps
- Off: 10 Mbps
- On: Link active
- Blinking: Data transfer in progress
- LAN 2 (LED2): Same as above
Switches:
- SW1 (Card ID Select):
- 2-bit DIP switch for board ID (0–3)
- Supports up to 4 cards in one system
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host computer and remove the cover.
2. Locate an available PCI Express slot (x4, x8, or x16).
3. Remove the slot cover and retain the screw.
4. Insert the PCIe-GIE62 card firmly into the slot.
5. Secure the card with the screw.
6. Connect GigE Vision cameras to the RJ-45 ports.
7. Power on the computer.
Driver Installation:
1. Install Intel network chipset drivers (PRO2KXP.exe or PROVISTA.exe).
2. Verify network adapters in Device Manager (Intel PRO/1000 PT Dual Port Server Adapter).
3. Run GiE62_SetupDisk_1001.exe to install ADLINK GiE62 drivers.
4. Follow on-screen instructions to complete installation.
Software Configuration:
- Use ADLINK’s function library to initialize, configure, and control the card.
- Functions include device initialization, trigger configuration, and digital I/O control.
### 7. Performance & Capabilities
Data Throughput:
Up to 1 GB/s per channel, supporting high-speed image acquisition from two GigE Vision cameras simultaneously.
Buffering:
128 MB onboard DDR RAM ensures stable data streaming and prevents frame loss during high-throughput operations.
Trigger Control:
Programmable delay and pulse width allow precise synchronization with external events, essential for time-critical imaging applications.
Scalability:
Supports up to four PCIe-GIE62 cards in a single system, enabling up to eight camera connections.
Efficiency:
Jumbo frame support (9 KB) reduces CPU overhead and improves transmission efficiency for large image data.
Limitations:
- Operating temperature limited to 55°C.
- Windows-only driver support (XP/Vista).
- No PoE (Power over Ethernet) support; external camera power required.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ab (1000BASE-T)
GigE Vision Compliance:
Fully compatible with the GigE Vision standard for industrial cameras.
Electrical Isolation:
1000 V isolation between I/O and system circuits for enhanced safety and noise immunity.
Regulatory Compliance:
Designed to meet industrial EMC and safety standards applicable to PCI Express interface cards.
### 9. Additional Information
Warranty & Support:
ADLINK provides standard warranty coverage and technical support for the PCIe-GIE62. Users can contact ADLINK’s service team via email or phone for assistance.
Manufacturer Contact Information:
ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886-2-82265877
Fax: +886-2-82265717
Email: Service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
Maintenance:
- Keep the card and connectors free from dust and debris.
- Ensure proper grounding and shielding in industrial environments.
- Periodically check cable connections and LED indicators for link status.
Software Updates:
Driver and firmware updates are available from ADLINK’s official website. Users should ensure compatibility with their operating system and camera models before updating.
Error Handling:
The function library includes defined error codes for diagnostics:
- 0: No error
- -1: Invalid Card ID
- -2: Invalid Port Number
- -3: Device Not Opened
- -4: Device Already Opened
- -5: Parameter Exceed Limit
- -6: Device Cannot Access
Programming Interface:
The ADLINK GiE62 API provides a comprehensive set of functions for system initialization, device management, digital I/O control, and trigger configuration. Developers can integrate these functions into custom machine vision or automation software.
### Summary
The ADLINK PCIe-GIE62 is a robust, high-performance dual-port Gigabit Ethernet interface card engineered for industrial imaging and machine vision applications. Its PCI Express x4 architecture, dual isolated I/O channels, and programmable trigger functions make it ideal for synchronized multi-camera setups. With support for jumbo frames, high data throughput, and reliable isolation, the PCIe-GIE62 delivers the performance and stability required in demanding automation, inspection, and research environments.
Its combination of hardware reliability, flexible software control, and industrial-grade design positions it as a versatile solution for system integrators and developers seeking to build scalable, high-speed vision systems.
### 1. Product Overview
Product Name: PCIe-GIE62
Model: PCIe-GIE62
Series: GigE Vision Interface Card Series
Article Number: PCIe-GIE62
Manufacturer: ADLINK Technology Inc.
Part Number: 51-18015-0A10
Manual Revision: 2.00 (July 31, 2007)
The ADLINK PCIe-GIE62 is a high-performance PCI Express x4 lane interface card designed for industrial and scientific imaging applications. It provides two independent Gigabit Ethernet (GbE) ports for connecting multiple GigE Vision cameras, enabling high-speed image acquisition and data transfer. With advanced triggering, isolation, and digital I/O capabilities, the PCIe-GIE62 is optimized for machine vision, automation, and research instrumentation systems.
### 2. Key Features
- Dual Independent Gigabit Ethernet Ports:
Two fully integrated Gigabit Ethernet MAC and PHY interfaces supporting IEEE 802.3, 802.3u, and 802.3ab standards for 10/100/1000 Mbps operation.
- PCI Express x4 Interface:
Compliant with PCI Express x4 specification, ensuring high bandwidth and low latency data transfer between the host system and connected cameras.
- High Data Throughput:
Supports data transfer rates up to 1 GB/s per channel, suitable for high-resolution, high-frame-rate imaging.
- Jumbo Frame Support:
Capable of handling jumbo frames up to 9 KB, improving efficiency in large image data transfers.
- Isolated Digital I/O:
Includes 2 isolated digital inputs and 2 isolated digital outputs for external device control and synchronization.
- Programmable Triggering:
Two isolated trigger inputs and two isolated trigger outputs with programmable delay, pulse width, and polarity for precise timing control.
- Industrial-Grade Design:
Equipped with screw-lock RJ-45 connectors for secure cable attachment in industrial environments.
- Onboard Memory Buffer:
Integrated 128 MB DDR RAM buffer for stable and reliable data streaming.
- Software Support:
Compatible with Windows XP, XP Embedded, and Vista operating systems. Includes driver and function library for easy integration.
- Compact Form Factor:
Dimensions of 129.5 mm (W) × 111.15 mm (L) suitable for standard PC chassis.
### 3. Technical Specifications
Ethernet Interface:
- Two independent Gigabit Ethernet ports (RJ-45)
- IEEE 802.3, 802.3u, 802.3ab compliant
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
- Jumbo frame support up to 9 KB
- Link and activity LEDs for each port
Digital I/O and Triggering:
- 2 isolated digital inputs (photo-coupled)
- Input voltage range: 0–25 V
- Low level: 0–0.5 V
- High level: 2–25 V
- 2 isolated digital outputs (photo-coupled)
- Load voltage range: 3–24 V
- Max sink current: 80 mA
- Output voltage drop: ≤1.0 V
- Leakage current: ≤0.1 mA
- Reverse voltage protection: -6 V
- 2 isolated trigger inputs (photo-coupled)
- Input voltage range: 0–25 V
- Low level: 0–0.5 V
- High level: 2.7–25 V
- Polarity: Positive/Negative selectable
- Minimum pulse width: 0.1 ms
- 2 isolated trigger outputs (photo-coupled)
- Load voltage range: 0–5 V
- Max sink current: 40 mA
- Output voltage drop: ≤0.4 V @16 mA
- Programmable delay: 0–1000 ms (1 ms step)
- Pulse width: 0.1–50 ms (0.1 ms step)
- Polarity: Positive/Negative selectable
Isolation Voltage:
1000 V for 60 seconds between isolated circuits.
Form Factor:
PCI Express x4 interface card.
Dimensions:
129.5 mm (W) × 111.15 mm (L)
Power Requirements:
+12 V @ 0.2 A (max), +3.3 V @ 1.5 A (max)
Operating Environment:
- Temperature: 0°C to 55°C
- Humidity: 5% to 90% RH (non-condensing)
Storage Environment:
- Temperature: 0°C to 85°C
- Humidity: 0% to 95% RH (non-condensing)
### 4. Functionality
The PCIe-GIE62 acts as a dual-channel GigE Vision frame grabber, enabling simultaneous connection and control of up to two GigE Vision cameras. It leverages standard Ethernet technology for long-distance, high-bandwidth image transmission. The card’s isolated digital I/O and trigger functions allow precise synchronization with external devices such as sensors, strobes, or actuators.
Use Cases:
- Machine vision inspection systems
- Automated optical inspection (AOI)
- Scientific and medical imaging
- Industrial automation and robotics
- Research instrumentation requiring synchronized image capture
Compatibility:
- GigE Vision-compliant cameras
- Windows XP, XP Embedded, and Vista operating systems
- PCI Express x4, x8, or x16 slots
### 5. Components & Accessories
Included Components:
- PCIe-GIE62 interface card
- User manual and driver CD
- D-sub 15-pin female extension cable (for GPIO and trigger connections)
Connectors:
- J2 (LAN 1): RJ-45 port with screw lock
- J3 (LAN 2): RJ-45 port with screw lock
- CN3: GPIO & Trigger connector (16-pin header)
- D-sub 15-pin Female: Extension connector for external I/O and trigger signals
LED Indicators:
- LAN 1 (LED1):
- Orange: 1000 Mbps
- Green: 100 Mbps
- Off: 10 Mbps
- On: Link active
- Blinking: Data transfer in progress
- LAN 2 (LED2): Same as above
Switches:
- SW1 (Card ID Select):
- 2-bit DIP switch for board ID (0–3)
- Supports up to 4 cards in one system
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host computer and remove the cover.
2. Locate an available PCI Express slot (x4, x8, or x16).
3. Remove the slot cover and retain the screw.
4. Insert the PCIe-GIE62 card firmly into the slot.
5. Secure the card with the screw.
6. Connect GigE Vision cameras to the RJ-45 ports.
7. Power on the computer.
Driver Installation:
1. Install Intel network chipset drivers (PRO2KXP.exe or PROVISTA.exe).
2. Verify network adapters in Device Manager (Intel PRO/1000 PT Dual Port Server Adapter).
3. Run GiE62_SetupDisk_1001.exe to install ADLINK GiE62 drivers.
4. Follow on-screen instructions to complete installation.
Software Configuration:
- Use ADLINK’s function library to initialize, configure, and control the card.
- Functions include device initialization, trigger configuration, and digital I/O control.
### 7. Performance & Capabilities
Data Throughput:
Up to 1 GB/s per channel, supporting high-speed image acquisition from two GigE Vision cameras simultaneously.
Buffering:
128 MB onboard DDR RAM ensures stable data streaming and prevents frame loss during high-throughput operations.
Trigger Control:
Programmable delay and pulse width allow precise synchronization with external events, essential for time-critical imaging applications.
Scalability:
Supports up to four PCIe-GIE62 cards in a single system, enabling up to eight camera connections.
Efficiency:
Jumbo frame support (9 KB) reduces CPU overhead and improves transmission efficiency for large image data.
Limitations:
- Operating temperature limited to 55°C.
- Windows-only driver support (XP/Vista).
- No PoE (Power over Ethernet) support; external camera power required.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ab (1000BASE-T)
GigE Vision Compliance:
Fully compatible with the GigE Vision standard for industrial cameras.
Electrical Isolation:
1000 V isolation between I/O and system circuits for enhanced safety and noise immunity.
Regulatory Compliance:
Designed to meet industrial EMC and safety standards applicable to PCI Express interface cards.
### 9. Additional Information
Warranty & Support:
ADLINK provides standard warranty coverage and technical support for the PCIe-GIE62. Users can contact ADLINK’s service team via email or phone for assistance.
Manufacturer Contact Information:
ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886-2-82265877
Fax: +886-2-82265717
Email: Service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
Maintenance:
- Keep the card and connectors free from dust and debris.
- Ensure proper grounding and shielding in industrial environments.
- Periodically check cable connections and LED indicators for link status.
Software Updates:
Driver and firmware updates are available from ADLINK’s official website. Users should ensure compatibility with their operating system and camera models before updating.
Error Handling:
The function library includes defined error codes for diagnostics:
- 0: No error
- -1: Invalid Card ID
- -2: Invalid Port Number
- -3: Device Not Opened
- -4: Device Already Opened
- -5: Parameter Exceed Limit
- -6: Device Cannot Access
Programming Interface:
The ADLINK GiE62 API provides a comprehensive set of functions for system initialization, device management, digital I/O control, and trigger configuration. Developers can integrate these functions into custom machine vision or automation software.
### Summary
The ADLINK PCIe-GIE62 is a robust, high-performance dual-port Gigabit Ethernet interface card engineered for industrial imaging and machine vision applications. Its PCI Express x4 architecture, dual isolated I/O channels, and programmable trigger functions make it ideal for synchronized multi-camera setups. With support for jumbo frames, high data throughput, and reliable isolation, the PCIe-GIE62 delivers the performance and stability required in demanding automation, inspection, and research environments.
Its combination of hardware reliability, flexible software control, and industrial-grade design positions it as a versatile solution for system integrators and developers seeking to build scalable, high-speed vision systems.
-
PCIe-GIE64+_Datasheet_en_1.pdf
PDF Catalog
No accessories available.
