1. Product Overview

Product Name: RIO-2010
Model: RIO-2010
Series: RIO-2000 Series
Article Number: RIO-2010
Manufacturer: Artila Electronics Co., Ltd.

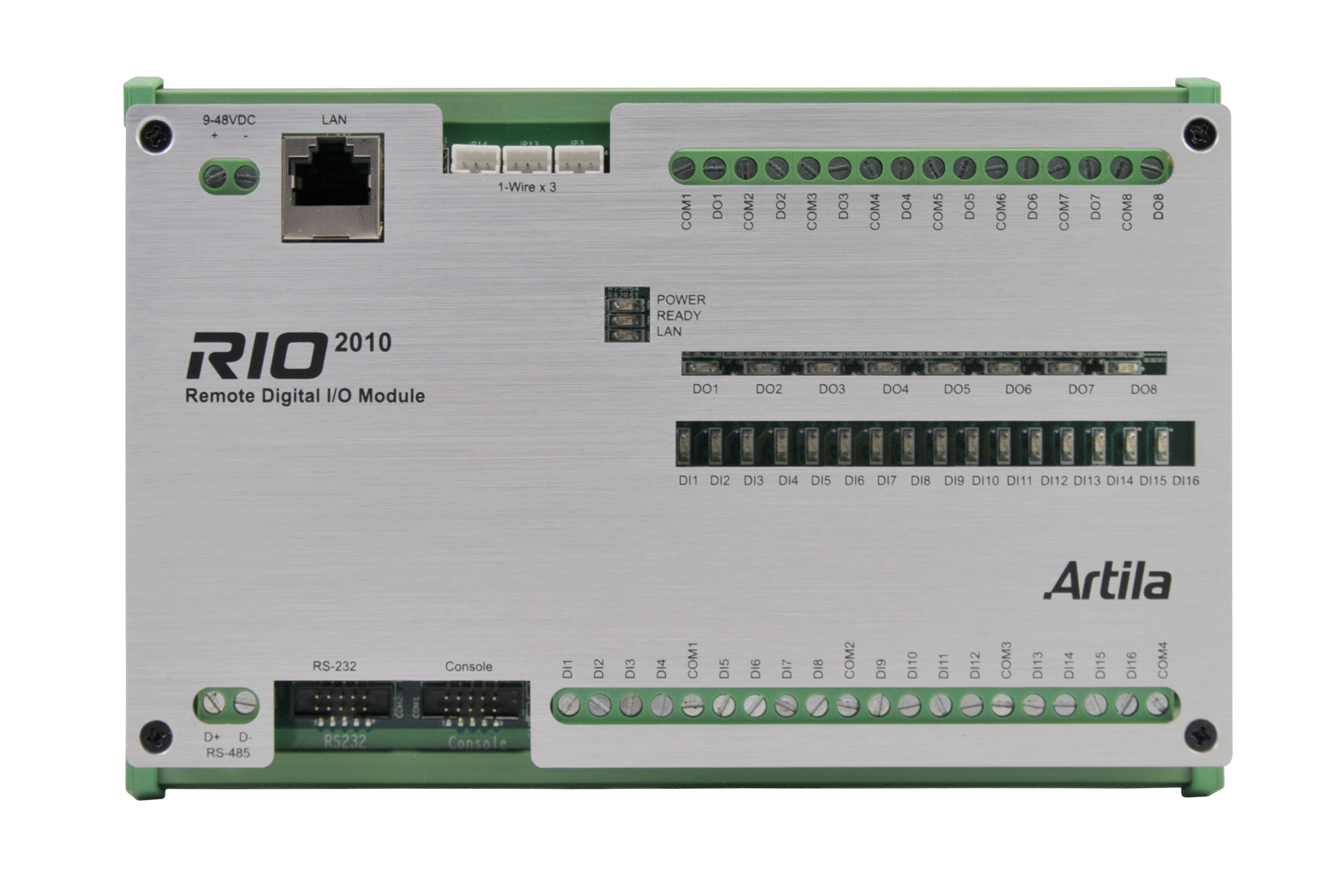

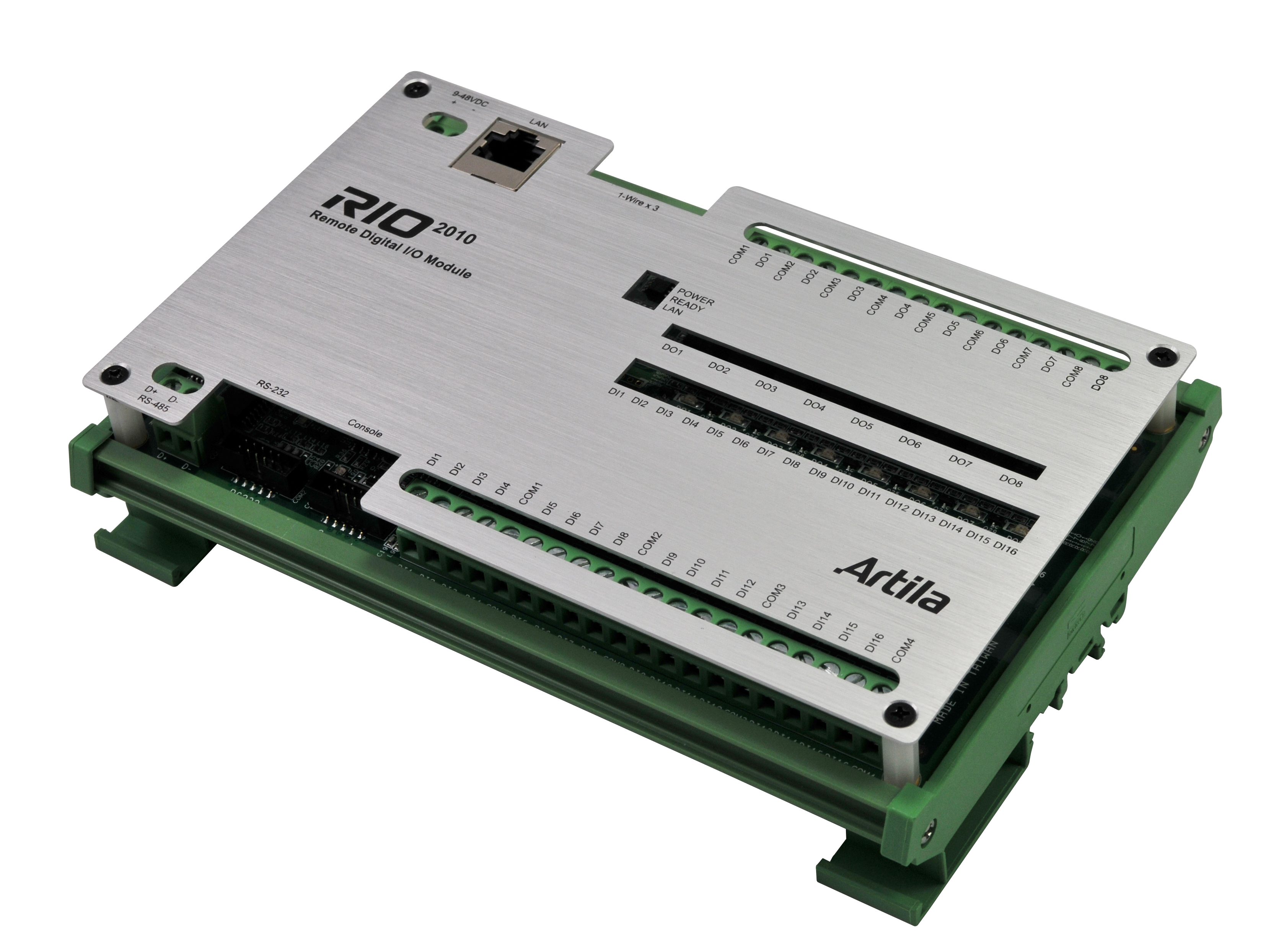

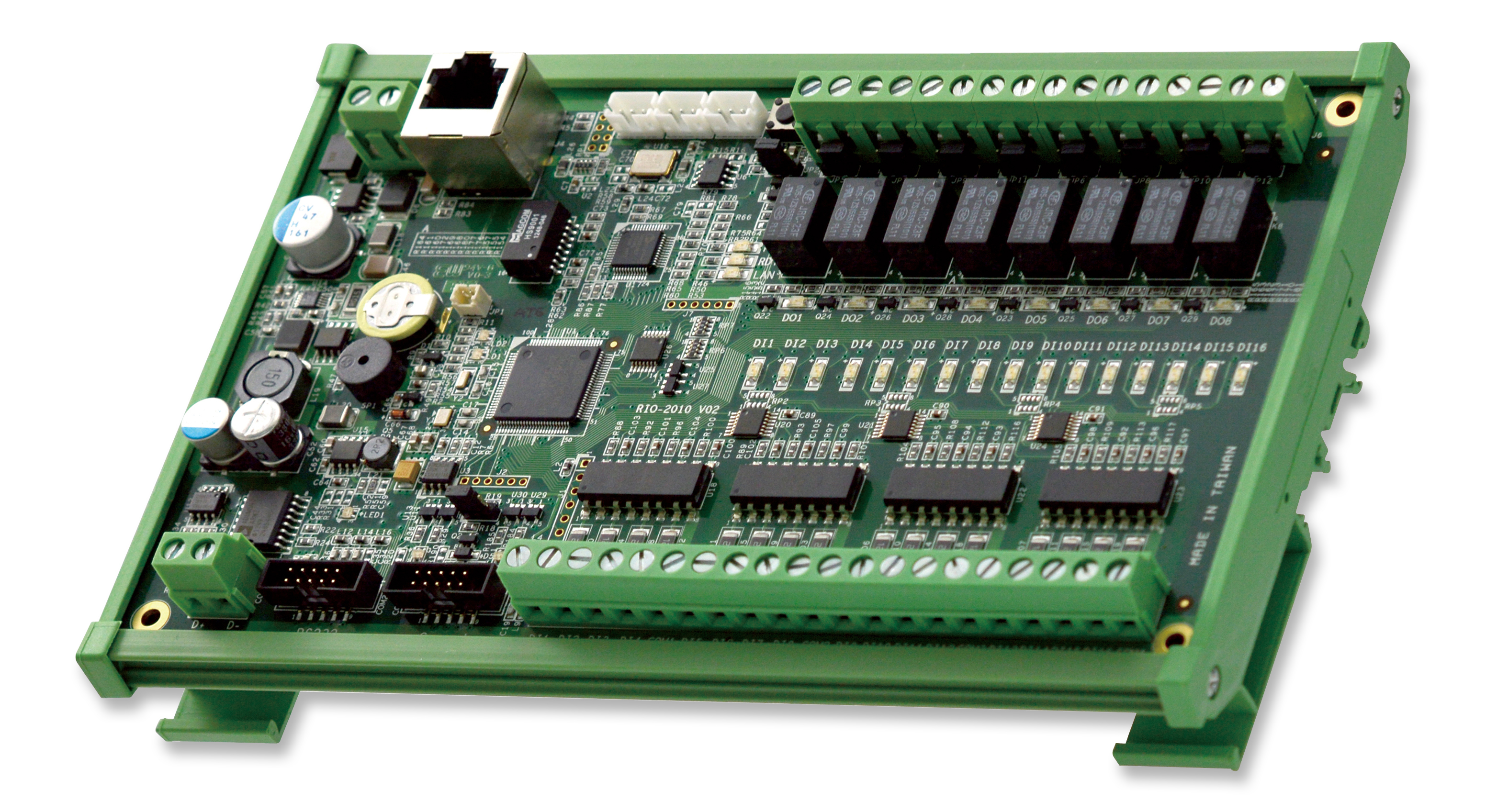

The Artila RIO-2010 is a high-performance Modbus/TCP and Modbus RTU/ASCII Remote Digital I/O Module designed for industrial automation, remote monitoring, and control applications. It provides 16 opto-isolated digital inputs and 8 relay outputs, supporting both Ethernet and RS-485 communication interfaces. The device integrates web-based I/O control, DIN-rail mounting, and a Windows configuration utility, making it a versatile and user-friendly solution for distributed I/O systems in industrial environments.

---

2. Key Features

- Dual Modbus Protocol Support: Operates as a remote I/O device via Modbus/TCP over Ethernet or Modbus RTU/ASCII over RS-485, ensuring compatibility with a wide range of PLCs, SCADA systems, and industrial controllers.
- High Isolation Protection: Both digital inputs and RS-485 interface are protected with 2500 Vrms isolation, ensuring reliable operation in electrically noisy environments.
- Flexible Relay Outputs: Eight relay output channels configurable as Form A (Normally Open) or Form B (Normally Closed) via onboard jumpers (JP5–JP12).
- Web-Based I/O Control: Integrated HTTP server with AJAX-enabled demo pages allows real-time monitoring and control through a standard web browser.
- Comprehensive Communication Interfaces:
- 1× 10/100 Mbps Ethernet port with 1.5 kV magnetic isolation
- 1× isolated RS-485 port (2500 Vrms)
- 1× RS-232 console port for configuration
- 3× Maxim 1-Wire interfaces for sensor integration (e.g., DS18B20 temperature sensors)
- Industrial-Grade Design: Compact metal enclosure with DIN-rail mounting, wide 9–48 VDC power input, and 0–70 °C operating temperature range.
- User-Friendly Configuration: Windows-based utility for broadcast search, configuration, and web page conversion.
- Customizable Web Interface: Users can upload custom HTML pages converted to binary (.anf) format for tailored control dashboards.
- LED Indicators: Comprehensive LED status indicators for power, readiness, LAN activity, digital input/output states, and serial communication.
- Integration with IoT Platforms: Compatible with Node-RED for graphical IoT flow programming, enabling integration with cloud services via RESTful APIs or MQTT.

---

3. Technical Specifications

Network Interface
- Type: 1× 10/100 Mbps Ethernet (RJ-45)
- Isolation: 1.5 kV magnetic isolation
- Protocol: Modbus/TCP
- Default Ports: Modbus/TCP (502), Telnet Console (5001), HTTP (5003)

RS-485 Interface
- Isolation: 2500 Vrms
- Direction Control: Automatic (hardware-based)
- Connector: Terminal block
- Baud Rate: 1200 – 460,800 bps
- Parity: None, Even, Odd, Mark, Space
- Data Bits: 5 – 8
- Stop Bits: 1, 1.5, 2

RS-232 Console Port
- Baud Rate: 115,200 bps
- Data Bits: 8
- Stop Bit: 1
- Flow Control: None

Digital Inputs
- Channels: 16 opto-isolated inputs
- Isolation: 2500 Vrms
- Logical High: 5 – 24 VDC
- Logical Low: 0 – 1.5 VDC
- Input Resistance: 1.2 kΩ @ 0.5 W
- Response Time: 20 µs
- Grouping: 4 channels per common ground
- Indicators: Individual LED per channel

Relay Outputs
- Channels: 8
- Contact Rating: 30 VDC @ 1 A or 125 VAC @ 0.5 A
- Configurable: NO/NC via jumpers (JP5–JP12)
- Indicators: Individual LED per channel

1-Wire Interface
- Channels: 3
- Connector: 3-pin header (VDD, DQ, GND)
- Compatible Devices: Maxim/Dallas 1-Wire sensors (e.g., DS18B20)

CPU
- Type: 32-bit ARM Cortex-M3 series

Power
- Input Voltage: 9 – 48 VDC
- Connector: Terminal block
- Power LED: Solid green when powered correctly

Physical Characteristics
- Dimensions (W×H×D): 182 × 118 × 35.82 mm
- Mounting: DIN-rail
- Operating Temperature: 0 – 70 °C
- Storage Temperature: −20 – 85 °C

---

4. Functionality

The RIO-2010 functions as a remote digital I/O expansion module that communicates with host systems via Modbus/TCP or Modbus RTU/ASCII. It can be deployed in distributed control systems, data acquisition networks, or IoT environments.

Operation Modes:
- Modbus/TCP Mode: Communicates over Ethernet with Modbus masters such as PLCs, SCADA servers, or IoT gateways.
- Modbus RTU/ASCII Mode: Communicates via RS-485 bus with Modbus masters in serial networks.

Web-Based Control:
The built-in web server allows users to monitor and control I/O channels through a browser. The default web interface demonstrates AJAX-based dynamic control, and users can upload customized web pages for specific applications.

HTTP API Access:
- GET Request: `/action/fetchValue?all_val=0` retrieves DI, DO, and sensor data in JSON format.
- POST Request: `/action/CtrlDO` sets relay outputs (e.g., `DO01=H` energizes relay 1).

CLI Configuration:
Accessible via Telnet or serial console using Artila’s proprietary command syntax. Commands follow the format `[G/S]:Command=Parameter` and can configure network settings, Modbus modes, and I/O parameters.

Use Cases:
- Industrial automation and process control
- Remote equipment monitoring
- Building management systems
- Environmental data acquisition
- IoT sensor integration via 1-Wire interface

Compatibility:
- Works with standard Modbus masters (PLCs, SCADA, DCS)
- Integrates with Artila’s IoT gateways and Node-RED environments
- Supports Windows configuration utility for setup and management

---

5. Components & Accessories

Included Items:
1. RIO-2010 Modbus/TCP Remote I/O Module
2. Artila CD (includes configuration utility, web demo source code, manuals, and Modbus function list)

Optional Accessories:
- CB-RJ2CON-100: Serial console cable for RS-232 configuration

Connectors:
- Ethernet (RJ-45)
- RS-485 terminal block
- RS-232 console port
- Power input terminal block (9–48 VDC)
- 1-Wire headers (JP3, JP13, JP14)
- Relay output terminal block (J6)
- Digital input terminal block (J5)

---

6. Installation & Setup

Mounting:
- Designed for DIN-rail installation in control cabinets or industrial enclosures.

Power Connection:
- Connect 9–48 VDC to the power input terminal block.
- Upon correct power supply, the Power LED lights solid green and an audible beep confirms startup.

Network Configuration:
- Default IP: 192.168.2.127
- Netmask: 255.255.255.0
- Default Modbus Mode: Modbus/TCP
- Default Web Server Port: 5003
- Default Telnet Console Port: 5001

Configuration Utility:
- Install the Manager Utility from the included CD before powering on.
- Use the broadcast search function to detect RIO-2010 devices on the network.
- Configure device name, network settings, Modbus mode, and power-on DO states.
- Advanced settings include web server port, TCP command port, serial console configuration, and Modbus master IP access control.

Relay Jumper Settings (JP5–JP12):
- Normal Open (NO): Jumper shorted to pins 2–3 (default).
- Normal Closed (NC): Jumper shorted to pins 1–2.

Factory Default Reset:
- Press the hardware reset button (SW1) to restore factory settings.

---

7. Performance & Capabilities

- Digital Input Response Time: 20 µs ensures fast signal detection.
- Relay Output Switching: Supports both DC and AC loads up to 30 VDC @ 1 A or 125 VAC @ 0.5 A.
- Communication Speed: RS-485 supports up to 460,800 bps for high-speed data exchange.
- Network Throughput: 10/100 Mbps Ethernet ensures low-latency Modbus/TCP communication.
- Isolation: 2500 Vrms isolation on digital inputs and RS-485 interface enhances reliability in harsh environments.
- Power Efficiency: Wide 9–48 VDC input range allows flexible deployment with minimal power consumption.
- Scalability: Multiple RIO-2010 units can be networked under a single Modbus master for large-scale distributed I/O systems.
- Limitations: Relay outputs are mechanical and not suited for high-frequency switching; recommended for control signals and low-current loads.

---

8. Standards & Compliance

- Communication Protocols:
- Modbus/TCP (Ethernet)
- Modbus RTU/ASCII (RS-485)
- HTTP/GET and POST for web-based control
- Isolation Standards: 2500 Vrms isolation for digital inputs and RS-485 interface
- Magnetic Isolation: 1.5 kV on Ethernet port
- Industrial Compliance: Designed for industrial automation and control environments
- Safety and EMC: Meets general industrial-grade electrical isolation and noise immunity requirements
- Software Compatibility: Windows configuration utility, Node-RED integration, RESTful API support

---

9. Additional Information

Warranty & Support:
Artila provides standard manufacturer warranty and technical support for the RIO-2010. Support resources include user manuals, firmware updates, and configuration tools available via the Artila website or included CD.

Maintenance:
- Periodically inspect terminal connections and ensure proper grounding.
- Avoid exposure to excessive humidity or vibration.
- Firmware updates can be applied via the configuration utility or web interface.

Software & Updates:
- Windows Utility: Enables broadcast search, configuration, and web page conversion.
- Web Interface: AJAX-enabled demo page with customizable HTML source code.
- Node-RED Integration:
- Supports RESTful web API for I/O access.
- Compatible with Artila IoT gateways pre-installed with Node-RED.
- Enables graphical flow-based programming for data acquisition and cloud integration.

Node-RED Implementation Example:
A typical setup involves an Artila Matrix-700 IoT gateway running Node-RED connected to a RIO-2010 module. The gateway retrieves digital output data via HTTP GET requests and displays it on a Node-RED dashboard. Users can create flows using input, output, function, and dashboard nodes to visualize and control remote I/O in real time.

Summary of Advantages:
- Robust industrial-grade design with high isolation
- Dual communication interfaces for flexible integration
- Web-based and Modbus-compatible control options
- Easy configuration and customization
- Scalable for distributed automation and IoT applications

---

Comprehensive Summary

The Artila RIO-2010 is a versatile Modbus/TCP and Modbus RTU/ASCII remote digital I/O module engineered for industrial automation, monitoring, and IoT integration. Featuring 16 opto-isolated digital inputs, 8 configurable relay outputs, and multiple communication interfaces (Ethernet, RS-485, RS-232, and 1-Wire), it provides a reliable and flexible platform for distributed control systems.

Its web-based control interface, Windows configuration utility, and Node-RED compatibility make it suitable for both traditional industrial control and modern IoT applications. With 2500 Vrms isolation, wide power input range, and DIN-rail mounting, the RIO-2010 ensures durability and ease of deployment in demanding environments.

Whether used as a standalone remote I/O device, integrated into a Modbus network, or connected to an IoT gateway for cloud-based monitoring, the RIO-2010 delivers robust performance, high configurability, and seamless interoperability across industrial and IoT ecosystems.
