RIO-2018 - Artila

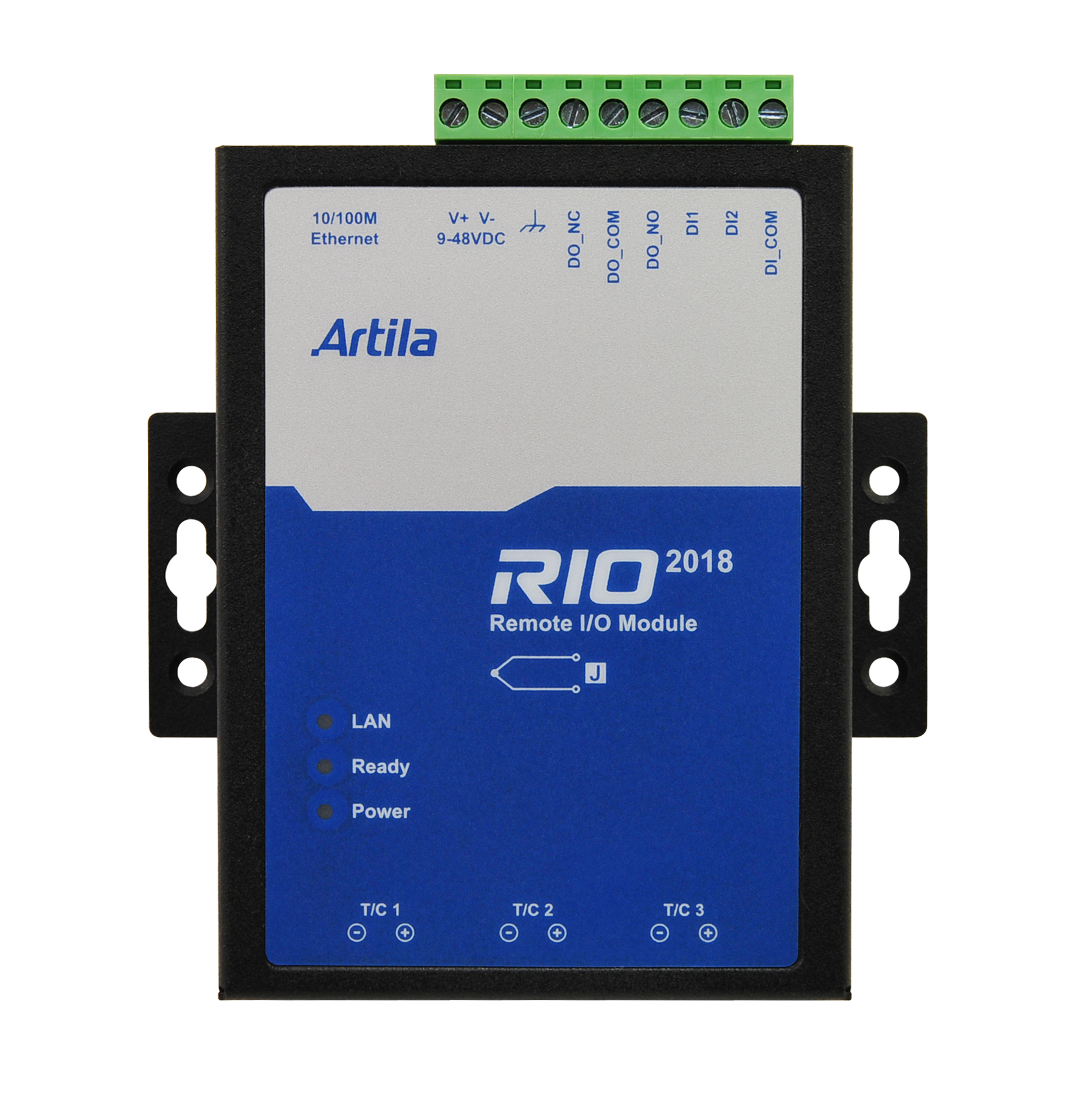

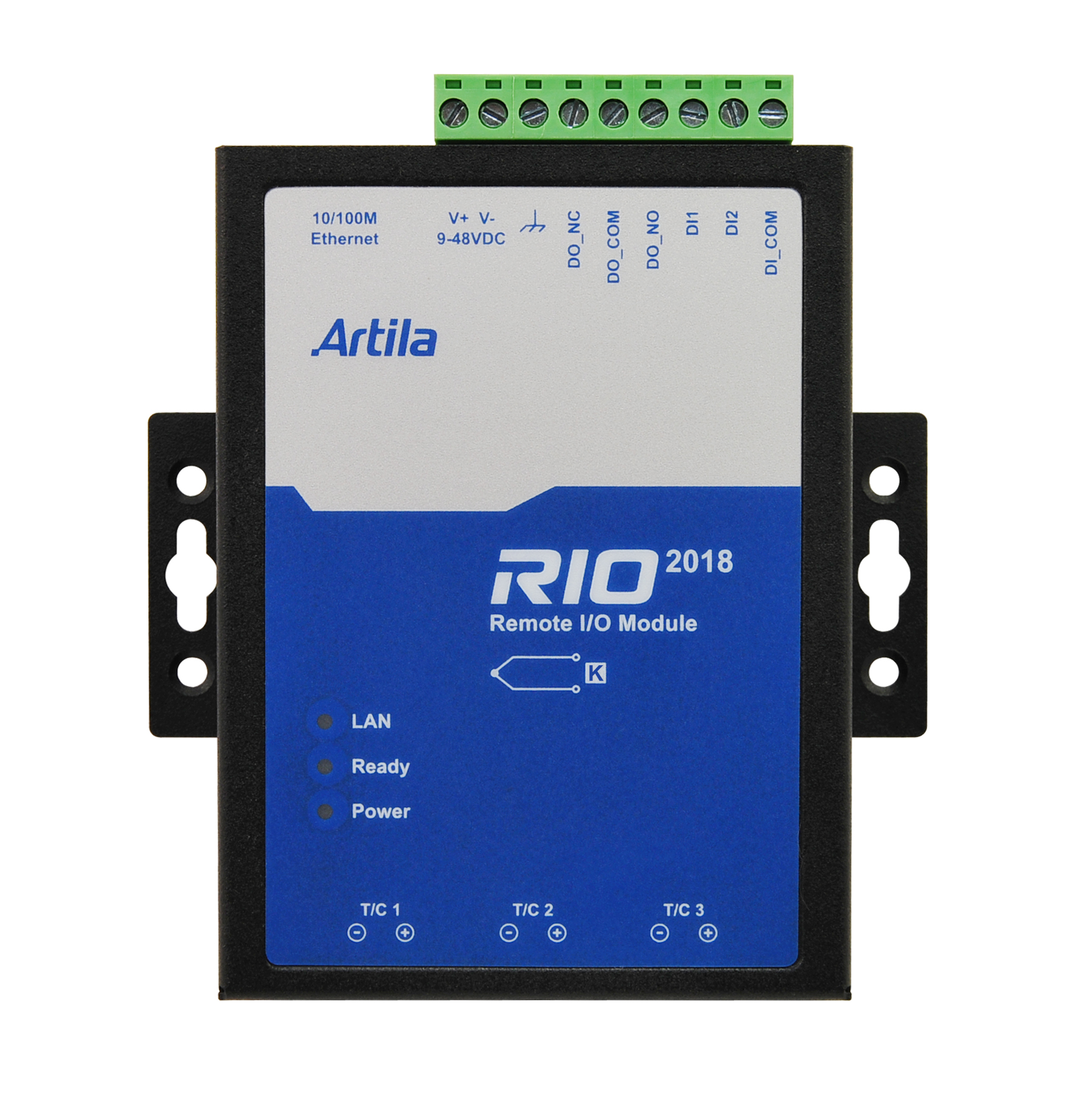

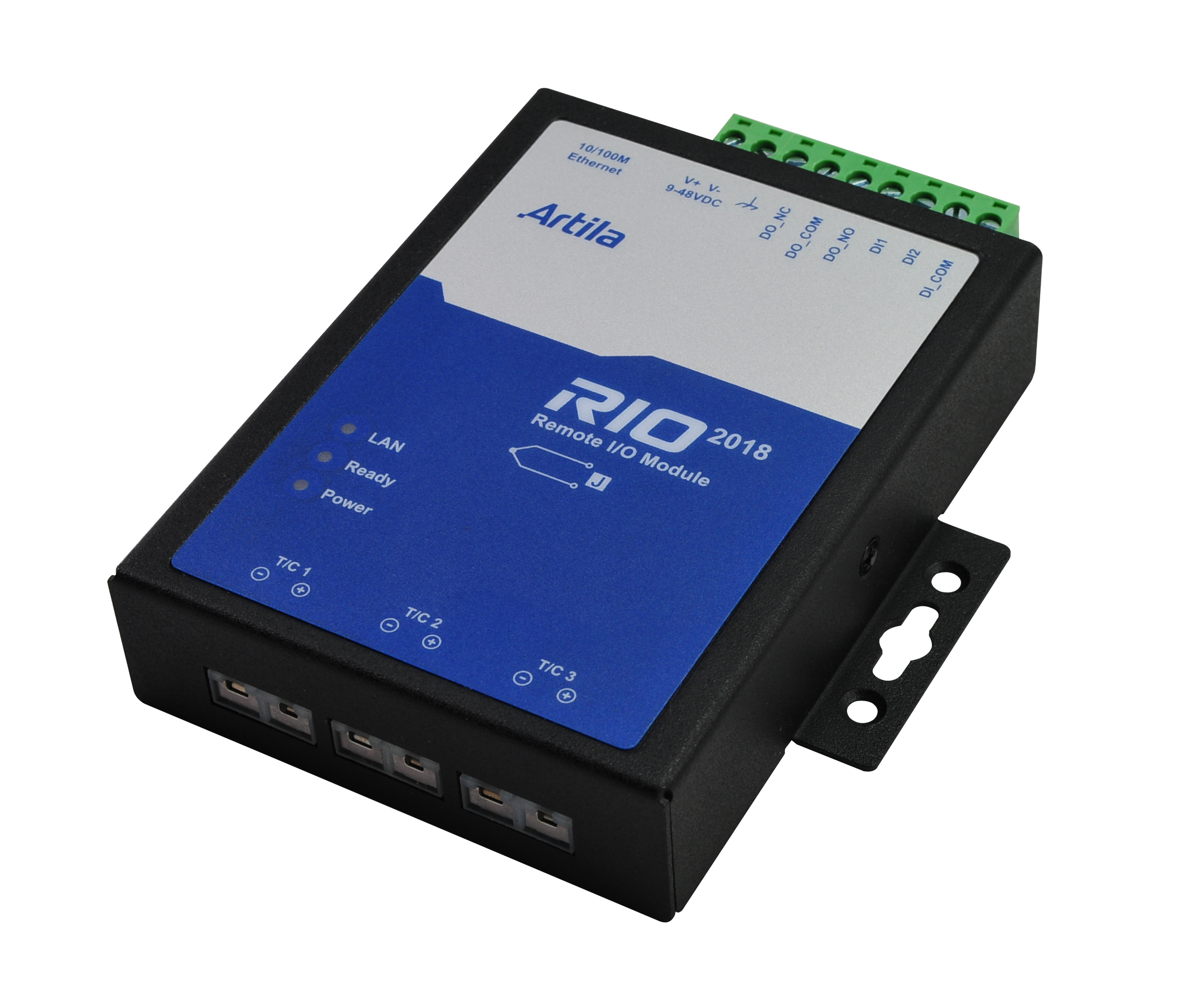

Modbus/TCP Remote AI Module 3* Thermocouple Input
Industrial Computers are specially designed computers that are used in industrial applications such as automation, process control and data acquisition. Embedded Systems are a type of industrial computer that are used to control machines and processes. ARM Embedded Systems are the most popular type of embedded system and are used in a wide range of applications. Automation Controllers are used to control machines and processes in industrial environments. They are used to automate processes and are often used in conjunction with industrial computers..
Description
- Modbus/TCP Remote Analog Input module

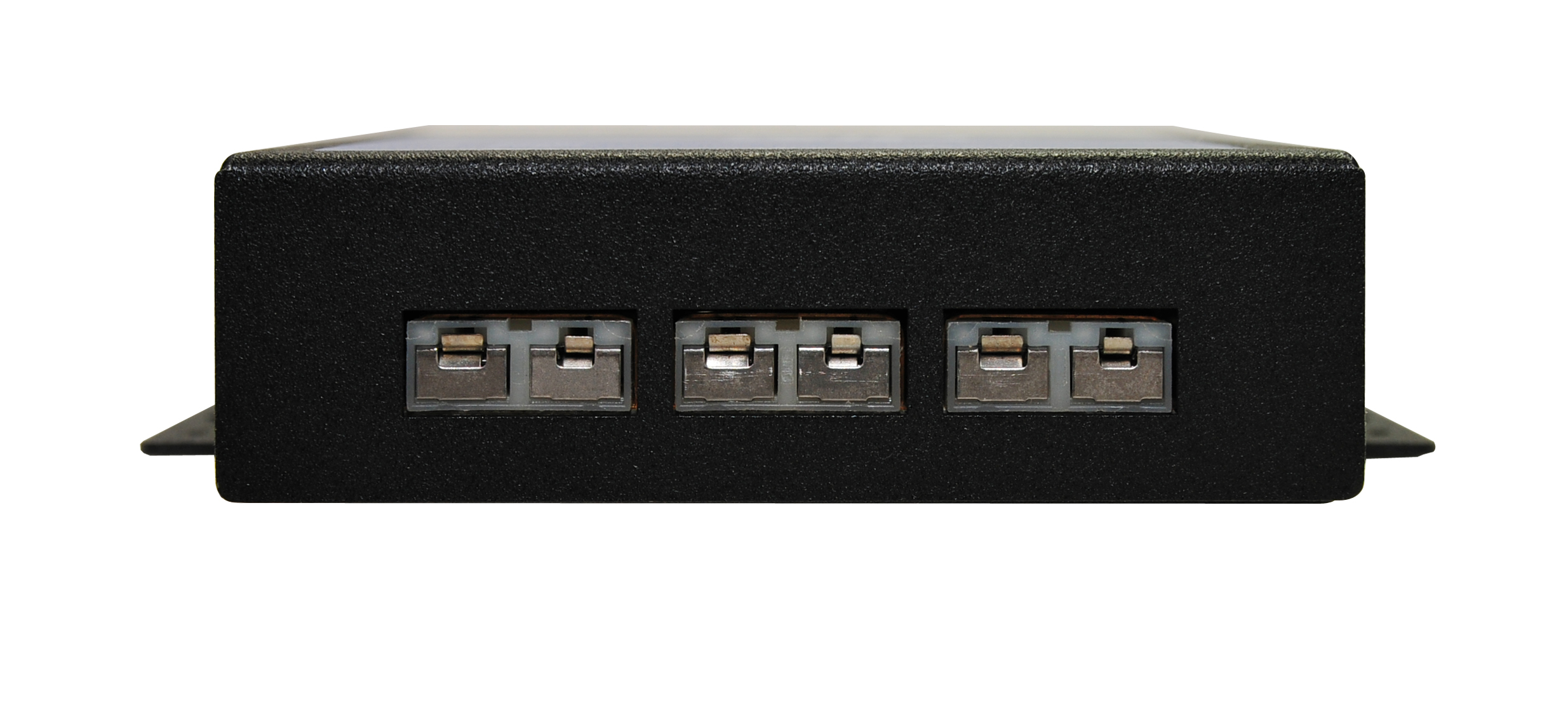

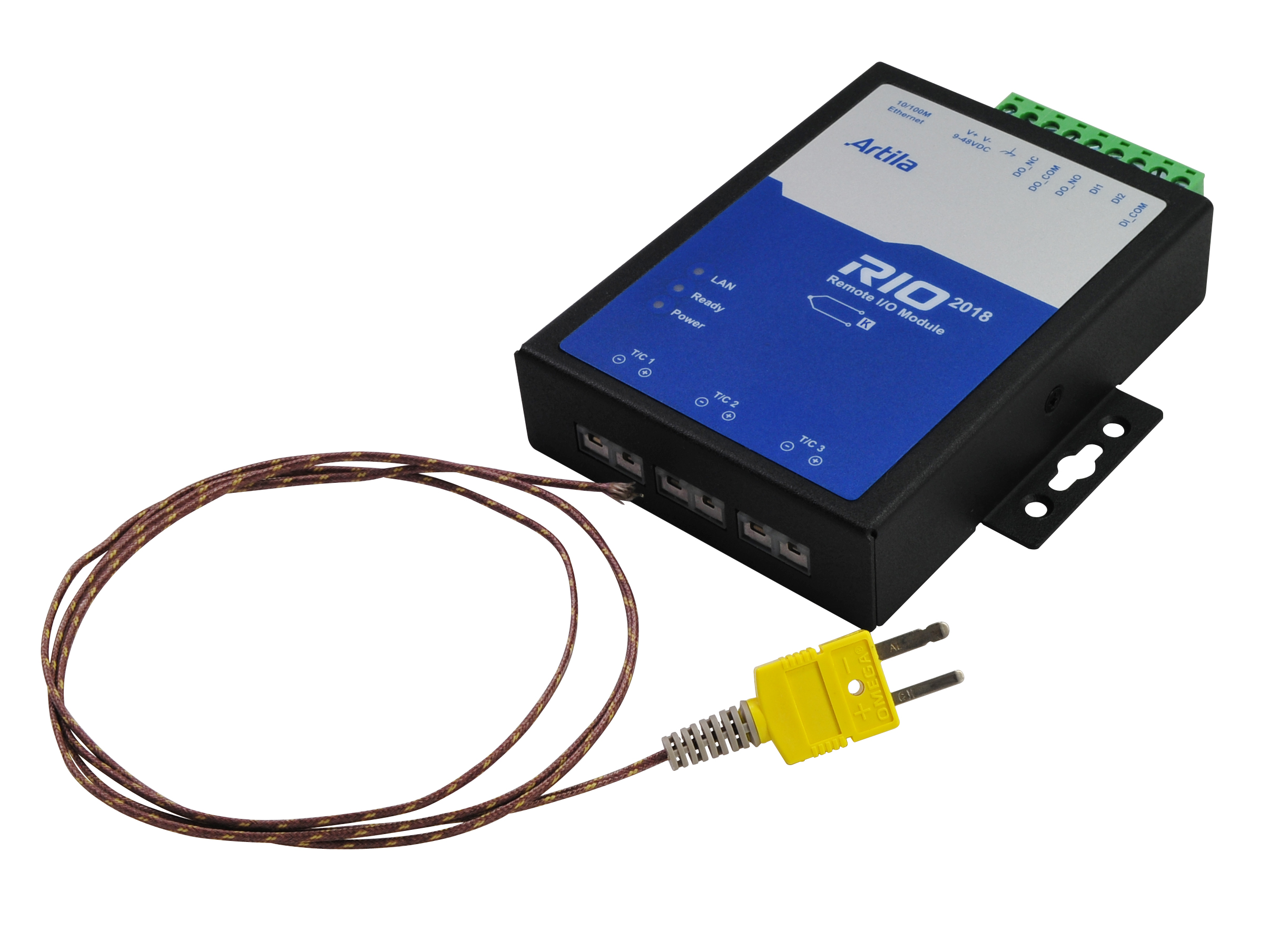

- 3* thermocouple inputs (J/K type with cold junction compensation
- 14bit/0.25°C resolution) with OMEGA PCC-SMP connector
- 1* Relay output (Form C
- contact rating 30VDC@1A or 125VAC@0.5A)
- 2* isolated digital input 24V

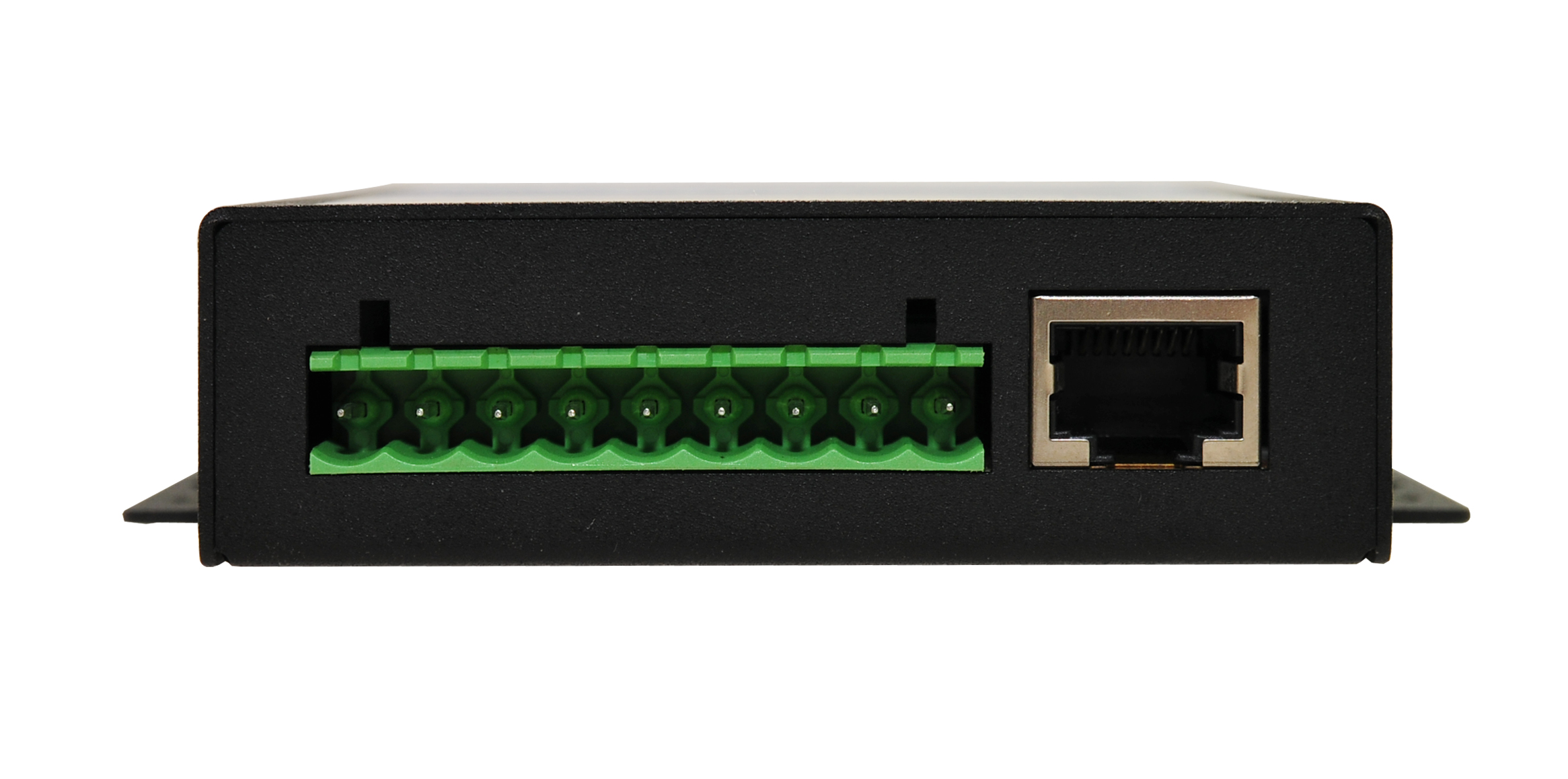

- 1* 10/100Mb Ethernet port
- supports web-based I/O control/temperature monitoring and Ajax Web protocol
- DIN-Rail mounting
- Windows configuration utility included
- Artila
Details
- Width: 78 mm
- Height: 108 mm
- Depth: 24 mm
- Weight: 0.9kg
- Manufacturer: Artila
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
Data Sheets
Manuals
Accessories
-
CB-F10M9-20
DB9m adapter cable iPAC-50XX
