RS4232-8

RS4232-8 - Rayon

8*RS232/RS422/RS485 (mixed use) isolated converter box

This PC Add-On Cards communication card offers 8-port serial communication for RS232, RS485, IEEE, and RS232 Mixed RS485 / RS422. It is perfect for connecting multiple serial devices to a single PC, and offers reliable, high-speed data transmission. It is easy to install and configure, and provides a cost-effective solution for connecting multiple serial devices..
195,00 €
incl. VAT 232,05 €

Description

  • 8*RS422/RS485 isolated converter box
  • 8*independant outputs DB25m
  • each port ground isolated
  • each port independant selectable by DIP switch to RS232/422/485
  • jumper selectable impedance setting in RS422/RS485 mode
  • each port has TXD/RXD monitor LED
  • input DB62f connector for 8*RS232
  • built in power supply 90..260VAC or -48VDC input
  • 298*135*55mm
  • Rayon

Details

  • Width: 298 mm
  • Height: 135 mm
  • Depth: 55 mm
  • Weight: 3.1kg
  • Form factor: extern
  • Manufacturer: Rayon
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Manuals

Downloads

Accessories

  • P588

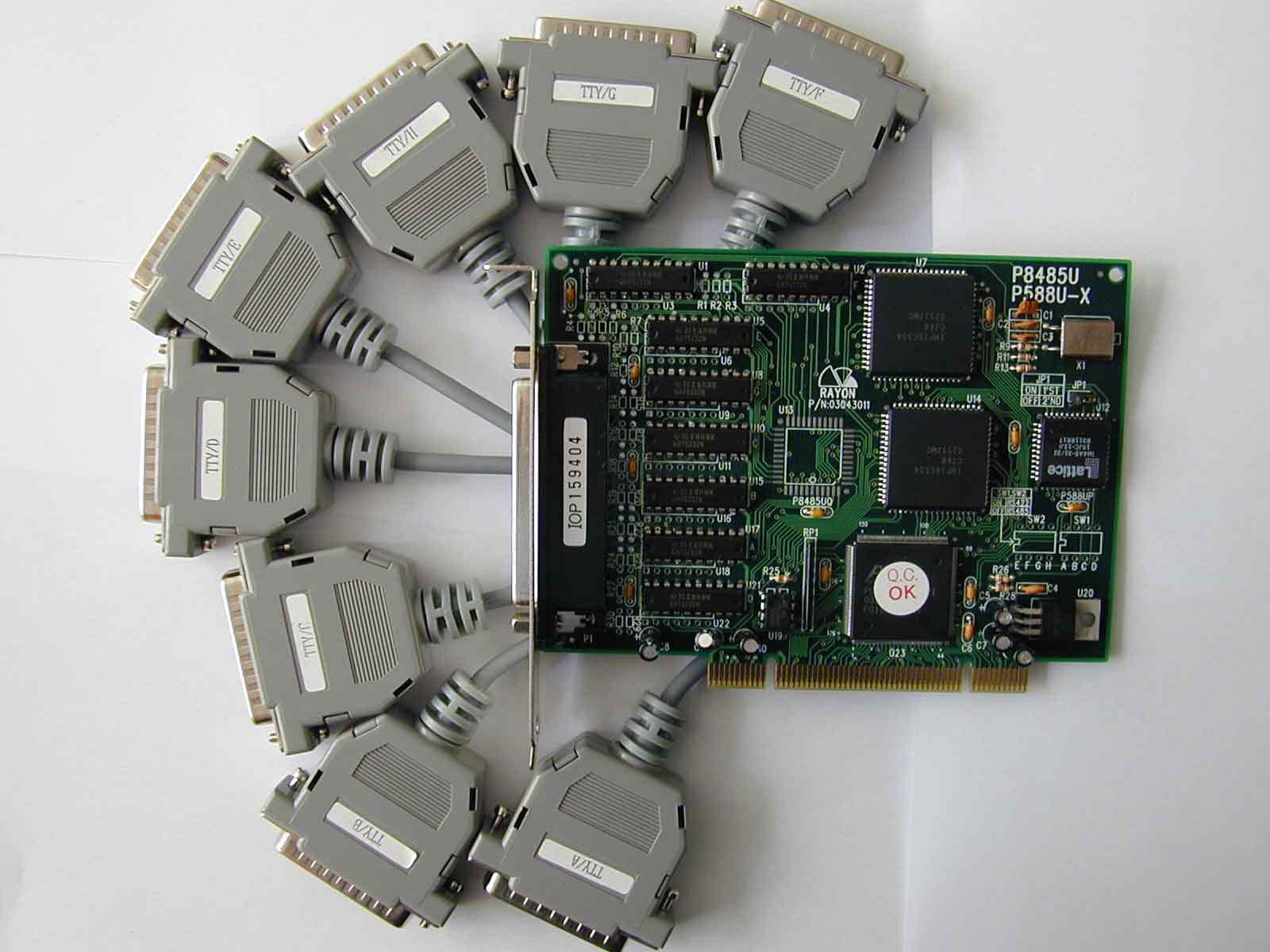

    PCI 8-port RS232 Card (incl. conn. Cable R804)
  • P588U
    UPCI 8-port RS232 Card (incl. conn. Cable R804)
  • P5168U
    UPCI 8-port RS232 Card 5V single power (incl. R804)
  • RS4232-4
    4*RS232/RS422/RS485 (mixed use) isolated converter box
