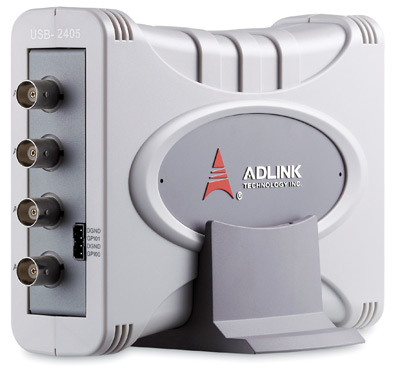

USB-2405/S
USB Bus Powered 24bit 4*Chan Simult. 128kS/s 4DI Module
1866,00 EUR
including VAT 2,220.54 EUR
- High-Resolution Data Acquisition:
24-bit Sigma-Delta ADC with integrated anti-aliasing filter for superior accuracy and noise suppression.
- Simultaneous Sampling:
Four analog input channels capable of simultaneous sampling up to 128 kS/s per channel.
- Flexible Input Configuration:
Software-selectable AC or DC coupling; differential or pseudo-differential input modes.
- IEPE Sensor Support:
Built-in 2 mA excitation current per channel for Integrated Electronic Piezoelectric (IEPE) sensors such as accelerometers and microphones.
- USB Bus Powered:
Operates directly from the USB 2.0 interface (5 V @ 400 mA), simplifying deployment and portability.
- Comprehensive Triggering:
Supports analog and digital trigger sources with multiple trigger modes (post, delay, middle, gated, pre-trigger, and retrigger).
- Auto-Calibration:
Fully automated calibration system with onboard reference voltage and EEPROM storage for calibration constants.
- Software Integration:
Compatible with ADLINK’s U-Test utility, DAQPilot SDK, and UD-DASK driver suite. Supports LabVIEW®, MATLAB®, and Visual Studio.NET environments.
- Compact and Robust Design:
Aluminum enclosure with removable spring terminals and lockable USB connectors for secure installation.
24-bit Sigma-Delta ADC with integrated anti-aliasing filter for superior accuracy and noise suppression.
- Simultaneous Sampling:
Four analog input channels capable of simultaneous sampling up to 128 kS/s per channel.
- Flexible Input Configuration:
Software-selectable AC or DC coupling; differential or pseudo-differential input modes.
- IEPE Sensor Support:
Built-in 2 mA excitation current per channel for Integrated Electronic Piezoelectric (IEPE) sensors such as accelerometers and microphones.
- USB Bus Powered:
Operates directly from the USB 2.0 interface (5 V @ 400 mA), simplifying deployment and portability.
- Comprehensive Triggering:
Supports analog and digital trigger sources with multiple trigger modes (post, delay, middle, gated, pre-trigger, and retrigger).
- Auto-Calibration:
Fully automated calibration system with onboard reference voltage and EEPROM storage for calibration constants.
- Software Integration:
Compatible with ADLINK’s U-Test utility, DAQPilot SDK, and UD-DASK driver suite. Supports LabVIEW®, MATLAB®, and Visual Studio.NET environments.
- Compact and Robust Design:
Aluminum enclosure with removable spring terminals and lockable USB connectors for secure installation.
Comprehensive Product Summary: ADLINK USB-2405/S Dynamic Signal Acquisition Module
### 1. Product Overview
Product Name: USB-2405/S
Model: USB-2405
Series: USB DAQ Series – Dynamic Signal Acquisition Modules
Article Number: USB-2405/S
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-1Z148-1000
Revision: Manual Rev. 2.00 (July 5, 2013)
The ADLINK USB-2405/S is a high-performance, USB 2.0-based dynamic signal acquisition module designed for precision measurement and analysis of vibration, acoustic, and other dynamic signals. It features four simultaneous-sampling analog input channels with 24-bit resolution and a maximum sampling rate of 128 kS/s per channel. The module is fully USB bus-powered, eliminating the need for an external power supply, and integrates advanced signal conditioning, IEPE sensor support, and flexible triggering capabilities.
### 2. Key Features
- High-Resolution Data Acquisition:
24-bit Sigma-Delta ADC with integrated anti-aliasing filter for superior accuracy and noise suppression.
- Simultaneous Sampling:
Four analog input channels capable of simultaneous sampling up to 128 kS/s per channel.
- Flexible Input Configuration:
Software-selectable AC or DC coupling; differential or pseudo-differential input modes.
- IEPE Sensor Support:
Built-in 2 mA excitation current per channel for Integrated Electronic Piezoelectric (IEPE) sensors such as accelerometers and microphones.
- USB Bus Powered:
Operates directly from the USB 2.0 interface (5 V @ 400 mA), simplifying deployment and portability.
- Comprehensive Triggering:
Supports analog and digital trigger sources with multiple trigger modes (post, delay, middle, gated, pre-trigger, and retrigger).
- Auto-Calibration:
Fully automated calibration system with onboard reference voltage and EEPROM storage for calibration constants.
- Software Integration:
Compatible with ADLINK’s U-Test utility, DAQPilot SDK, and UD-DASK driver suite. Supports LabVIEW®, MATLAB®, and Visual Studio.NET environments.
- Compact and Robust Design:
Aluminum enclosure with removable spring terminals and lockable USB connectors for secure installation.
### 3. Technical Specifications
Physical & Environmental:
- Dimensions: 115 mm (W) × 150 mm (D) × 40 mm (H) (4.5” × 5.91” × 1.57”)
Alternate specification: 156.5 mm (L) × 114 mm (W) × 41.3 mm (H)
- Weight: Approx. 0.8 kg (with stand and connectors)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Relative Humidity: 5% to 95%, non-condensing
- Power Supply: USB bus-powered, 5 V @ 400 mA
Connectors:
- Four BNC connectors for analog input
- One 4-pin removable spring terminal block
- USB Mini-B port with lockable cable support
### 4. Functionality
Operation Principle:
The USB-2405/S employs a 24-bit Sigma-Delta ADC architecture with integrated anti-aliasing filters to achieve high dynamic range and low noise. Each of the four analog input channels samples simultaneously, ensuring phase coherence across channels—critical for vibration and acoustic analysis.
Input Configuration:
- Modes: Differential or pseudo-differential
- Input Range: ±10 V
- Input Impedance: 200 kΩ (between positive and negative inputs); 16.93 kΩ (between negative input and chassis ground)
- Input Coupling: AC or DC, software-selectable
- IEPE Excitation: 2 mA or 0 mA (software-selectable), 24 V compliance
Applications:
- Vibration and shock testing
- Machine condition monitoring
- Acoustic and noise analysis
- Structural dynamics and modal testing
- Environmental noise measurement
Compatibility:
- Operating Systems: Windows XP, Windows 7/8 (x86/x64)
- Software: ADLINK U-Test, DAQBench, DAQMaster, LabVIEW, MATLAB, Visual Studio.NET
### 5. Components & Accessories
Included Items:
- USB-2405 module
- Multi-function stand (desk, rail, or wall mount compatible)
- 2 m USB Type-A to USB Mini-B cable (lockable)
- Rail-mount kit
- ADLINK All-in-One software CD
- Quick Start Guide
Optional Accessories:
- RST-20P: Pair of 20-pin removable screw terminals
- USB-2M-L: 2 m USB Type-A to Mini-B cable with lockable connector
Software Utility:
- U-Test: Ready-to-use testing and configuration software for data acquisition, FFT analysis, and logging without programming.
### 6. Installation & Setup
Requirements:
- Windows-based PC with USB 2.0 port
- Installation of ADLINK UD-DASK driver and U-Test utility prior to hardware connection
Mounting Options:
- Desk Mount: Using the included stand
- DIN Rail Mount: Via rail-mount kit
- Wall Mount: Using four 3.4 mm screws through the stand’s mounting holes
Setup Procedure:
1. Install ADLINK drivers and utilities.
2. Connect the USB-2405 to the PC using the provided cable.
3. Wait for firmware to load (LED changes from amber to green).
4. Configure device ID (0–7) using the rear rotary switch for multi-device setups.
5. Launch U-Test or compatible software to begin acquisition.
### 7. Performance & Capabilities
Analog Input Performance:
- Channels: 4 simultaneous-sampling
- Resolution: 24-bit
- Sampling Rate: 1 kS/s to 128 kS/s per channel
- FIFO Buffer: 2k samples per channel (8k total)
- Input Range: ±10 V
- Overvoltage Protection: ±60 V
- Common Mode Range: ±10 V
DC Accuracy (25°C):
- Offset Error: ±0.15 mV typical, ±0.3 mV max
- Gain Error: ±0.15% typical, ±0.3% max
AC Dynamic Performance (typical, 25°C):
- THD (20 Hz–20 kHz): -94 dB (differential), -92 dB (pseudo-differential)
- THD+N (20 Hz–20 kHz): -91 dB (differential), -88 dB (pseudo-differential)
- CMRR: 60 dB (20 Hz–1 kHz)
- Flatness: ±0.01 dB (20 Hz–20 kHz), ±0.15 dB (20 Hz–46.4 kHz)
- Crosstalk: -102 dB @ 1 kHz, -95 dB @ 46.4 kHz
- System Noise: 50 µVrms (High-Resolution Mode), 65 µVrms (High-Speed Mode)
- SFDR: 104 dB @ 1 kHz
- Dynamic Range: 100 dB @ 1 kHz
Bandwidth:
- -3 dB bandwidth = 0.49 × sampling rate
- AC cut-off frequency (-3 dB): 0.4 Hz
- AC cut-off frequency (-0.1 dB): 2.4 Hz
Digital I/O:
- Channels: 2 programmable GPIO
- Logic Levels: 3.3 V / TTL
- Modes: Static I/O, PWM output (up to 4 MHz), frequency/event counter (up to 4 MHz), digital trigger IN, synchronization sample clock IN (up to 128 kHz)
- Overvoltage Protection: -2 V to +7 V
Triggering:
- Sources: Analog or digital (software-selectable)
- Modes: Post, delay, middle, gated, pre-trigger, retrigger
- Trigger Level Resolution: 24-bit (full-scale range)
- Digital Trigger Polarity: Rising or falling edge
Data Transfer:
- Programmed I/O and continuous bulk transfer modes
- Supports software polling and continuous acquisition
### 8. Standards & Compliance
- Interface: Hi-Speed USB 2.0 (compatible with USB 1.1/3.0 ports)
- Environmental Compliance:
- RoHS (Restriction of Hazardous Substances)
- WEEE (Waste Electrical and Electronic Equipment)
- Safety: Designed for CE and FCC compliance
- Quality Assurance: Factory-calibrated with EEPROM-stored constants
- Operating Standards: Meets industrial-grade DAQ performance and reliability requirements
### 9. Additional Information
Calibration:
- Factory-calibrated with constants stored in EEPROM
- Auto-calibration utility corrects offset and gain errors without external references
- User calibration constants can be saved and restored via software
Warranty & Support:
- Standard ADLINK limited warranty (contact manufacturer for terms)
- Global technical support via regional offices in Taiwan, USA, China, Japan, Germany, France, Korea, Singapore, India, and Israel
- Email support: service@adlinktech.com
Maintenance:
- No user-serviceable parts inside
- Periodic recalibration recommended for optimal accuracy
- Clean with dry, lint-free cloth; avoid moisture and dust ingress
Software Updates:
- Latest drivers and utilities available at [www.adlinktech.com](http://www.adlinktech.com)
- Supported driver packages: UD-DASK (v1.2.2.0627+), DAQPilot (v2.6.1.0628+)
Safety Notes:
- Operate within specified environmental limits
- Avoid exposure to moisture, vibration, or excessive heat
- Disconnect USB cable before installation or removal
- Only qualified personnel should service the device
### Summary
The ADLINK USB-2405/S is a precision-engineered, four-channel, 24-bit dynamic signal acquisition module optimized for high-fidelity measurement of vibration, sound, and other dynamic phenomena. Its combination of simultaneous sampling, wide dynamic range, and integrated IEPE excitation makes it ideal for laboratory, industrial, and field applications. With USB bus power, flexible mounting, and comprehensive software support, the USB-2405/S delivers a complete, portable, and reliable data acquisition solution for engineers and researchers requiring accurate, synchronized, and high-resolution signal capture.
