- **High‑Resolution Analog Output:** 16‑bit digital‑to‑analog conversion with 15‑bit guaranteed monotonicity for precise voltage generation. - **Channel Density:** 16 independent voltage output channels, each with a dedicated DAC. - **Output Range:** Bipolar ±10 V analog output range, suitable for control and signal generation applications. - **Rear I/O Configuration:** Rear I/O connectivity via a 37‑pin D‑sub female connector, enabling clean front‑panel integration in CompactPCI chassis. - **Fast Response:** Typical slew rate of 26 V/µs and settling time of 130 µs for a 20 V step. - **Output Drive Capability:** ±5 mA maximum per channel, supporting direct connection to moderate‑impedance loads. - **Digital I/O Support:** 4‑channel TTL digital inputs and 4‑channel TTL digital outputs for auxiliary control and status signaling. - **Plug‑and‑Play Operation:** Fully compliant with CompactPCI Plug‑and‑Play configuration; automatic resource assignment via system BIOS. - **Software & OS Support:** Compatible with Windows 7/8 (x86/x64) and Linux. Drivers and SDKs available for LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **CompactPCI Compliance:** 3U Eurocard form factor, PICMG 2.0 R2.1 compliant, ensuring interoperability with standard CompactPCI backplanes. - **Integrated DC/DC Converter:** Provides isolated and stable power for analog circuitry, minimizing noise and improving accuracy. - **Calibration Support:** Factory‑calibrated with precision DMM; supports re‑calibration to maintain long‑term accuracy.

Manufacturer: Adlink Technology Inc.

Category: D/A Intelligent PXI/cPCI

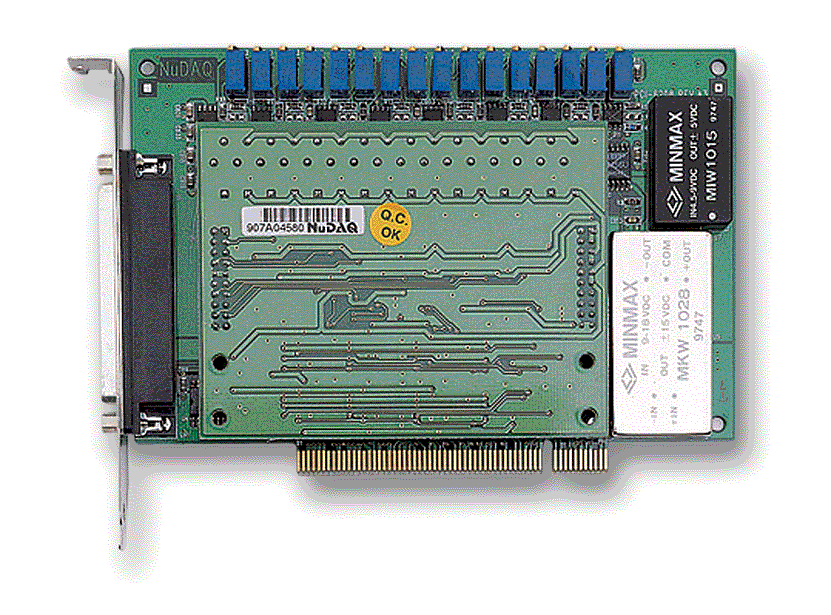

- **High‑Density Analog Output:** 16 independent voltage output channels, each with 16‑bit resolution and ±10 V range. - **High Precision and Stability:** Utilizes Burr‑Brown PCM56U or equivalent monolithic multiplying DACs with ultra‑stable NiCr thin‑film resistors ensuring monotonicity, low distortion, and minimal differential linearity error. - **Fast Response:** Typical settling time of 2 µs for a full‑scale (‑10 V to +10 V) step; slew rate up to 10 V/µs (typical). - **Excellent Accuracy:** Gain error ±0.2 % maximum; differential non‑linearity ±0.65 LSB typical; monotonicity guaranteed to 15 bits. - **Integrated Power Conversion:** Onboard DC‑to‑DC converter provides isolated ±15 V analog supply rails, ensuring stable operation and reduced noise coupling from the PCI bus. - **Digital I/O Support:** Four TTL‑compatible digital inputs and four TTL‑compatible digital outputs for auxiliary control and status signaling. - **Plug‑and‑Play PCI Interface:** Fully compliant with 32‑bit PCI bus specifications; automatic resource allocation via BIOS (PnP). - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers; supports Windows and Linux environments; integrates with MATLAB®, LabVIEW™, VEE™, and ActiveX® environments. - **Calibration and Utility Tools:** Includes DOS‑based 6208UTIL.EXE for functional testing and calibration; supports fine adjustment of full‑scale and offset per channel.

Manufacturer: Adlink Technology Inc.

Category: D/A General Purpose PCI

- **16‑Channel, 16‑Bit Analog Voltage Outputs:** Provides 16 independent voltage output channels with 16‑bit resolution for high‑precision signal generation. - **Universal PCI Interface:** Supports both 3.3 V and 5 V, 32‑bit PCI bus standards, ensuring compatibility with a wide range of industrial PCs. - **High Accuracy and Stability:** ±0.2% maximum gain error, ±1 LSB typical DNL, and 130 µs typical settling time for a 20 V step. - **Bipolar Output Range:** ±10 V output range suitable for control and simulation applications. - **Integrated Digital I/O:** 4 TTL digital inputs and 4 TTL digital outputs for auxiliary control and status monitoring. - **Dedicated DAC per Channel:** Each channel uses a dedicated 16‑bit DAC (e.g., BB PCM56U or equivalent) for simultaneous and independent updates. - **Fast Slew Rate:** 26 V/µs typical, enabling rapid signal transitions. - **Plug‑and‑Play Configuration:** Automatic resource allocation via PCI PnP BIOS, no manual jumper settings required. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers and SDKs available for LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Built‑in DC/DC Converter:** Ensures stable internal power for analog circuitry. - **Compact Design:** 175 mm × 107 mm PCB size, 37‑pin D‑sub connector interface. - **Backward Compatibility:** Fully compatible with earlier PCI‑6216V hardware and software.

Manufacturer: Adlink Technology Inc.

Category: D/A General Purpose PCI

16-ch 16-bit 500KS/s PCIe multifunction DAQ card

PCI Express x1 multifunction DAQ card with 16 single-ended or 8 differential analog inputs, 16-bit resolution, up to 1 MS/s scanning or 4 MS/s single-channel, can function as 2-channel simultaneous DAQ, 2 analog outputs at 16-bit, 16 DI, 16 DO, 4 general-purpose 32-bit timer/counters, 2-channel encoder support, DMA support, 68-pin SCSI-type female connector, and 0°C to 60°C operation.

Manufacturer: Adlink Technology Inc.

Category: No category

- **Dual 16-Channel Configuration:** Provides 16 discrete NPN sinking input channels and 16 discrete NPN sinking output channels on a single compact daughter board. - **High-Speed Communication:** Designed for ADLINK’s HSL (High Speed Link) system, ensuring fast, deterministic data transfer for industrial automation. - **Flexible Power Input:** Operates with an external DC power supply ranging from +10V to +30V DC. - **Compact and Modular Design:** Compatible with multiple terminal base options (HSL-TB32-DIN, HSL-TB32-U-DIN, HSL-TB64-DIN) for flexible installation and expansion. - **LED Indicators:** Provides clear visual feedback for power (red), link status (green), discrete input (green), and discrete output (yellow). - **Configurable Addressing:** DIP switch settings allow up to 63 address configurations for system scalability. - **Fast Response Time:** Input and output response times are both ≤ 2 ms, ensuring real-time control performance. - **Industrial-Grade Reliability:** Designed for harsh industrial environments with robust electrical isolation and durable construction. - **Multiple Model Variants:** Available in four configurations (NN, NP, PN, PP) to support NPN/PNP input and output combinations. - **Ease of Integration:** Fully compatible with ADLINK’s HSL terminal bases and controllers, simplifying wiring and system setup.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels (NPN sinking type) and 16 discrete output channels (PNP sourcing type), allowing simultaneous monitoring and control of digital signals. - **High-Speed Communication:** Designed for ADLINK’s **HSL (High Speed Link)** system, ensuring rapid data exchange between distributed I/O modules and host controllers. - **Flexible Power Input:** Operates with an external DC power supply ranging from **+10V to +30V DC**, supporting diverse industrial power environments. - **Compact and Modular Design:** The daughter board can be mounted on various terminal bases (HSL-TB32-U-DIN or HSL-TB64-DIN), providing scalability and ease of integration. - **LED Indicators:** Equipped with multiple LED indicators for **DC power (Red)**, **Link status (Green)**, **Discrete Input (Green)**, and **Discrete Output (Yellow)**, enabling quick visual diagnostics. - **Configurable Addressing:** DIP switch settings allow address configuration from **1 to 63**, supporting large-scale distributed I/O networks. - **Fast Response Time:** Input and output response times are both **2 ms maximum**, ensuring real-time performance for automation control. - **Industrial-Grade Reliability:** Designed for robust operation in industrial environments, with solid-state transistor outputs and optically isolated inputs. - **Compatibility:** Fully compatible with ADLINK’s HSL terminal bases and communication modules, supporting RS-422 differential signaling for reliable data transmission.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels (PNP sourcing type) and 16 discrete output channels (NPN sinking type), allowing simultaneous monitoring and control of digital signals. - **High-Speed Communication via HSL:** Designed for ADLINK’s **High Speed Link (HSL)** system, ensuring fast, deterministic, and reliable data exchange between distributed I/O modules and host controllers. - **Flexible Input/Output Types:** Supports multiple configurations across the HSL-DI16DO16-M series, including NN, NP, PN, and PP variants for different sourcing/sinking combinations. - **Compact Modular Design:** The daughter board form factor allows easy integration with the **HSL-TB32-M-DIN** terminal base, minimizing wiring complexity and installation space. - **Wide Power Supply Range:** Operates from **+10V to +30V DC**, suitable for a variety of industrial power environments. - **LED Status Indicators:** Provides visual feedback for power, link status, and individual input/output channel activity: - Power (Red) - Link (Green) - Discrete Input (Green) - Discrete Output (Yellow) - **Fast Response Time:** Input and output response times are both **≤ 2 ms**, ensuring real-time responsiveness for automation control loops. - **DIN-Rail Mountable Terminal Base:** Compatible with **HSL-TB32-M-DIN**, a 32-channel I/O terminal base with DIN socket for secure and organized installation. - **Address Configuration via DIP Switch:** Supports up to 63 address settings using a 6-bit DIP switch, enabling flexible network addressing within HSL systems.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels and 16 discrete output channels, both configured for **PNP sourcing** operation. - **High-Speed Communication:** Designed for ADLINK’s **HSL (High Speed Link)** system, ensuring rapid data exchange between modules and controllers. - **Flexible Addressing:** DIP switch configuration allows up to **63 address settings**, enabling scalable multi-module installations. - **Wide Power Supply Range:** Operates with external DC power from **+10V to +30V**, ensuring compatibility with various industrial power environments. - **LED Indicators:** - **Red LED:** Active DC power - **Green LED:** Link and discrete input status - **Yellow LED:** Discrete output status These indicators provide immediate visual feedback for power, communication, and I/O activity. - **Compact Modular Design:** Compatible with **HSL-TB32-M-DIN** terminal base for DIN-rail mounting, simplifying installation and maintenance. - **Fast Response Time:** Input and output response times of **2 ms maximum**, suitable for time-critical automation processes. - **High Reliability:** Industrial-grade design with robust electrical isolation and noise immunity. - **Flexible I/O Configuration:** Supports both **wet contact** and **PNP sourcing** input types, and **PNP sourcing** transistor outputs. - **Low Power Consumption:** Typical power consumption of **1.8 W**, minimizing system energy requirements.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

17-inch open-frame industrial touch monitor

17-inch open-frame industrial touch monitor with 1280 x 1024 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 input, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 50°C.

Manufacturer: Adlink Technology Inc.

Category: No category

18.5-inch widescreen industrial touch monitor

18.5-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 30,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 60°C.

Manufacturer: Adlink Technology Inc.

Category: No category

19-inch open-frame industrial touch monitor

19-inch open-frame industrial touch monitor with 1280 x 1024 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 input, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature -20°C to 70°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **High-Quality IEEE-488 (GPIB) Cable:** Fully compliant with IEEE-488 standards for instrumentation communication. - **Heavy-Duty Construction:** Designed for demanding laboratory and industrial environments where durability and signal reliability are critical. - **Double-Sided Metal Connectors:** Equipped with rugged, full-metal connectors on both ends to ensure secure mechanical coupling and superior shielding against electromagnetic interference (EMI). - **Optimized Signal Integrity:** Low-resistance conductors and high-quality shielding minimize crosstalk and signal degradation, ensuring accurate data transmission. - **Standardized Pin Configuration:** Fully compatible with IEEE-488 interface devices, including oscilloscopes, signal generators, power supplies, and data acquisition systems. - **Stackable Connector Design:** Allows daisy-chaining of multiple instruments in a GPIB bus configuration without additional adapters. - **1-Meter Length:** Ideal for short-distance interconnections where minimal signal delay and compact cable management are desired. - **Industrial-Grade Materials:** Built with reinforced insulation and strain relief to withstand repeated flexing and mechanical stress. - **Plug-and-Play Compatibility:** No special drivers or configuration required; connects directly to standard IEEE-488 ports.

Manufacturer: Adlink Technology Inc.

Category: IEEE (GPIB) Cards

- **High-Quality IEEE-488 (GPIB) Interface Cable:** Designed for use with instruments and controllers that communicate via the IEEE-488 standard. - **Micro-D Connector Design:** Compact Micro-D connectors provide a smaller form factor compared to standard IEEE-488 connectors, ideal for space-constrained applications. - **Heavy-Duty Construction:** Double-sided metal connectors ensure mechanical durability, shielding integrity, and long service life in demanding environments. - **1-Meter Length:** Optimized for short-distance, low-loss connections between instruments and controllers, minimizing signal degradation. - **Enhanced Shielding:** Metal connector housings and shielded cable construction reduce electromagnetic interference (EMI) and maintain signal fidelity. - **High Conductivity Contacts:** Precision-machined contacts ensure low contact resistance and consistent electrical performance. - **Plug-and-Play Compatibility:** Fully compatible with IEEE-488/GPIB-compliant instruments, controllers, and interface cards. - **Industrial-Grade Reliability:** Designed for continuous operation in laboratory, manufacturing, and test environments. - **Corrosion-Resistant Materials:** Metal connectors and high-quality cable jacket materials resist oxidation and wear. - **Secure Connection:** Screw-lock or latch mechanisms (depending on connector variant) provide secure mating and prevent accidental disconnection.

Manufacturer: Adlink Technology Inc.

Category: IEEE (GPIB) Cards

Dual 10G SFP+ ports,

Manufacturer: Adlink Technology Inc.

Category: 1U Barebone System

- **Lockable Mini-B Connector:** The cable features a lockable USB Mini-B plug that prevents accidental disconnection, ensuring a secure and stable link even in high-vibration or mobile environments. - **High-Speed USB 2.0 Compliance:** Fully compliant with the USB 2.0 standard, supporting data transfer rates up to 480 Mbps for fast and efficient communication between host and peripheral devices. - **Industrial-Grade Durability:** Designed for industrial and embedded applications, the cable uses robust materials and reinforced connectors to withstand mechanical stress, temperature variations, and frequent handling. - **Extended Length (2 Meters):** Provides ample reach for flexible installation in control cabinets, test benches, or field-deployed systems without compromising signal integrity. - **Universal Compatibility:** Connects standard USB Type A host ports (e.g., PCs, industrial controllers, embedded systems) to USB Mini-B device ports (e.g., data acquisition modules, cameras, sensors, and embedded peripherals). - **Secure Data and Power Transmission:** Supports both data communication and power delivery as per USB 2.0 specifications, ensuring reliable operation of connected devices. - **Plug-and-Play Operation:** No additional drivers or configuration required; compatible with major operating systems and USB-compliant devices.

Manufacturer: Adlink Technology Inc.

Category: USB Data Acquisition

- **Interface Conversion:** Converts a 2×20-pin (40-pin) flat cable or header connection to a standard DB37 (37-pin) D-sub connector. - **High Compatibility:** Designed for use with ADLINK DAQ cards and other compatible I/O boards featuring 2×20-pin headers. - **Robust Construction:** Built with high-quality materials to ensure stable electrical performance and long-term durability in industrial environments. - **Ease of Integration:** Provides a straightforward method to connect internal board signals to external equipment without custom cabling. - **Signal Integrity:** Maintains consistent signal quality through precision pin mapping and minimized crosstalk. - **Compact Form Factor:** Designed to fit standard PCI or PCIe slot brackets, allowing easy installation within PC chassis or test systems. - **Versatile Application:** Suitable for laboratory testing, automation control, data acquisition, and signal monitoring setups. - **Plug-and-Play Design:** No additional configuration required—simply connect the 2×20-pin ribbon cable and secure the DB37 connector. - **Standardized Pin Mapping:** Follows ADLINK’s standard pin assignment for DB37 interfaces, ensuring compatibility with a wide range of modules and accessories.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Interface Conversion:** Converts a 2×20‑pin (40‑pin) flat‑ribbon header connection to a DB‑37 (37‑pin D‑sub) connector interface. - **Extended Cable Length:** 1 meter cable length provides flexibility for internal or external routing within enclosures or test benches. - **High Compatibility:** Designed for ADLINK DAQ, DIO, and motion control cards that use 2×20‑pin onboard headers. - **Robust Construction:** Industrial‑grade cable with durable insulation and molded connectors for long‑term reliability. - **Signal Integrity:** Shielded cable design minimizes noise and crosstalk, ensuring accurate signal transmission for digital and analog signals. - **Ease of Integration:** Plug‑and‑play compatibility with ADLINK I/O cards and breakout modules; simplifies wiring and reduces installation time. - **Versatile Application:** Suitable for laboratory instrumentation, automation systems, data acquisition setups, and embedded control environments. - **Secure Connection:** Locking connectors and strain relief prevent accidental disconnection and mechanical stress on the cable ends. - **Standardized Pin Mapping:** Maintains consistent pin assignments between the 2×20‑pin header and DB‑37 connector for straightforward signal routing.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Dual 50-pin SCSI-II Interface:** Equipped with two standard 50-pin SCSI-II connectors, allowing easy connection between host controllers and peripheral devices. - **DIN Rail Mounting:** Designed for direct installation on standard 35 mm DIN rails, enabling quick and secure mounting in industrial enclosures. - **Integrated Termination:** Provides proper SCSI-II bus termination to maintain signal integrity and prevent reflection or data errors in multi-device configurations. - **High-Quality Construction:** Built with industrial-grade materials and precision PCB layout to ensure durability, electrical stability, and long-term reliability. - **Included Cable (ACL-10252):** Bundled with an Adlink ACL-10252 cable for immediate connectivity, reducing setup time and ensuring compatibility with Adlink DAQ cards and controllers. - **Compact Form Factor:** Space-efficient design suitable for dense control panels or instrumentation racks. - **Plug-and-Play Compatibility:** Fully compatible with standard SCSI-II interfaces and Adlink’s range of data acquisition and control products. - **Noise and Crosstalk Reduction:** Optimized trace routing and termination resistors minimize signal degradation in high-speed data environments. - **Industrial Reliability:** Designed for continuous operation in demanding industrial conditions, with robust mechanical and electrical characteristics.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **Dual 50-pin to Single 100-pin Configuration:** Connects two 50-pin SCSI-II devices or terminal boards to a single 100-pin SCSI-II host interface, enabling multi-channel or dual-device operation. - **High-Quality SCSI-II Standard Compliance:** Fully conforms to SCSI-II electrical and mechanical specifications, ensuring compatibility with a wide range of SCSI-based data acquisition and control systems. - **Precision Pin Mapping:** Each signal line from the 100-pin connector is mapped directly to corresponding pins on the two 50-pin connectors, maintaining signal integrity and consistent channel separation. - **1 Meter Cable Length:** Optimized for short-distance, high-speed data transmission with minimal signal degradation and crosstalk. - **Male-to-Male Connectors:** Equipped with three male SCSI-II connectors (two 50-pin and one 100-pin), suitable for direct connection to female ports on host boards and peripheral modules. - **Industrial-Grade Construction:** Designed for robust performance in demanding environments, featuring durable insulation, strain relief, and shielding to minimize electromagnetic interference (EMI). - **Plug-and-Play Compatibility:** No additional configuration required; the cable functions as a passive interconnect between compatible SCSI-II devices. - **Adlink Quality Assurance:** Manufactured and tested under Adlink’s stringent quality control standards for signal fidelity, mechanical durability, and long-term reliability.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Dual 50-pin to Single 100-pin Configuration:** Connects two 50-pin SCSI-II interfaces to a single 100-pin SCSI-II port, enabling flexible interfacing between multi-channel digital I/O devices and peripheral boards. - **High-Density SCSI-II Connectors:** Equipped with precision-molded 50-pin and 100-pin male SCSI-II connectors, ensuring tight mechanical fit and reliable electrical contact. - **Optimized for ADLINK PCI-7348/PCI-7396 Cards:** Specifically designed for use with ADLINK’s 48- and 96-channel digital I/O cards, providing direct compatibility without the need for custom wiring. - **Industrial-Grade Shielded Cable:** Shielded twisted-pair construction minimizes electromagnetic interference (EMI) and crosstalk, maintaining signal integrity in electrically noisy environments. - **1-Meter Cable Length:** Provides sufficient reach for standard rack or bench setups while minimizing signal degradation. - **Pin-to-Pin Mapping Consistency:** Each signal line from the 100-pin connector is mapped precisely to corresponding pins on the two 50-pin connectors, ensuring accurate signal routing and predictable performance. - **Durable Construction:** Designed for repeated connection cycles, with strain relief and reinforced connector housings to prevent mechanical stress and cable fatigue. - **Plug-and-Play Compatibility:** No additional configuration required; the cable provides direct electrical continuity between compatible devices.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **20-Pin Header Interface:** Provides a standardized 20-pin header connection for signal input/output, ensuring compatibility with a wide range of ADLINK and third-party I/O modules. - **DIN Rail Mounting:** Designed for direct installation on standard DIN rails, simplifying integration into control cabinets and industrial enclosures. - **Compact Form Factor:** With dimensions of **67 × 77 × 51 mm**, the board offers a small footprint suitable for dense system configurations. - **High-Quality Construction:** Built with industrial-grade materials to ensure durability, electrical reliability, and long-term performance in demanding environments. - **Cable Compatibility:** Designed for use with the **ACL-10120-1** cable (not included), enabling straightforward connection between the termination board and compatible data acquisition or control hardware. - **Simplified Wiring:** Provides clear labeling and organized terminal layout to minimize wiring errors and reduce installation time. - **Versatile Application:** Suitable for signal termination in data acquisition systems, PLCs, motion controllers, and other industrial automation devices. - **Maintenance-Friendly Design:** Modular structure allows easy replacement or reconfiguration without disturbing adjacent components.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

21.5-inch high-brightness industrial touch monitor

21.5-inch high-brightness open-frame industrial touch monitor with 1920 x 1080 resolution, 1200 nits brightness, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature -10°C to 60°C.

Manufacturer: Adlink Technology Inc.

Category: No category

21.5-inch widescreen industrial touch monitor

21.5-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 40,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 50°C.

Manufacturer: Adlink Technology Inc.

Category: No category

23.8-inch widescreen industrial touch monitor

23.8-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 40,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 50°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **24 Opto‑Isolated Digital Input Channels:** Each channel is electrically isolated using photo‑couplers, providing 2500 V DC isolation between field inputs and logic circuitry. - **Wide Input Range:** Accepts logic high levels from +3 V DC up to +24 V DC or current inputs from 6 mA to 50 mA, allowing flexible interfacing with a variety of industrial sensors and logic devices. - **Status Indication:** Each input channel is equipped with a dedicated LED indicator for real‑time visual monitoring of input states. - **Opto‑22 Compatibility:** Equipped with a 50‑pin Opto‑22‑compatible connector (CN5) for direct connection to ADLINK digital I/O cards such as ACL‑7122, ACL‑7124, PET‑48DIO, PCI‑7248, and PCI‑7296. - **Configurable Input Mode:** Each channel includes jumper settings to select between dry‑contact or photo‑coupler input configurations. - **Compact Panel Design:** Dimensions of 220 mm × 132 mm, designed for panel or enclosure mounting. - **High Noise Immunity:** Optical isolation and robust input circuitry protect host systems from voltage transients and ground loops. - **LED Color Coding:** Channels are grouped and color‑coded (green, yellow, red) for easy identification of input banks (Ports A, B, and C). - **Industrial‑Grade Build:** Designed for reliable operation in industrial automation, data acquisition, and control environments.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels
