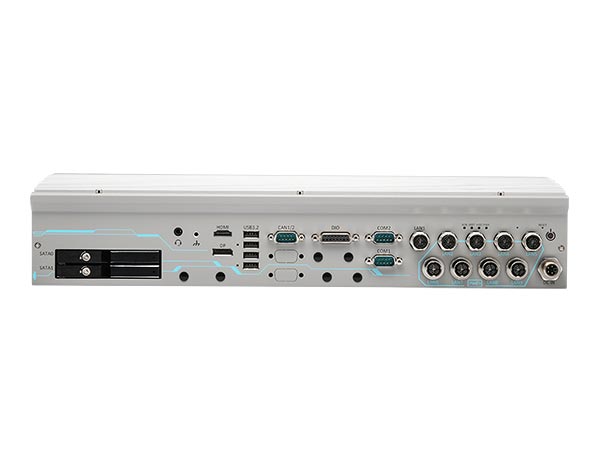

Fanless 2U railway GPU computer with RTX 2000 Ada and 43–160 VDC input
Fanless 2U railway GPU computer with RTX 2000 Ada and 43–160 VDC input Fanless 2U railway GPU computer with RTX 2000 Ada and 43–160 VDC input

GT-92RL-H

Fanless 2U railway GPU computer with RTX 2000 Ada and 43–160 VDC input
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der Neousys GT-92RL-H ist ein lüfterloser 2U-GPU-Computer für Bahnanwendungen, der die Anforderungen von EN 50155 und EN 45545-2 erfüllt. Er kombiniert Intel Core Prozessoren der 14., 13. oder 12. Generation mit einer NVIDIA RTX 2000 Ada für leistungsfähige Edge-AI- und Bildverarbeitungsaufgaben. Neun Gigabit-Ethernet- und vier USB-3.2-Anschlüsse unterstützen Systeme mit mehreren Kameras. Hinzu kommen isolierte CAN-, serielle und digitale E/A, flexible NVMe- und SATA-Speicheroptionen sowie ein isolierter Weitbereichseingang von 43 bis 160 VDC. Der Betrieb ist je nach CPU bis -40 bis 55 °C möglich.
EN 50155 and EN 45545-2 compliant fanless railway edge AI computer with Intel 14th, 13th or 12th Gen LGA1700 processors and NVIDIA RTX 2000 Ada. Features a 2U 19-inch chassis, nine GbE ports, four USB 3.2 Gen2 ports, isolated CAN, serial and DIO interfaces, M.2 PCIe Gen4 x4 NVMe, two hot-swappable SATA trays, dual full-size mini PCIe sockets and isolated 43–160 VDC input.
  • Supported Processor Generations Intel Core 14th, 13th and 12th Gen
  • Processor Socket LGA1700
  • Processor TDP 35 or 65 W
  • Chipset Intel R680E
  • Integrated Graphics Intel UHD Graphics 770 (32 EU)
  • Discrete GPU NVIDIA RTX 2000 Ada
  • Maximum Memory 128 GB
  • Memory Type ECC/non-ECC DDR5-4800 SDRAM
  • Memory Slots 2 SODIMM slots
  • Intel AMT Intel vPro/AMT 16.0
  • Cooling Design Fanless passive cooling for system and GPU
  • Key Features EN 50155 and EN 45545-2 compliance; fanless NVIDIA RTX 2000 Ada GPU; Intel 14th/13th/12th Gen processor support; 9x GbE; 4x USB 3.2 Gen2; isolated CAN, serial and DIO; 43–160 VDC isolated input; M.2 PCIe Gen4 x4 NVMe; dual hot-swappable SATA trays
  • Trusted Platform Module dTPM 2.0
  • Mini PCI Express Sockets 2 full-size sockets with SIM slot
  • Bus Interface 2x full-size mini PCI Express; M.2 PCIe Gen4 x4
  • Gigabit Ethernet Ports 9 ports
  • Ethernet Connector M12 X-coded
  • PoE Support None
  • CAN Bus Ports 2 isolated CAN 2.0 ports
  • Serial Ports 2 isolated 3-wire RS-232/422/485 ports
  • CAN Linux Support SocketCAN
  • USB Ports 4x USB 3.2 Gen2x1 Type-A
  • USB Data Rate 10 Gbps
  • HDMI Output 1x HDMI 1.4, up to 4096 x 2160
  • DisplayPort Output 1x DisplayPort, up to 4096 x 2304
  • Isolated Digital Inputs 4 channels
  • Isolated Digital Outputs 4 channels
  • Digital I/O 4-channel isolated DI and 4-channel isolated DO
  • Audio Interface 3.5 mm mic-in and speaker-out jack
  • SATA Drive Bays 2 hot-swappable 2.5-inch HDD/SSD trays
  • SATA RAID Support RAID 0/1
  • NVMe Socket 1x M.2 2280 M-key, PCIe Gen4 x4
  • DC Input Range 43 to 160 VDC
  • DC Input Connector M12 K-coded
  • Chassis Format 2U 19-inch
  • Dimensions 440 x 250 x 88 mm
  • Weight 8.0 kg
  • Mounting Options Optional rack-mounting or wall-mounting
  • Form Factor 2U 19-inch rack-mount or wall-mount chassis
  • Connector M12 X-coded Ethernet; M12 K-coded DC input; USB Type-A; HDMI; DisplayPort; DB9; 3.5 mm audio
  • Dimensions 440 x 250 x 88 mm (W x D x H), excluding rack-mount bracket
  • Operating Temperature with 35 W CPU -40 to 55 °C
  • Operating Temperature with 65 W CPU -40 to 35 °C
  • Storage Temperature -40 to 85 °C
  • Operating Humidity 10 to 90, non-condensing % RH
  • Operating Temperature -40 to 55 °C with 35 W CPU; -40 to 35 °C with 65 W CPU
  • Railway Equipment Standard EN 50155:2021
  • Fire Protection Standard EN 45545-2
  • Temperature Class EN 50155 Class OT2
  • Vibration Classification IEC 61373 Category I, Class B, body mounted
  • Shock Classification IEC 61373 Category I, Class B, body mounted
  • Voltage Withstand 1500 VDC
  • Supply Interruption Class S3: 0 V for 20 ms
  • Supply Change-over Class C2: 0 V for 30 ms
  • Supported Camera Configuration Up to 8 GigE cameras and 4 USB3 cameras
  • Resolution HDMI: 4096 x 2160; DisplayPort: 4096 x 2304
  • Accessories Cbl-M12K5F-CordEnd4-180CM, Cbl-M12X8M-RJ45-CAT6A-500CM, Cbl-DB9F-2DB9M-15CM, AccsyBx-SplicingConnector, AccsyBx-CONN_M12_K_5P_Female, Rmkit-GT92, Wmkit-GT92, mPCIe-M2B, mPCIe-M2E, mPCIe-M2M
