Name: IP66 fanless Jetson AGX Orin 32GB computer with 4x PoE+ GbE and 1x 10GbE.
Brand: Neousys Technology
SKU: NRU-240S-AWP-JAO32

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

IP66 fanless Jetson AGX Orin 32GB computer with 4x PoE+ GbE and 1x 10GbE.

NRU-240S-AWP-JAO32

IP66 fanless Jetson AGX Orin 32GB computer with 4x PoE+ GbE and 1x 10GbE.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

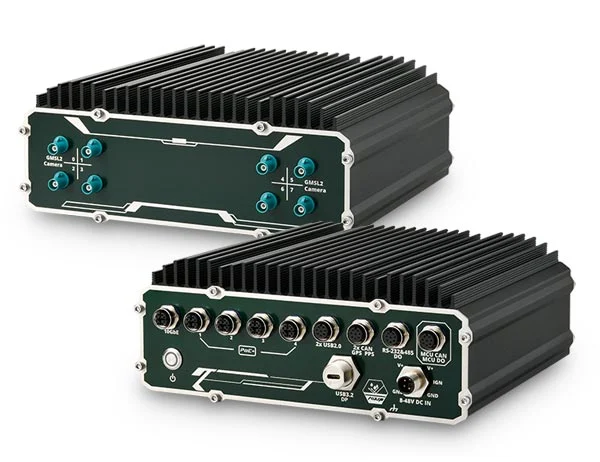

Der NRU-240S-AWP-JAO32 ist ein kompakter, lüfterloser Edge-AI-Computer mit NVIDIA Jetson AGX Orin, 32 GB LPDDR5 und 64 GB eMMC. Das nach IP66 geschützte Gehäuse ist für Außenanlagen, Fahrzeuge und industrielle Anwendungen ausgelegt. Vier wasserdichte PoE+-Gigabit-Ethernet-Ports binden Industrie- oder IP-Kameras an, während ein 10GbE-Port die schnelle Datenübertragung ermöglicht. USB-C stellt USB 3.2 und einen 4K-DisplayPort bereit. Isolierte CAN-, RS-485-, DI- und DO-Schnittstellen sowie RS-232 erleichtern die Systemintegration. NVMe, SATA und Mobilfunkoptionen ergänzen den Eingang für 8 bis 48 V DC mit Zündsteuerung.

IP66 fanless edge AI computer with NVIDIA Jetson AGX Orin, 32GB LPDDR5, 64GB eMMC, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, two isolated CAN 2.0 ports, isolated RS-485, RS-232, isolated DI/DO, NVMe and SATA expansion, and 8V to 48V DC input with ignition power control. Unlike the NRU-230V models, it has no GMSL2 camera ports.

Processor Module NVIDIA Jetson AGX Orin
System Memory 32 GB LPDDR5
Onboard eMMC 64 GB
GMSL2 Camera Ports 0 ports
PoE+ Gigabit Ethernet Ports 4 ports
PoE Power Budget 100 W
10 Gigabit Ethernet Ports 1 port
DC Input Range 8 to 48 V DC
Ingress Protection IP66
Dimensions 225 x 194 x 88.5 mm
Form Factor IP66 rugged fanless computer; wall mount

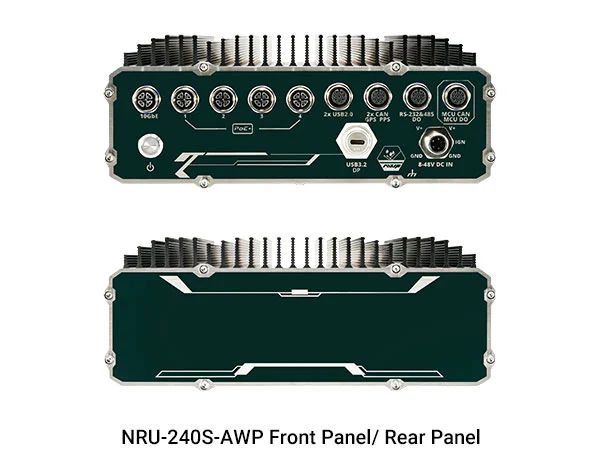

Connector 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
Full-Function Operating Temperature -25 to 60 °C
Shock Standard MIL-STD-810H Method 516.8 Procedure I
Operating Temperature -25°C to 70°C without 10GbE transmission and PoE load; -25°C to 60°C with full function
Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
Resolution DisplayPort up to 3840x2160 at 60 Hz
Key Features NVIDIA Jetson AGX Orin 32GB; IP66 waterproof and dustproof; fanless operation; 4x PoE+ GbE; 1x 10GBASE-T; isolated vehicle I/O; 8V to 48V DC input; ignition control; system monitoring MCU
Accessories PA-160W-OW, PA-280W-CW6P-2P, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM

nru-240s-awp-jao32-catalog-3f0a740dcaac.pdf PDF Catalog
nru-240s-awp-jao32-manual-abb0f5a9a571.pdf Manual

PA-160W-OW - 160W AC/DC power adapter 20V/8A
PA-280W-CW6P-2P - Accessory for GT-92GC
Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP - Optional accessory for compatible products
Cbl-TpCPlug-UTpCF-50CM - Optional accessory for compatible products
Cbl-M12A8M-2U2TA-180CM1 - Optional accessory for compatible products
Cbl-M12A8M-2DB9M_OW2-180CM1 - Optional accessory for compatible products
Cbl-M12X8M-RJ45F-100CM - Optional accessory for compatible products
