Name: Fanless IP66 computer with 14th/13th/12th Gen Intel Core and four Ethernet ports.
Brand: Neousys Technology
SKU: Nuvo-9650AWP

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

Fanless IP66 computer with 14th/13th/12th Gen Intel Core and four Ethernet ports.

Nuvo-9650AWP

Fanless IP66 computer with 14th/13th/12th Gen Intel Core and four Ethernet ports.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

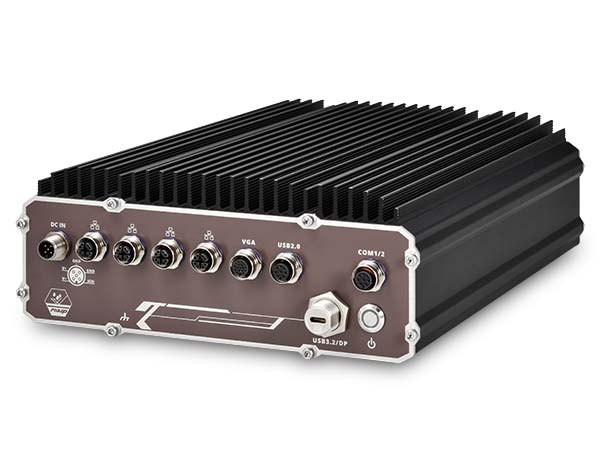

Der Nuvo-9650AWP ist ein lüfterloser, IP66-geschützter Embedded-Computer für anspruchsvolle Industrie- und Fahrzeuganwendungen. Er unterstützt Intel Core Prozessoren der 14., 13. und 12. Generation sowie bis zu 128 GB DDR5-4800. Drei 2,5-GbE- und ein GbE-Anschluss, USB 2.0, isolierte serielle Schnittstellen und ein wasserdichter USB-3.2-Type-C-Port mit DisplayPort bieten vielseitige Konnektivität. Zwei SATA-Einbauplätze und ein PCIe-Gen4-x4-NVMe-Sockel dienen als Speicheroptionen. Der weite 8- bis 48-VDC-Eingang, Zündungssteuerung und MIL-STD-810H-geprüfte Stoß- und Vibrationsfestigkeit unterstützen den robusten Einsatz.

Cost-effective IP66-rated fanless embedded computer supporting 14th, 13th and 12th Gen Intel Core LGA1700 processors with up to 128 GB DDR5-4800. It provides three 2.5GbE and one GbE M12 ports, waterproof USB 3.2 Type-C with DisplayPort, two external USB 2.0 ports, VGA, isolated RS-232 and isolated RS-422/485. Storage includes two 2.5-inch SATA bays and one PCIe Gen4 x4 NVMe socket. Operates from 8 to 48 VDC with ignition control and supports -25°C to 70°C operation with specified CPU configurations.

Ingress Protection IP66
Supported Processor Generations Intel Core 14th, 13th and 12th Gen
Processor TDP 35 or 65 W
Chipset Intel H610E
Maximum Memory 128 GB
Memory Type DDR5-4800 SODIMM, two slots
Ethernet Ports 3x 2.5GbE and 1x GbE
Ethernet Connector M12 X-coded
External USB 3.2 Ports 1x USB 3.2 Gen1 Type-C
External USB 2.0 Ports 2 ports
DisplayPort Maximum Resolution 4096 x 2304 pixels
VGA Maximum Resolution 1920 x 1200 pixels
Serial Interfaces 1x isolated RS-232; 1x isolated RS-422/485
SATA Storage Bays 2x internal 2.5-inch HDD/SSD
NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
Mini PCI Express Sockets 2x full-size Mini PCIe, PCIe plus USB 2.0
Cellular Expansion Socket 1x M.2 2242/3052 B key with SIM slot for 5G/4G
DC Input Range 8–48 VDC
Ignition Power Control Built-in
Dimensions 225 x 286 x 90 mm
Weight 5.25 kg
Form Factor Fanless IP66 rugged embedded computer

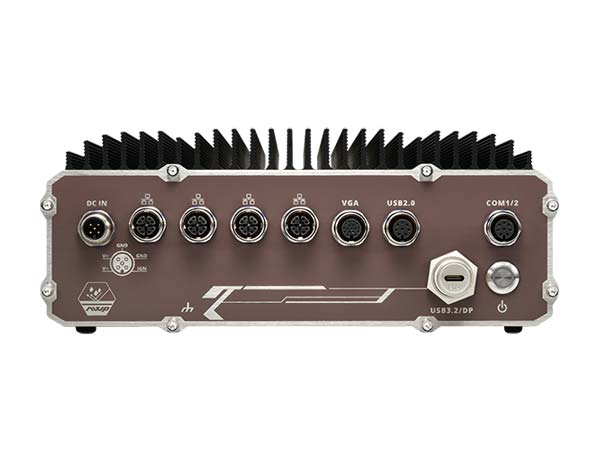

Connector M12 X-coded Ethernet; M12 A-coded USB/VGA/serial/DC; waterproof USB Type-C
Dimensions 225 x 286 x 90 mm
Maximum Operating Temperature 70 °C
Minimum Operating Temperature -25 °C
Storage Temperature -40 to 85 °C
Humidity 10–90, non-condensing % RH
Operating Temperature -25°C to 70°C with 35W CPU; -25°C to 70°C at 35W TDP or -25°C to 50°C at 65W TDP with 65W CPU
Vibration Standard MIL-STD-810H Method 514.8 Category 4
Shock Standard MIL-STD-810H Method 516.8 Procedure I
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Bus Interface 2x full-size Mini PCIe; M.2 2280 M key PCIe Gen4 x4; M.2 2242/3052 B key
Resolution DisplayPort up to 4096 x 2304; VGA up to 1920 x 1200
Key Features IP66 waterproof and dustproof design; fanless operation; 14th/13th/12th Gen Intel Core support; up to 128 GB DDR5-4800; 3x 2.5GbE plus 1x GbE; waterproof USB 3.2 Type-C with DisplayPort; 8–48 VDC input with ignition control; MIL-STD-810H shock and vibration compliance
Accessories PA-160W-OW, PA-280W-CW6P-2P, Cblkit-M12-Nuvo-9650AWP, Cbl-TpCPlug-DPM-1M, Cbl-TpCPlug-U3TA-50CM, Cbl-TpCPlug-UTpCF-50CM, Wmkit-Nuvo9650AWP
