Comprehensive Product Summary: Neousys POC-210 Ultra-Compact Fanless Controller

---

### 1. Product Overview

Product Name: POC-210
Model: POC-210
Series: POC-200 Series – Ultra-Compact Atom™ Bay Trail-I Fanless Embedded Controllers
Article Number: POC-210
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

The Neousys POC-210 is an ultra-compact, fanless embedded controller designed for industrial and embedded computing applications. It belongs to the POC-200 series, which combines Intel® Atom™ Bay Trail-I processing power with ruggedized design and versatile I/O interfaces. The POC-210 offers a balance of performance, reliability, and compactness, making it suitable for automation, machine vision, and industrial control environments.

---

### 2. Key Features

- Intel® Atom™ E3845 Quad-Core Processor (1.91 GHz):
Provides a significant performance boost over previous Atom D525/D2550 platforms, delivering up to 240% higher computational throughput.

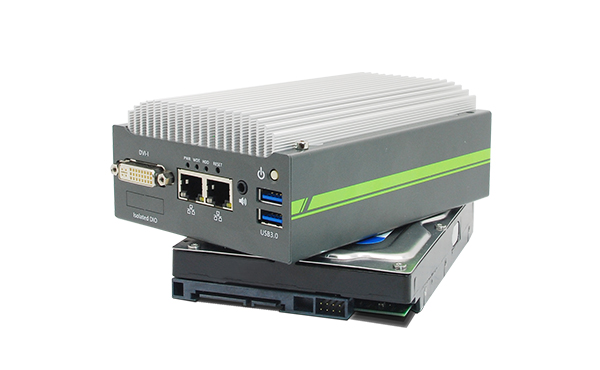

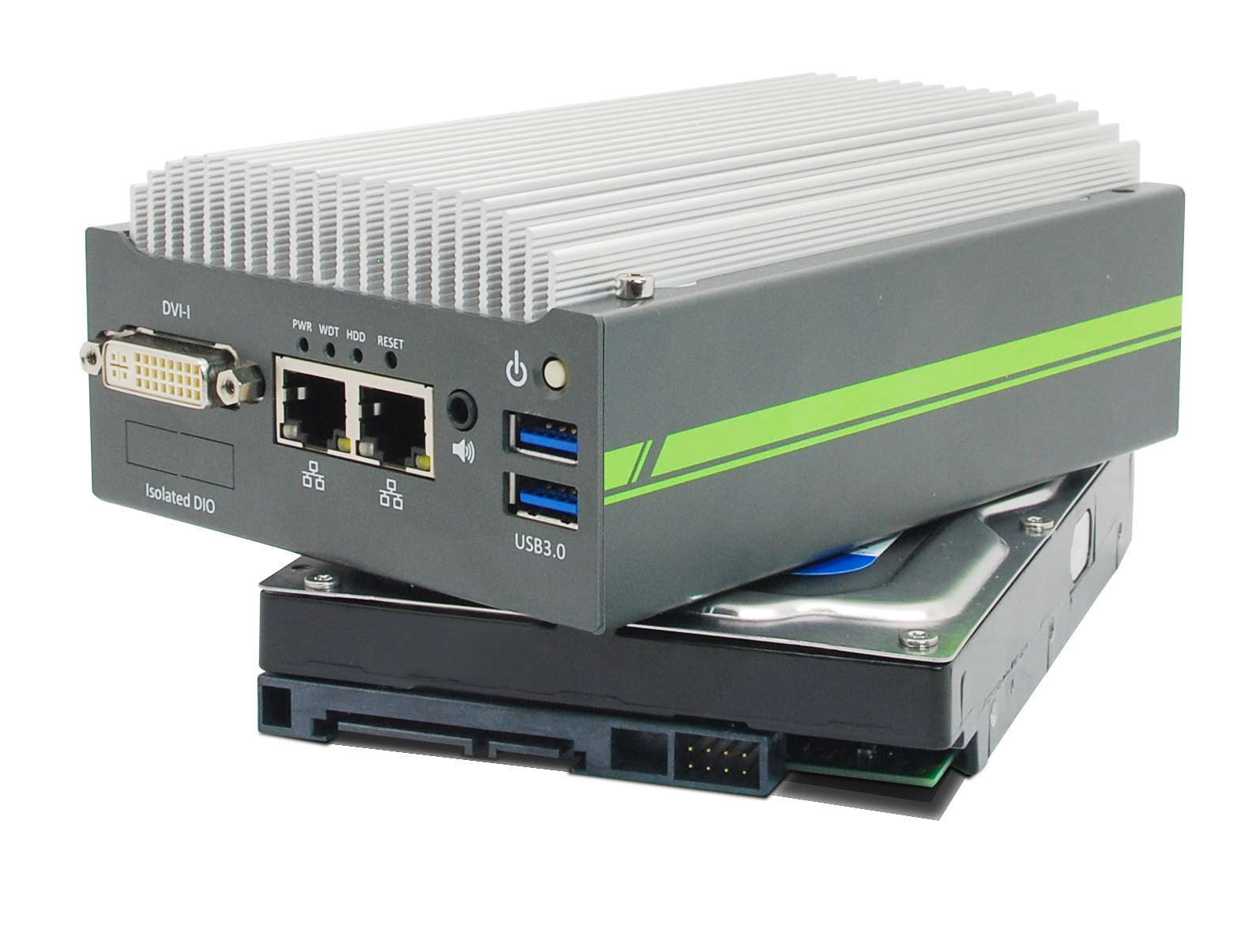

- Ultra-Compact Form Factor:
Occupies only a 3.5” HDD footprint (149 mm x 105 mm x 58 mm), enabling deployment in space-constrained environments.

- Fanless Operation:
Designed for -30°C to +70°C operation with SSD, ensuring silent, maintenance-free performance in harsh industrial conditions.

- Dual Intel® I210 Gigabit Ethernet Ports:
Supports high-speed networking and connectivity for industrial automation, machine vision, and data acquisition systems.

- Comprehensive I/O Interfaces:
Includes 4 COM ports (2x RS-232/422/485 and 2x RS-232), 3x USB 3.0, 1x USB 2.0, 1x DVI-I video output, and 8-channel 5V TTL GPIO.

- Expandable Storage and Connectivity:
Supports one internal 2.5” SATA HDD/SSD and one Mini PCI Express slot with USIM socket for wireless or expansion modules.

- Wide DC Input Range:
Built-in 8–35 VDC power input with terminal block connector for direct field wiring.

- Rugged Industrial Design:
Aluminum chassis with wall-mount and optional DIN-rail mounting options; vibration and shock resistant per IEC60068 standards.

- Energy Efficient:
Typical power consumption of 7.68 W and full-load consumption of 13.44 W at 24 VDC.

---

### 3. Technical Specifications

Processor: Intel® Atom™ E3845, 1.91 GHz, quad-core
Graphics: Integrated Intel® HD Graphics
Memory: 1x DDR3L-1333 SODIMM socket, up to 8 GB (1.35V DDR3L only)
Storage: 1x internal SATA port for 2.5” HDD/SSD
Expansion: 1x Mini PCI Express slot with USIM socket
Audio: 1x Speaker-out (Realtek ALC262 codec)
Power Input: 8–35 VDC via 2-pin pluggable terminal block
Power Consumption:
- Typical: 7.68 W (0.32 A @ 24 V)
- Full Load: 13.44 W (0.56 A @ 24 V)

Dimensions: 149 mm (W) × 105 mm (H) × 58 mm (D)
Weight: 1.1 kg (with 2.5” HDD)
Mounting: Wall-mount (standard), DIN-rail mount (optional)
Operating Temperature:
- -30°C to +70°C (with SSD, 100% CPU load)
- -10°C to +60°C (with HDD, 100% CPU load)
Storage Temperature: -40°C to +85°C
Humidity: 10%–90%, non-condensing
Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64, with SSD)
Shock: 50 Grms, half-sine 11 ms (IEC60068-2-27, with SSD)
EMC Compliance: CE/FCC Class A (EN 55022 & EN 55024)

---

### 4. Functionality

The POC-210 functions as a compact embedded controller for industrial automation, machine vision, and control systems. It integrates computing, communication, and control capabilities in a single ruggedized unit.

Operation Principle:
- The Intel® Atom™ E3845 SoC provides efficient processing for real-time control and data acquisition.
- Integrated Intel® HD Graphics supports high-resolution display output via DVI-I (up to 2560×1600).
- Dual Gigabit Ethernet ports enable network redundancy or multi-device communication.
- Multiple serial ports (RS-232/422/485) allow connection to PLCs, sensors, and legacy equipment.
- GPIO and DIO interfaces support digital control and monitoring tasks.
- The Mini PCIe slot allows wireless communication (Wi-Fi, 3G/4G, GPS) or additional I/O expansion.

Applications:
- Industrial automation and control systems
- Machine vision and robotics
- Human-Machine Interface (HMI) terminals
- Real-time surveillance and security systems
- Data acquisition and monitoring
- Transportation and mobile computing

Compatibility:
- Operating Systems: Windows 7/8/8.1 (32/64-bit), Ubuntu 14.04 or later
- Supports BIOS-level configuration for COM port modes, watchdog timer, and power management.

---

### 5. Components & Accessories

Included Items:
1. POC-210 fanless controller unit
2. DVI-to-VGA adapter
3. 2-pin pluggable terminal block for DC input
4. Neousys Drivers & Utilities DVD
5. Screw package for mounting and HDD installation

Optional Accessories:
- DIN-rail mounting kit
- 60W AC/DC power adapter (12V, 5A DC output)
- Mini PCIe modules (Wi-Fi, 3G/4G, GPS)
- External antennas for wireless modules

Connectors:

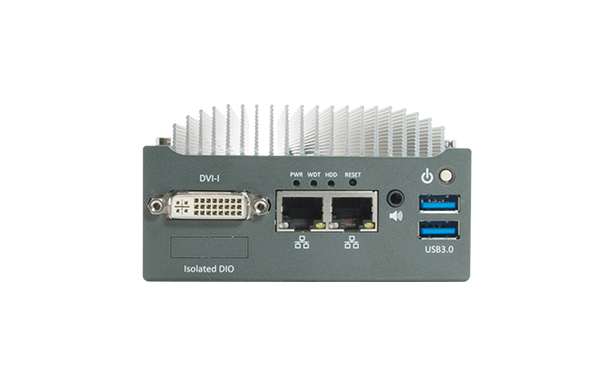

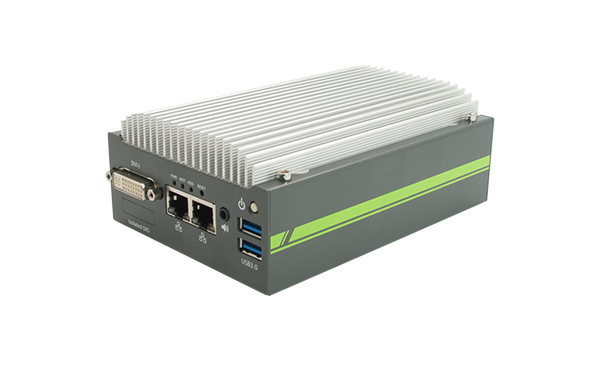

- Front Panel: Power button, reset button, LED indicators (PWR, WDT, HDD), 2x USB 3.0, audio out, DVI-I, GPIO connector

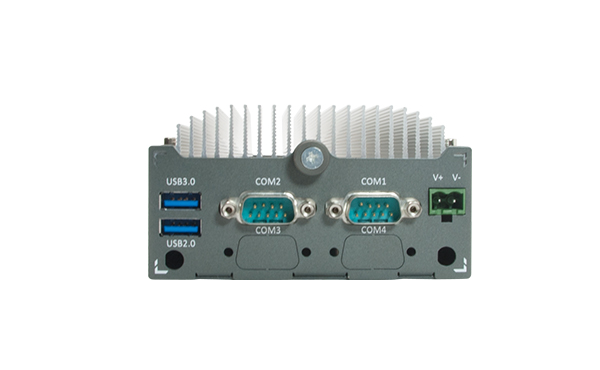

- Rear Panel: 1x USB 3.0, 1x USB 2.0, 4x COM ports, 2x GbE ports, DC input terminal block
- Internal: SATA connector, Mini PCIe slot, DDR3L SODIMM socket, remote on/off header

---

### 6. Installation & Setup

Requirements:
- DC power supply (8–35 VDC)
- Compatible DDR3L-1333 SODIMM memory module (1.35V)
- 2.5” SATA HDD or SSD (wide-temperature recommended for sub-zero operation)

Mounting Options:
- Wall Mount: Standard configuration with keyhole slots for easy suspension.
- DIN-Rail Mount: Optional clip for cabinet installation.
- Surface Mount: Inside-out or outside-in mounting using M4 screws.

Configuration Steps:
1. Install DDR3L SODIMM module (up to 8 GB).

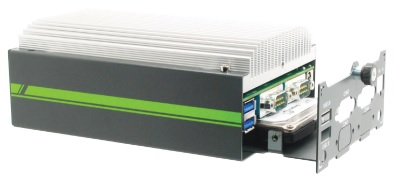

2. Mount 2.5” HDD/SSD using provided bracket and screws.
3. Connect DC power via terminal block (verify polarity).
4. Power on using front panel button or remote on/off header.
5. Configure BIOS settings for COM port modes, SATA mode (AHCI recommended), and power behavior.
6. Install OS and drivers using the provided DVD or manual installation sequence.

Power Control Options:
- Front panel power button (ATX mode)
- External latched switch (AT mode)
- External non-latched switch (ATX mode)
- Wake-on-LAN (WOL) via first GbE port

---

### 7. Performance & Capabilities

Processing Performance:
- Quad-core Atom E3845 (1.91 GHz) with 22 nm lithography
- Approximately 240% faster than Atom D525 platform
- Integrated Intel® HD Graphics for 3D and video acceleration

Storage & Memory:
- SATA 3.0 interface for 2.5” HDD/SSD
- Optional onboard 16 GB eMMC (varies by configuration)
- Up to 8 GB DDR3L memory for multitasking and caching

Networking:
- Dual Intel® I210 GbE controllers for reliable, low-latency communication
- Supports Wake-on-LAN and PXE boot

I/O Performance:
- 3x USB 3.0 ports (two via Renesas uPD720202, one native)
- 1x USB 2.0 port for legacy peripherals
- 4x COM ports (two RS-232/422/485, two RS-232)
- 8-channel 5V TTL GPIO for digital control

Environmental Performance:
- Fanless operation from -30°C to +70°C (SSD configuration)
- Shock and vibration resistance per IEC60068 standards
- Low power consumption suitable for battery or solar-powered systems

Limitations:
- No PoE support (available only on POC-200 model)
- Single display output (DVI-I)
- Limited internal expansion (one Mini PCIe slot)

---

### 8. Standards & Compliance

Certifications:
- CE (European Conformity)
- FCC Class A (U.S. Federal Communications Commission)

Regulatory Compliance:
- EN 55022 (EMI)
- EN 55024 (EMS)
- IEC60068-2-64 (Vibration)
- IEC60068-2-27 (Shock)

Environmental Compliance:
- RoHS-compliant materials
- Designed for industrial-grade reliability and long lifecycle support

Industry Standards:
- IEEE 802.3 (Ethernet)
- IEEE 802.3at (PoE standard – not applicable to POC-210)
- SATA 3.0, USB 3.0, RS-232/422/485 serial communication standards

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact Neousys for regional terms)
- Technical support via Neousys Technology Inc.
- Firmware and driver updates available through official website

Maintenance:
- Fanless design eliminates moving parts, reducing maintenance needs
- Periodic inspection of connectors and power terminals recommended
- Firmware and BIOS updates can be applied via USB or internal storage

Software & Utilities:
- “One-Click” Driver Installation utility for Windows OS
- Manual driver installation supported for Windows and Linux
- WDT_DIO library for programming Watchdog Timer and Digital I/O functions
- Sample code and API documentation included in driver package

Watchdog Timer (WDT):
- Hardware-based system recovery mechanism
- Configurable timeout (seconds or minutes)
- BIOS-level boot protection and OS-level API control

Digital I/O (DIO):
- 8-channel 5V TTL GPIO (4 DI + 4 DO)
- Programmable via Neousys WDT_DIO library
- Supports polling and change-of-state interrupt modes

Operating System Support:
- Windows 7/8/8.1 (32-bit and 64-bit)
- Ubuntu 14.04 or later
- Linux kernel driver support for Intel I210 GbE (manual installation may be required)

Driver Installation Sequence (Windows 7/8/8.1):
1. Chipset driver
2. Graphics driver
3. Audio driver
4. LAN driver
5. USB 3.0 driver
6. Renesas USB 3.0 driver (for additional ports)
7. TXE driver (for Windows 8/8.1)

BIOS Features:
- COM port mode configuration (RS-232/422/485)
- SATA mode selection (IDE/AHCI)
- Power-on behavior after power failure
- Wake-on-LAN enable/disable
- Watchdog timer for boot process
- C-States and Max C-States for power optimization

---

### Summary

The Neousys POC-210 is a high-performance, ultra-compact, fanless embedded controller engineered for industrial automation, machine vision, and control applications. Powered by the Intel® Atom™ E3845 quad-core processor, it delivers robust computing performance in a rugged, space-efficient chassis. With dual Gigabit Ethernet, multiple serial and USB ports, and flexible digital I/O, the POC-210 provides comprehensive connectivity for diverse industrial environments.

Its wide operating temperature range, fanless design, and low power consumption make it ideal for deployment in harsh or remote conditions. The system’s modular expandability via Mini PCIe and its compliance with CE/FCC Class A standards ensure long-term reliability and integration flexibility. Combined with Neousys’ software utilities, watchdog timer, and GPIO programming support, the POC-210 stands as a versatile and dependable embedded platform for modern industrial computing.
