Comprehensive Product Summary – Neousys POC‑330 Ultra‑Compact Fanless Controller
### 1. Product Overview
Product Name: POC‑330
Model: POC‑330
Series: POC‑300 Series
Article Number: POC‑330
Manufacturer: Neousys Technology Inc.

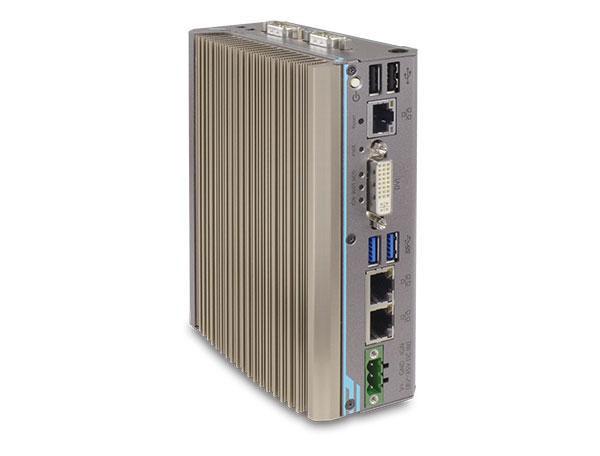

Product Type: Ultra‑compact fanless embedded DIN‑rail controller
Processor Platform: Intel® Apollo Lake Pentium® N4200 Quad‑Core
The Neousys POC‑330 is a rugged, ultra‑compact, fanless embedded controller designed for industrial automation, machine vision, and surveillance applications. It belongs to the POC‑300 series, which integrates Intel’s Apollo Lake architecture for improved CPU and GPU performance in a small, thermally efficient chassis. The POC‑330 combines high‑performance computing, rich I/O connectivity, and wide‑temperature operation in a 56 × 108 × 153 mm enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
- Intel® Pentium® N4200 Quad‑Core Processor (1.1 GHz base / 2.5 GHz burst)
Provides up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 platforms.
- Fanless, Ultra‑Compact Design
Rugged aluminum chassis with passive cooling ensures reliable operation in harsh environments from –25 °C to +70 °C (with SSD).

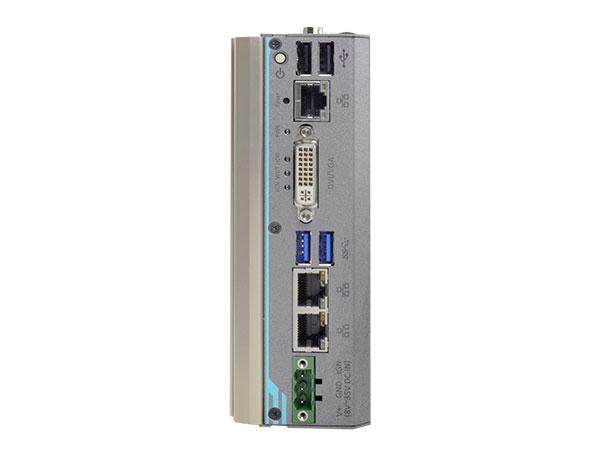

- Rich Front‑Accessible I/O
Three Intel® I210 Gigabit Ethernet ports, two USB 3.0, two USB 2.0, four COM ports, and DVI‑I dual‑display output.
- Dual Display Support
Integrated Intel® HD Graphics 505 supports VGA + DVI simultaneous output up to 1920 × 1200 resolution.
- Flexible Expansion
One full‑size mini‑PCIe slot with USIM socket for wireless modules and one half‑size mSATA port for SSD storage.

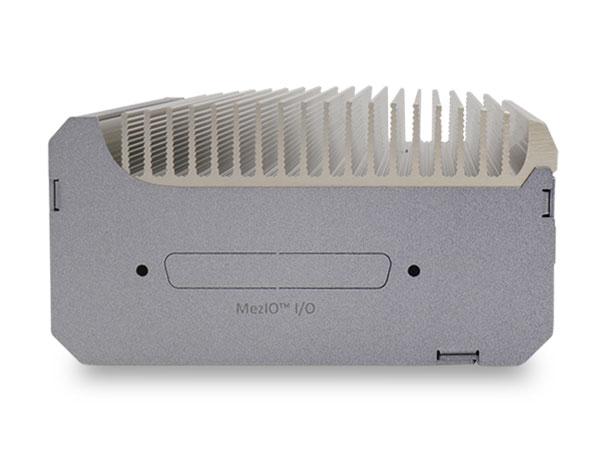

- MezIO™ Expansion Interface
Proprietary Neousys mezzanine interface for modular I/O expansion (additional serial, DIO, SATA, or ignition control).
- Wide‑Range DC Power Input (8 – 35 VDC)
Built‑in terminal block input with optional 60 W AC/DC adapter.
- Industrial‑Grade Reliability
Vibration tolerance 5 Grms (IEC 60068‑2‑64) and shock resistance 50 Grms (IEC 60068‑2‑27).
- Flexible Mounting Options
Standard DIN‑rail clip and optional wall‑mount kits (vertical WM‑300V / horizontal WM‑300H).

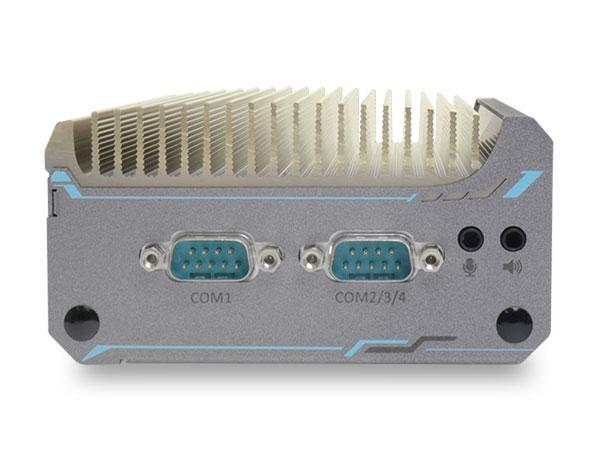

- Software Programmable Serial Ports
One RS‑232/422/485 configurable port and three RS‑232 or one RS‑422/485 port.
- Audio and Peripheral Support
Realtek ALC262 codec with mic‑in and speaker‑out jacks.
- Long‑Term Availability and Industrial Lifecycle Support
Designed for 24/7 operation in automation, transportation, and vision systems.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor | Intel® Pentium® N4200 (1.1 GHz base / 2.5 GHz burst, quad‑core, 6 W TDP) |
| Graphics | Integrated Intel® HD Graphics 505 |
| Memory | 1 × DDR3L‑1866 SO‑DIMM (up to 8 GB, 1.35 V low‑voltage) |
| Storage | 1 × half‑size mSATA port (SSD recommended for wide temperature operation) |
| Expansion | 1 × full‑size mini‑PCIe slot with USIM socket (for 3G/4G/Wi‑Fi modules) + 1 × MezIO™ expansion interface |
| Ethernet | 3 × Intel® I210 Gigabit Ethernet ports |
| USB | 2 × USB 3.0 (SuperSpeed 5 Gb/s) + 2 × USB 2.0 |
| Serial Ports | 1 × software‑programmable RS‑232/422/485 (COM1); 3 × RS‑232 (COM2/3/4) or 1 × RS‑422/485 (COM2) |
| Video Output | 1 × DVI‑I connector supporting VGA + DVI dual display up to 1920 × 1200 |
| Audio | 1 × Mic‑in and 1 × Speaker‑out (3.5 mm jacks, Realtek ALC262 codec) |
| Power Input | 8 – 35 V DC via 3‑pin pluggable terminal block |
| Power Consumption | Typical < 15 W (depending on configuration) |
| Dimensions | 56 mm (W) × 108 mm (D) × 153 mm (H) |
| Weight | 0.96 kg (including CPU, memory, and storage) |
| Mounting | DIN‑rail mount (standard) / Wall‑mount (optional) |
| Operating Temperature | –25 °C to +70 °C (with SSD, 100 % CPU load) / –10 °C to +50 °C (with HDD) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 10 % – 90 % non‑condensing |
| Vibration | 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) |
| Shock | 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) |
| EMC Compliance | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The POC‑330 operates as a compact embedded controller for industrial and edge‑computing tasks. It integrates a low‑power Intel® Pentium® N4200 SoC with onboard graphics and I/O controllers, enabling real‑time data acquisition, control, and communication.
Typical Use Cases:
- Machine Vision Systems: Connects multiple GigE cameras via three GbE ports for image capture and processing.
- Industrial Automation: Interfaces with PLCs, sensors, and actuators through serial and digital I/O.
- Surveillance and Video Analytics: Dual‑display output and hardware‑accelerated graphics for monitoring and analytics.
- Transportation and In‑Vehicle Computing: Optional MezIO‑V20 ignition control for automotive power management.
- Edge Data Acquisition: Reliable fanless operation for continuous field data collection.
Compatibility:
Supports Windows 10 Professional / IoT Enterprise 64‑bit and Linux kernel ≤ 4.10 (Ubuntu 16.04 LTS tested). Drivers for Intel HD Graphics and I210 GbE controllers are included or available from Intel.
### 5. Components & Accessories
Included Items:
1. POC‑330 controller unit
2. DVI‑to‑VGA adapter
3. 3‑pin pluggable terminal block for DC input
4. Neousys Drivers & Utilities DVD
5. DIN‑rail mount clip
6. Screw package
Optional Accessories:
- PA‑60W‑OW: 60 W AC/DC adapter (12 V 5 A, –30 °C to +60 °C)
- WMKIT‑V‑POC300: Vertical wall‑mount assembly
- WMKIT‑H‑POC300: Horizontal wall‑mount assembly
- CBL‑DB9F‑3DB9M‑10CM: 1 × DB9 female to 3 × DB9 male Y‑cable (10 cm)
MezIO™ Expansion Modules:
- MezIO‑C180: 4 × RS‑232/422/485 + 4 × RS‑232
- MezIO‑C181: 4 × RS‑232/422/485 + 4 × RS‑422/485
- MezIO‑D220: 8 × isolated DI + 8 × isolated DO
- MezIO‑D230: 16 × isolated DI + 16 × isolated DO
- MezIO‑R11: SATA port for 2.5″ HDD/SSD
- MezIO‑R12: SATA port + 4 DI / 4 DO
- MezIO‑V20: Ignition power control module (for in‑vehicle use)
- MezIO‑U4: 4 × USB expansion
### 6. Installation & Setup
Mounting Options:

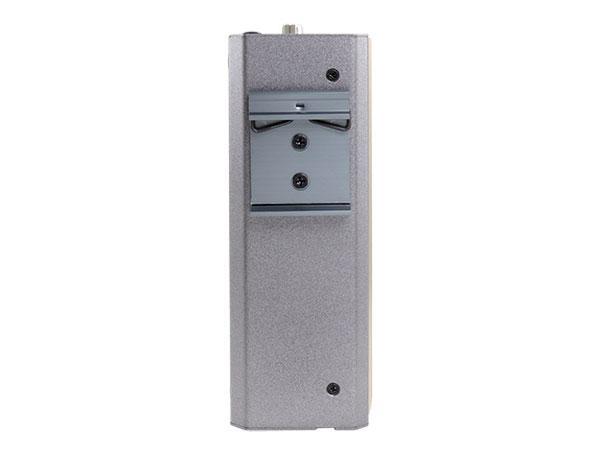

- DIN‑Rail Mount (Standard): Attach the included clip to the rear panel and snap onto a DIN rail.
- Wall Mount (Optional): Use WM‑300V or WM‑300H brackets for vertical or horizontal orientation.
Internal Component Installation:
- Memory: Insert DDR3L SO‑DIMM at 45° angle and press to lock.
- mSATA SSD: Install half‑size module and secure with screw.
- mini‑PCIe Module: Insert full‑size card with USIM support; connect antennas via SMA openings.
- MezIO Module: Align three standoffs and secure with screws to the MezIO connector.
Power Connection:
- 3‑pin terminal block (8–35 V DC): V+, GND, and optional IGN signal (for MezIO‑V20).
- Optional external switch control (AT or ATX mode) via on‑board header.
System Power‑On Methods:
1. Front panel power button
2. External non‑latched switch (ATX mode)
3. External latched switch (AT mode)
4. Wake‑on‑LAN (WOL)
5. Ignition signal (MezIO‑V20)
BIOS Configuration Highlights:
- COM port mode selection (RS‑232/422/485)
- SATA interface speed (Gen1/2/3)
- Power on after power failure (S0/S5/Last State)
- Watchdog timer setup and timeout control
- Wake‑on‑LAN enable/disable
- Boot device priority and C‑States power management
### 7. Performance & Capabilities
- CPU Performance: Quad‑core architecture with burst frequency up to 2.5 GHz delivers responsive multitasking for control and vision applications.
- GPU Performance: Intel HD Graphics 505 supports hardware acceleration for H.264/H.265 decoding and dual display output.
- Memory Bandwidth: DDR3L‑1866 provides 14.9 GB/s throughput.
- Network Throughput: Three Intel I210 controllers ensure deterministic Gigabit Ethernet performance with support for IEEE 1588 PTP.
- Storage Performance: mSATA SSD supports SATA Gen 2 (3 Gb/s) or Gen 3 (6 Gb/s) depending on drive capability.
- Reliability: Fanless design eliminates moving parts; tested for continuous operation under full load at 70 °C.
- Limitations: Single SO‑DIMM slot (max 8 GB RAM); no native PoE on POC‑330 variant (unlike POC‑320).
### 8. Standards & Compliance
- EMC: CE / FCC Class A compliant (EN 55022, EN 55024, EN 55032).
- Environmental Testing: Vibration and shock tested per IEC 60068‑2‑64 and IEC 60068‑2‑27.
- Safety: Meets industrial installation requirements for DIN‑rail mount equipment.
- RoHS / WEEE: Compliant with EU environmental directives.
- Operating System Support: Windows 10 64‑bit and Linux kernel ≤ 4.10 (Ubuntu 16.04 LTS verified).
- Patents / Trademarks: Neousys and MezIO™ are registered trademarks of Neousys Technology Inc.; Intel®, Pentium®, and Atom™ are trademarks of Intel Corporation.
### 9. Additional Information
Warranty & Support:
Neousys Technology provides a standard limited hardware warranty per its latest policy. Firmware and software updates are available through the Neousys website or authorized service partners. Technical support is offered via regional offices in Taiwan, USA, and China.
Maintenance:
- Only qualified personnel should service the system.
- Disconnect power and cables before opening the enclosure.
- Observe ESD precautions when handling internal modules.
- Clean with dry compressed air; avoid liquids and corrosive agents.
Software & Drivers:
- Automatic driver installation via included DVD (Chipset, Graphics, Audio, LAN, TXE).
- Manual installation supported for Windows 10 x64.
- WDT & DIO library (WDT_DIO_Setup v2.2.6 or later) for watchdog and digital I/O programming.
Watchdog Timer (WDT):
Hardware timer ensures system recovery on software failure; configurable via BIOS or API library.
Digital I/O (With MezIO‑R12/D220/D230):
Isolated DI/DO channels support 5–24 V logic levels and sinking outputs for industrial control.
Ignition Power Control (MezIO‑V20):
MCU‑based module monitors vehicle ignition signal with programmable on/off delays, low‑battery protection, and hard‑off timeout (10 min).
Contact Information:
- Headquarters: 15F, No. 868‑3, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586, Taiwan Tel +886‑2‑2223‑6182
- Americas: 3384 Commercial Ave., Northbrook, IL 60062, USA Tel +1‑847‑656‑3298
- China: Room 612, Building 32, Guiping Rd 680, Shanghai Tel +86‑21‑61155366
Website: [www.neousys‑tech.com](https://www.neousys-tech.com)
Email: sales@neousys‑tech.com
### Summary
The Neousys POC‑330 is a high‑reliability, ultra‑compact, fanless embedded controller engineered for industrial and edge‑computing environments. Powered by the Intel® Pentium® N4200 quad‑core processor, it delivers robust performance with minimal power consumption. Its triple Gigabit Ethernet ports, multiple USB interfaces, and programmable serial ports enable flexible connectivity for machine vision, automation, and surveillance applications. The system’s rugged design, wide temperature tolerance, and expandable MezIO™ interface make it a versatile solution for industrial deployments requiring compact form factor and long‑term stability.
### 1. Product Overview
Product Name: POC‑330
Model: POC‑330
Series: POC‑300 Series
Article Number: POC‑330
Manufacturer: Neousys Technology Inc.
Product Type: Ultra‑compact fanless embedded DIN‑rail controller
Processor Platform: Intel® Apollo Lake Pentium® N4200 Quad‑Core
The Neousys POC‑330 is a rugged, ultra‑compact, fanless embedded controller designed for industrial automation, machine vision, and surveillance applications. It belongs to the POC‑300 series, which integrates Intel’s Apollo Lake architecture for improved CPU and GPU performance in a small, thermally efficient chassis. The POC‑330 combines high‑performance computing, rich I/O connectivity, and wide‑temperature operation in a 56 × 108 × 153 mm enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
- Intel® Pentium® N4200 Quad‑Core Processor (1.1 GHz base / 2.5 GHz burst)
Provides up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 platforms.
- Fanless, Ultra‑Compact Design
Rugged aluminum chassis with passive cooling ensures reliable operation in harsh environments from –25 °C to +70 °C (with SSD).
- Rich Front‑Accessible I/O
Three Intel® I210 Gigabit Ethernet ports, two USB 3.0, two USB 2.0, four COM ports, and DVI‑I dual‑display output.
- Dual Display Support
Integrated Intel® HD Graphics 505 supports VGA + DVI simultaneous output up to 1920 × 1200 resolution.
- Flexible Expansion
One full‑size mini‑PCIe slot with USIM socket for wireless modules and one half‑size mSATA port for SSD storage.
- MezIO™ Expansion Interface
Proprietary Neousys mezzanine interface for modular I/O expansion (additional serial, DIO, SATA, or ignition control).
- Wide‑Range DC Power Input (8 – 35 VDC)
Built‑in terminal block input with optional 60 W AC/DC adapter.
- Industrial‑Grade Reliability
Vibration tolerance 5 Grms (IEC 60068‑2‑64) and shock resistance 50 Grms (IEC 60068‑2‑27).
- Flexible Mounting Options
Standard DIN‑rail clip and optional wall‑mount kits (vertical WM‑300V / horizontal WM‑300H).
- Software Programmable Serial Ports
One RS‑232/422/485 configurable port and three RS‑232 or one RS‑422/485 port.
- Audio and Peripheral Support
Realtek ALC262 codec with mic‑in and speaker‑out jacks.
- Long‑Term Availability and Industrial Lifecycle Support
Designed for 24/7 operation in automation, transportation, and vision systems.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor | Intel® Pentium® N4200 (1.1 GHz base / 2.5 GHz burst, quad‑core, 6 W TDP) |
| Graphics | Integrated Intel® HD Graphics 505 |
| Memory | 1 × DDR3L‑1866 SO‑DIMM (up to 8 GB, 1.35 V low‑voltage) |
| Storage | 1 × half‑size mSATA port (SSD recommended for wide temperature operation) |
| Expansion | 1 × full‑size mini‑PCIe slot with USIM socket (for 3G/4G/Wi‑Fi modules) + 1 × MezIO™ expansion interface |
| Ethernet | 3 × Intel® I210 Gigabit Ethernet ports |
| USB | 2 × USB 3.0 (SuperSpeed 5 Gb/s) + 2 × USB 2.0 |
| Serial Ports | 1 × software‑programmable RS‑232/422/485 (COM1); 3 × RS‑232 (COM2/3/4) or 1 × RS‑422/485 (COM2) |
| Video Output | 1 × DVI‑I connector supporting VGA + DVI dual display up to 1920 × 1200 |
| Audio | 1 × Mic‑in and 1 × Speaker‑out (3.5 mm jacks, Realtek ALC262 codec) |
| Power Input | 8 – 35 V DC via 3‑pin pluggable terminal block |
| Power Consumption | Typical < 15 W (depending on configuration) |
| Dimensions | 56 mm (W) × 108 mm (D) × 153 mm (H) |
| Weight | 0.96 kg (including CPU, memory, and storage) |
| Mounting | DIN‑rail mount (standard) / Wall‑mount (optional) |
| Operating Temperature | –25 °C to +70 °C (with SSD, 100 % CPU load) / –10 °C to +50 °C (with HDD) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 10 % – 90 % non‑condensing |
| Vibration | 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) |
| Shock | 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) |
| EMC Compliance | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The POC‑330 operates as a compact embedded controller for industrial and edge‑computing tasks. It integrates a low‑power Intel® Pentium® N4200 SoC with onboard graphics and I/O controllers, enabling real‑time data acquisition, control, and communication.
Typical Use Cases:
- Machine Vision Systems: Connects multiple GigE cameras via three GbE ports for image capture and processing.
- Industrial Automation: Interfaces with PLCs, sensors, and actuators through serial and digital I/O.
- Surveillance and Video Analytics: Dual‑display output and hardware‑accelerated graphics for monitoring and analytics.
- Transportation and In‑Vehicle Computing: Optional MezIO‑V20 ignition control for automotive power management.
- Edge Data Acquisition: Reliable fanless operation for continuous field data collection.
Compatibility:
Supports Windows 10 Professional / IoT Enterprise 64‑bit and Linux kernel ≤ 4.10 (Ubuntu 16.04 LTS tested). Drivers for Intel HD Graphics and I210 GbE controllers are included or available from Intel.
### 5. Components & Accessories
Included Items:
1. POC‑330 controller unit
2. DVI‑to‑VGA adapter
3. 3‑pin pluggable terminal block for DC input
4. Neousys Drivers & Utilities DVD
5. DIN‑rail mount clip
6. Screw package
Optional Accessories:
- PA‑60W‑OW: 60 W AC/DC adapter (12 V 5 A, –30 °C to +60 °C)
- WMKIT‑V‑POC300: Vertical wall‑mount assembly
- WMKIT‑H‑POC300: Horizontal wall‑mount assembly
- CBL‑DB9F‑3DB9M‑10CM: 1 × DB9 female to 3 × DB9 male Y‑cable (10 cm)
MezIO™ Expansion Modules:
- MezIO‑C180: 4 × RS‑232/422/485 + 4 × RS‑232
- MezIO‑C181: 4 × RS‑232/422/485 + 4 × RS‑422/485
- MezIO‑D220: 8 × isolated DI + 8 × isolated DO
- MezIO‑D230: 16 × isolated DI + 16 × isolated DO
- MezIO‑R11: SATA port for 2.5″ HDD/SSD
- MezIO‑R12: SATA port + 4 DI / 4 DO
- MezIO‑V20: Ignition power control module (for in‑vehicle use)
- MezIO‑U4: 4 × USB expansion
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Mount (Standard): Attach the included clip to the rear panel and snap onto a DIN rail.
- Wall Mount (Optional): Use WM‑300V or WM‑300H brackets for vertical or horizontal orientation.
Internal Component Installation:
- Memory: Insert DDR3L SO‑DIMM at 45° angle and press to lock.
- mSATA SSD: Install half‑size module and secure with screw.
- mini‑PCIe Module: Insert full‑size card with USIM support; connect antennas via SMA openings.
- MezIO Module: Align three standoffs and secure with screws to the MezIO connector.
Power Connection:
- 3‑pin terminal block (8–35 V DC): V+, GND, and optional IGN signal (for MezIO‑V20).
- Optional external switch control (AT or ATX mode) via on‑board header.
System Power‑On Methods:
1. Front panel power button
2. External non‑latched switch (ATX mode)
3. External latched switch (AT mode)
4. Wake‑on‑LAN (WOL)
5. Ignition signal (MezIO‑V20)
BIOS Configuration Highlights:
- COM port mode selection (RS‑232/422/485)
- SATA interface speed (Gen1/2/3)
- Power on after power failure (S0/S5/Last State)
- Watchdog timer setup and timeout control
- Wake‑on‑LAN enable/disable
- Boot device priority and C‑States power management
### 7. Performance & Capabilities
- CPU Performance: Quad‑core architecture with burst frequency up to 2.5 GHz delivers responsive multitasking for control and vision applications.
- GPU Performance: Intel HD Graphics 505 supports hardware acceleration for H.264/H.265 decoding and dual display output.
- Memory Bandwidth: DDR3L‑1866 provides 14.9 GB/s throughput.
- Network Throughput: Three Intel I210 controllers ensure deterministic Gigabit Ethernet performance with support for IEEE 1588 PTP.
- Storage Performance: mSATA SSD supports SATA Gen 2 (3 Gb/s) or Gen 3 (6 Gb/s) depending on drive capability.
- Reliability: Fanless design eliminates moving parts; tested for continuous operation under full load at 70 °C.
- Limitations: Single SO‑DIMM slot (max 8 GB RAM); no native PoE on POC‑330 variant (unlike POC‑320).
### 8. Standards & Compliance
- EMC: CE / FCC Class A compliant (EN 55022, EN 55024, EN 55032).
- Environmental Testing: Vibration and shock tested per IEC 60068‑2‑64 and IEC 60068‑2‑27.
- Safety: Meets industrial installation requirements for DIN‑rail mount equipment.
- RoHS / WEEE: Compliant with EU environmental directives.
- Operating System Support: Windows 10 64‑bit and Linux kernel ≤ 4.10 (Ubuntu 16.04 LTS verified).
- Patents / Trademarks: Neousys and MezIO™ are registered trademarks of Neousys Technology Inc.; Intel®, Pentium®, and Atom™ are trademarks of Intel Corporation.
### 9. Additional Information
Warranty & Support:
Neousys Technology provides a standard limited hardware warranty per its latest policy. Firmware and software updates are available through the Neousys website or authorized service partners. Technical support is offered via regional offices in Taiwan, USA, and China.
Maintenance:
- Only qualified personnel should service the system.
- Disconnect power and cables before opening the enclosure.
- Observe ESD precautions when handling internal modules.
- Clean with dry compressed air; avoid liquids and corrosive agents.
Software & Drivers:
- Automatic driver installation via included DVD (Chipset, Graphics, Audio, LAN, TXE).
- Manual installation supported for Windows 10 x64.
- WDT & DIO library (WDT_DIO_Setup v2.2.6 or later) for watchdog and digital I/O programming.
Watchdog Timer (WDT):
Hardware timer ensures system recovery on software failure; configurable via BIOS or API library.
Digital I/O (With MezIO‑R12/D220/D230):
Isolated DI/DO channels support 5–24 V logic levels and sinking outputs for industrial control.
Ignition Power Control (MezIO‑V20):
MCU‑based module monitors vehicle ignition signal with programmable on/off delays, low‑battery protection, and hard‑off timeout (10 min).
Contact Information:
- Headquarters: 15F, No. 868‑3, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586, Taiwan Tel +886‑2‑2223‑6182
- Americas: 3384 Commercial Ave., Northbrook, IL 60062, USA Tel +1‑847‑656‑3298
- China: Room 612, Building 32, Guiping Rd 680, Shanghai Tel +86‑21‑61155366
Website: [www.neousys‑tech.com](https://www.neousys-tech.com)
Email: sales@neousys‑tech.com
### Summary
The Neousys POC‑330 is a high‑reliability, ultra‑compact, fanless embedded controller engineered for industrial and edge‑computing environments. Powered by the Intel® Pentium® N4200 quad‑core processor, it delivers robust performance with minimal power consumption. Its triple Gigabit Ethernet ports, multiple USB interfaces, and programmable serial ports enable flexible connectivity for machine vision, automation, and surveillance applications. The system’s rugged design, wide temperature tolerance, and expandable MezIO™ interface make it a versatile solution for industrial deployments requiring compact form factor and long‑term stability.
-
POC-300_Datasheet_en.pdf
PDF Catalog
- Nuvo-PA-60W - 60W AC/DC Power Adapter for Nuvo-100x/20xx and POC series
- MezIO - Interchangeable Mezzanine I/O Boards
