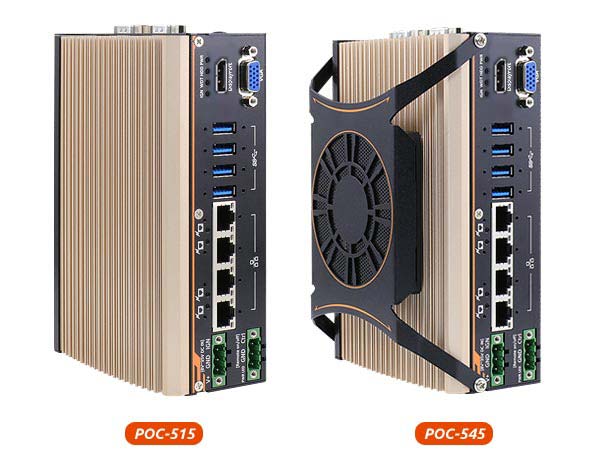

Comprehensive Product Summary: Neousys POC-545 AMD Ryzen™ V1807B Ultra-Compact Embedded Controller
### 1. Product Overview
Product Name: POC-545
Model: POC-545
Series: POC-500 Series
Article Number: POC-545
Manufacturer: Neousys Technology, Inc.
Product Type: Ultra-Compact Embedded Controller
Processor Platform: AMD Ryzen™ Embedded V1000 Series
The Neousys POC-545 is a high-performance, ultra-compact embedded controller designed for rugged industrial and edge computing applications. As part of the POC-500 series, it integrates AMD’s Ryzen™ Embedded V1807B processor, offering exceptional CPU and GPU performance in a small, durable form factor. The system is engineered for demanding environments such as machine vision, industrial automation, surveillance, and video analytics, combining high computational throughput, wide operating temperature tolerance, and versatile I/O connectivity.
### 2. Key Features
- High-Performance Embedded Computing:
Powered by the AMD Ryzen™ Embedded V1807B quad-core, eight-thread processor (3.35 GHz base / 3.8 GHz boost, 35–54W TDP), the POC-545 delivers desktop-class performance in an embedded form factor.
- Advanced Graphics Processing:
Integrated AMD Radeon™ Vega GPU with 11 compute units provides up to 3.6 TFLOPS (FP16), enabling advanced graphics rendering, GPU-accelerated computing, and AI inference workloads.
- Rugged, Wide-Temperature Operation:
Designed for industrial environments, the POC-545 supports operation from -25°C to +70°C (with external fan installed) and meets MIL-STD-810G standards for vibration and shock resistance.
- Compact and Robust Design:
Measuring only 82 (W) x 118 (D) x 176 (H) mm and weighing 1.4 kg, the POC-545 offers a space-efficient solution with front-accessible I/O and a DIN-rail or wall-mountable chassis.
- High-Speed Connectivity:
Equipped with four Gigabit PoE+ ports (IEEE 802.3at, Intel® I350-AM4 controller) for powering and connecting IP cameras or network devices, and four USB 3.0 ports with screw-lock connectors for secure peripheral attachment.
- Flexible Expansion:
Includes an M.2 2280 M-key NVMe slot (PCIe Gen3 x2) for high-speed SSD storage, a full-size mini PCIe slot with internal SIM socket for wireless modules, and a proprietary MezIO™ interface for modular I/O expansion.
- Dual Display Support:
Offers one VGA and one DisplayPort output, supporting resolutions up to 4096 x 2160, ideal for multi-display industrial or monitoring setups.
- Secure and Reliable Connections:
All data ports feature screw-lock mechanisms to prevent accidental disconnection in vibration-prone environments.
- Industrial-Grade Power Input:
Accepts 8–35V DC input via a 3-pin pluggable terminal block, supporting flexible power configurations and remote control functionality.
### 3. Technical Specifications
Processor:
- AMD Ryzen™ Embedded V1807B
- 4 cores / 8 threads
- 2 MB cache
- Base frequency: 3.35 GHz
- Boost frequency: 3.8 GHz
- TDP: 35W–54W
Graphics:
- Integrated AMD Radeon™ Vega GPU
- 11 compute units
- Up to 3.6 TFLOPS (FP16 performance)
Memory:
- One DDR4 SODIMM socket
- Supports up to 16 GB DDR4-3200 SDRAM
Storage:
- 1x M.2 2280 M-key NVMe socket (PCIe Gen3 x2)
- Optional MezIO™ modules for additional SATA storage (e.g., MezIO-R11, MezIO-R12)
I/O Interfaces (Front-Accessible):
- Ethernet: 4x Gigabit PoE+ ports (IEEE 802.3at, Intel® I350-AM4)
- USB: 4x USB 3.0 ports with screw-lock connectors
- Video Outputs:
- 1x VGA (up to 1920 x 1200 resolution)
- 1x DisplayPort (up to 4096 x 2160 resolution)

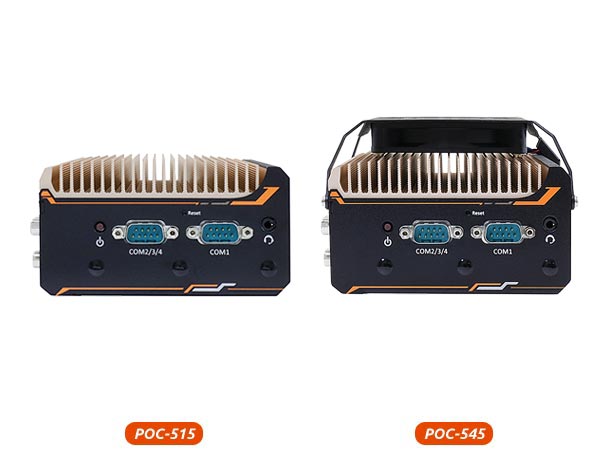

- Serial Ports:
- 1x software-programmable RS-232/422/485 (COM1)
- 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
- Audio: 1x 3.5 mm jack (mic-in and speaker-out)
Internal Interfaces:
- 1x full-size mini PCIe slot with internal SIM socket
- 1x MezIO™ expansion interface
Power Supply:
- Input: 8–35V DC via 3-pin pluggable terminal block
- Remote control and power LED output via 3-pin terminal block
Mechanical:
- Dimensions: 82 (W) x 118 (D) x 176 (H) mm
- Weight: 1.4 kg
- Mounting: DIN-rail (standard) or wall-mount (optional)
- Cooling: External-accessible 80 mm x 80 mm fan for heat dissipation
Environmental:
- Operating Temperature: -25°C to +70°C (with external fan)
- Storage Temperature: -40°C to +85°C
- Humidity: 10%–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC Compliance:
- CE/FCC Class A
- EN 55032 & EN 55024 compliance
### 4. Functionality
The POC-545 functions as a compact, high-performance embedded controller optimized for industrial and edge computing tasks. Its AMD Ryzen™ V1807B processor and Vega GPU enable simultaneous CPU and GPU workloads, making it suitable for machine vision, AI inference, and real-time data processing.
Typical Use Cases:
- Machine Vision Systems: Powering multi-camera inspection systems using its four PoE+ ports for direct camera connectivity and power delivery.
- Surveillance and Video Analytics: Running video decoding, encoding, and analytics workloads with GPU acceleration.
- Industrial Automation: Serving as a control and monitoring hub for sensors, actuators, and PLCs.
- Edge Computing Gateways: Performing local data processing and analytics before transmitting results to cloud systems.
- Transportation and In-Vehicle Systems: When paired with MezIO™-V20 module, supports ignition control and wireless communication.
Compatibility:
- Compatible with Neousys MezIO™ expansion modules for extended I/O, digital I/O, additional USB or GigE ports, and storage.
- Supports standard operating systems such as Windows 10 IoT, Linux distributions, and other x86-compatible OS environments.
### 5. Components & Accessories
Included Components:
- POC-545 embedded controller unit
- DIN-rail mounting kit (standard)
- Terminal block connectors for DC input and remote control
Optional Accessories:
- Power Adapters:
- *PA-120W-OW:* 120W AC/DC adapter (20V/6A, -30°C to +70°C)
- *PA-60W-OW:* 60W AC/DC adapter (12V/5A, -30°C to +60°C)
- Cables:
- *Cbl-DB9F-3DB9M-10CM:* DB9 (female) to 3x DB9 (male), 10 cm length
- Expansion Modules (MezIO™):
- *MezIO-C180:* 4x RS-232/422/485 + 4x RS-232 ports
- *MezIO-C181:* 4x RS-232/422/485 + 4x RS-422/485 ports
- *MezIO-D220:* 8-channel isolated digital input + 8-channel isolated digital output
- *MezIO-D230:* 16-channel isolated digital input + 16-channel isolated digital output
- *MezIO-V20:* Ignition power control + mini PCIe socket for in-vehicle use
- *MezIO-U4:* 4x USB 3.0 ports
- *MezIO-G4:* 4x Gigabit Ethernet ports
- *MezIO-R11:* SATA port for 2.5" HDD/SSD
- *MezIO-R12:* SATA port for 2.5" HDD/SSD + 4-channel isolated DI/DO
### 6. Installation & Setup
Mounting Options:
- Standard DIN-rail mounting for industrial cabinets or control panels.
- Optional wall-mount brackets for fixed installations.
Power Requirements:
- 8–35V DC input via terminal block.
- Optional remote power control and LED status output.
Cooling Configuration:
- External-accessible 80 mm x 80 mm fan for active cooling.
- For operation above 60°C, a wide-temperature SSD or HDD is recommended.
Setup Procedure:
1. Mount the unit securely using DIN-rail or wall-mount kit.
2. Connect DC power input and verify voltage range.
3. Attach PoE+ devices, USB peripherals, and display outputs.
4. Install storage via M.2 NVMe slot or MezIO™ SATA module.
5. Configure BIOS and OS settings as required for application.
### 7. Performance & Capabilities
Processing Power:
- Up to 3x CPU performance improvement over previous POC series.
- 4-core/8-thread architecture supports multitasking and parallel workloads.
Graphics and Compute:
- Vega GPU with 11 compute units delivers 3.6 TFLOPS FP16 performance.
- Supports hardware-accelerated video decoding and encoding.
Storage Performance:
- M.2 NVMe (PCIe Gen3 x2) provides up to 2x faster read/write speeds compared to SATA SSDs.
Networking:
- Four PoE+ ports supply up to 25.5W per port, ideal for powering IP cameras or sensors.
- Intel® I350-AM4 controller ensures stable, low-latency network performance.
Reliability:
- MIL-STD-810G compliance ensures resistance to vibration and shock.
- Screw-lock connectors prevent accidental disconnection.
Limitations:
- Maximum memory capacity limited to 16 GB DDR4.
- Operating temperature up to +70°C only with external fan installed.
### 8. Standards & Compliance
Environmental and Mechanical Standards:
- MIL-STD-810G (vibration and shock)
- Operating temperature: -25°C to +70°C (with fan)
- Storage temperature: -40°C to +85°C
Electromagnetic Compatibility (EMC):
- CE/FCC Class A
- EN 55032 (emission)
- EN 55024 (immunity)
Power over Ethernet:
- IEEE 802.3at compliant (PoE+)
Safety and Quality:
- Designed and manufactured by Neousys Technology under ISO-certified processes.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2–3 years; refer to Neousys policy).
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys website.
- Global technical support and RMA services.
Maintenance:
- Periodic cleaning of fan and ventilation openings recommended.
- Firmware and BIOS updates available for performance and security enhancements.
Product Lifecycle:
- Long-term availability typical of embedded platforms, ensuring continuity for industrial deployments.
Ordering Information:
- POC-545: AMD Ryzen™ V1807B ultra-compact embedded controller with 4x PoE+, 4x USB 3.0, and MezIO™ interface.
- POC-546: Same as POC-545 but with MezIO-R12 module pre-installed.
### Summary
The Neousys POC-545 represents a new generation of ultra-compact embedded controllers that combine high computational power, rugged design, and versatile connectivity. With its AMD Ryzen™ Embedded V1807B processor and Vega GPU, it delivers exceptional performance for edge AI, machine vision, and industrial automation applications. Its robust mechanical design, wide temperature tolerance, and secure I/O connections make it ideal for deployment in harsh environments. Expandable through MezIO™ modules and supporting high-speed NVMe storage, the POC-545 provides a scalable, reliable, and future-ready platform for modern embedded computing solutions.
### 1. Product Overview
Product Name: POC-545
Model: POC-545
Series: POC-500 Series
Article Number: POC-545
Manufacturer: Neousys Technology, Inc.
Product Type: Ultra-Compact Embedded Controller
Processor Platform: AMD Ryzen™ Embedded V1000 Series
The Neousys POC-545 is a high-performance, ultra-compact embedded controller designed for rugged industrial and edge computing applications. As part of the POC-500 series, it integrates AMD’s Ryzen™ Embedded V1807B processor, offering exceptional CPU and GPU performance in a small, durable form factor. The system is engineered for demanding environments such as machine vision, industrial automation, surveillance, and video analytics, combining high computational throughput, wide operating temperature tolerance, and versatile I/O connectivity.
### 2. Key Features
- High-Performance Embedded Computing:
Powered by the AMD Ryzen™ Embedded V1807B quad-core, eight-thread processor (3.35 GHz base / 3.8 GHz boost, 35–54W TDP), the POC-545 delivers desktop-class performance in an embedded form factor.
- Advanced Graphics Processing:
Integrated AMD Radeon™ Vega GPU with 11 compute units provides up to 3.6 TFLOPS (FP16), enabling advanced graphics rendering, GPU-accelerated computing, and AI inference workloads.
- Rugged, Wide-Temperature Operation:
Designed for industrial environments, the POC-545 supports operation from -25°C to +70°C (with external fan installed) and meets MIL-STD-810G standards for vibration and shock resistance.
- Compact and Robust Design:
Measuring only 82 (W) x 118 (D) x 176 (H) mm and weighing 1.4 kg, the POC-545 offers a space-efficient solution with front-accessible I/O and a DIN-rail or wall-mountable chassis.
- High-Speed Connectivity:
Equipped with four Gigabit PoE+ ports (IEEE 802.3at, Intel® I350-AM4 controller) for powering and connecting IP cameras or network devices, and four USB 3.0 ports with screw-lock connectors for secure peripheral attachment.
- Flexible Expansion:
Includes an M.2 2280 M-key NVMe slot (PCIe Gen3 x2) for high-speed SSD storage, a full-size mini PCIe slot with internal SIM socket for wireless modules, and a proprietary MezIO™ interface for modular I/O expansion.
- Dual Display Support:
Offers one VGA and one DisplayPort output, supporting resolutions up to 4096 x 2160, ideal for multi-display industrial or monitoring setups.
- Secure and Reliable Connections:
All data ports feature screw-lock mechanisms to prevent accidental disconnection in vibration-prone environments.
- Industrial-Grade Power Input:
Accepts 8–35V DC input via a 3-pin pluggable terminal block, supporting flexible power configurations and remote control functionality.
### 3. Technical Specifications
Processor:
- AMD Ryzen™ Embedded V1807B
- 4 cores / 8 threads
- 2 MB cache
- Base frequency: 3.35 GHz
- Boost frequency: 3.8 GHz
- TDP: 35W–54W
Graphics:
- Integrated AMD Radeon™ Vega GPU
- 11 compute units
- Up to 3.6 TFLOPS (FP16 performance)
Memory:
- One DDR4 SODIMM socket
- Supports up to 16 GB DDR4-3200 SDRAM
Storage:
- 1x M.2 2280 M-key NVMe socket (PCIe Gen3 x2)
- Optional MezIO™ modules for additional SATA storage (e.g., MezIO-R11, MezIO-R12)
I/O Interfaces (Front-Accessible):
- Ethernet: 4x Gigabit PoE+ ports (IEEE 802.3at, Intel® I350-AM4)
- USB: 4x USB 3.0 ports with screw-lock connectors
- Video Outputs:
- 1x VGA (up to 1920 x 1200 resolution)
- 1x DisplayPort (up to 4096 x 2160 resolution)
- Serial Ports:
- 1x software-programmable RS-232/422/485 (COM1)
- 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
- Audio: 1x 3.5 mm jack (mic-in and speaker-out)
Internal Interfaces:
- 1x full-size mini PCIe slot with internal SIM socket
- 1x MezIO™ expansion interface
Power Supply:
- Input: 8–35V DC via 3-pin pluggable terminal block
- Remote control and power LED output via 3-pin terminal block
Mechanical:
- Dimensions: 82 (W) x 118 (D) x 176 (H) mm
- Weight: 1.4 kg
- Mounting: DIN-rail (standard) or wall-mount (optional)
- Cooling: External-accessible 80 mm x 80 mm fan for heat dissipation
Environmental:
- Operating Temperature: -25°C to +70°C (with external fan)
- Storage Temperature: -40°C to +85°C
- Humidity: 10%–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC Compliance:
- CE/FCC Class A
- EN 55032 & EN 55024 compliance
### 4. Functionality
The POC-545 functions as a compact, high-performance embedded controller optimized for industrial and edge computing tasks. Its AMD Ryzen™ V1807B processor and Vega GPU enable simultaneous CPU and GPU workloads, making it suitable for machine vision, AI inference, and real-time data processing.
Typical Use Cases:
- Machine Vision Systems: Powering multi-camera inspection systems using its four PoE+ ports for direct camera connectivity and power delivery.
- Surveillance and Video Analytics: Running video decoding, encoding, and analytics workloads with GPU acceleration.
- Industrial Automation: Serving as a control and monitoring hub for sensors, actuators, and PLCs.
- Edge Computing Gateways: Performing local data processing and analytics before transmitting results to cloud systems.
- Transportation and In-Vehicle Systems: When paired with MezIO™-V20 module, supports ignition control and wireless communication.
Compatibility:
- Compatible with Neousys MezIO™ expansion modules for extended I/O, digital I/O, additional USB or GigE ports, and storage.
- Supports standard operating systems such as Windows 10 IoT, Linux distributions, and other x86-compatible OS environments.
### 5. Components & Accessories
Included Components:
- POC-545 embedded controller unit
- DIN-rail mounting kit (standard)
- Terminal block connectors for DC input and remote control
Optional Accessories:
- Power Adapters:
- *PA-120W-OW:* 120W AC/DC adapter (20V/6A, -30°C to +70°C)
- *PA-60W-OW:* 60W AC/DC adapter (12V/5A, -30°C to +60°C)
- Cables:
- *Cbl-DB9F-3DB9M-10CM:* DB9 (female) to 3x DB9 (male), 10 cm length
- Expansion Modules (MezIO™):
- *MezIO-C180:* 4x RS-232/422/485 + 4x RS-232 ports
- *MezIO-C181:* 4x RS-232/422/485 + 4x RS-422/485 ports
- *MezIO-D220:* 8-channel isolated digital input + 8-channel isolated digital output
- *MezIO-D230:* 16-channel isolated digital input + 16-channel isolated digital output
- *MezIO-V20:* Ignition power control + mini PCIe socket for in-vehicle use
- *MezIO-U4:* 4x USB 3.0 ports
- *MezIO-G4:* 4x Gigabit Ethernet ports
- *MezIO-R11:* SATA port for 2.5" HDD/SSD
- *MezIO-R12:* SATA port for 2.5" HDD/SSD + 4-channel isolated DI/DO
### 6. Installation & Setup
Mounting Options:
- Standard DIN-rail mounting for industrial cabinets or control panels.
- Optional wall-mount brackets for fixed installations.
Power Requirements:
- 8–35V DC input via terminal block.
- Optional remote power control and LED status output.
Cooling Configuration:
- External-accessible 80 mm x 80 mm fan for active cooling.
- For operation above 60°C, a wide-temperature SSD or HDD is recommended.
Setup Procedure:
1. Mount the unit securely using DIN-rail or wall-mount kit.
2. Connect DC power input and verify voltage range.
3. Attach PoE+ devices, USB peripherals, and display outputs.
4. Install storage via M.2 NVMe slot or MezIO™ SATA module.
5. Configure BIOS and OS settings as required for application.
### 7. Performance & Capabilities
Processing Power:
- Up to 3x CPU performance improvement over previous POC series.
- 4-core/8-thread architecture supports multitasking and parallel workloads.
Graphics and Compute:
- Vega GPU with 11 compute units delivers 3.6 TFLOPS FP16 performance.
- Supports hardware-accelerated video decoding and encoding.
Storage Performance:
- M.2 NVMe (PCIe Gen3 x2) provides up to 2x faster read/write speeds compared to SATA SSDs.
Networking:
- Four PoE+ ports supply up to 25.5W per port, ideal for powering IP cameras or sensors.
- Intel® I350-AM4 controller ensures stable, low-latency network performance.
Reliability:
- MIL-STD-810G compliance ensures resistance to vibration and shock.
- Screw-lock connectors prevent accidental disconnection.
Limitations:
- Maximum memory capacity limited to 16 GB DDR4.
- Operating temperature up to +70°C only with external fan installed.
### 8. Standards & Compliance
Environmental and Mechanical Standards:
- MIL-STD-810G (vibration and shock)
- Operating temperature: -25°C to +70°C (with fan)
- Storage temperature: -40°C to +85°C
Electromagnetic Compatibility (EMC):
- CE/FCC Class A
- EN 55032 (emission)
- EN 55024 (immunity)
Power over Ethernet:
- IEEE 802.3at compliant (PoE+)
Safety and Quality:
- Designed and manufactured by Neousys Technology under ISO-certified processes.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2–3 years; refer to Neousys policy).
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys website.
- Global technical support and RMA services.
Maintenance:
- Periodic cleaning of fan and ventilation openings recommended.
- Firmware and BIOS updates available for performance and security enhancements.
Product Lifecycle:
- Long-term availability typical of embedded platforms, ensuring continuity for industrial deployments.
Ordering Information:
- POC-545: AMD Ryzen™ V1807B ultra-compact embedded controller with 4x PoE+, 4x USB 3.0, and MezIO™ interface.
- POC-546: Same as POC-545 but with MezIO-R12 module pre-installed.
### Summary
The Neousys POC-545 represents a new generation of ultra-compact embedded controllers that combine high computational power, rugged design, and versatile connectivity. With its AMD Ryzen™ Embedded V1807B processor and Vega GPU, it delivers exceptional performance for edge AI, machine vision, and industrial automation applications. Its robust mechanical design, wide temperature tolerance, and secure I/O connections make it ideal for deployment in harsh environments. Expandable through MezIO™ modules and supporting high-speed NVMe storage, the POC-545 provides a scalable, reliable, and future-ready platform for modern embedded computing solutions.
-
POC-500-Datasheet.pdf
PDF Catalog
- PA-120W-OW - 120W AC/DC power adapter 20V/6A
- MezIO - Interchangeable Mezzanine I/O Boards
