Name: DIN-rail fanless PC with Atom x7425E, three 2.5GbE ports and four USB 3.2 ports.
Brand: Neousys Technology
SKU: POC-610

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

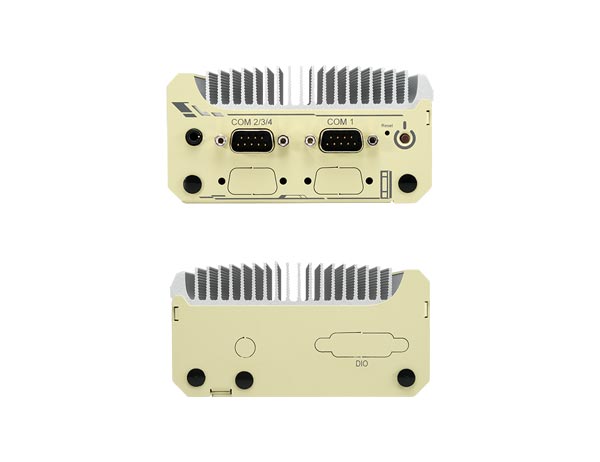

DIN-rail fanless PC with Atom x7425E, three 2.5GbE ports and four USB 3.2 ports.

POC-610

DIN-rail fanless PC with Atom x7425E, three 2.5GbE ports and four USB 3.2 ports.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer
Der Neousys POC-610 ist ein ultrakompakter, lüfterloser Industrie-PC zur Montage auf der DIN-Schiene. Er kombiniert den Intel Atom x7425E mit vier Effizienzkernen und bis zu 16 GB DDR5-4800. Drei 2,5-GbE-Ports und vier verschraubbare USB-3.2-Anschlüsse bieten zuverlässige Verbindungen für industrielle Peripherie. Zwei HDMI-1.4b-Ausgänge unterstützen Auflösungen bis 3840 × 2160. Hinzu kommen serielle Schnittstellen, ein M.2-2280-SATA-Steckplatz und die MezIO-Erweiterung. Das robuste System arbeitet lüfterlos bei -25 bis 70 °C und unterstützt eine weite Eingangsspannung von 8 bis 35 VDC.

Ultra-compact DIN-rail embedded computer with Intel Atom x7425E 4-core processor, up to 16 GB DDR5-4800 memory, three 2.5GbE ports, four screw-lock USB 3.2 ports, dual HDMI 1.4b outputs, serial interfaces, M.2 2280 SATA storage and MezIO expansion. Supports 8–35 VDC input and fanless operation from -25°C to 70°C. The ordering information does not specify PoE+ for this model.

Processor Intel Atom x7425E, 4 cores/4 threads, 1.5/3.4 GHz, 12 W TDP
Graphics Integrated Intel UHD Graphics with 24 EUs
Maximum Memory 16 GB
Memory Type DDR5-4800 SDRAM, one SODIMM socket
TPM Support dTPM 2.0
Ethernet Ports 3x 2.5GbE
PoE Support Not specified
Display Outputs 2x HDMI 1.4b
Maximum Display Resolution 3840 x 2160 pixels
USB Ports 2x USB 3.2 Gen 1 and 2x USB 3.2 Gen 2 with screw-lock
Programmable Serial Port 1x software-programmable RS-232/422/485 (COM1)
Additional Serial Ports 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
Storage Interface 1x M.2 2280 SATA
Expansion Interface 1x MezIO interface
DC Input Range 8 to 35 VDC
Dimensions 56 x 108 x 153 mm
Weight 0.98 kg
Mounting DIN-rail standard; wall-mount optional
Form Factor Ultra-compact fanless DIN-rail embedded computer

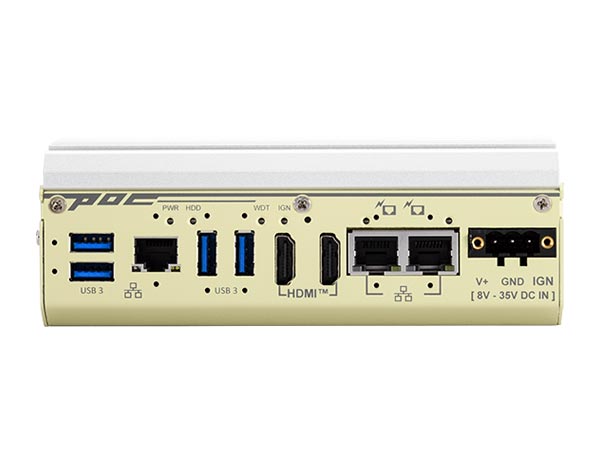

Connector 3x 2.5GbE; 4x screw-lock USB 3.2; 2x HDMI 1.4b; serial ports; 3.5 mm audio; 3-pin DC terminal block
Dimensions 56 x 108 x 153 mm (W x D x H)
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Humidity 10 to 90, non-condensing %
Vibration Standard MIL-STD-810H, Method 514.8, Category 4
Shock Standard MIL-STD-810H, Method 516.8, Procedure I
Operating Temperature -25°C to 70°C
Safety UL 62368-1; IEC 62368-1
Bus Interface MezIO expansion interface; M.2 2280 SATA
Digital I/O Optional via MezIO modules
Resolution Dual HDMI 1.4b, up to 3840 x 2160
Key Features Intel Atom x7425E 4-core processor; up to 16 GB DDR5-4800; 3x 2.5GbE; 4x screw-lock USB 3.2; dual 4K HDMI; fanless -25°C to 70°C operation; 8–35 VDC input; MezIO compatible; DIN-rail mounting
Accessories PA-60W-OW, PA-120W-OW, Wmkit-V-POC300_400, Wmkit-H-POC300_400, Cbl-DB9F-3DB9M-15CM, MezIO®-C180, MezIO®-C181, MezIO®-D330, MezIO®-R11, MezIO®-R12, MezIO®-U4-30, MezIO®-V21
