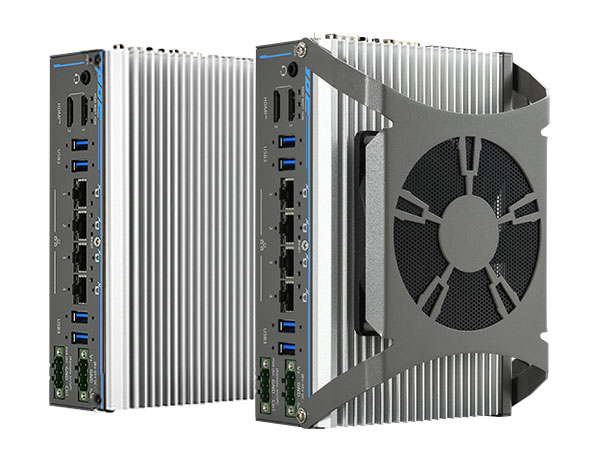

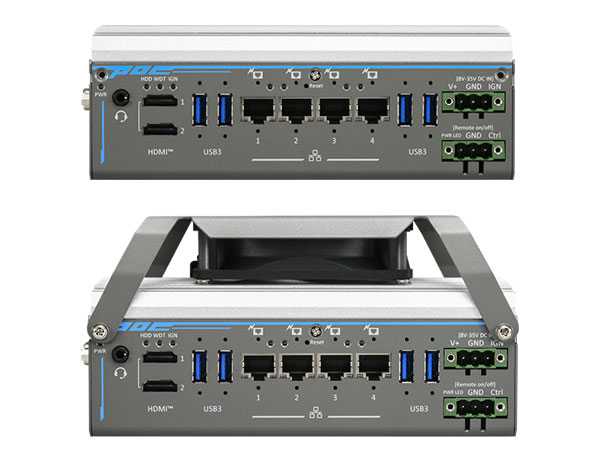

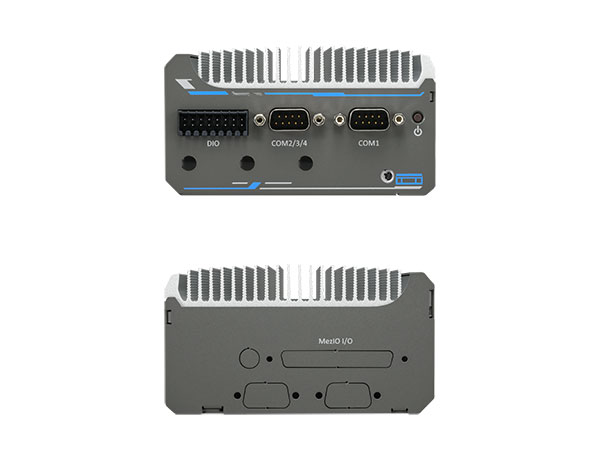

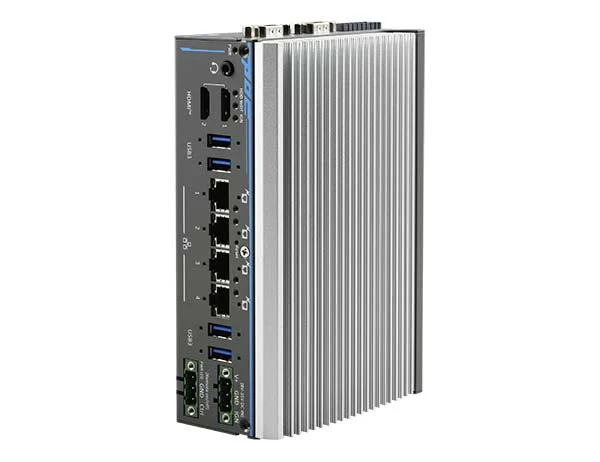

Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO
Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO

POC-915

Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Keine Kategorie
  • Der POC-915 von Neousys Technology ist ein ultrakompakter Embedded-PC fuer den industriellen Einsatz, fuer Edge-AI, Machine Vision und Automatisierung. Er basiert auf dem AMD Ryzen PRO 8640U mit 6 Kernen und 12 Threads und kombiniert hohe Rechenleistung mit robuster Bauweise im DIN-Rail-Format. Zur Ausstattung gehoeren vier Gigabit-Ethernet-Ports mit PoE+, vier USB-3.2-Gen2-Anschluesse mit Schraubverriegelung, zwei HDMI-2.0b-Ausgaenge, isolierte DI/DO sowie MezIO-Erweiterbarkeit. Das System unterstuetzt DDR5-5600, M.2 NVMe, 8 bis 35 VDC Eingang und einen erweiterten Temperaturbereich.
AMD Ryzen PRO 8640U embedded computer with 6C/12T CPU, 3.5/4.9 GHz, 15W-30W TDP, AMD Radeon RDNA3 graphics, Ryzen AI NPU up to 16 TOPS and total SoC 31 TOPS. Supports up to 32 GB DDR5-5600 SDRAM via one SODIMM socket, 1x M.2 2280 M-key PCIe Gen4 x4 NVMe SSD, 4x GbE with IEEE 802.3at PoE+ on ports 1-4, 4x USB 3.2 Gen2x1, 2x HDMI 2.0b, 4-CH isolated DI and 4-CH isolated DO, serial COM ports, mini-PCIe, MezIO expansion, 8 to 35V DC input, DIN-rail mounting, and -25°C to 70°C operation depending on configuration.
  • Processor AMD Ryzen PRO 8640U
  • CPU Cores and Threads 6C/12T
  • Base / Boost Frequency 3.5 / 4.9 GHz
  • TDP 15 to 30 W
  • NPU Performance 16 TOPS
  • Total SoC AI Performance 31 TOPS
  • Graphics AMD Radeon RDNA3 Graphics
  • Maximum Memory 32 GB
  • Memory Type DDR5-5600 SDRAM
  • Memory Socket 1x SODIMM
  • TPM dTPM 2.0 supported
  • Ethernet Ports 4x GbE
  • Ethernet Controller Intel I350-AM4
  • Wake-on-LAN Supported
  • PoE Standard IEEE 802.3at PoE+
  • PoE Ports Ports 1 to 4
  • PoE Power Budget UL Certified 32 W
  • Maximum PoE Power Budget 100 W
  • USB Ports 4x USB 3.2 Gen2x1
  • USB Data Rate 10 Gbps
  • USB Connector Type-A with screw-lock
  • Video Output 2x HDMI 2.0b
  • Maximum Display Resolution 3840 x 2160 at 60Hz
  • COM1 1x software-programmable RS-232/422/485
  • COM2/3/4 3x 3-wire RS-232
  • COM2 Alternative Mode 1x RS-422/485
  • Isolated Digital Inputs 4 CH
  • Isolated Digital Outputs 4 CH
  • Digital I/O 4-channel isolated DI; 4-channel isolated DO
  • Audio Interface 1x 3.5 mm jack for mic-in and speaker-out
  • SATA HDD Support None
  • M.2 NVMe Slot 1x M.2 2280 M key socket
  • NVMe Interface PCIe Gen4 x4
  • Mini PCIe Slot 1x full-size mini PCI Express socket
  • Mini PCIe Signals PCIe + USB2
  • Internal SIM Socket 1x internal micro SIM socket
  • Expandable I/O 1x MezIO expansion interface
  • DC Input 8 to 35 V DC
  • DC Input Connector 1x 3-pin pluggable terminal block
  • Remote Control 1x 3-pin pluggable terminal block for remote control and PWR LED output
  • Dimensions Fanless 64 x 116 x 176 mm
  • Dimensions With Fan 92 x 118 x 176 mm
  • Weight Fanless 1.2 kg
  • Weight With Fan 1.4 kg
  • Mounting DIN-rail mount standard; wall-mount optional
  • Form Factor DIN-rail ultra-compact embedded computer
  • Connector 3-pin pluggable terminal block; Type-A USB; HDMI; 3.5 mm audio jack; M.2 2280 M-key; mini PCIe
  • Dimensions 64 x 116 x 176 mm
  • Operating Temperature Fanless 15W TDP -25 to 70 °C
  • Operating Temperature Fanless 30W TDP -25 to 45 °C
  • Operating Temperature With Fan 30W TDP -25 to 70 °C
  • Storage Temperature -40 to 85 °C
  • Humidity 10% to 90%, non-condensing
  • Vibration MIL-STD-810H, Method 514.8, Category 4
  • Shock MIL-STD-810H, Method 516.8, Procedure I
  • Operating Temperature -25°C to 70°C (fanless 15W TDP); -25°C to 45°C (fanless 30W TDP); -25°C to 70°C (30W TDP with fan)
  • EMC CE/FCC Class A, according to EN 55032 & EN 55035
  • Safety UL 62368-1, IEC 62368-1
  • Bus Interface Gigabit Ethernet; USB 3.2 Gen2x1; HDMI 2.0b; Mini PCIe; MezIO
  • Resolution 3840 x 2160 @ 60Hz
  • Key Features AMD Ryzen PRO 8640U; 6C/12T; Ryzen AI NPU; up to 32 GB DDR5-5600; 4x PoE+ GbE; 4x USB 3.2 Gen 2; 2x HDMI 2.0b; isolated DI/DO; MezIO expansion; DIN-rail mount; 8 to 35V DC input; wide temperature
