Startseite / Produkte / Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support

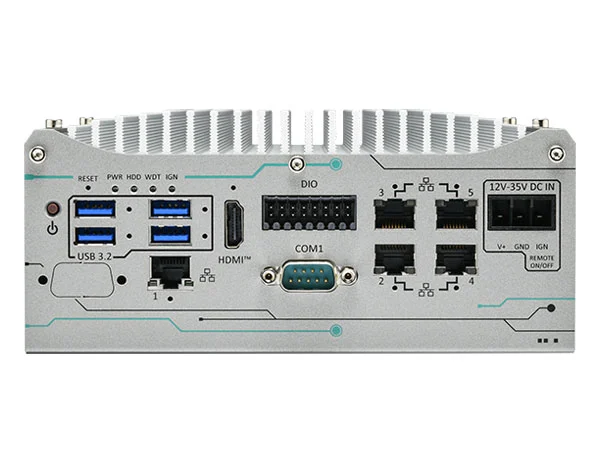

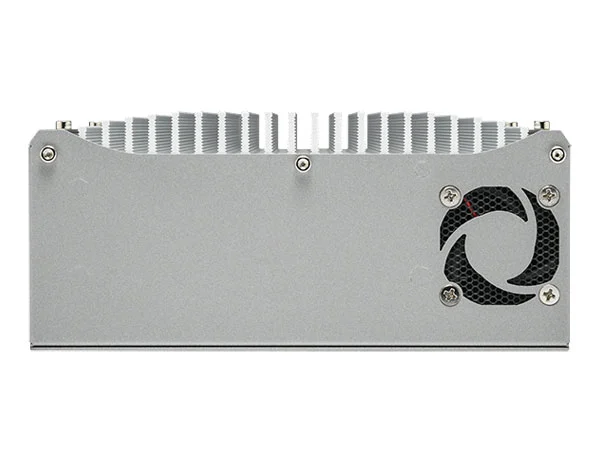

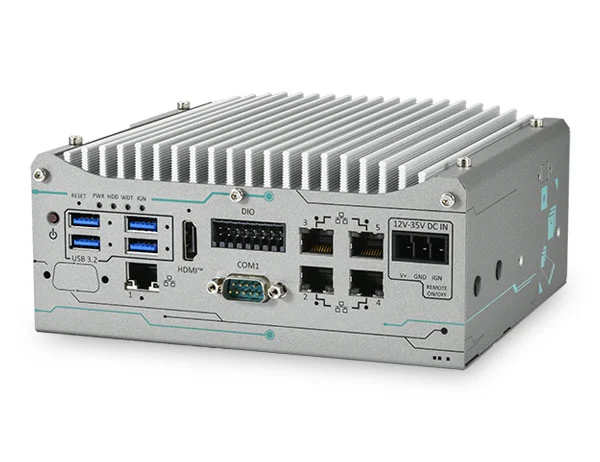

Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support
Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support

POC-960GC

Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Keine Kategorie
  • Der POC-960GC von Neousys Technology ist ein ultrakompakter GPU-Computer fuer industrielle Edge-AI-Anwendungen in beengten Einbausituationen. Das System basiert auf einem AMD Ryzen PRO 8640U Prozessor mit 6 Kernen und 12 Threads und unterstuetzt zusaetzlich eine NVIDIA Low-Profile-GPU bis 70 W. Damit eignet sich die Plattform fuer Bildverarbeitung, KI-Inferenz, Robotik und smarte Infrastrukturen. Zur Ausstattung gehoeren bis zu 32 GB DDR5-5600, M.2 NVMe, zwei Mini-PCIe-Slots, 4x GbE, 1x 2.5GbE, 4x USB 3.2 Gen 2, isolierte DIO sowie ein weiter DC-Eingang von 12 bis 35 V.
Ultra-compact x86-based GPU computer with AMD Ryzen PRO 8640U processor (6C/12T, 3.5/4.9 GHz, 15W-30W TDP), AMD Radeon RDNA3 graphics with Ryzen AI, support for NVIDIA low-profile GPU up to 70W via low-profile PCIe x16 Gen4 slot with 8 PCIe lanes, up to 32 GB DDR5-5600 SDRAM in one SODIMM socket, 1x M.2 2280 M-key PCIe Gen3 x4 for NVMe SSD, 2x full-size Mini-PCIe with 1x internal micro SIM, 1x 2.5GbE, 4x GbE, 4x USB 3.2 Gen 2, 1x HDMI 2.0b, 1x software-programmable RS-232/422/485, 4-CH isolated DI and 4-CH isolated DO, 12-35V DC input, wall-mount, -25°C to 60°C operating temperature depending on configuration.
  • Processor Model AMD Ryzen PRO 8640U
  • CPU Cores / Threads 6C / 12T
  • CPU Base / Boost Frequency 3.5 / 4.9 GHz
  • CPU TDP 15-30 W
  • Integrated Graphics AMD Radeon RDNA3 Graphics
  • NPU Performance 16 TOPS
  • Total SoC AI Performance 31 TOPS
  • Supported Discrete GPU NVIDIA low-profile GPU card up to 70W
  • PCIe Slot 1x low-profile PCIe x16 slot
  • PCIe Electrical Lanes 8 lanes
  • Mini-PCIe Slots 2x full-size mini PCI Express socket
  • Internal SIM Slot 1x internal micro SIM socket
  • Maximum Memory 32 GB
  • Memory Type DDR5-5600 SDRAM
  • Memory Socket One SODIMM socket
  • TPM dTPM 2.0
  • 2.5GbE Ports 1 port
  • 2.5GbE Controller Intel I226-V
  • GbE Ports 4 ports
  • GbE Controller Intel I350-AM4
  • Wake-on-LAN Supported on port #1
  • Native Video Port 1x HDMI 2.0b
  • Maximum Display Resolution 3840 x 2160 @ 60Hz
  • Serial Port 1x software-programmable RS-232/422/485 port
  • USB Ports 4x USB 3.2 Gen 2
  • Isolated Digital Input Channels 4 channels
  • Isolated Digital Output Channels 4 channels
  • Digital I/O 4 isolated DI, 4 isolated DO
  • M.2 Storage Slot 1x M.2 2280 M key socket
  • M.2 Interface PCIe Gen3 x4 for NVMe SSD
  • DC Input Range 12 to 35 VDC
  • Power Connector 1x 3-pin pluggable terminal block
  • Remote Control Power Input Supported
  • Ignition Power Control Optional
  • Dimensions 175 x 159 x 77 mm
  • Weight 1.8 kg
  • Mounting Wall-mount
  • Form Factor Ultra-compact wall-mount GPU computer
  • Connector 3-pin pluggable terminal block; HDMI 2.0b; 5x Ethernet; 4x USB 3.2 Gen 2; COM; DIO
  • Dimensions 175 x 159 x 77 mm
  • Operating Temperature -25 to 60 °C
  • Storage Temperature -40 to 85 °C
  • Humidity 10% to 90%, non-condensing
  • Vibration MIL-STD-810H Method 514.8 Category 4
  • Shock MIL-STD-810H Method 516.8 Procedure I
  • Operating Temperature -25°C to 60°C
  • EMC CE/FCC Class A, according to EN 55032 and EN 55035
  • Bus Interface PCIe Gen4 x16 slot with 8-lane signals; Mini-PCIe; M.2 PCIe Gen3 x4
  • Resolution 3840 x 2160 @ 60Hz
  • Key Features AMD Ryzen PRO 8640U; supports NVIDIA low-profile GPU up to 70W; up to 32 GB DDR5-5600; 4x GbE; 1x 2.5GbE; optional PoE+; 4x USB 3.2 Gen 2; M.2 NVMe; 2x Mini-PCIe; isolated DIO; 12-35V DC input
