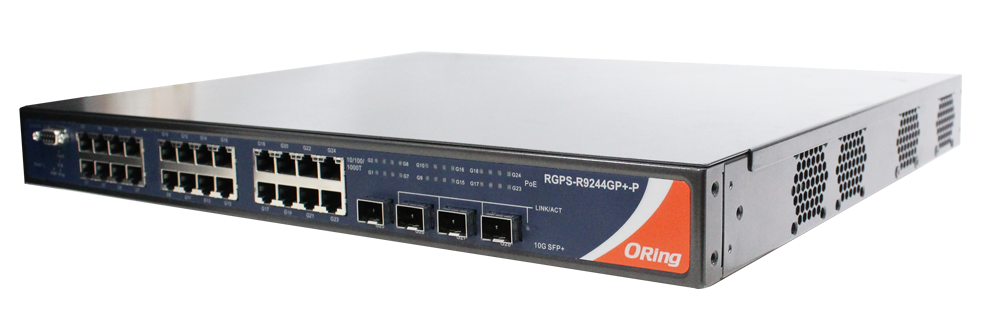

Comprehensive Product Summary – ORing RGPS‑R9244GP+‑P Industrial Managed Rack‑Mount PoE Switch
### 1. Product Overview
Product Name: RGPS‑R9244GP+‑P
Model / Series: RGPS‑R9244GP+‑P Series – Industrial Layer‑3 Managed Gigabit PoE Ethernet Switch
Article Number: RGPS‑R9244GP+‑P
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542‑2, JhongJheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Support Contact: support@oring‑networking.com
Sales Contact: sales@oring‑networking.com
The RGPS‑R9244GP+‑P is a high‑performance, industrial‑grade, Layer‑3 managed Gigabit Ethernet switch designed for mission‑critical applications requiring high port density, Power‑over‑Ethernet (PoE) capability, and advanced network redundancy. It integrates 24 Gigabit PoE ports and 4 SFP+ uplink ports in a 19‑inch rack‑mountable chassis, supporting advanced management, routing, and security functions for industrial automation, transportation, and power substation networks.
### 2. Key Features
- Layer‑3 Managed Gigabit Switch: Supports static routing and RIP for inter‑VLAN and inter‑subnet communication.
- High Port Density: 24 × 10/100/1000Base‑T(X) RJ‑45 ports with IEEE 802.3at PoE P.S.E. capability and 4 × 1G/10GBase‑X SFP+ fiber uplink ports.
- PoE Power Delivery: Each RJ‑45 port provides up to 30 W per port (IEEE 802.3at compliant), with total PoE budget up to 720 W at ≤ 55 °C and 360 W at 55–60 °C.
- Redundant Ethernet Ring: Proprietary O‑Ring and O‑Chain technologies with recovery time < 30 ms over 250 units; supports MSTP/RSTP/STP and IEC 62439‑2 MRP.
- Wide Operating Range: ‑40 °C to 60 °C operation, ‑40 °C to 85 °C storage, 5–95 % non‑condensing humidity.
- Robust Industrial Design: 19‑inch rack‑mount steel enclosure, 431 × 342 × 44 mm, 6.52 kg.
- High Switching Performance: 128 Gbps switching bandwidth, 7 µs latency, 8 K MAC table, 8 priority queues, 9.6 KB jumbo frame support.
- Comprehensive Management: Web GUI, Telnet, SSH, HTTPS, SNMP v1/v2c/v3, CLI (RS‑232 or Telnet), and ORing Open‑Vision centralized management.
- Advanced Security: IEEE 802.1x, RADIUS/TACACS+, ACLs, device binding, DoS/DDoS prevention, IP source guard, HTTPS/SSH encryption.
- Synchronization & Timing: IEEE 1588v2 Precision Time Protocol (PTP) hardware clock synchronization.
- Energy Efficiency: IEEE 802.3az Energy‑Efficient Ethernet.
- Diagnostics & Alerts: Fault relay, alarm LED, e‑mail/SNMP/Syslog notifications, cable diagnostics, SFP DDM monitoring.
- Reliability: Dual power input redundancy (100–240 VAC), overload protection, 5‑year warranty.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 24 × 10/100/1000Base‑T(X) RJ‑45 with PoE (IEEE 802.3at P.S.E.) |
| Fiber Ports | 4 × 1G/10GBase‑X SFP+ slots |
| Console Port | 1 × RS‑232 (DB‑9 female, 115200 bps, 8N1) |
| Switching Capacity | 128 Gbps |
| Switching Latency | 7 µs (store‑and‑forward) |
| MAC Address Table | 8 K entries |
| Priority Queues | 8 hardware queues |
| Jumbo Frame | Up to 9.6 KB |
| VLANs | 256 VLANs (IEEE 802.1Q) |
| IGMP Groups | 128 per VLAN |
| PoE Standard | IEEE 802.3af/at (P.S.E. up to 30 W per port) |
| PoE Power Budget | 720 W max @ ≤ 55 °C; 360 W max @ 55–60 °C |
| Power Input | 100–240 VAC 50/60 Hz (1000 W internal supply) |
| Power Consumption | 75 W typical (excluding PoE load) |
| Protection | Overload protection present; reverse polarity not present |
| Dimensions (W × D × H) | 431 × 342 × 44 mm (16.97 × 13.46 × 1.73 in) |
| Weight | 6.52 kg |
| Enclosure | 19‑inch rack‑mount metal housing |
| Operating Temperature | ‑40 °C to 60 °C (‑40 °F to 140 °F) |
| Storage Temperature | ‑40 °C to 85 °C (‑40 °F to 185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| EMI/EMS Compliance | FCC Part 15 Class A, EN55022 Class A; EN61000‑4‑2/3/4/5/6/8/11 |
| Shock / Vibration / Drop | IEC 60068‑2‑27 / ‑2‑6 / ‑2‑32 |
| Safety | EN 60950‑1 |
| Warranty | 5 years |
### 4. Functionality and Applications
Operation Principle:
The RGPS‑R9244GP+‑P functions as a fully managed Layer‑3 Ethernet switch providing both data switching and IP routing. It supports static and dynamic routing (RIP), VLAN segmentation, QoS prioritization, and PoE power delivery over standard Cat 5e/6 cabling. The integrated management software allows configuration through web interface, CLI, or SNMP, enabling centralized control of large industrial networks.
Typical Applications:
- Power substation and smart grid communication networks
- Intelligent transportation systems and railway/rolling‑stock Ethernet backbones
- Industrial automation and SCADA systems
- IP surveillance and security networks (PoE cameras, NVRs)
- Building automation and access control
- High‑availability enterprise edge or aggregation switching
Compatibility:
Complies with IEEE 802.3/802.3u/802.3ab/802.3z/802.3ae standards; interoperable with standard Ethernet devices, PoE PDs, and SFP/SFP+ optical transceivers (multi‑mode or single‑mode LC).
### 5. Components & Accessories
Included Items:
- RGPS‑R9244GP+‑P switch unit
- Rack‑mount brackets (L & R) with screws (M4 × 6)
- AC power cord (100–240 VAC)
- RS‑232 console cable (RJ‑45 to DB‑9 F)
- Quick Installation Guide and CD (user manual, utilities)
Optional Accessories:
- SFP/SFP+ transceivers (1 G/10 G, MM/SM)
- DIN‑rail mounting kit (optional)
- ORing Open‑Vision network management software
- Redundant power supply modules (if required for backup)
Connectors:
- RJ‑45 × 24 (PoE P.S.E.)
- SFP+ × 4 (LC fiber)
- RS‑232 DB‑9 console
- AC power socket (IEC C14)
- Reset button (3 s reboot / 5 s factory reset)
### 6. Installation & Setup
Mounting:
Designed for 19‑inch rack installation. Attach the supplied brackets using three screws per side, then secure the unit to the rack with two front screws. Ensure adequate airflow and avoid mechanical stress.
Power Connection:
Connect the AC power cord to the rear IEC connector and switch on. Input range 100–240 VAC 50/60 Hz. The system power LED (PWR) illuminates green when active.
Network Cabling:
- Copper: Cat 5e UTP (100 m max) for 10/100/1000Base‑T(X) ports.
- Fiber: SFP/SFP+ modules with LC connectors for 1 G/10 G uplinks.
- Auto MDI/MDI‑X supported on all RJ‑45 ports.
Console Access:
Connect via RS‑232 (DB‑9 female) to PC COM port (115200 bps, 8 data bits, no parity, 1 stop bit).
Default management IP: 192.168.10.1 / 24, username/password: admin/admin.
Reset Functions:
- Press 3 s → reboot.
- Press 5 s → restore factory defaults (IP settings retained).
### 7. Performance & Capabilities
- Switching Fabric: 128 Gbps non‑blocking.
- Throughput: 95 Mpps wire‑speed forwarding.
- Latency: < 7 µs store‑and‑forward.
- PoE Output: 30 W per port (max), IEEE 802.3at Class 0–4.
- Redundancy: O‑Ring (< 30 ms recovery), O‑Chain, MRP, MSTP/RSTP/STP.
- Routing: Layer‑3 static and RIP v1/v2 routing.
- QoS: 802.1p priority, DSCP mapping, 8 queues, port scheduling (Strict Priority / Weighted).
- Bandwidth Control: Ingress/Egress rate limiting per port.
- Multicast: IGMP v2/v3 snooping with fast leave and querier support.
- Security: ACL filtering, 802.1x authentication, MAC binding, DoS/DDoS protection, RADIUS/TACACS+, HTTPS/SSH encryption.
- Diagnostics: VeriPHY cable test, SFP DDM monitoring, port mirroring, Syslog, SNMP traps, e‑mail alerts.
- Synchronization: IEEE 1588v2 PTP hardware clock with 1 PPS input/output and VCXO adjustment.
- Energy Efficiency: IEEE 802.3az support for reduced power consumption.
Limitations:
PoE budget derates above 55 °C (360 W max at 60 °C). Ensure adequate ventilation in high‑temperature environments.
### 8. Standards & Compliance
Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X), 802.3ae (10 Gigabit Ethernet), 802.3x (Flow Control), 802.3ad (LACP), 802.3at (PoE+), 802.1p (CoS), 802.1Q (VLAN Tagging), 802.1w (RSTP), 802.1s (MSTP), 802.1x (Authentication), 802.1AB (LLDP).
EMC / Safety / Environmental:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
- Environmental: RoHS compliant
Industry Protocols Supported:
O‑Ring, O‑Chain, Open‑Ring, MRP (IEC 62439‑2), STP/RSTP/MSTP, LLDP, SNMP v1/v2c/v3, RMON, Modbus TCP, DHCP Server/Relay, VRRP, RIP, PTP 1588v2.
### 9. Additional Information
Warranty: 5 years limited hardware warranty covering defects in materials and workmanship.
Support: Technical assistance via e‑mail and online resources.
Maintenance: Firmware updates available through web interface or Open‑Vision utility; configuration backup/restore supported (XML format).
Firmware Upgrade: Performed via web GUI or TFTP upload without service interruption.
Monitoring & Logging: Syslog server integration, SMTP e‑mail alerts, SNMP traps, event logging for power, link, and ring status.
Management Security: Role‑based access control, password protection, HTTPS/SSH encryption, AAA integration with RADIUS/TACACS+.
Environmental Reliability: Designed for industrial temperature range and 24/7 operation in harsh conditions.
### Summary
The ORing RGPS‑R9244GP+‑P is a robust, feature‑rich industrial Layer‑3 managed switch engineered for high‑availability Ethernet infrastructures. With 24 Gigabit PoE+ ports, 4 SFP+ uplinks, and a 128 Gbps switching fabric, it delivers wire‑speed performance and advanced redundancy through O‑Ring and O‑Chain technologies. Its comprehensive management suite (web, CLI, SNMP, Open‑Vision), security framework (802.1x, ACL, RADIUS, HTTPS/SSH), and industrial hardening (‑40 °C to 60 °C operation, EMC certifications) make it ideal for power utilities, transportation, and automation networks requiring deterministic performance and long‑term reliability.
