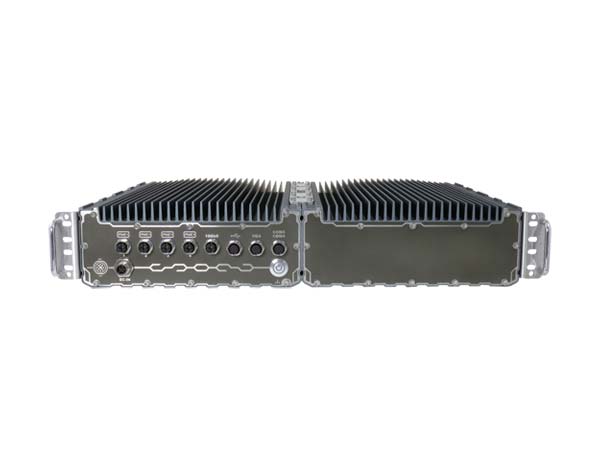

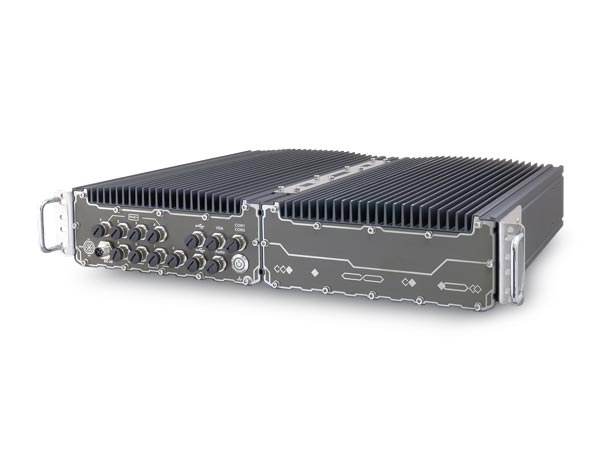

IP67 RTX 2000 Ada computer with eight PoE+ ports and M12 10GbE.
IP67 RTX 2000 Ada computer with eight PoE+ ports and M12 10GbE. IP67 RTX 2000 Ada computer with eight PoE+ ports and M12 10GbE.

SEMIL-1728GC-10G-ADA

IP67 RTX 2000 Ada computer with eight PoE+ ports and M12 10GbE.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der SEMIL-1728GC-10G-ADA ist für datenintensive Edge-AI-Anwendungen in nassen, staubigen und vibrationsbelasteten Umgebungen konzipiert. Seine NVIDIA RTX 2000 Ada wird durch Intel Xeon E oder Core Prozessoren der 9. beziehungsweise 8. Generation ergänzt. Acht Gigabit-PoE+-Ports versorgen Kameras und Netzwerkgeräte, während ein zusätzlicher 10GbE-Port eine schnelle Datenanbindung ermöglicht. Alle externen Verbindungen nutzen robuste M12-Stecker. Das lüfterlose IP67-System unterstützt bis zu 64 GB DDR4, NVMe und SATA sowie 8 bis 48 VDC mit Zündsteuerung.
IP67 fanless GPU computer with NVIDIA RTX 2000 Ada, eight Gigabit PoE+ ports and one 10GbE port. Supports Intel Xeon E or 9th/8th Gen Core processors, up to 64 GB DDR4, NVMe and SATA storage, rugged M12 connectivity, 8–48 VDC input, ignition control and 2U rack or wall mounting.
  • GPU NVIDIA RTX 2000 Ada
  • Gigabit PoE+ Ports 8 ports
  • 10 Gigabit Ethernet Ports 1 port
  • Ingress Protection IP67
  • Chipset Intel C246
  • Maximum System Memory 64 GB
  • DC Input Range 8–48 VDC
  • Dimensions 440 x 310 x 90.5 mm
  • Form Factor Fanless 2U 19-inch rack/wall-mount computer
  • Connector M12 X-coded PoE+/10GbE; M12 A-coded VGA/USB/COM; M12 S-coded DC input
  • Dimensions 440 x 310 x 90.5 mm
  • Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
  • Resolution VGA up to 1920 x 1200
  • Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
  • Key Features IP67 waterproof and dustproof;NVIDIA RTX 2000 Ada;8x Gigabit PoE+;1x 10GbE;fanless operation;8–48 VDC input;MIL-STD-810G;M12 connectors
  • Accessories PA-280W-ET2, Cblkit-M12
