IP69K fanless 2U edge AI computer with NVIDIA L4 and seven M12 Ethernet ports.

SEMIL-2047GC

IP69K fanless 2U edge AI computer with NVIDIA L4 and seven M12 Ethernet ports.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

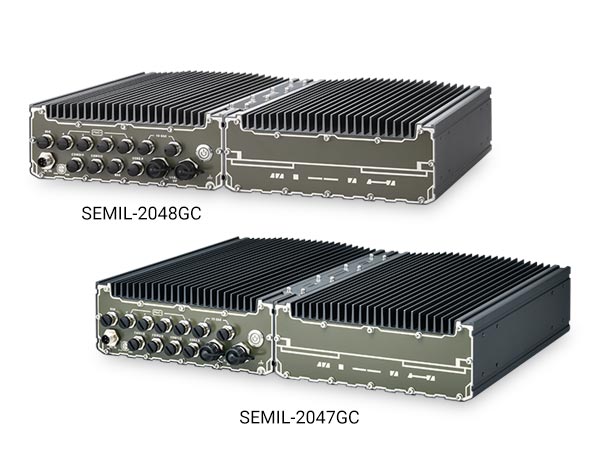

Der SEMIL-2047GC ist ein lüfterloser, besonders robuster Edge-AI-Computer im 2U-19-Zoll-Format. Sein IP69K-Gehäuse aus korrosionsbeständigem Edelstahl und Aluminium eignet sich für staubige, nasse sowie vibrationsbelastete Umgebungen. Eine NVIDIA L4 GPU und Intel Core Prozessoren der 14., 13. oder 12. Generation ermöglichen anspruchsvolle KI-Anwendungen. Sieben Ethernet-Ports mit M12-Anschlüssen, darunter zwei 10GbE- und vier 2.5GbE-PoE+-Ports, ergänzen CAN, USB und serielle Schnittstellen. Der Betrieb ist mit 35-W-CPU von -40 bis 70 °C möglich.

Extreme-rugged 2U 19-inch rack-mount computer with NVIDIA L4 GPU and Intel 14th/13th/12th Gen Core processor support. Features up to 128 GB DDR5, seven M12 Ethernet ports including 2x 10GbE and 4x 2.5GbE PoE+, isolated CAN and serial interfaces, NVMe and SATA storage, 8–48 VDC input, IP69K protection and fanless operation from -40°C to 70°C with a 35 W CPU.

Supported Processor Generations Intel Core 14th, 13th and 12th Gen
Chipset Intel Q670E
GPU NVIDIA L4
Maximum Memory 128 GB
Memory Type DDR5-4800 SDRAM, two SODIMM slots
Ethernet Ports 2x 10GbE, 4x 2.5GbE PoE+, 1x GbE
PoE+ Ports 4 ports
PoE Power Budget 100 W
CAN Bus Ports 2x isolated CAN 2.0 with SocketCAN support
Serial Ports 3x isolated 3-wire RS-232; 1x RS-422/485
USB Ports 2x USB 3.2 Gen1 Type-C; 2x USB 2.0
SATA Drive Support 2x internal 2.5-inch SATA HDD/SSD, RAID 0/1
NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
Expansion Sockets 3x full-size mini PCIe; 1x M.2 B key; 1x M.2 E key
DC Input Range 8–48 VDC
Ignition Control Built-in
Dimensions 440 x 310 x 90.5 mm
Weight 12 kg
Form Factor 2U 19-inch rack-mount / wall-mount

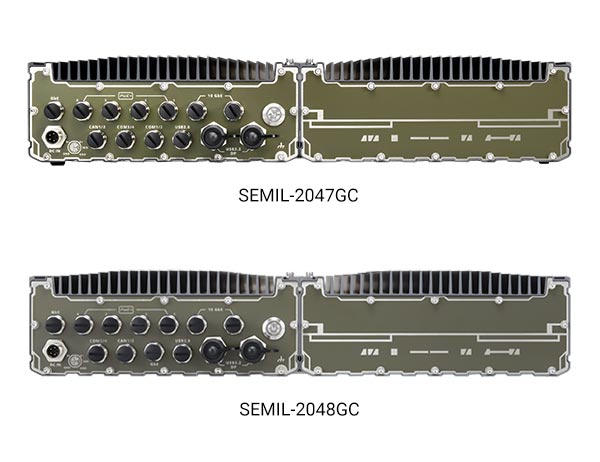

Connector M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; USB Type-C
Dimensions 440 x 310 x 90.5 mm
Ingress Protection IP69K
Operating Temperature -40 to 70 with 35 W CPU; -40 to 60 in 65 W TDP mode °C
Vibration Compliance MIL-STD-810H 514.8C-VII, Category 4
Shock Compliance MIL-STD-810H 516.8 Procedure I
Operating Temperature -40°C to 70°C with 35 W CPU; -40°C to 60°C in 65 W TDP mode
Bus Interface 3x full-size mini PCIe; M.2 PCIe Gen4 x4; M.2 B key; M.2 E key
Key Features IP69K waterproof construction;NVIDIA L4 GPU;fanless wide-temperature operation;2x 10GbE;4x 2.5GbE PoE+;2x isolated CAN 2.0;8–48 VDC input;ignition control;MIL-STD-810H compliant
Accessories PA-280W-CW6P-2P, PA-600W-C4PY-4P, Cblkit-M12-SEMIL2007
