A114 - Rayon

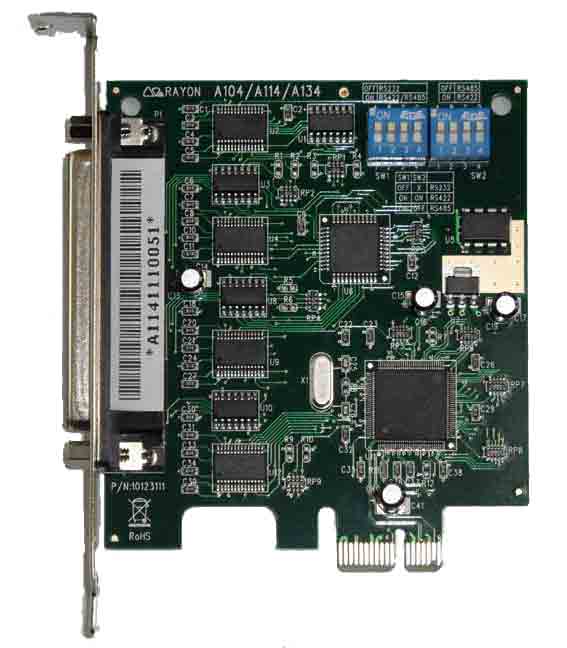

PCIe 4-Port RS232/422/485 Card Mixed Settable

This is a set of PC Add-On Cards that provide communication capabilities for your computer. The cards include RS232, RS485, IEEE, PCI Serial 4-Port, and RS232 Mixed RS485 / RS422 4-Ports PCI, allowing you to connect to a variety of different devices. With these cards, you will be able to easily transfer data between your computer and other devices..
73,00 €
incl. VAT 86,87 €

Description

  • PCIe 4-port serial card plug&play card
  • 4*port RS232/422/485 selectable separately by DIP switch
  • each port 16950a Moschip MCS9904 with 50..115200bps
  • IO mapping assigned by PCI BIOS
  • memory mapping assigned by PCI BIOS
  • 4*IRQ mapping assigned by PCI BIOS
  • DB37 female connector
  • included: connector cable DB37m to 4*DB9m
  • supports Win7/Win2k/XP/Vista/Linux/SCO
  • 82*97mm
  • Rayon

Details

  • Width: 82 mm
  • Height: 97 mm
  • Weight: 1.15kg
  • Form factor: half
  • Manufacturer: Rayon
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
