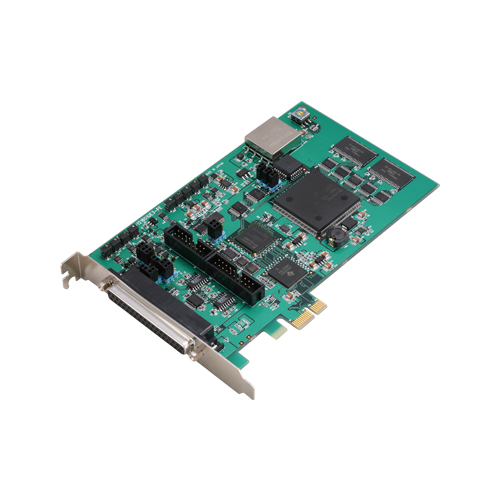

AIO-121601UE3-PE

AIO-121601UE3-PE - Contec

PCIe I/O card AD 1MS/s 12 Bit 16 channels 1*DA 4*DI 4*DO

PC Add-On Cards are a great way to upgrade your computer and expand its capabilities. A/D Cards are the most popular type of add-on card, and they provide analog-to-digital conversion to allow for the use of audio, video, and other types of data..
880,00 €
incl. VAT 1.047,20 €

Description

  • PCI Express bus I/O card
  • AD 1MS/s 12bit 16 channels
  • analog non-isolated inputs bipolar ±2,5/±5/±10V or unipolar 0-5/0-10V
  • 16M data FIFO or RING
  • 1x non-isolated analog output 12bit bipolar ±5/±10V or unipolar 0-10V
  • TTL digital I/O 4* DI + 4*DO
  • 1* counter internal 4MHz or external signal
  • connector 37pin DSUB female and 16-pin pin-header
  • Windows and Linux driver software
  • C-LOGGER/LabView/MATLAB supported
  • operating condition 0-50°C 10-90%RH

Details

  • Features: 16MWord FIFO/Ring Buffer, ASIC for intelligent sampling
  • Width: 169.33 mm
  • Height: 110.18 mm
  • Weight: 0.8kg
  • Manufacturer: Contec
  • Country of Origin: Japan
  • Customs code: 8473 3020 000

Data Sheets

Manuals

Accessories

  • ATUH-16A(PCI)
    Extension board 32SE/16DI extra inputs for AIO-161601 series
