ARS-1500 - Vecow Co., Ltd

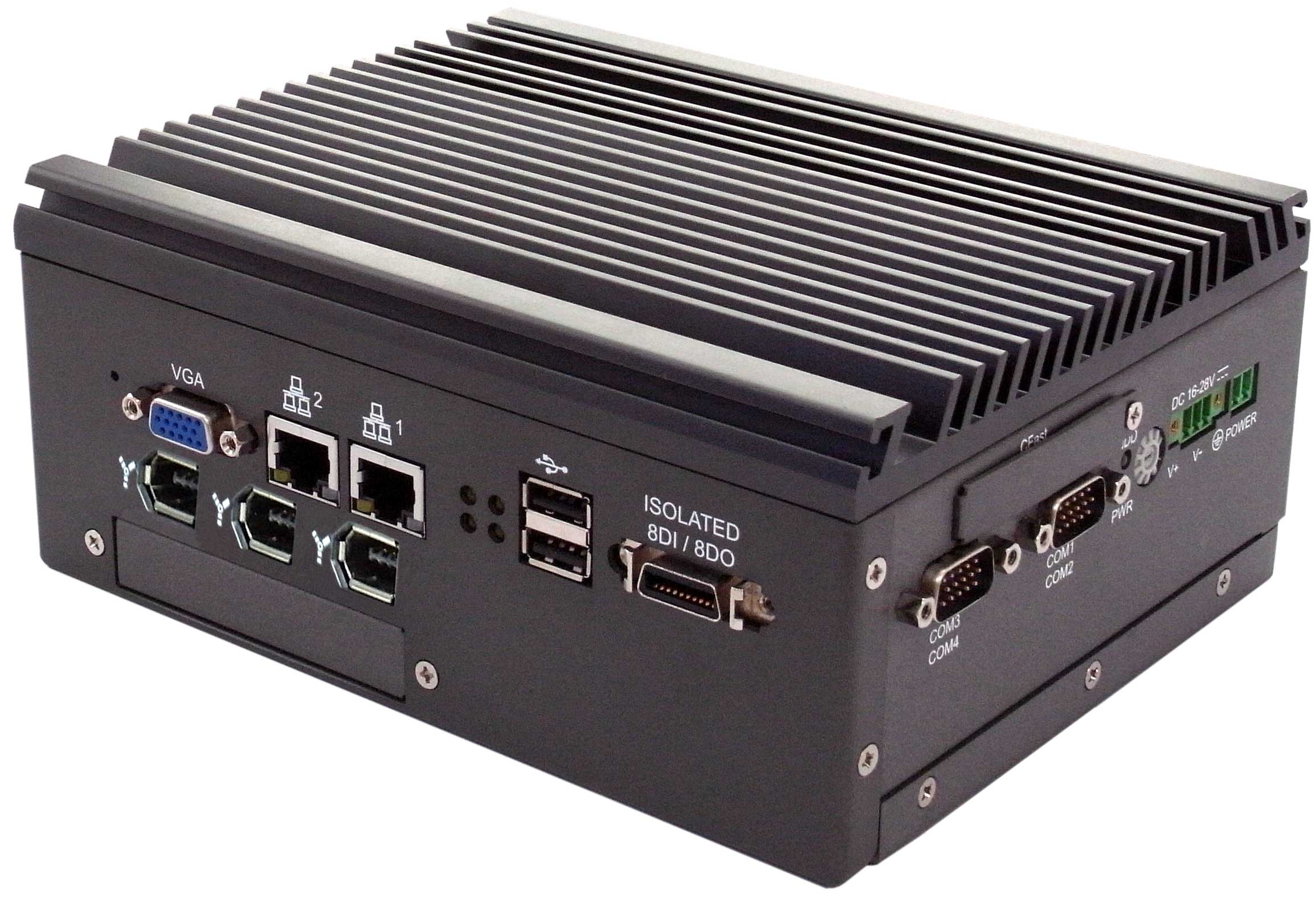

Fanless D525 System 2*GbE 8*COM 8*DIO 1*PC/104+
Industrial Computers and Embedded Systems powered by Atom are powerful solutions for businesses and industries. They are designed to be reliable, high performance and energy efficient. They provide a cost effective way to manage and control industrial processes, and can be used in a wide range of applications. Atom powered embedded systems are ideal for applications that require low power consumption and long term reliability..
Description
- Intel Atom D525 fanless system (1M Cache
- 1,8GHz
- ICH8M)
- customized chassis color or front panel
- 2*GbE Intel WG82583V
- dual display VGA DB15 DVI/HDMI
- internal 2,5" SATA/SATA II for HDD/SSD
- 2*DDR3 SO-DIMM up to 4GB
- external accessible CFast port
- 5*USB 2.0 ports
- 3*serial 1*RS232 and 1*RS232/422/485 ports
- programmable GPIO isolated 8*DI and 8*DO 24V
- onboard EPROM
- onboard USB dongle support
- internal microphone and stereo headphone
- OS support WinXP embedded WInXP or later Linux Fedora 11 Ubuntu 10.04 Cent OS 5.3
- wall mount or DIN rail mount
- rugged -20°..+70°C fanless operation
- power supply 16..28 VDC built in
- 186*147*79mm
- ~2,1kg
- Vecow
Details
- Width: 230 mm
- Height: 175 mm
- Depth: 74 mm
- Manufacturer: Vecow Co., Ltd
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
Data Sheets
Accessories
-
EC-PWA60W
60W AC/DC Power Adapter for EC-Systems
