AX5232 - Axiom
PC AD Card 32SE isolated 12bit 100S/s thermo couple with RTD
PC Add-On Cards are specialized cards that can be installed in a computer to expand its capabilities. A/D Cards are cards that allow a computer to convert analog signals into digital signals, while A/D Cards Isolated provide additional protection from electrical noise. A/D Isolated ISA cards are designed to fit into an ISA slot on the motherboard, allowing for easy installation into most PCs..
255,00 €
incl. VAT 303,45 €
incl. VAT 303,45 €
Description
- 32SE isolated AD card 12bit 100Hz ±5V gain: 1/100/200/250/500/831/1000
- 8/8 TTL IO
- Isolation input/bus 500V DC
- thermo couple type J/K/S/T/E/R/B/N
- with 2m cable and Pt100 sensor for cold junction compensation
- Basic/C/Pascal driver
- 37pin f D-type + 20pin
- 155*99mm
- Axiom
Details
- Features: Messung mV oder Temp. im Direktanschluss, galvanically isolated
- Width: 155 mm
- Height: 99 mm
- Weight: 0.8kg
- Manufacturer: Axiom
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Downloads
- drv_wxp: http://www.axiomtek.com.tw/Default.aspx?MenuId=Products&FunctionId=DownloadSearch
- drv_w2k: http://www.axiomtek.com.tw/Default.aspx?MenuId=Products&FunctionId=DownloadSearch
- drv_wnt: http://www.axiomtek.com.tw/Default.aspx?MenuId=Products&FunctionId=DownloadSearch
- drv_w98: http://www.axiomtek.com.tw/Default.aspx?MenuId=Products&FunctionId=DownloadSearch
- drv_dos: http://www.axiomtek.com.tw/Default.aspx?MenuId=Products&FunctionId=DownloadSearch
Accessories
-

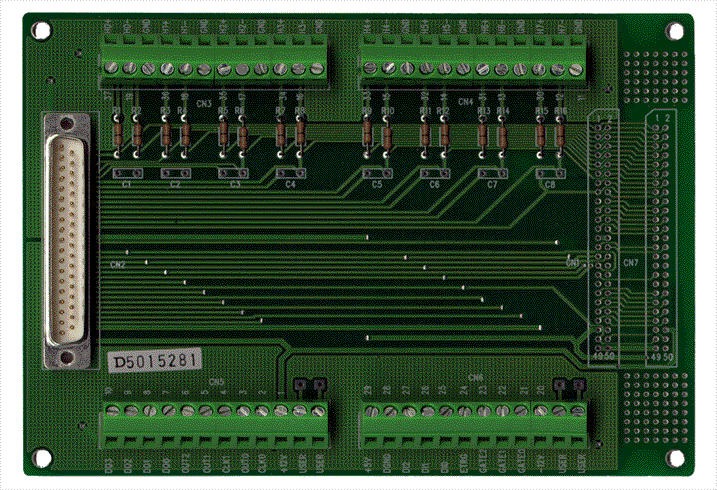

AX851
Universal development panel, 4*12 screw terminal blocks
