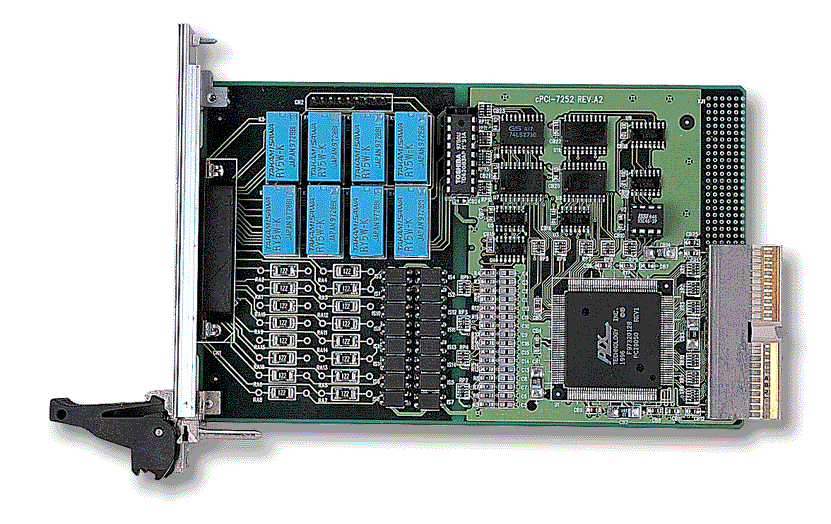

cPCI-7252 - Adlink Technology Inc.
cPCI Isolated 8*Relay 8*Isolated In DIO Card
The PC Add-On Cards are designed to provide digital input and output (DIO) capabilities for PXI/PXIe/cPCI systems. The DIO cards feature isolated channels to ensure reliable communication between the PC and the device. The DIO Isolated PXI/PXIe/cPCI cards provide both digital input and output capabilities, allowing for easy integration into existing systems. The cards are designed to provide reliable, accurate, and cost-effective digital I/O solutions..
Description
- Compact PCI bus Digital IO card
- 8 Relay out 16 isolated in
- rugged 50pin SCSI-II connector
- 100*160mm
- Adlink
Details
- Width: 160 mm
- Height: 100 mm
- Weight: 1kg
- Manufacturer: Adlink Technology Inc.
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Downloads
- drv_dos: 7250-dos.zip
Accessories
-
DIN-50S-01
50pin SCSI-II termination board w/o cable DIN rail -
ACL-10250-1
50pin SCSI-II cable 1m -
ACL-10250-2
50pin SCSI-II cable 2m -
ACL-10250-4
50pin SCSI-II cable 4m
