1. Product Overview
Product Name: PCI 333kS/s AD Card 12bit 16CH
Model Number: DASP-52282
Article Number: DASP-52282
Series: AX5095P Series
Manufacturer: Axiom
The Axiom DASP-52282 (AX5095P) is a high-performance analog-to-digital (AD) conversion card designed for PCI bus systems. It provides 12-bit resolution and supports up to 333 kS/s sampling rates across 16 single-ended analog input channels. The card integrates digital I/O, timer/counter functionality, and a high-density 50-pin flat panel connector, making it suitable for a wide range of industrial, laboratory, and embedded data acquisition applications.
2. Key Features
- High-Speed Analog-to-Digital Conversion: 12-bit resolution with a maximum sampling rate of 333 kS/s, enabling precise and rapid signal acquisition.
- Multi-Channel Input: 16 single-ended analog input channels for simultaneous or multiplexed data collection.
- Flexible Input Ranges: Supports both bipolar (±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V) and unipolar (0–0.625 V, 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V) voltage ranges.
- Digital I/O Capability: 8 digital input and 8 digital output lines for control and monitoring tasks.
- Integrated Timer/Counter: One programmable timer/counter (8454 series) with one free timer channel for event counting, frequency measurement, or pulse generation.
- PCI Bus Interface: Fully compliant with standard PCI bus architecture for plug-and-play installation in desktop or industrial PCs.
- Compact Form Factor: Board dimensions of 218 mm × 122 mm, optimized for standard PCI slots.
- High-Density Connector: 50-pin flat panel connector for analog, digital, and timing signal interfacing.
- Industrial-Grade Design: Engineered for reliability, low noise, and stable performance in demanding environments.
3. Technical Specifications
- Analog Input Channels: 16 single-ended
- Resolution: 12 bits
- Sampling Rate: Up to 333 kS/s (aggregate)
- Input Voltage Ranges:
- Bipolar: ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Unipolar: 0–0.625 V, 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V
- Input Type: Single-ended, multiplexed
- Input Impedance: Typically >100 kΩ
- Input Coupling: DC
- Conversion Method: Successive approximation ADC
- Triggering: Software or external trigger supported
- Digital I/O: 8 digital inputs, 8 digital outputs (TTL compatible)
- Timer/Counter: 1 × 16-bit programmable timer/counter (8454 type)
- Connector Type: 50-pin flat ribbon connector
- Bus Interface: PCI (32-bit, 33 MHz)
- Dimensions: 218 mm (L) × 122 mm (H)
- Weight: Approx. 250–300 g (typical)
- Power Requirements: +5 V from PCI bus, typical consumption <1 A
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: –20 °C to +70 °C
- Relative Humidity: 10–90% non-condensing
- Material: Multi-layer PCB with gold-plated edge connector and EMI shielding
4. Functionality
The DASP-52282 functions as a high-speed analog data acquisition interface for PCI-based systems. It converts analog voltage signals into digital data for processing, analysis, or control applications. The 16 single-ended channels can be configured for various voltage ranges, allowing flexible adaptation to different sensor or signal sources.
The card’s 12-bit ADC provides fine resolution for accurate signal representation, while the 333 kS/s sampling rate ensures sufficient temporal resolution for dynamic signals. The integrated digital I/O lines can be used for triggering, control, or synchronization with external devices.
Typical use cases include:
- Industrial process monitoring and control
- Laboratory instrumentation and measurement systems
- Data logging and signal analysis
- Automated test equipment (ATE)
- Embedded control systems requiring analog input acquisition
The card is compatible with standard PCI slots and can be integrated into Windows or Linux-based systems using appropriate drivers and SDKs provided by Axiom.
5. Components & Accessories
Included Items:
- DASP-52282 PCI AD card (AX5095P)
- User manual and installation guide
- Driver and software utilities (on CD or downloadable package)
- 50-pin flat cable connector (optional depending on configuration)
Optional Accessories:
- Shielded cable assemblies for noise-sensitive environments

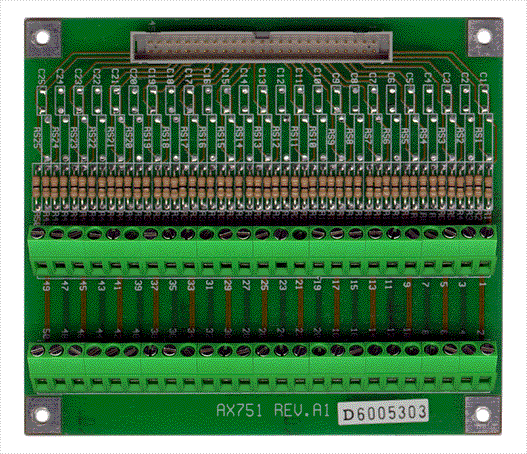

- Terminal boards for easy signal wiring
- External signal conditioning modules (for filtering, amplification, or isolation)
- Mounting brackets for industrial chassis integration
Connectors:
- 1 × 50-pin flat panel connector (for analog, digital, and timing signals)
- PCI edge connector (for bus interface and power supply)
6. Installation & Setup
System Requirements:
- Available PCI slot (32-bit, 33 MHz)
- Compatible operating system (Windows or Linux)
- Minimum CPU: Pentium-class or higher
- Minimum RAM: 256 MB
Installation Steps:
1. Power off the host PC and remove the cover.
2. Insert the DASP-52282 card into an available PCI slot.
3. Secure the card using the chassis screw.
4. Connect external signals to the 50-pin connector using the provided or optional cable.
5. Power on the system and install the Axiom driver package.
6. Verify device recognition in the system device manager or Axiom configuration utility.
7. Configure input ranges, sampling rate, and channel assignments using the provided software tools.
Mounting Options:
- Standard PCI slot mounting
- Optional rack or chassis integration using extension cables
Configuration:
- Software-configurable input ranges and channel selection
- Programmable sampling rate and trigger source
- Digital I/O direction configurable via software
7. Performance & Capabilities
The DASP-52282 delivers a balance of speed, resolution, and channel density suitable for mid- to high-performance data acquisition tasks.
- Sampling Performance: 333 kS/s aggregate throughput ensures accurate capture of fast-changing analog signals.
- Resolution: 12-bit quantization provides 4096 discrete levels, enabling fine signal detail.
- Channel Flexibility: 16 single-ended inputs allow simultaneous monitoring of multiple sensors or signals.
- Signal Range Adaptability: Wide input range options accommodate both low-level and high-voltage signals.
- Digital I/O Performance: TTL-compatible lines support up to 24 mA sink/source current, suitable for control logic or status monitoring.
- Timer/Counter Functionality: The integrated 8454 timer supports frequency measurement, pulse counting, and event timing with microsecond precision.
- Noise and Crosstalk: Optimized PCB layout and shielding minimize interference between channels.
- Latency and Throughput: Low-latency PCI bus interface ensures efficient data transfer to host memory.
Limitations:
- Single-ended inputs only (no differential mode)
- 12-bit resolution may not be sufficient for ultra-high-precision applications
- PCI interface (not PCIe) limits compatibility with newer systems without legacy slots
8. Standards & Compliance
- Bus Standard: PCI Local Bus Specification Rev. 2.2 compliant
- Electrical Safety: Designed to meet IEC/EN 61010-1 standards for measurement equipment
- EMC Compliance: Conforms to EN 61326-1 for electromagnetic compatibility
- RoHS Compliance: Lead-free and environmentally compliant manufacturing
- Quality Assurance: Manufactured under ISO 9001-certified processes
- CE Marking: Indicates conformity with European safety and EMC directives
9. Additional Information
Warranty:
- Standard 1-year limited warranty covering manufacturing defects and hardware failures under normal operating conditions.
Technical Support:
- Axiom provides comprehensive technical support, including driver updates, software development kits (SDKs), and integration assistance.
- Online documentation and example code available for major programming environments (C/C++, LabVIEW, MATLAB).
Maintenance:
- Periodic inspection recommended to ensure connector integrity and dust-free operation.
- No user-serviceable internal components; repairs should be performed by authorized service centers.
Software & Updates:
- Driver packages available for Windows and Linux platforms.
- Regular firmware and driver updates provided via Axiom’s support portal.
- Compatible with Axiom’s DAQ software suite for configuration, calibration, and data logging.
Lifecycle & Availability:
- Long-term availability guaranteed for industrial customers.
- Backward compatibility with previous Axiom PCI AD card models.
Summary
The Axiom DASP-52282 (AX5095P) PCI 333kS/s AD Card is a robust, high-speed, 12-bit analog-to-digital converter board designed for industrial and laboratory data acquisition. With 16 single-ended channels, flexible voltage ranges, integrated digital I/O, and timer/counter functionality, it provides a versatile platform for precise signal measurement and control. Its PCI interface ensures reliable communication with host systems, while its compact design and comprehensive software support make it ideal for integration into automated test systems, process monitoring setups, and research instrumentation.
Engineered for accuracy, stability, and ease of integration, the DASP-52282 exemplifies Axiom’s commitment to delivering high-quality, industrial-grade data acquisition solutions.
