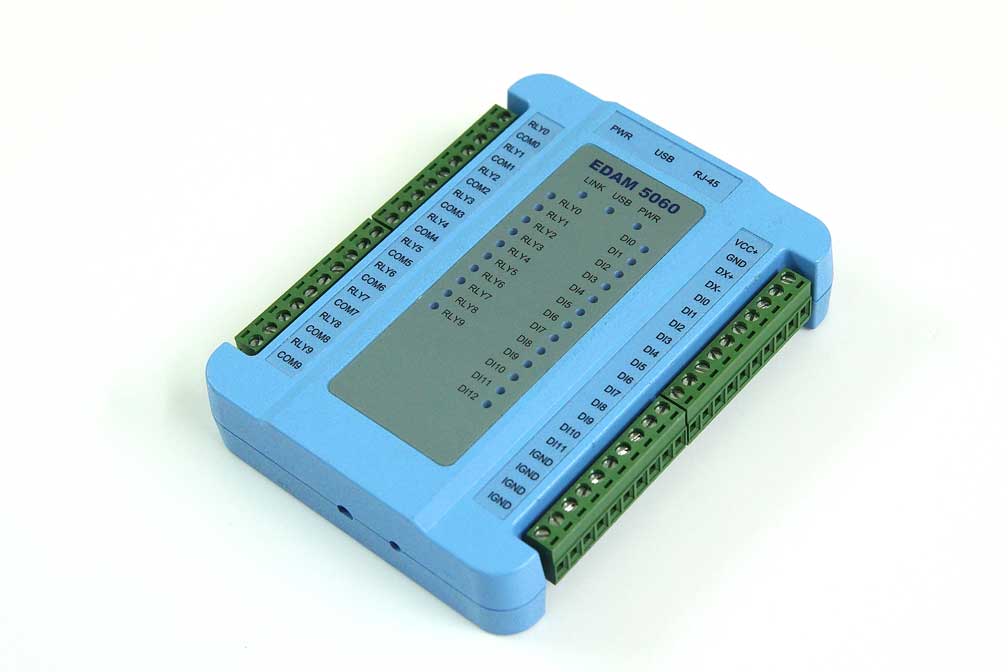

Ethernet/USB/RS232/485 Isolated 12*DI 10*Relay Modbus Module
This network allows for the remote control and monitoring of IO devices using Ethernet / USB / RS485 / RS232 Modbus IO. It provides a reliable and secure connection between the IO devices and the remote user, allowing for real-time data access and control. This network is ideal for applications that require remote access to IO devices, such as industrial automation, process control, and monitoring..
295,00 €
incl. VAT 351,05 €
incl. VAT 351,05 €
Description
- Multi interface Ethernet / USB 2.0 / RS232 / RS485 photo-isolated 12*DI and 10*Relay Modbus module
- CAN bus optional
- 10/100 Mbps Ethernet supports Modbus/TCP on TCP/IP and RTU or ASCII on UDP/IP
- USB 2.0 / RS232 / RS485 support RTU and ASCII commands
- user friendly status LEDs Power / USB / Ethernet link
- inputs negative logic
- Relay form A (DPDT) AC 0,5/125V DC1A/30V 0,3/110V
- USB powered (400mA max) or +10..30VDC ~1,5W
- DIN-Rail or wall mount
- dimensions 135*103,9*29,2mm
- InLog
Details
- Width: 135 mm
- Height: 104 mm
- Depth: 29.2 mm
- Weight: 0.95kg
- Form factor: DIN-Rail
- Manufacturer: inLog
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
-
edam5000_manual_v22.pdf -
edam5000_manual_v18.pdf -
edam5000_manual_v14.pdf -
edam9k_modbus.pdf -
edam9k_activex.pdf -
edam9k_asciicommand.pdf -
edam9k_datastructure.pdf -
edam9k_webserver.pdf
