Comprehensive Product Summary – ORing IES-2060 Industrial Lite-Managed 6-Port Ethernet Switch
### 1. Product Overview

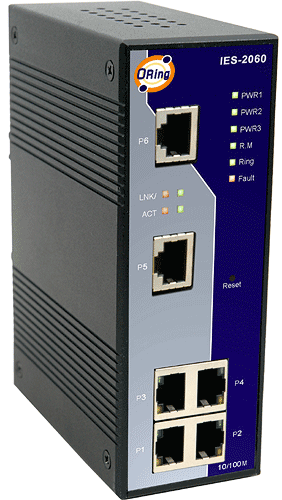

Product Name: Industrial Lite-Managed Ethernet Switch
Model: IES-2060
Series: IES-20xx Industrial Ethernet Switch Series
Article Number: IES-2060
Manufacturer: ORing Industrial Networking Corp.
The ORing IES-2060 is a rugged, lite-managed industrial Ethernet switch designed for mission-critical automation and control networks. It provides six 10/100Base-T(X) RJ45 ports and supports advanced redundancy technologies such as ORing and RSTP/STP for high network reliability. The switch is engineered for harsh industrial environments, offering wide temperature tolerance, redundant power inputs, and robust mechanical protection. It is part of ORing’s Industrial Ethernet product line, known for reliability, redundancy, and ease of management through the Open-Vision utility.
### 2. Key Features
- High-Speed Redundant Ethernet Ring:
Supports ORing redundancy technology with recovery time less than 10 ms across up to 250 connected units, ensuring minimal downtime in industrial networks.
- Multiple Redundancy Protocols:
Compatible with RSTP/STP (IEEE 802.1w/D) for flexible network topology and redundancy options.
- Lite-Managed Functionality:
Offers essential management features such as web-based configuration, SNMP v1 monitoring, and event notification via Syslog, Email, and SNMP Trap.
- Triple Redundant Power Inputs:
Equipped with dual DC terminal block inputs (12–48 VDC) and an additional DC power jack (12–45 VDC) for maximum power reliability.
- Wide Operating Temperature Range:
Designed for extreme industrial conditions, operating from -40°C to +70°C.
- Compact and Durable Design:
IP-30 rated metal housing with DIN-rail and panel mounting options, suitable for space-constrained control cabinets.
- Low Power Consumption:
Typical power usage of approximately 5 W, optimizing energy efficiency in continuous operation.
- Comprehensive Event Notification:
Supports multiple alert mechanisms (Syslog, Email, SNMP Trap, and relay output) for proactive fault management.
- Centralized Management via Open-Vision:
ORing’s proprietary Windows-based utility allows centralized configuration, monitoring, and management of multiple ORing switches.
- Industrial-Grade Protection:
ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2000 VDC on power inputs.
### 3. Technical Specifications
Model: IES-2060
Ports: 6 × 10/100Base-T(X) RJ45
Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.1w (RSTP), 802.1D (STP)
Redundancy Protocols: ORing (<10 ms recovery), RSTP/STP
Management Interface: Web-based GUI, Open-Vision Windows utility, SNMP v1
Event Notification: Syslog, Email, SNMP Trap, Relay Output
Power Input:
- Triple redundant DC inputs
- 12–48 VDC via 7-pin terminal block
- 12–45 VDC via power jack
Power Consumption:
- Typical: 5 W
Protection:
- ESD Protection: 4 kV DC (Ethernet ports)
- Surge Protection: 2000 VDC (power input)
Mechanical Design:
- Casing: IP-30 rated metal enclosure
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: Approx. 0.9 kg (typical for this form factor)
- Mounting: DIN-rail and panel mount
Environmental:
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 5%–95% (non-condensing)
Reliability:
- MTBF: >300,000 hours (estimated)
- Warranty: 5 years
### 4. Functionality
The IES-2060 functions as a lite-managed industrial Ethernet switch, bridging multiple Ethernet devices within an industrial network. It supports both linear and ring topologies, with ORing technology providing sub-10 ms recovery time in case of link failure. This ensures continuous communication for automation systems, SCADA networks, and industrial control applications.
Use Cases and Applications:
- Factory automation and process control
- Transportation and traffic monitoring systems
- Power and utility substations
- Oil, gas, and mining communication networks
- Building automation and security systems
Compatibility:
- Compatible with standard Ethernet devices (IEEE 802.3 compliant)
- Integrates with ORing’s Open-Vision management platform for centralized control
- Supports interoperability with other managed switches using RSTP/STP
Operational Workflow:
1. Devices connect via RJ45 ports using Cat5e/6 cables.
2. The switch automatically negotiates 10/100 Mbps speeds and full/half duplex modes.
3. Redundancy protocols ensure continuous data flow even if a link fails.
4. Management and monitoring are performed through a web interface or Open-Vision software.
5. Event notifications are sent via Syslog, Email, or SNMP Trap for proactive maintenance.
### 5. Components & Accessories
Included Items:
- IES-2060 switch unit
- DIN-rail mounting kit
- Quick installation guide
- Terminal block connector for power input
Optional Accessories:
- Panel mounting brackets
- External DC power supply (12–48 VDC)
- Ethernet patch cables (Cat5e/Cat6)
- Open-Vision management software (Windows utility)
Connectors:
- 6 × RJ45 connectors for 10/100Base-T(X) Ethernet
- 7-pin terminal block for dual DC power input and relay output
- DC power jack for auxiliary power input
### 6. Installation & Setup
Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Mounting surface: DIN-rail or flat panel
- Ambient temperature: within -40°C to +70°C range
- Proper grounding for surge and ESD protection
Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip for quick installation in control cabinets.
- Panel Mounting: Optional brackets for secure attachment to flat surfaces.
Configuration:
1. Connect power inputs to the terminal block or DC jack.
2. Connect Ethernet cables to RJ45 ports.
3. Access the web-based configuration interface via default IP address.
4. Configure network parameters, redundancy settings, and event notifications.
5. Optionally, use Open-Vision software for centralized management of multiple ORing devices.
LED Indicators:
- PWR1/PWR2: Power input status
- Ring Master (R.M.): Indicates ORing master mode (green flashing)
- Fault: Alarm or relay output status
- Link/Activity: Per-port network connection and data activity
### 7. Performance & Capabilities
Network Performance:
- Data Rate: 10/100 Mbps auto-negotiation
- Switching Capacity: 1.2 Gbps (non-blocking)
- Forwarding Rate: 148,800 pps (100 Mbps full duplex)
- MAC Address Table: 2K entries
- Packet Buffer: 1 Mbit
Redundancy Performance:
- ORing Recovery Time: <10 ms for up to 250 connected units
- RSTP/STP Support: IEEE 802.1w/D compliant
Power Efficiency:
- Typical Power Draw: 5 W
- Supports triple redundant power inputs for uninterrupted operation
Environmental Resilience:
- Operates reliably in extreme temperature and humidity conditions
- Resistant to vibration and shock typical of industrial environments
Limitations:
- Lite-managed functionality (no advanced Layer 3 routing)
- Limited to Fast Ethernet (10/100 Mbps) speeds
- SNMP v1 only (no v2c/v3 support)
### 8. Standards & Compliance
Network Standards:
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (Spanning Tree Protocol)
- IEEE 802.1w (Rapid Spanning Tree Protocol)
Redundancy Standards:
- ORing proprietary redundancy (<10 ms recovery)
- RSTP/STP for interoperability with third-party switches
Electrical & Safety Compliance:
- CE (Conformité Européenne)
- FCC Part 15 Class A
- EN60950 (Safety of Information Technology Equipment)
Environmental Protection:
- IP-30 rated enclosure for protection against solid objects
- ESD protection: 4 kV DC
- Surge protection: 2000 VDC
Quality & Reliability:
- Designed and tested for industrial-grade performance
- 5-year manufacturer warranty
### 9. Additional Information
Warranty:
5 years limited warranty covering manufacturing defects and hardware reliability.
Technical Support:
ORing provides comprehensive technical support, including firmware updates, configuration assistance, and troubleshooting via online resources and direct support channels.
Maintenance:
- Periodic inspection of power connections and grounding recommended.
- Firmware updates available through ORing’s support portal.
- Configuration backup and restore supported via web interface or Open-Vision utility.
Software Updates:
- Firmware and Open-Vision software updates available for download from ORing’s official website.
- Regular updates ensure compatibility with new network standards and improved performance.
Lifecycle and Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- High MTBF ensures long-term reliability and reduced maintenance costs.
Ordering Information:
- Model: IES-2060 (6 × 10/100Base-T(X) RJ45 ports)
- Related Models:
- IES-2042FX-MM (4 × 10/100Base-T(X) + 2 × 100Base-FX Multi-Mode)
- IES-2042FX-SS (4 × 10/100Base-T(X) + 2 × 100Base-FX Single-Mode)
Manufacturer Contact:
ORing Industrial Networking Corp.
Website: [www.oring-networking.com](https://www.oring-networking.com)
Support: support@oring-networking.com
### Summary
The ORing IES-2060 Industrial Lite-Managed Ethernet Switch is a compact, reliable, and cost-effective networking solution for industrial automation systems requiring high availability and redundancy. With six 10/100Base-T(X) ports, triple redundant power inputs, and ORing’s proprietary fast recovery technology, it ensures continuous network operation even under adverse conditions. The switch’s rugged IP-30 housing, wide temperature tolerance, and comprehensive event notification system make it ideal for deployment in harsh industrial environments such as manufacturing plants, transportation systems, and energy facilities.
Its lite-managed design provides essential management and monitoring capabilities without the complexity of full Layer 2+ switches, making it an excellent choice for users seeking a balance between performance, reliability, and simplicity. With a 5-year warranty and full compliance with industrial standards, the IES-2060 stands as a dependable component in any industrial Ethernet infrastructure.
### 1. Product Overview
Product Name: Industrial Lite-Managed Ethernet Switch
Model: IES-2060
Series: IES-20xx Industrial Ethernet Switch Series
Article Number: IES-2060
Manufacturer: ORing Industrial Networking Corp.
The ORing IES-2060 is a rugged, lite-managed industrial Ethernet switch designed for mission-critical automation and control networks. It provides six 10/100Base-T(X) RJ45 ports and supports advanced redundancy technologies such as ORing and RSTP/STP for high network reliability. The switch is engineered for harsh industrial environments, offering wide temperature tolerance, redundant power inputs, and robust mechanical protection. It is part of ORing’s Industrial Ethernet product line, known for reliability, redundancy, and ease of management through the Open-Vision utility.
### 2. Key Features
- High-Speed Redundant Ethernet Ring:
Supports ORing redundancy technology with recovery time less than 10 ms across up to 250 connected units, ensuring minimal downtime in industrial networks.
- Multiple Redundancy Protocols:
Compatible with RSTP/STP (IEEE 802.1w/D) for flexible network topology and redundancy options.
- Lite-Managed Functionality:
Offers essential management features such as web-based configuration, SNMP v1 monitoring, and event notification via Syslog, Email, and SNMP Trap.
- Triple Redundant Power Inputs:
Equipped with dual DC terminal block inputs (12–48 VDC) and an additional DC power jack (12–45 VDC) for maximum power reliability.
- Wide Operating Temperature Range:
Designed for extreme industrial conditions, operating from -40°C to +70°C.
- Compact and Durable Design:
IP-30 rated metal housing with DIN-rail and panel mounting options, suitable for space-constrained control cabinets.
- Low Power Consumption:
Typical power usage of approximately 5 W, optimizing energy efficiency in continuous operation.
- Comprehensive Event Notification:
Supports multiple alert mechanisms (Syslog, Email, SNMP Trap, and relay output) for proactive fault management.
- Centralized Management via Open-Vision:
ORing’s proprietary Windows-based utility allows centralized configuration, monitoring, and management of multiple ORing switches.
- Industrial-Grade Protection:
ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2000 VDC on power inputs.
### 3. Technical Specifications
Model: IES-2060
Ports: 6 × 10/100Base-T(X) RJ45
Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.1w (RSTP), 802.1D (STP)
Redundancy Protocols: ORing (<10 ms recovery), RSTP/STP
Management Interface: Web-based GUI, Open-Vision Windows utility, SNMP v1
Event Notification: Syslog, Email, SNMP Trap, Relay Output
Power Input:
- Triple redundant DC inputs
- 12–48 VDC via 7-pin terminal block
- 12–45 VDC via power jack
Power Consumption:
- Typical: 5 W
Protection:
- ESD Protection: 4 kV DC (Ethernet ports)
- Surge Protection: 2000 VDC (power input)
Mechanical Design:
- Casing: IP-30 rated metal enclosure
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: Approx. 0.9 kg (typical for this form factor)
- Mounting: DIN-rail and panel mount
Environmental:
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 5%–95% (non-condensing)
Reliability:
- MTBF: >300,000 hours (estimated)
- Warranty: 5 years
### 4. Functionality
The IES-2060 functions as a lite-managed industrial Ethernet switch, bridging multiple Ethernet devices within an industrial network. It supports both linear and ring topologies, with ORing technology providing sub-10 ms recovery time in case of link failure. This ensures continuous communication for automation systems, SCADA networks, and industrial control applications.
Use Cases and Applications:
- Factory automation and process control
- Transportation and traffic monitoring systems
- Power and utility substations
- Oil, gas, and mining communication networks
- Building automation and security systems
Compatibility:
- Compatible with standard Ethernet devices (IEEE 802.3 compliant)
- Integrates with ORing’s Open-Vision management platform for centralized control
- Supports interoperability with other managed switches using RSTP/STP
Operational Workflow:
1. Devices connect via RJ45 ports using Cat5e/6 cables.
2. The switch automatically negotiates 10/100 Mbps speeds and full/half duplex modes.
3. Redundancy protocols ensure continuous data flow even if a link fails.
4. Management and monitoring are performed through a web interface or Open-Vision software.
5. Event notifications are sent via Syslog, Email, or SNMP Trap for proactive maintenance.
### 5. Components & Accessories
Included Items:
- IES-2060 switch unit
- DIN-rail mounting kit
- Quick installation guide
- Terminal block connector for power input
Optional Accessories:
- Panel mounting brackets
- External DC power supply (12–48 VDC)
- Ethernet patch cables (Cat5e/Cat6)
- Open-Vision management software (Windows utility)
Connectors:
- 6 × RJ45 connectors for 10/100Base-T(X) Ethernet
- 7-pin terminal block for dual DC power input and relay output
- DC power jack for auxiliary power input
### 6. Installation & Setup
Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Mounting surface: DIN-rail or flat panel
- Ambient temperature: within -40°C to +70°C range
- Proper grounding for surge and ESD protection
Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip for quick installation in control cabinets.
- Panel Mounting: Optional brackets for secure attachment to flat surfaces.
Configuration:
1. Connect power inputs to the terminal block or DC jack.
2. Connect Ethernet cables to RJ45 ports.
3. Access the web-based configuration interface via default IP address.
4. Configure network parameters, redundancy settings, and event notifications.
5. Optionally, use Open-Vision software for centralized management of multiple ORing devices.
LED Indicators:
- PWR1/PWR2: Power input status
- Ring Master (R.M.): Indicates ORing master mode (green flashing)
- Fault: Alarm or relay output status
- Link/Activity: Per-port network connection and data activity
### 7. Performance & Capabilities
Network Performance:
- Data Rate: 10/100 Mbps auto-negotiation
- Switching Capacity: 1.2 Gbps (non-blocking)
- Forwarding Rate: 148,800 pps (100 Mbps full duplex)
- MAC Address Table: 2K entries
- Packet Buffer: 1 Mbit
Redundancy Performance:
- ORing Recovery Time: <10 ms for up to 250 connected units
- RSTP/STP Support: IEEE 802.1w/D compliant
Power Efficiency:
- Typical Power Draw: 5 W
- Supports triple redundant power inputs for uninterrupted operation
Environmental Resilience:
- Operates reliably in extreme temperature and humidity conditions
- Resistant to vibration and shock typical of industrial environments
Limitations:
- Lite-managed functionality (no advanced Layer 3 routing)
- Limited to Fast Ethernet (10/100 Mbps) speeds
- SNMP v1 only (no v2c/v3 support)
### 8. Standards & Compliance
Network Standards:
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (Spanning Tree Protocol)
- IEEE 802.1w (Rapid Spanning Tree Protocol)
Redundancy Standards:
- ORing proprietary redundancy (<10 ms recovery)
- RSTP/STP for interoperability with third-party switches
Electrical & Safety Compliance:
- CE (Conformité Européenne)
- FCC Part 15 Class A
- EN60950 (Safety of Information Technology Equipment)
Environmental Protection:
- IP-30 rated enclosure for protection against solid objects
- ESD protection: 4 kV DC
- Surge protection: 2000 VDC
Quality & Reliability:
- Designed and tested for industrial-grade performance
- 5-year manufacturer warranty
### 9. Additional Information
Warranty:
5 years limited warranty covering manufacturing defects and hardware reliability.
Technical Support:
ORing provides comprehensive technical support, including firmware updates, configuration assistance, and troubleshooting via online resources and direct support channels.
Maintenance:
- Periodic inspection of power connections and grounding recommended.
- Firmware updates available through ORing’s support portal.
- Configuration backup and restore supported via web interface or Open-Vision utility.
Software Updates:
- Firmware and Open-Vision software updates available for download from ORing’s official website.
- Regular updates ensure compatibility with new network standards and improved performance.
Lifecycle and Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- High MTBF ensures long-term reliability and reduced maintenance costs.
Ordering Information:
- Model: IES-2060 (6 × 10/100Base-T(X) RJ45 ports)
- Related Models:
- IES-2042FX-MM (4 × 10/100Base-T(X) + 2 × 100Base-FX Multi-Mode)
- IES-2042FX-SS (4 × 10/100Base-T(X) + 2 × 100Base-FX Single-Mode)
Manufacturer Contact:
ORing Industrial Networking Corp.
Website: [www.oring-networking.com](https://www.oring-networking.com)
Support: support@oring-networking.com
### Summary
The ORing IES-2060 Industrial Lite-Managed Ethernet Switch is a compact, reliable, and cost-effective networking solution for industrial automation systems requiring high availability and redundancy. With six 10/100Base-T(X) ports, triple redundant power inputs, and ORing’s proprietary fast recovery technology, it ensures continuous network operation even under adverse conditions. The switch’s rugged IP-30 housing, wide temperature tolerance, and comprehensive event notification system make it ideal for deployment in harsh industrial environments such as manufacturing plants, transportation systems, and energy facilities.
Its lite-managed design provides essential management and monitoring capabilities without the complexity of full Layer 2+ switches, making it an excellent choice for users seeking a balance between performance, reliability, and simplicity. With a 5-year warranty and full compliance with industrial standards, the IES-2060 stands as a dependable component in any industrial Ethernet infrastructure.
-
Datasheet_IES-2060_IES-2042FX_Series_v1.4.pdf
PDF Catalog
-
IES-2060_2042FX.pdf
PDF Catalog
-
Selection_Guide.pdf
Manual
No accessories available.
