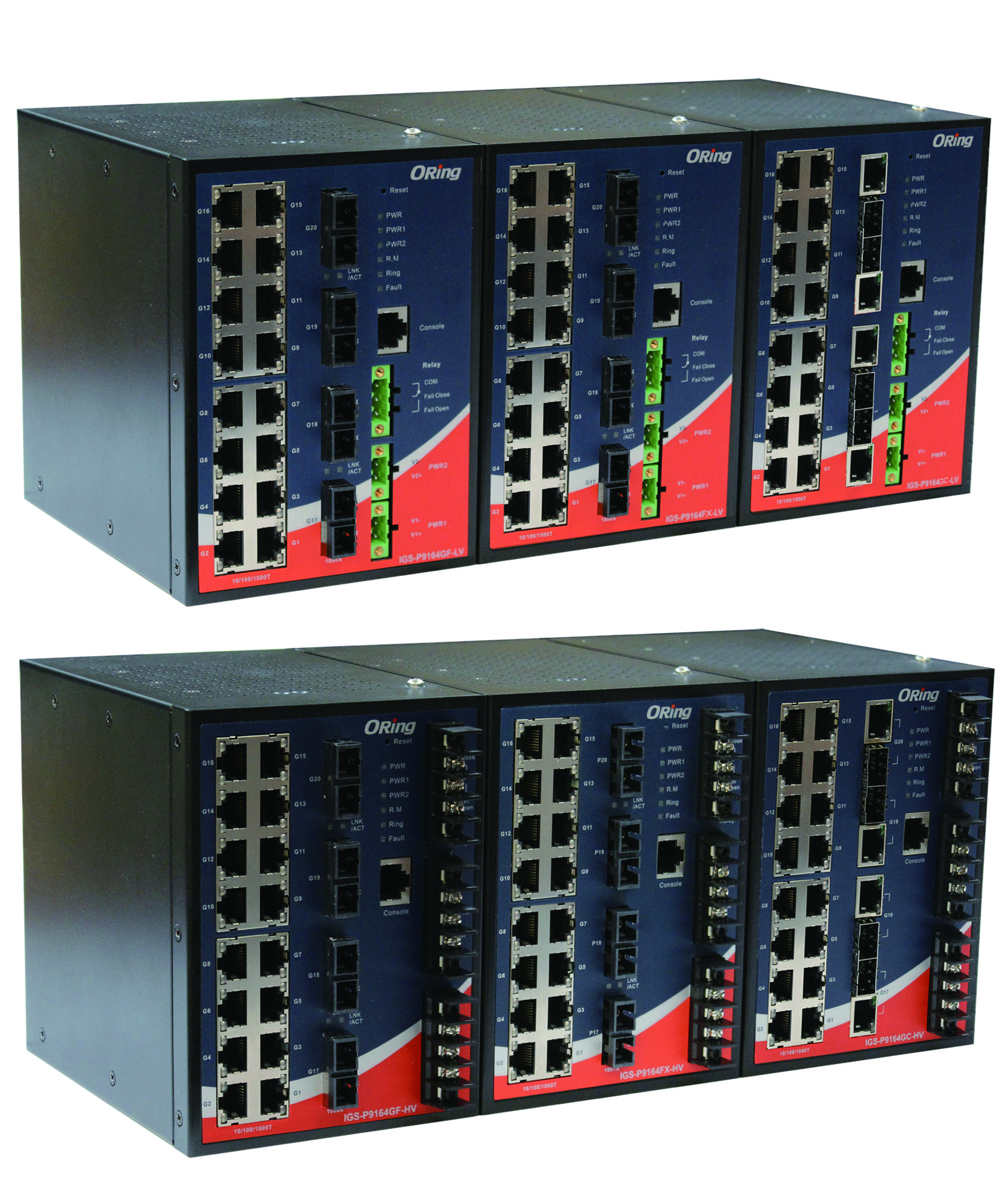

IGS-P9164FX-MM-SC-LV - Oring
Managed 16*1000TX+4*100FX MM Switch 24V EN50155 IEC-61850
Networked rugged devices are designed for use in harsh environments and are designed for use in the smart grid using the IEC-61850 standard. These devices are designed to be durable and reliable, and provide reliable and secure communication for smart grid applications. They are also designed to be interoperable with other IEC-61850 devices, allowing for a seamless integration of the smart grid infrastructure..
Description
- Industrial 20-Port Managed Ethernet 16*1000/100/10TX and 4*100FX MM multi mode SC connector ports
- Smart Grid IEC-61850-3 standard
- railway standard EN50155
- extended -40°..70°C operating temperature
- Dual Power Input 12..48VDC
- ~1.769gr
- 115*159*154mm
- Oring
Details
- Width: 115 mm
- Height: 159 mm
- Depth: 154 mm
- Net weight: 1.769 kg
- Manufacturer: Oring
- Country of Origin: Taiwan R.O.C.
- Customs code: 8517 6200 900
Manuals
Accessories
-
IGS-P9164GC-HV
Managed 16*1000TX+4*Combo Switch 230V EN50155 IEC-61850
