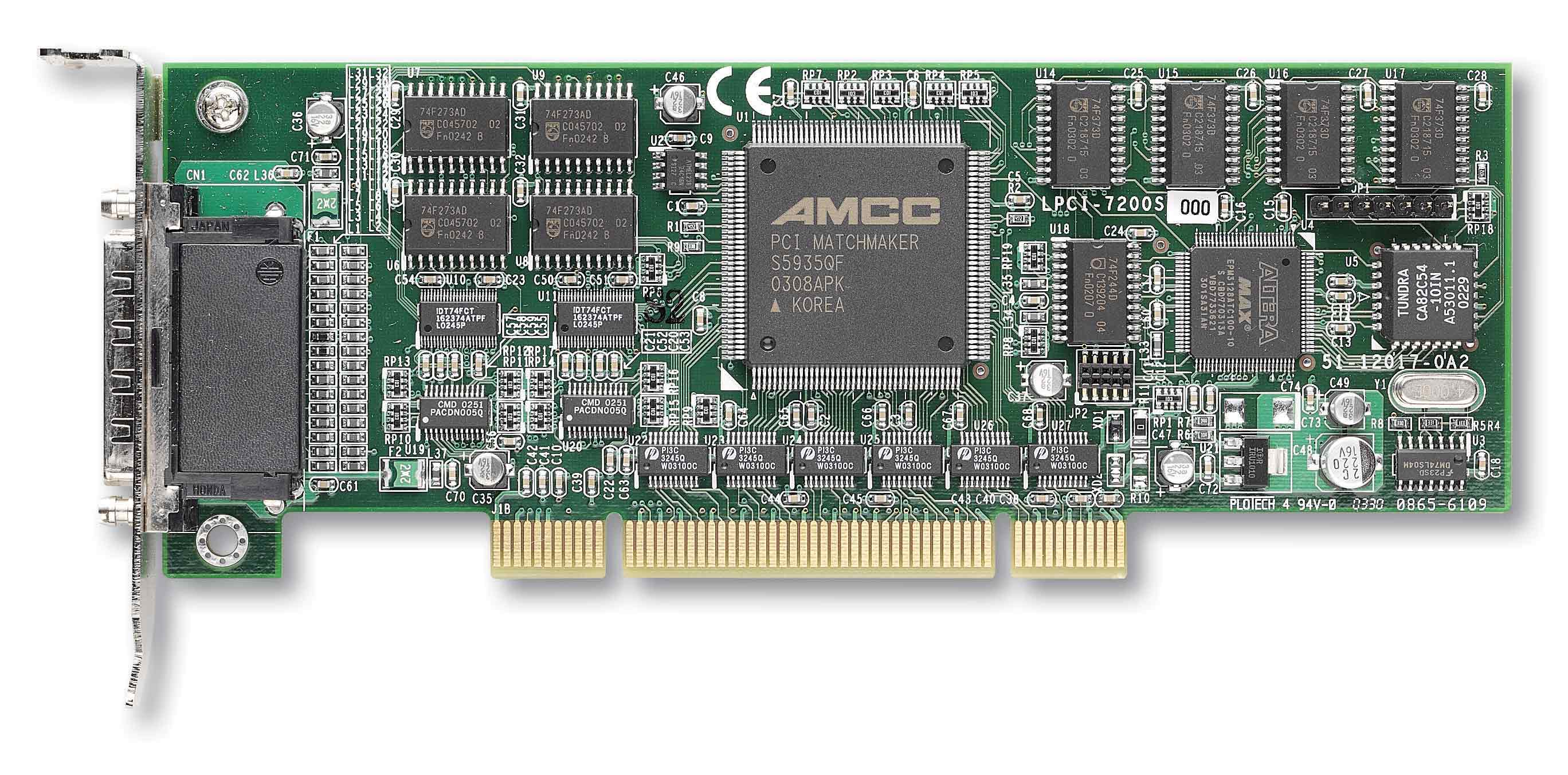

LPCI-7200S - Adlink Technology Inc.
UPCI low profile DIO 32in/32out 16/16 isolated 12MBytes/s
PC Add-On Cards are designed to provide additional digital I/O (DIO) capabilities to computers. DIO Cards are available in both isolated and non-isolated versions and are designed to be easily integrated into existing systems. DIO Non-Isolated PCI cards are a type of DIO card that can be plugged into a standard PCI slot on a PC, providing additional digital I/O capabilities. These cards are typically used to connect sensors and other digital devices to a PC..
Description
- UPCI 3,3V bus low profile Digital IO card
- 32in/32out 16/16 isolated 2,5kV
- 32*DWord FIFO for input and output
- 12MBytes/s data transfer rate by bus mastering DMA
- IRQs A..D
- 3,3V and 5V universal PCI
- Plug and Play
- 2*68pin VHDCI female stack connector
- MD1 168*64mm
- Adlink
Details
- Features: low profile, 3,3V&5V
- Width: 168 mm
- Height: 64.4 mm
- Weight: 0.8kg
- Manufacturer: Adlink Technology Inc.
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Downloads
Accessories
-
DIN-68S-01
68pin SCSI-II termination board DIN rail w/o cable -
ACL-10568-1
SCSI-VHDCI cable 1m for DAQ series -
ACL-10568-2
SCSI-VHDCI cable 2m for DAQ series -
ACL-10568-3
SCSI-VHDCI cable 3m for DAQ series
