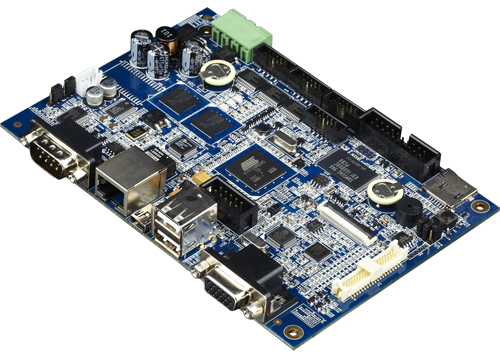

M-505 - Artila
ARM-9 400MHz module 1*LAN 4*USB 16*GP DIO VGA LCD touch
Industrial Computers and Embedded Systems from ARM Embedded Systems provide a secure and reliable platform for the Internet of Things (IoT) Gateway. With advanced features and capabilities, our embedded systems are designed to meet the needs of industrial and commercial applications. Our solutions are built to withstand harsh environments, and are easily integrated into existing systems. With our ARM embedded systems, you can connect, control, and monitor your IoT devices with ease..
Description
- ARM-9 ATMEL AT91SAM9G45 400MHz based Industrial Linux Computer with VGA output
- supports 1280*860 LCD and touch screen
- web server Linux 2.6.29 pre-built
- RAM 128MB and NAND Flash Memory 128MB
- 4 high speed port RS232/485 (1 port supports RS422) selectable
- 4 additional USB 2.0 12Mbps host ports
- one 10/100 Ethernet port
- 16 programmable GP IO 3,3V channels
- SSL and SSH 1.0/2.0 etc.
- SD memory card interface
- fanless DIN rail mountable case
- all flash based architecture 16/32/64MB Linux kernel 2.6.x
- GNU C/C++ tool chain for Linux/Windows environment
- WinCE support
- JAVA accelerator
- 3..3,6VDC (3,3V) 2W
- -10°..60°C operation temperature range
- 146*102mm (3,5" form factor)
- Artila
Details
- Width: 146 mm
- Height: 102 mm
- Manufacturer: Artila
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
Data Sheets
Downloads
- drv_w31: manager_206.jar
- drv_w31: arm-linux-3-3-2-tar.gz
- drv_w31: arm-linux-cygwin-05152006.rar
- drv_w31: cygwin.zip
- drv_w31: matrix-500-example.zip
- drv_w31: matrix500.h
