Comprehensive Product Summary – ADLINK MXC‑2300CD‑3E1 Embedded Computer

---

### 1. Product Overview

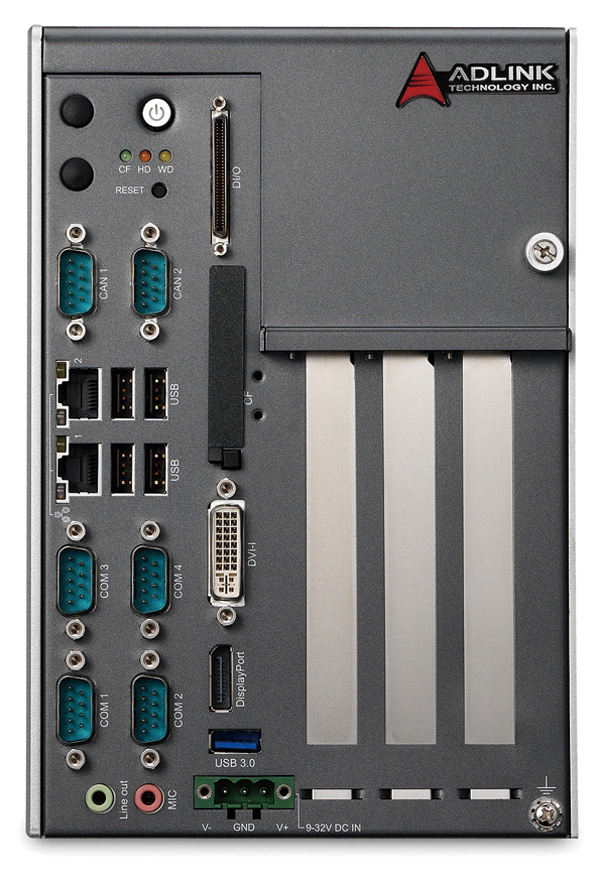

Product Name: MXC‑2300CD‑3E1
Model Number: MXC‑2300CD‑3E1
Series: MXC‑2300 Series – Intel® Atom™ E3845 Fanless Expandable Embedded Computer
Article Number: MXC‑2300CD‑3E1
Manufacturer: ADLINK Technology, Inc.
Part Number: 50‑1Z159‑1000
Manual Revision: 2.00 (October 8, 2015)

The ADLINK MXC‑2300CD‑3E1 is a rugged, fanless, and expandable embedded controller designed for industrial automation, intelligent transportation, and mission‑critical embedded applications. It integrates an Intel® Atom™ E3845 quad‑core processor (Bay Trail‑I) operating at 1.91 GHz, offering high performance with low power consumption. The system supports multiple expansion slots (2 × PCI and 1 × PCIe x4), dual isolated CAN interfaces, 16‑channel isolated digital I/O, and a wide range of connectivity options, making it suitable for harsh industrial environments.

---

### 2. Key Features

- Processor: Intel® Atom™ E3845 SoC, 4 cores @ 1.91 GHz with integrated Intel HD Graphics (542/792 MHz base/turbo).
- Memory: Two DDR3L SO‑DIMM sockets, up to 8 GB total (4 GB pre‑installed, 1333 MHz).
- Expansion: Configurable with 2 × PCI + 1 × PCIe x4 or 3 × PCI slots.
- I/O Interfaces:
- 2 × Intel® WGI210IT Gigabit Ethernet ports with teaming and Wake‑on‑LAN.
- 2 × RS‑232/422/485 (software‑selectable) + 2 × RS‑232 ports.
- 1 × DisplayPort, 1 × DVI‑I (VGA/DVI‑D compatible).
- 1 × USB 3.0, 4 × USB 2.0, 1 × internal USB 2.0.
- 2 × isolated CAN ports (SJA1000 controller).
- 16 × isolated digital inputs and 16 × isolated digital outputs (1.5 kV isolation).
- 1 × Type II CompactFlash socket, 1 × Mini PCIe slot with USIM socket for 3G/WWAN.
- Audio: 1 × Mic‑in, 1 × Line‑out.
- Storage: 1 × SATA II port for 2.5″ HDD/SSD, 1 × CF socket.
- Power Input: 9 – 32 V DC wide‑range input with pluggable connector and remote on/off.
- Operating Temperature:
- Standard: 0 °C – 50 °C
- Extended: –20 °C – 70 °C (with industrial SSD/CF).
- Fanless Design: Passive cooling with optional smart fan module.
- Manageability: Integrated ADLINK SEMA 2.2 (Smart Embedded Management Agent) for remote monitoring and control.
- Certifications: CE, FCC Class A, UL/cUL, CB, RoHS, WEEE compliant.
- Applications: Machine automation, factory control, maritime systems, intelligent transportation, and test instrumentation.

---

### 3. Technical Specifications

Processor & Chipset
- Intel® Atom™ E3845 (quad‑core, 1.91 GHz, Bay Trail‑I)
- Integrated Intel® HD Graphics (up to 2560 × 1600 DisplayPort, 1920 × 1200 DVI)

Memory
- 4 GB DDR3L 1333 MHz SO‑DIMM (pre‑installed)
- 2 × SO‑DIMM slots, up to 8 GB total

Storage
- 1 × SATA II (3.0 Gb/s) for 2.5″ HDD/SSD
- 1 × Type II CompactFlash socket

Expansion Slots
- 2 × PCI (32‑bit, 33/66 MHz)
- 1 × PCIe x4 Gen 1/2 (up to 1 GB/s)
- 1 × Mini PCIe slot with USIM socket

Networking
- 2 × Intel® WGI210IT GbE ports with teaming, Wake‑on‑LAN, PXE boot
- IEEE 802.3az Energy Efficient Ethernet, IEEE 1588 time sync, VLAN, jumbo frames

Serial Communication
- 2 × RS‑232/422/485 (COM 1 & 2, auto‑flow control)
- 2 × RS‑232 (COM 3 & 4)

Digital I/O
- 16 × isolated DI (5–24 V logic high, 1.5 kV isolation)
- 16 × isolated DO (MOSFET, 5–35 V sink current 100 mA sustained, 250 mA peak)

CAN Bus
- 2 × DB9 isolated CAN ports (SJA1000 controller, 1 Mbit/s max, 1000 Vrms isolation)

USB Ports
- 1 × USB 3.0 (front)
- 4 × USB 2.0 (front)
- 1 × internal USB 2.0

Display Interfaces
- 1 × DisplayPort (up to 2560 × 1600)
- 1 × DVI‑I (VGA/DVI‑D up to 1920 × 1200)

Audio
- Realtek ALC269 HD Audio Codec (24‑bit/192 kHz)
- 1 × Mic‑in (pink), 1 × Line‑out (green)

Power Supply
- 9 – 32 V DC input via 3‑pin connector (V+, GND, V–)
- Optional 100 W AC‑DC adapter (industrial or commercial grade)

Mechanical
- Dimensions: 142 (W) × 219 (D) × 210 (H) mm (5.84″ × 8.76″ × 8.4″)
- Weight: 3.5 kg (7.73 lb)
- Mounting: Wall‑mount kit included
- Optional fan module with smart thermal control

Environmental
- Operating Temp: 0 – 50 °C (standard), –20 – 70 °C (extended with SSD/CF)
- Storage Temp: –40 – 85 °C (excl. HDD)
- Humidity: 95 % @ 40 °C (non‑condensing)
- Vibration: 5 Grms (SSD/CF), 0.5 Grms (HDD)
- Shock: 50 G, 11 ms half‑sine (SSD/CF)
- ESD: ±4 kV contact, ±8 kV air
- EMC: CE/FCC Class A
- Safety: UL 60950‑1 & CSA C22.2 #60950‑1

---

### 4. Functionality

The MXC‑2300CD‑3E1 operates as a compact, fanless embedded controller optimized for industrial and transportation automation. Its Intel® Atom™ E3845 SoC provides efficient processing for control, monitoring, and data acquisition tasks. The system’s isolated digital I/O and CAN interfaces enable direct connection to sensors, actuators, and industrial networks.

Use Cases & Applications:
- Machine/Factory Automation: PLC replacement, motion control, and process monitoring.
- Maritime Automation: Shipboard control and navigation data processing.
- Intelligent Transportation Systems: Vehicle diagnostics, fleet management, and surveillance.
- Test & Measurement: Data logging, instrumentation control, and signal processing.
- Surveillance & Security: Multi‑camera monitoring with dual‑display output.

Compatibility:
- Operating Systems: Windows 7/8 (Embedded versions supported), Linux (Fedora 18 and custom distributions on request).
- Supports BIOS‑level configuration for COM port modes, LAN boot, and power management.

---

### 5. Components & Accessories

Included Items:
- MXC‑2300CD‑3E1 controller
- Wall‑mount brackets and screw pack
- Quick Start Guide
- ADLINK All‑in‑One Driver DVD

Optional Accessories:
- Fan Module: Smart fan control for enhanced cooling.
- Storage Options: 32 GB/64 GB SSD (MLC), 500 GB HDD, 32 GB industrial CF.
- Power Adapters: 100 W industrial (–20 – 70 °C) or 90 W commercial (0 – 50 °C).
- Extended Temperature Option: Screening service for –20 – 70 °C operation.
- Cables: DisplayPort to HDMI/DVI/VGA adapters (P/N 30‑01119‑0000 to 30‑01121‑0000).

---

### 6. Installation & Setup

Mounting:
- Wall‑mount installation using included brackets and M4 screws.
- Maintain ≥ 5 cm clearance above unit for heat dissipation.

Storage Installation:
- Supports 2.5″ HDD/SSD via SATA connector and bracket.
- CF card accessible through front panel socket (Type II).

Expansion Installation:

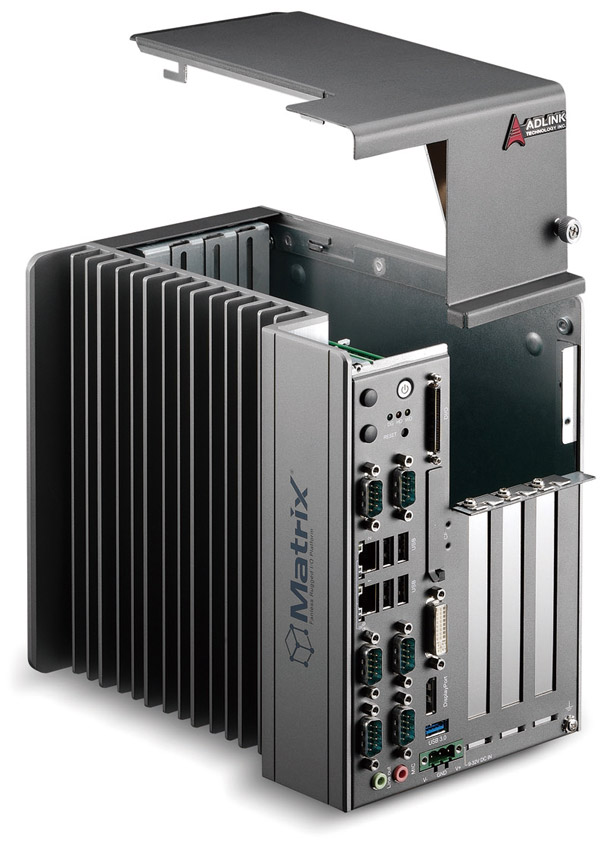

- PCI/PCIe cards inserted through top cover with card brace for stability.
- Mini PCIe module and USIM accessible internally for WWAN or Wi‑Fi modules.

Power Connection:
- 3‑pin DC connector (V+, GND, V–) with latching plug.
- Optional remote on/off switch (2‑pin).
- Recommended input: 24 V DC, 100 W supply.

Driver Installation Sequence (Windows):
1. Chipset driver
2. Graphics driver
3. Ethernet driver
4. Audio driver
5. USB 3.0 driver
6. Intel Management Engine driver
7. Watchdog Timer (WDT) driver
8. Digital I/O driver

---

### 7. Performance & Capabilities

Processing Performance:
- Quad‑core 1.91 GHz CPU with integrated GPU for HD graphics and media acceleration.
- Supports dual independent displays (DisplayPort + DVI‑I).

Networking Performance:
- Dual Intel GbE ports with teaming for redundancy or load balancing.
- Supports Wake‑on‑LAN, PXE boot, and IEEE 1588 time sync.

I/O Performance:
- 16 DI + 16 DO channels with 1.5 kV isolation for industrial signal integrity.
- CAN bus up to 1 Mbit/s for real‑time field communication.

Power Efficiency:
- Typical power consumption: 14.9 W (idle), 37.4 W (full load @ 24 V DC).
- Power off consumption: 2.4 W.

Thermal Performance:
- Fanless operation 0 – 50 °C standard; optional fan extends thermal margin.
- Optional industrial SSD enables –20 – 70 °C operation.

Limitations:
- Extended temperature operation requires solid‑state storage.
- PCI/PCIe card heat output may affect thermal stability.

---

### 8. Standards & Compliance

Electrical & Safety:
- UL/cUL listed (UL 60950‑1 & CSA C22.2 #60950‑1)
- CE and FCC Class A EMC compliance

Environmental Directives:
- RoHS and WEEE compliant
- Designed for low environmental impact and recyclability

Industry Standards:
- CAN 2.0 A/B compliant
- IEEE 802.3 Ethernet standards
- PCI and PCI Express specifications compliant

Software Support:
- Windows 7/8 (Embedded versions)
- Linux (Fedora 18 and custom distributions on request)
- ADLINK SEMA 2.2 API for system monitoring and remote management

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (terms per ADLINK policy).
- Global technical support via regional offices (Taiwan, USA, China, Europe, Japan, Korea, Singapore, India, Israel, UK).
- Email support: service@adlinktech.com

Maintenance:
- Fanless design minimizes mechanical wear.
- Periodic dust inspection and connector tightening recommended.
- BIOS and driver updates available from ADLINK website.

Smart Embedded Management Agent (SEMA 2.2):
- Provides real‑time system health monitoring (temperature, voltage, power status).
- Enables remote control and secure communication for IoT and industrial management.

Power Budget Reference:
- +3.3 V rail: 7 A (max 25 W)
- +5 V rail: 5 A
- +12 V rail: 2 A
- –12 V rail: 0.2 A
- Auxiliary CN23 +12 V/+5 V: 1 A each

Reliability & Durability:
- Designed for 24/7 operation in industrial environments.
- Shock and vibration resistant construction.
- Solid aluminum chassis for EMI shielding and thermal conduction.

---

### Summary

The ADLINK MXC‑2300CD‑3E1 is a robust, fanless embedded controller engineered for industrial and transportation automation. Powered by the Intel® Atom™ E3845 quad‑core SoC, it delivers a balance of performance, energy efficiency, and expandability. Its dual Gigabit Ethernet, isolated CAN bus, and digital I/O interfaces enable direct integration with industrial equipment and control networks. With wide temperature operation, 9–32 V DC input, and compliance with global safety standards, the MXC‑2300CD‑3E1 is ideal for applications requiring reliability in harsh conditions. The system’s expandable architecture (PCI/PCIe slots and Mini PCIe with USIM) ensures long‑term adaptability for future industrial and IoT deployments.
