Comprehensive Product Summary – ADLINK MXE‑1401 Fanless Embedded Computer

---

### 1. Product Overview

Product Name: MXE‑1401
Model: MXE‑1401
Series: MXE‑1400 Series – Matrix Fanless Embedded Computers
Article Number: MXE‑1401
Manufacturer: ADLINK Technology, Inc.
Part Number: 50‑1Z192‑2010
Manual Revision: 2.50 (September 5, 2016)

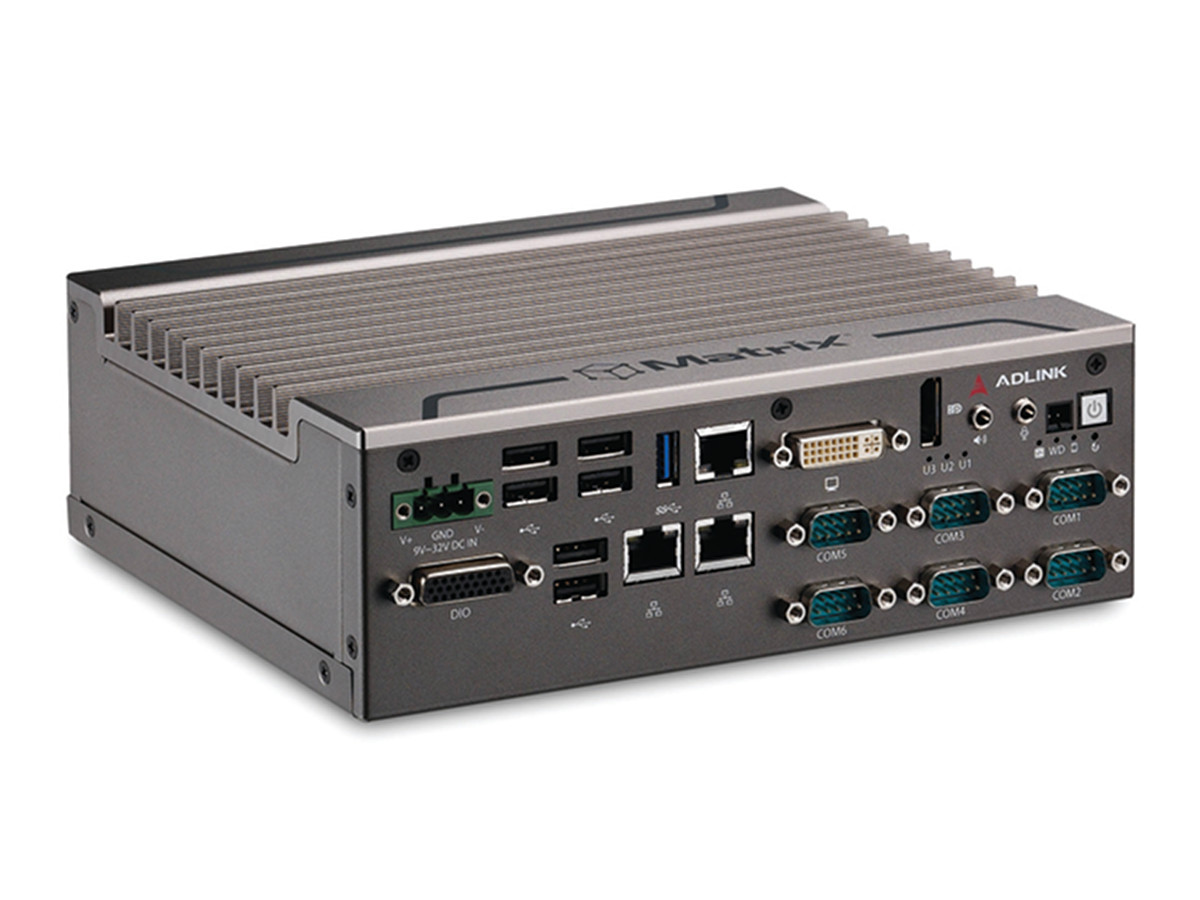

The ADLINK MXE‑1401 is a rugged, fanless embedded computer built on the Intel® Atom™ E3845 quad‑core processor platform. It belongs to ADLINK’s Matrix MXE‑1400 series, designed for industrial and embedded applications requiring high reliability, wide temperature tolerance, and rich I/O connectivity in a compact form factor. The system integrates ADLINK’s Smart Embedded Management Agent (SEMA) for remote monitoring and control, and supports extended temperature operation when equipped with industrial‑grade memory and storage.

---

### 2. Key Features

- Processor: Quad‑core Intel® Atom™ E3845 SoC (Bay Trail)
- Fanless Design: Completely passive cooling, no moving parts
- Compact Dimensions: 210 (W) × 170 (D) × 70 (H) mm
- Single‑Side I/O Layout: All external connectors accessible from one side for simplified installation
- Rugged Construction: Operable from ‑40 °C to +70 °C with industrial components
- Rich I/O Interfaces:
- 3 × Intel® I211 Gigabit Ethernet ports
- 6 × USB 2.0, 1 × USB 3.0 (1600 mA support)
- 6 × COM ports (4 × RS‑232/422/485 configurable, 2 × RS‑232)
- 8 × isolated digital inputs and 8 × isolated digital outputs (1.5 kV isolation)
- DVI‑I and DisplayPort video outputs supporting dual independent displays
- Audio (Mic‑in / Line‑out)
- Expansion:
- 2 × Mini PCI Express slots (1 full‑size with USIM socket, 1 half‑size)
- 1 × CFast slot
- 1 × 2.5″ SATA II drive bay (3.0 Gb/s)
- Power Input: 9 – 32 V DC wide‑range input with optional 80 W AC/DC adapter
- Built‑in SEMA Management: Enables system health monitoring, watchdog control, and remote management
- Vibration Resistance: Up to 5 Grms (SSD configuration)
- Shock Resistance: Up to 100 G (SSD configuration)
- Environmental Compliance: CE, FCC Class A, UL (by CB), RoHS, WEEE

---

### 3. Technical Specifications

| Category | Specification |
|---------------|------------------|
| Processor | Intel® Atom™ E3845 SoC, quad‑core, 1.91 GHz |
| Chipset | Integrated SoC architecture |
| Memory | 2 GB DDR3L‑1600 SODIMM (pre‑installed), expandable to 8 GB |
| Graphics | Intel® HD Graphics Engine; supports dual independent displays |
| Display Outputs | 1 × DisplayPort (2560 × 1600 @ 60 Hz), 1 × DVI‑I (VGA + DVI‑D 1920 × 1200 @ 60 Hz) |
| Ethernet | 3 × Intel® I211 Gigabit Ethernet controllers (IEEE 802.3az, 1588, 802.1AS support) |
| Serial Ports | 6 × COM (4 × RS‑232/422/485 BIOS‑selectable + 2 × RS‑232) |
| USB Ports | 6 × USB 2.0 + 1 × USB 3.0 (Type A) + 1 internal USB 2.0 dongle |
| Digital I/O | 8 × isolated DI + 8 × isolated DO (1.5 kV isolation) |
| Audio | Mic‑in / Line‑out |
| Expansion Slots | 2 × Mini PCIe (one full‑size with USIM socket, one half‑size) |
| Storage | 1 × 2.5″ SATA II drive bay (3.0 Gb/s), 1 × CFast socket |
| Power Input | 9 – 32 V DC input via 3‑pin pluggable connector (GND, V‑, V+) |
| Optional Power Adapter | 80 W AC/DC external adapter |
| Dimensions | 210 (W) × 170 (D) × 70 (H) mm |
| Weight | 2.0 kg (4.42 lb) |
| Mounting | Wall‑mount kit included |
| Operating Temperature | 0 °C to 50 °C (standard); ‑40 °C to 70 °C (with industrial SSD and RAM) |
| Storage Temperature | ‑40 °C to 85 °C |
| Humidity | 95 % @ 40 °C (non‑condensing) |
| Vibration | 5 Grms (SSD/CFast); 0.5 Grms (HDD) 5–500 Hz, 3 axes |
| Shock | 100 G (SSD); 20 G (HDD), half‑sine 11 ms |
| ESD Protection | ±6 kV (contact), ±10 kV (air) |
| EMC/Safety | CE & FCC Class A, UL (by CB) |
| Power Consumption | 5.76 W (off), 13.92 W (idle), 19.92 W (CPU load), 43.2 W (full system load) |

---

### 4. Functionality

The MXE‑1401 operates as a compact, fanless embedded controller for industrial automation, transportation, and surveillance systems. Its Intel® Atom™ E3845 processor provides a balance of performance and low power consumption, while the SoC architecture integrates graphics and I/O controllers to reduce footprint and improve reliability.

Use Cases & Applications:
- Intelligent transportation and in‑vehicle computing
- Industrial automation and machine control
- Digital signage and multimedia kiosks
- Surveillance and security systems
- Edge computing and IoT gateways

Operation:
The system boots from SATA or CFast storage and supports Windows 7 Professional/Embedded, Windows 10 IoT Enterprise (custom BIOS), and Linux. The built‑in SEMA agent monitors temperature, voltage, and power consumption, enabling predictive maintenance and remote diagnostics.

Compatibility:
- Supports dual independent displays (DP + DVI/VGA)
- Compatible with USB 2.0/3.0 peripherals, serial devices, and digital I/O modules
- Wireless connectivity via optional Mini PCIe modules (Wi‑Fi, BT, 3G, LTE, ZigBee)

---

### 5. Components & Accessories

Included Items:
- MXE‑1401 controller
- Wall‑mount brackets and screw pack
- Quick Start Guide

Optional Accessories:
- 2.5″ HDD/SSD or CFast storage modules
- Wireless module kits (Wi‑Fi/Bluetooth/ZigBee/3G/LTE)
- DisplayPort to DVI/VGA/HDMI adapters
- DP‑to‑DVI Active Cable (P/N 30‑01157‑0000)
- DP‑to‑VGA Cable (P/N 30‑01121‑0000)
- DP‑to‑DVI Cable (P/N 30‑01120‑0000)
- DP‑to‑HDMI Cable (P/N 30‑01119‑0000)
- DIO accessories: DIN‑37D‑01 terminal board (P/N 91‑14025‑1020) and DIO‑to‑DIN37 cable (P/N 30‑01143‑0000)

Connectors:

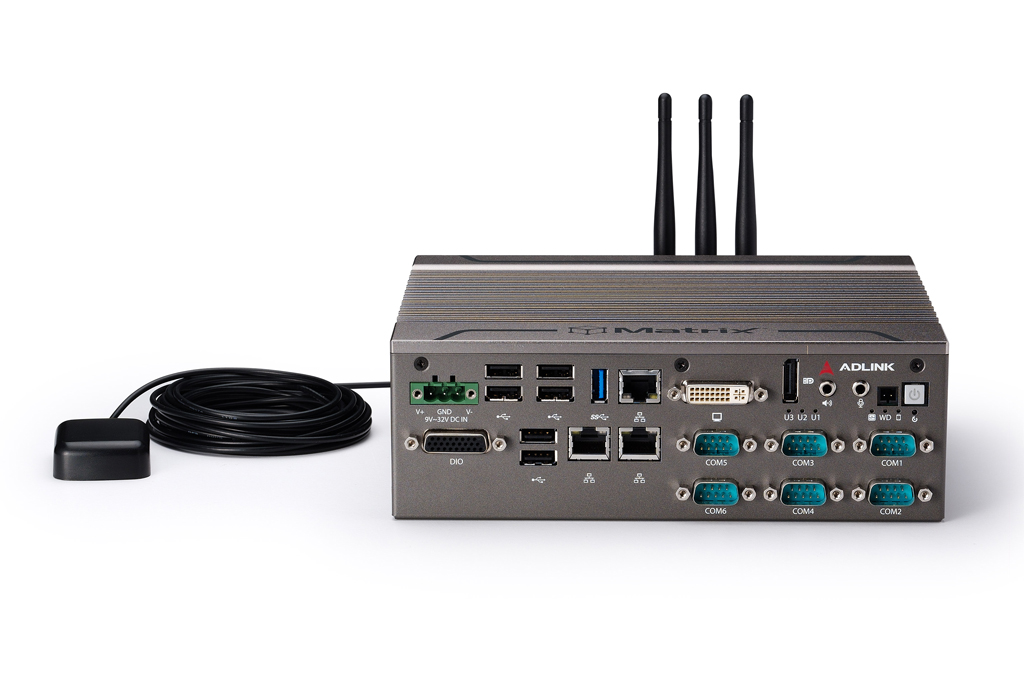

- Front Panel: Power button, Reset, LED indicators, Audio, DisplayPort, DVI‑I, 3 × GbE, USB 3.0, 6 × USB 2.0, DC input, DB‑26 DIO
- Rear Panel: CFast slot, 2.5″ HDD bay, antenna openings (×4)
- Internal: Mini PCIe slots, USIM socket, SATA connector, CMOS jumper, GPS power headers (5 V & 3.3 V)

---

### 6. Installation & Setup

Requirements:
- DC power input (9–32 V DC) or optional 80 W AC/DC adapter
- Minimum 2 inches (5 cm) clearance above unit for heat dissipation

Mounting Options:
- Wall‑mount brackets included; secure with M4 screws
- Avoid mounting with rear panel facing downward

Configuration Steps:
1. Install HDD/SSD into removable drive bay using provided bracket.
2. Insert Mini PCIe modules and USIM card if wireless communication is required.
3. Insert CFast card into rear slot for additional storage.
4. Connect DC power and secure connector screws.
5. Connect display, Ethernet, USB, and serial devices.
6. Power on and install drivers (Audio, Chipset, Graphics, LAN, USB 3.0) from ADLINK website.

Cooling Considerations:
The top panel acts as a heat sink for the CPU and chipset. Maintain adequate air clearance and avoid obstructing ventilation paths.

---

### 7. Performance & Capabilities

- CPU Performance: Quad‑core 1.91 GHz Atom E3845 with Intel HD Graphics
- Memory Bandwidth: DDR3L‑1600 MHz (up to 8 GB)
- Graphics: Dual display support with resolutions up to 2560 × 1600 (DisplayPort) and 1920 × 1200 (DVI)
- Storage Throughput: SATA II 3.0 Gb/s and CFast 3.0 Gb/s
- Network: Three independent Gigabit Ethernet ports with advanced features (IEEE 1588, VLAN, Wake‑on‑LAN)
- Power Efficiency: Typical system consumption below 20 W under load
- Reliability: Fanless design eliminates mechanical failure points; vibration and shock tested for industrial environments
- Limitations: Single SATA drive bay and limited internal expansion compared to larger industrial PCs

---

### 8. Standards & Compliance

- EMC: CE and FCC Class A certified
- Safety: UL (by CB) compliant
- Environmental: RoHS and WEEE directives compliant
- Vibration/Shock: 5 Grms and 100 G tested (SSD configuration)
- Operating Temperature: Validated for ‑40 °C to 70 °C with industrial components
- Software Support: Windows 7 Professional/Embedded, Windows 10 IoT Enterprise (custom BIOS), Linux
- BIOS: AMI UEFI BIOS with comprehensive configuration options for I/O, power management, and security

---

### 9. Additional Information

Warranty & Support:
ADLINK provides standard warranty coverage and global technical support through regional offices in Taiwan, USA, China, Europe, Japan, Korea, Singapore, and India. Service requests can be initiated via [Ask an Expert](http://askanexpert.adlinktech.com).

Maintenance:
- Periodically inspect connectors and mounting hardware.
- Ensure adequate ventilation and clean dust from heat sink surfaces.
- Firmware and BIOS updates available from ADLINK website.

Software Utilities:
- SEMA Utility GUI: Monitors system health (temperature, voltage, power), controls watchdog timer, fan speed, and GPIO.
- Watchdog API: Provides programmatic control for system reset and recovery.
- DI/O API: Enables digital input/output control for automation applications.

Environmental Responsibility:
ADLINK ensures compliance with RoHS and WEEE directives and encourages proper recycling of end‑of‑life products.

Safety Notes:
- Operate within specified temperature and voltage ranges.
- Disconnect power before servicing or installing components.
- Replace battery only with approved type to avoid explosion risk.

---

### Summary

The ADLINK MXE‑1401 is a compact, industrial‑grade, fanless embedded computer engineered for reliability in harsh environments. Powered by the Intel® Atom™ E3845 quad‑core processor, it delivers efficient performance for automation, transportation, and IoT applications. Its extensive I/O complement—three Gigabit Ethernet ports, six serial ports, seven USB ports, and isolated digital I/O—enables seamless integration with sensors, controllers, and networks. The system’s rugged aluminum chassis, wide temperature operation, and vibration/shock resistance ensure long‑term stability in industrial deployments. With built‑in SEMA management, flexible expansion via Mini PCIe, and support for multiple operating systems, the MXE‑1401 offers a robust and scalable platform for embedded control and edge computing solutions.
