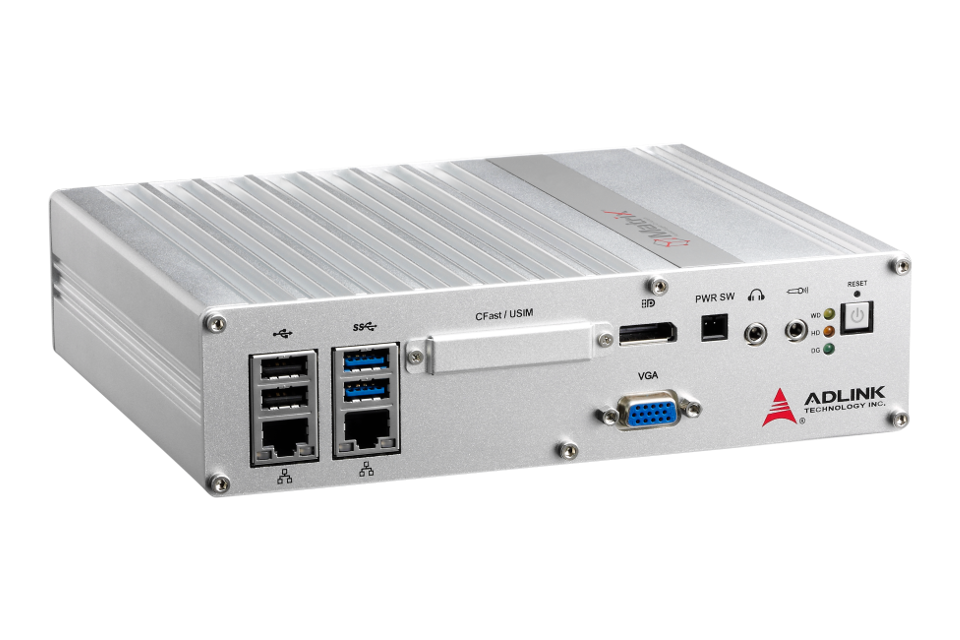

MXE-1502 - Adlink Technology Inc.
QC N3060 fanless 2GB 1*mini PCIe, 4*USB 2.0 2*USB 3.0, 4*DIO
Industrial Computers and Embedded Systems powered by Atom are powerful solutions for businesses and industries. They are designed to be reliable, high performance and energy efficient. They provide a cost effective way to manage and control industrial processes, and can be used in a wide range of applications. Atom powered embedded systems are ideal for applications that require low power consumption and long term reliability..
Description
- QC N3060 based fanless embedded computer
- 2GB DDR3L-1600 SODIMM RAM (up to 8GB total capacity)
- 1*DP and 1* VGA
- SATA 2.5" HDD/SSD
- 1* CFast socket
- 1* MiniPCIe slots (1* with USIM socket)
- 3* Intel I211 GbE ports
- 4* isolated DIO
- 2* RS232/422/485 and 2* RS232 ports
- 2* USB 3.0 and 4* USB 2.0 ports
- 6...36VDC power input
- operating temperature 0...50°C or -20...+70°C (with optional industrial grade SSD/RAM)
- 210*170*53mm
- 1,5kg
- Adlink
Details
- Width: 210 mm
- Height: 170 mm
- Depth: 53 mm
- Net weight: 1.5 kg
- Weight: 2kg
- Manufacturer: Adlink Technology Inc.
- Part number: 93-41041-1070
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
