Comprehensive Product Summary – ADLINK MXE-201 Fanless Embedded Computer

---

### 1. Product Overview

Product Name: MXE-201
Model: MXE-201
Series: MXE-200 / MXE-200i Series
Article Number: MXE-201
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-1Z177-1000
Revision: 2.00 (December 31, 2014)

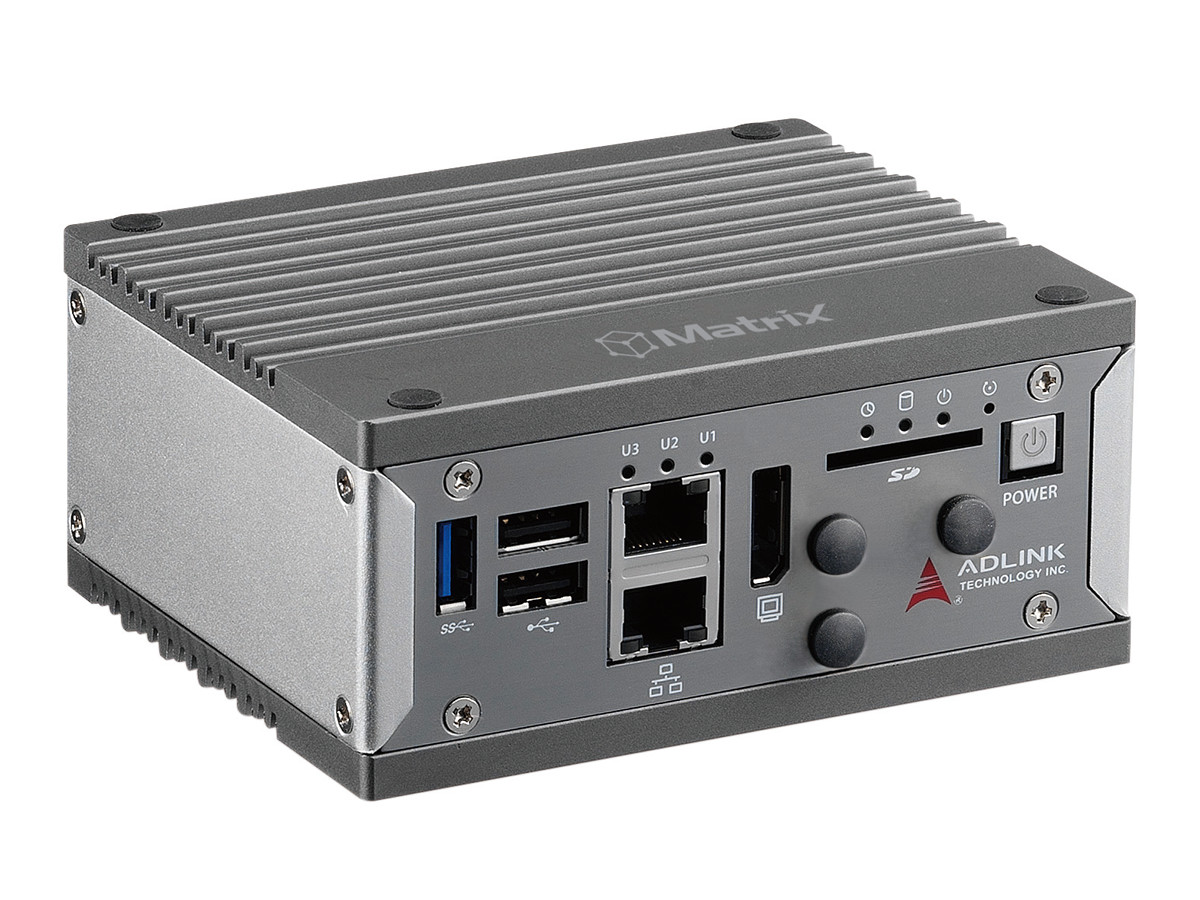

The ADLINK MXE-201 is part of the MXE-200 series of ultra-compact, fanless embedded computers designed for industrial and IoT applications. It integrates the Intel® Atom™ E3845 quad-core processor and provides a rugged, energy-efficient platform for embedded control, data acquisition, and intelligent gateway applications. The system’s fanless design, wide power input range, and extended temperature options make it suitable for harsh industrial environments.

---

### 2. Key Features

- Processor: Intel® Atom™ E3845 Quad-Core SoC (Bay Trail-I architecture)
- Memory: 2 GB DDR3L-1066 MHz onboard (memory down)
- Fanless Design: Fully passive cooling for silent, maintenance-free operation
- Compact Form Factor: 120 mm (W) × 100 mm (D) × 55 mm (H)
- Rich I/O Connectivity:
- 2 × Intel® I210-IT Gigabit Ethernet ports
- 1 × HDMI output
- 1 × USB 3.0 and 2 × USB 2.0 ports
- 1 × RS-232 and 1 × RS-232/422/485 (BIOS-selectable)
- 1 × SD card slot (up to 16 GB)
- 2 × Mini PCIe slots (one with mSATA support, one with USIM socket)
- Optional 4-channel isolated digital I/O (4 DI + 4 DO, 1.5 kV isolation)
- Power Input: 6–36 VDC wide-range input with 3-pin pluggable connector
- Mounting Options: DIN-rail and wall-mount kits included
- Software Integration: Built-in ADLINK SEMA Cloud for remote monitoring and management
- IoT Ready: Full support for Intel® IoT Gateway Solutions
- Operating System Support: Windows Embedded 7 Standard; Wind River® IDP XT (for MXE-200i variant)
- Applications: Industrial automation, transportation, machine-to-machine (M2M) communication, facility management, and IoT gateway deployment.

---

### 3. Technical Specifications

Processor & Chipset:
- Intel® Atom™ E3845 Quad-Core SoC, 1.91 GHz
- Integrated Intel® HD Graphics
- SoC architecture (no external chipset required)

Memory:
- 2 GB DDR3L-1066 MHz onboard (non-expandable)

Storage:
- 1 × SD slot (SD/SDHC up to 16 GB)
- 1 × mSATA (shared with Mini PCIe slot)
- Optional factory-installed industrial-grade mSATA SSD (32/64 GB, -40°C to 85°C)

I/O Interfaces:
- Ethernet: 2 × Intel® I210-IT GbE ports (IEEE 802.3az, 1588, VLAN, PXE, Wake-on-LAN)
- Serial: 1 × RS-232 (COM1), 1 × RS-232/422/485 (COM2, BIOS-selectable)
- USB: 1 × USB 3.0, 2 × USB 2.0
- Display: 1 × HDMI (supports HDMI-to-DVI/VGA adapters)
- Digital I/O: Optional 4 DI + 4 DO, 1.5 kV isolation
- Expansion: 2 × Mini PCIe slots (one supports mSATA, one with USIM socket)
- SIM Support: 1 × USIM slot for 3G/4G modules
- Internal Connectors: 5V and 3.3V headers for GPS module, RTC battery wafer, extended power/reset headers

Power:
- Input Voltage: 6–36 VDC
- Connector: 3-pin pluggable terminal block (GND, V-, V+)
- Optional 40 W AC-DC adapter (-20°C to 70°C)
- Power Consumption:
- Power off: 0.3 W
- Idle: 6.3 W
- CPU full load: 12.5 W
- System full load: 22 W
- Recommended PSU: 40 W

Physical Characteristics:
- Dimensions: 120 × 100 × 55 mm (4.68" × 3.9" × 2.17")
- Weight: 650 g (1.43 lbs)
- Enclosure: Full aluminum alloy, fanless design
- Mounting: DIN-rail and wall-mount compatible

Environmental:
- Operating Temperature:
- Standard: 0°C to 50°C
- Extended: -20°C to 60°C (with industrial mSATA/SD)
- Storage Temperature: -40°C to 85°C
- Humidity: 95% @ 40°C (non-condensing)
- Vibration: 5 Grms, 5–500 Hz, 3 axes (with mSATA)
- Shock: 100 G, half sine 11 ms (with mSATA)
- ESD Protection: ±4 kV contact, ±8 kV air
- EMC: CE & FCC Class A (EN61000-6-4/EN61000-6-2)
- Safety: UL, CB certified

---

### 4. Functionality

The MXE-201 operates as a compact, rugged embedded controller for industrial and IoT applications. It integrates processing, communication, and control capabilities in a single fanless unit. The system’s Intel® Atom™ E3845 processor provides sufficient performance for real-time control, data acquisition, and gateway functions while maintaining low power consumption.

Use Cases:
- Industrial Automation: Machine control, process monitoring, and data logging
- Transportation: In-vehicle computing, fleet management, and traffic control
- IoT Gateway: Edge data aggregation and secure cloud connectivity
- Facility Management: Building automation, security, and energy monitoring
- M2M Communication: Remote device management and telemetry

Compatibility:
- Supports Windows Embedded 7 Standard
- Compatible with ADLINK SEMA Cloud for remote system health monitoring
- Supports Intel® IoT Gateway architecture for secure, managed IoT deployments

---

### 5. Components & Accessories

Included Items:
- MXE-201 main unit
- DIN-rail and wall-mount brackets
- Screw pack for mounting and storage
- Quick Start Guide
- ADLINK All-in-One DVD (drivers, utilities, documentation)

Optional Accessories:
- Industrial SD Card: 8/16 GB MLC type (-40°C to 85°C)
- Industrial mSATA SSD: 32/64 GB MLC type (-40°C to 85°C)
- AC Adapter: 40 W industrial-grade AC-DC adapter (-20°C to 70°C)
- Wireless Modules: Wi-Fi, Bluetooth, 3G/4G LTE mini-PCIe modules
- Extended Temperature Option: -20°C to 60°C operation (requires industrial storage)

Connectors:

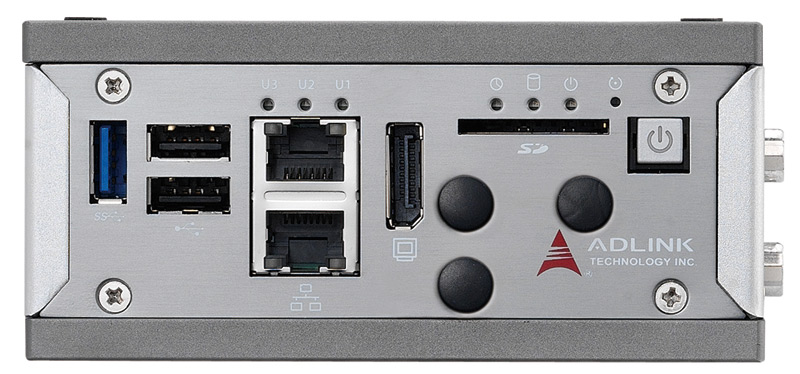

- Front Panel: Power button, reset button, LED indicators, HDMI, 2 × GbE, 2 × USB 2.0, 1 × USB 3.0, SD slot
- Side Panel: DC power input, 2 × DB-9 serial ports
- Internal: Mini PCIe slots, USIM socket, GPS power headers, RTC battery, extended power/reset headers

---

### 6. Installation & Setup

Mounting Options:

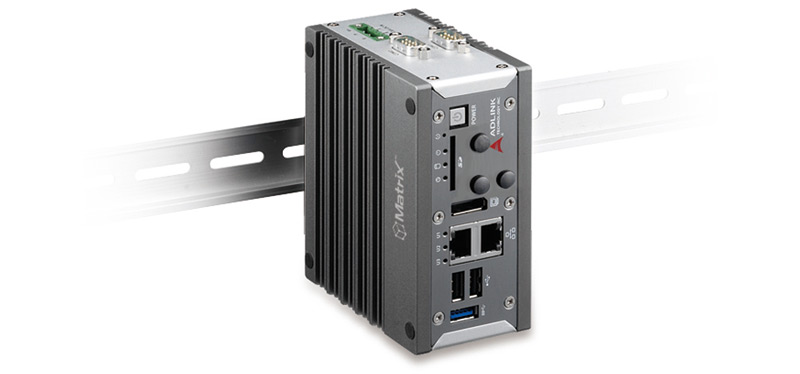

- DIN-rail or wall-mount installation using included brackets
- Maintain at least 5 cm clearance above the unit for heat dissipation

Power Connection:
- Connect DC power (6–36 VDC) via 3-pin terminal block
- Ensure correct polarity (V+, V-, GND)
- Secure connector with screws

Expansion Installation:
- Remove bottom cover to access Mini PCIe slots
- Install mSATA or wireless modules using M2.5 screws
- Configure mSATA/Mini PCIe function via onboard jumper

Cooling Considerations:
- Passive cooling through aluminum chassis
- Ensure unobstructed airflow and ambient temperature within specified limits

Driver Installation:
- Install chipset, graphics, Ethernet, USB 3.0, and I/O drivers from ADLINK DVD
- Install SEMA utility for system monitoring and watchdog timer control

---

### 7. Performance & Capabilities

Processing Performance:
- Intel® Atom™ E3845 (quad-core, 1.91 GHz) provides efficient multitasking and low power draw
- Integrated Intel® HD Graphics supports HDMI output for display or HMI applications

Networking:
- Dual Intel® I210-IT GbE controllers with advanced features:
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 1588 precision time synchronization
- VLAN tagging, checksum offload, jumbo frames
- PXE boot, Wake-on-LAN, and teaming support

Storage & Memory:
- Onboard 2 GB DDR3L memory ensures stable operation
- mSATA and SD storage options for OS and data logging

Reliability:
- Fanless design eliminates moving parts
- Wide voltage input and extended temperature range ensure field reliability
- Shock and vibration resistance suitable for mobile and industrial environments

Limitations:
- Fixed onboard memory (non-expandable)
- Limited internal storage capacity (mSATA/SD only)
- No native analog I/O (requires external modules)

---

### 8. Standards & Compliance

Certifications:
- CE & FCC Class A (EN61000-6-4 / EN61000-6-2)
- UL and CB safety certifications
- RoHS and WEEE compliant

Environmental Compliance:
- Designed for minimal environmental impact
- Complies with EU RoHS and WEEE directives
- Industrial-grade components for extended lifecycle

Industry Standards:
- Intel® IoT Gateway compatible
- IEEE 802.3 Ethernet standards
- USB 3.0/2.0, RS-232/422/485 serial communication standards

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms)
- Global technical support via ADLINK offices worldwide
- Firmware and BIOS updates available through ADLINK website

Maintenance:
- No internal fan or moving parts; minimal maintenance required
- Periodic inspection of connectors and power supply recommended
- BIOS and driver updates supported via ADLINK utilities

Software Tools:
- ADLINK SEMA Cloud: Enables remote system monitoring, power management, and watchdog control
- Watchdog Timer (WDT): Hardware-based system recovery mechanism
- Digital I/O API: Provides programmable control of DI/O channels for automation tasks

Documentation & Resources:
- User’s Manual (Rev. 2.00, Dec 31, 2014)
- Quick Start Guide
- Driver and Utility DVD
- Online resources: [www.adlinktech.com](https://www.adlinktech.com)

Global Service Contacts:
- Headquarters: ADLINK Technology, Inc., New Taipei City, Taiwan
- Regional offices in USA, China, Germany, Japan, Korea, Singapore, India, Israel, France, and UK

---

### Summary

The ADLINK MXE-201 is a robust, ultra-compact, fanless embedded computer engineered for industrial automation and IoT gateway applications. Powered by the Intel® Atom™ E3845 processor, it delivers reliable performance in a small footprint while maintaining low power consumption and high durability. Its extensive I/O options, dual GbE networking, and flexible expansion via Mini PCIe slots make it ideal for edge computing, data acquisition, and control systems. With ADLINK’s SEMA Cloud integration and compliance with Intel® IoT Gateway standards, the MXE-201 provides a secure, manageable, and scalable platform for modern industrial and IoT deployments.
