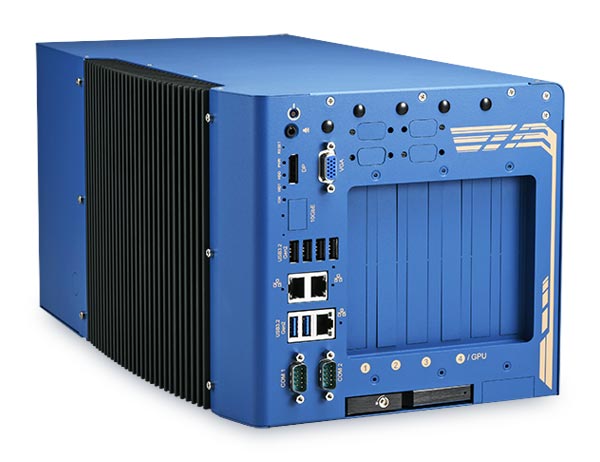

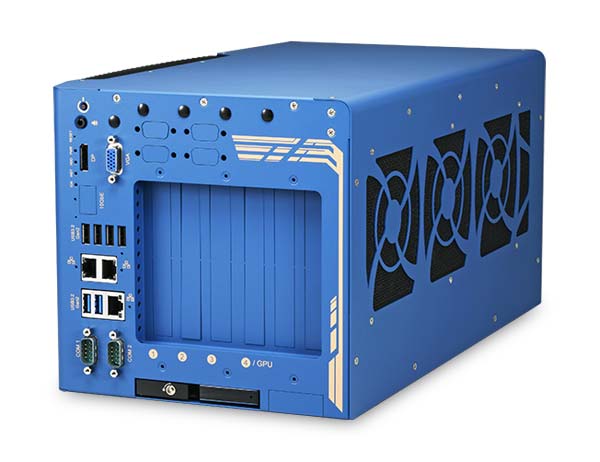

Nuvo-10109GC
Rugged edge AI computer for one 600W GPU with three additional PCIe slots.
Industrial edge AI platform supporting one 600W GPU through a PCIe Gen4 x16 slot and Intel 14th-, 13th- or 12th-generation Core LGA1700 processors. It provides up to 128GB ECC or non-ECC DDR5-4800, three additional PCIe Gen3 x4 expansion slots, six USB 3.2 Gen2 ports, dual 2.5GbE, GbE and optional 10GbE. Storage includes a hot-swappable 2.5-inch SATA tray and M.2 2280 PCIe Gen4 x4 NVMe support. The system accepts 9–32V DC with ignition control and operates from -25°C to 60°C under specified configurations.
- Supported Processor Generations Intel Core 14th, 13th and 12th generation, LGA1700
- Processor TDP 35 or 65 W
- Chipset Intel R680E Platform Controller Hub
- Maximum Memory 128 GB
- Memory Type ECC or non-ECC DDR5-4800 SDRAM, 2x SODIMM
- Discrete GPU Support Single GPU up to 600W
- GPU Interface PCIe x16 Gen4, 16 lanes, 70 mm slot width
- Claimed AI Performance Up to 4000 AI TOPS
- Claimed Compute Performance 125 TFLOPS
- Resolution VGA up to 1920 x 1200; DisplayPort up to 4096 x 2304
- Additional PCIe Slots 3x PCIe x8 physical slots with Gen3 x4 signals
- Mini PCI Express Sockets 2x full-size Mini PCIe with internal SIM sockets
- M.2 B-Key Socket 1x M.2 2242/3052 B-key with internal SIM
- Bus Interface 1x PCIe x16 Gen4, 16 lanes for GPU; 3x PCIe x8 slots with Gen3 x4 signals; 2x full-size Mini PCIe
- Ethernet Ports 2x 2.5GbE and 1x Gigabit Ethernet
- Optional 10GbE Port 1x 10GBASE-T with 5G, 2.5G and 1G support
- USB 3.2 Ports 6x USB 3.2 Gen2x1, 10Gbps
- Internal USB Port 1x USB 2.0 for dongle use
- Serial Ports 2x software-programmable RS-232/422/485
- VGA Output Resolution 1920 x 1200 pixels
- DisplayPort Output Resolution 4096 x 2304 pixels
- SATA Drive Bay 1x front-accessible hot-swappable 2.5-inch HDD/SSD tray
- Internal NVMe Socket 1x M.2 2280 M-key, PCIe Gen4 x4
- Optional Front NVMe Tray 1x front-accessible M.2 2280 M-key tray, PCIe Gen4 x4
- DC Input Range 9 to 32 V DC
- Ignition Control Supported
- Dimensions 224 x 400 x 196 mm
- Weight 7.1 kg
- Mounting Wall-mount with damping brackets
- Form Factor Rugged wall-mount industrial computer

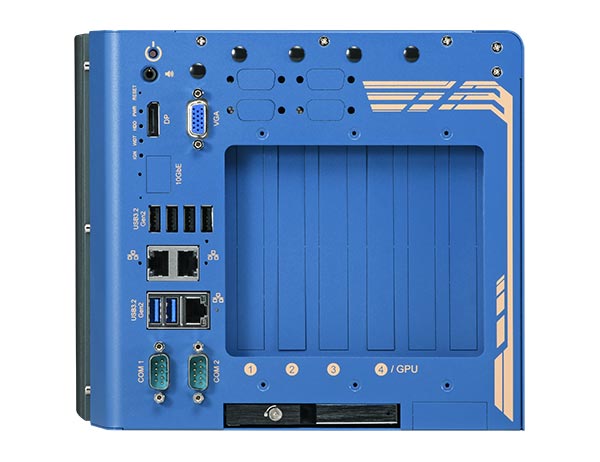

- Connector 3-pin and 4-pin pluggable DC terminal blocks; 6x USB 3.2; 1x USB 2.0 internal; 2x 2.5GbE; 1x GbE; optional 1x 10GBASE-T; 2x DB9 serial; VGA; DisplayPort; 3.5 mm audio
- Dimensions 224 x 400 x 196 mm (W x D x H), without damping bracket
- Operating Temperature with 35W CPU -25 to 60 °C
- Operating Temperature with 65W CPU and Fan Kit -25 to 60 °C
- Operating Temperature with 65W CPU without Fan Kit -25 to 50 °C
- Storage Temperature -40 to 85 °C
- Relative Humidity 10 to 90, non-condensing %
- Vibration Compliance MIL-STD-810H Method 514.8 Category 4
- Shock Compliance MIL-STD-810H Method 516.8 Procedure I
- Operating Temperature -25°C to 60°C with 35W CPU; -25°C to 60°C with 65W CPU and optional fan kit; -25°C to 50°C with 65W CPU without fan kit
- EMC Compliance CE/FCC Class A, EN 55032 and EN 55035
- Intel vPro and AMT Intel vPro / AMT 16.0 supported
- Key Features Single 600W GPU support; PCIe Gen4 x16 GPU interface; dedicated GPU-locking bracket; Intel 14th/13th/12th-Gen Core support; up to 128GB DDR5-4800 ECC/non-ECC; three additional PCIe slots; optional 10GbE; front-accessible storage; 9–32V DC input with ignition control; -25°C to 60°C operation; MIL-STD-810H vibration and shock
- TPM Support dTPM 2.0
- Accessories AccsyBx-Cardholder-10109GC-xx, AccsyBx-FAN-Nuvo10109GC, TY-NVMe-Nuvo10108GC
-
