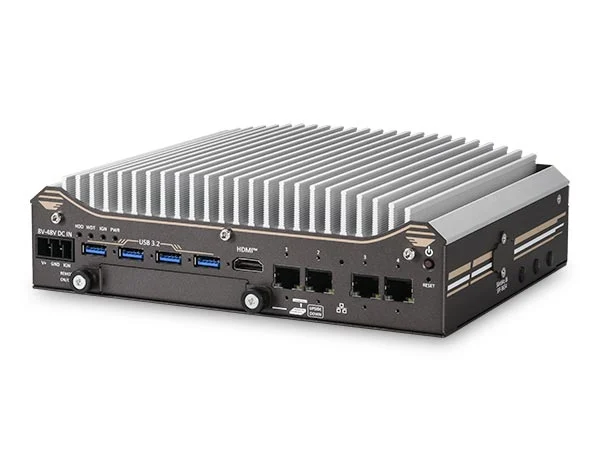

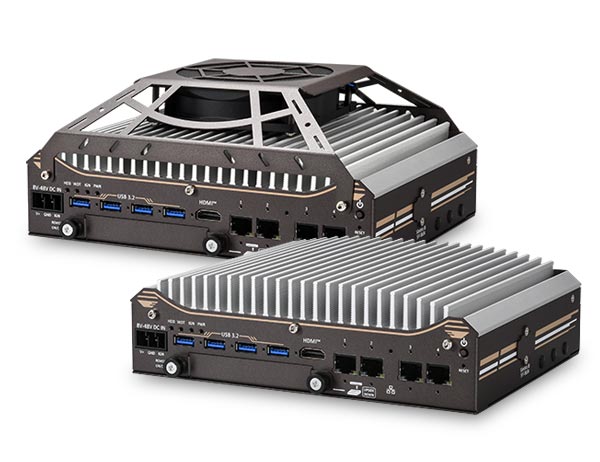

Nuvo-11531
Intel Core Ultra 200S compact fanless computer with 4x 2.5GbE and 4x USB 3.2
Compact fanless embedded computer with Intel Core Ultra 200S series LGA1851 processors (35W/65W), Intel H810 chipset, integrated Intel Xe LPG graphics, integrated NPU, up to 64GB DDR5-6400 via 1x SODIMM, 4x 2.5GBASE-T Ethernet, optional 4-port PoE+ PSE, 4x USB 3.2 Gen1, 2x USB 2.0, HDMI, DisplayPort, 4x isolated DI and 4x isolated DO, 4x serial ports, 1x M.2 2280 M-key PCIe Gen4x4 NVMe, 1x easy-swappable 2.5-inch SATA HDD/SSD tray, 2x mini PCIe, 1x M.2 2230 E-key, 8V to 48V DC input, -25°C to 60°C operation, wall-mount standard.
- CPU Support Intel Core Ultra 200S series processor, LGA1851 socket, 35W and 65W TDP
- Supported CPU Models Intel Core Ultra 9 285/285T; Intel Core Ultra 7 265/265T; Intel Core Ultra 5 245/245T
- Chipset Intel H810 platform controller hub
- Bus Interface PCIe Gen4; SATA; USB 3.2 Gen1; USB 2.0; 2.5GbE
- Graphics Integrated Intel Xe LPG Graphics
- AI Engine Integrated neural processing unit
- Key Features Intel Core Ultra 200S CPU support; fanless operation; up to 64GB DDR5-6400; 4x 2.5GbE; optional 4x PoE+; 4x USB 3.2 Gen1; M.2 NVMe; easy-swappable 2.5-inch SSD tray; 8V to 48V DC input; isolated DIO
- Maximum Memory 64 GB
- Memory Type DDR5-6400 via one SODIMM slot
- TPM fTPM 2.0 standard / dTPM 2.0 optional
- Ethernet Ports 4x 2.5GBASE-T Ethernet ports with screw-lock by Intel I226 controllers
- Wake-on-LAN Port 4 supports WOL
- PoE+ Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE ports
- PoE Power Budget 100 W
- USB 3.2 Ports 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock
- USB 2.0 Ports 2x USB 2.0 ports
- HDMI Output 1x HDMI supporting 3840 x 2160 resolution
- DisplayPort Output 1x DisplayPort supporting 3840 x 2160 resolution
- DisplayPort Note DisplayPort does not support DP++; active DP-to-HDMI adapter required for HDMI output
- COM1 1x software-programmable RS-232/422/485 port
- COM2/3/4 3x 3-wire RS-232 ports or 1x RS-422/485 port (COM2)
- Isolated Digital Input Channels 4 channels
- Isolated Digital Output Channels 4 channels
- Digital I/O 4 isolated DI; 4 isolated DO
- Mini PCI Express 2x full-size mini PCI Express sockets with internal SIM sockets
- M.2 E-Key 1x M.2 2230 E key socket for WiFi module
- SATA Drive Bay 1x easy-swappable 2.5-inch HDD/SSD tray for 7mm HDD/SSD
- M.2 Storage 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD
- DC Input 8V to 48V DC input via 3-pin pluggable terminal block; optional ignition power control
- Dimensions 212 x 165 x 63 mm
- Weight 2.2 kg
- Mounting Wall-mount standard; DIN-rail mount optional
- Form Factor Compact fanless embedded computer

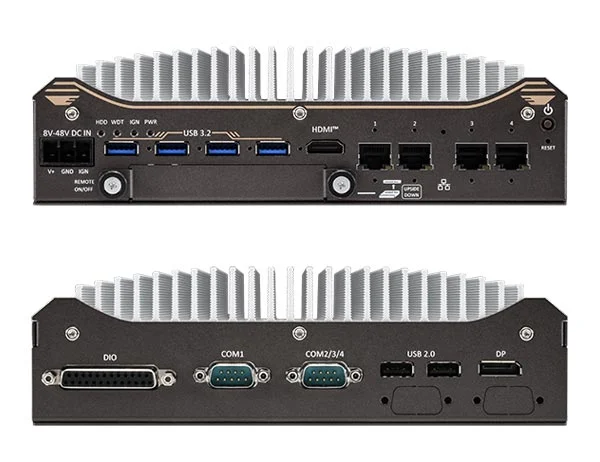

- Connector 4x 2.5GbE RJ45 with screw-lock; 4x USB 3.2 Gen1; 2x USB 2.0; 1x HDMI; 1x DisplayPort; serial ports; DIO; 3-pin DC terminal block
- Dimensions 212 x 165 x 63 mm
- Operating Temperature -25 to 60 °C
- Storage Temperature -40 to 85 °C
- Humidity 10% to 90%, non-condensing
- Vibration MIL-STD-810H, Method 514.8, Category 4
- Shock MIL-STD-810H, Method 516.8, Procedure I
- Operating Temperature -25°C to 60°C
- EMC CE/FCC Class A according to EN 55032 and EN 55035
- Resolution 3840 x 2160
