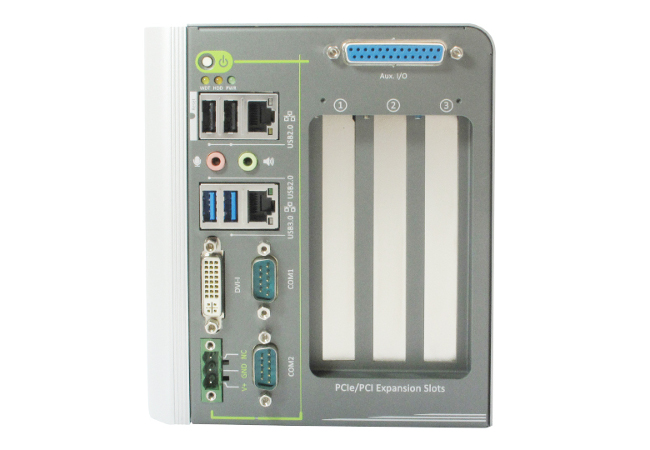

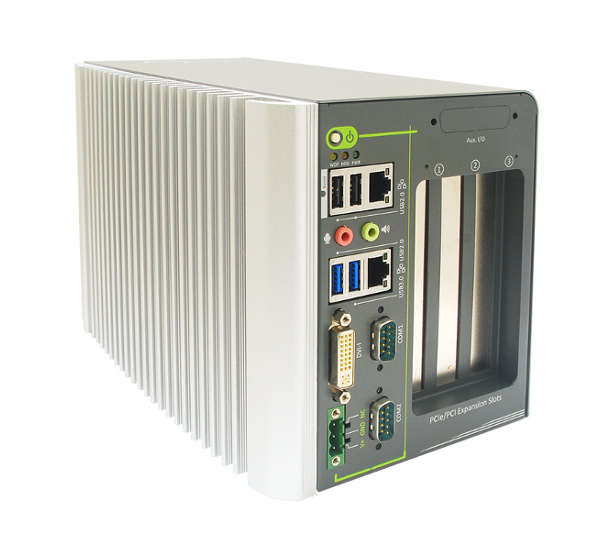

Nuvo-2421 - Neousys
Celeron J1900 Fanless PC 2*PCI 1*PCIe 2*GbE 2*COM
Industrial Computers and Embedded Systems powered by Atom are powerful solutions for businesses and industries. They are designed to be reliable, high performance and energy efficient. They provide a cost effective way to manage and control industrial processes, and can be used in a wide range of applications. Atom powered embedded systems are ideal for applications that require low power consumption and long term reliability..
Description
- Celeron J1900 fanless system with Intel ICH8-M chipset
- 1* SODIMM socket for up to 8GB DDR3L-1333 SDRAM
- 2* PCI 1* PCIe expansion slots
- 2* Intel I210 GbE ports
- 1* DVI-I port for dual independent VGA and DVI display output
- 1* USB 3.0 and 3* USB 2.0 ports
- 2* RS232/422/485 ports
- additional 2* RS232 or 1* RS232 and 1* Parallel ports via slot adapter
- optional 8* isolated DIO (polling mode only)
- space for 2* 2.5" SATA HDD/SSD
- operating temperature -25°...+70°C @100% CPU load
- power supply 8..25 VDC built in
- 139*160*225mm
- 2,2kg
- Neousys
Details
- Width: 139 mm
- Height: 160 mm
- Depth: 225 mm
- Net weight: 2.2 kg
- Weight: 2.2kg
- Manufacturer: Neousys
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
Data Sheets
Manuals
Accessories
-
Nuvo-PA-60W
60W AC/DC Power Adapter for Nuvo-100x/20xx and POC series
