Description

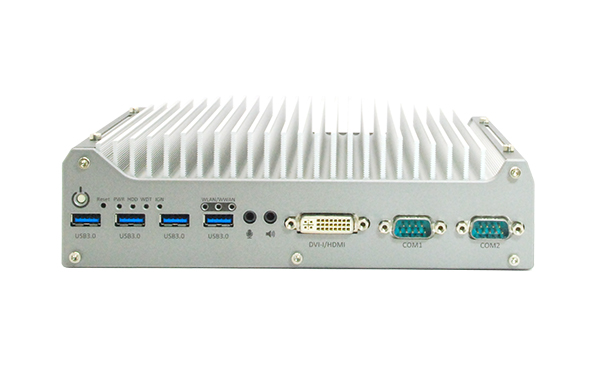

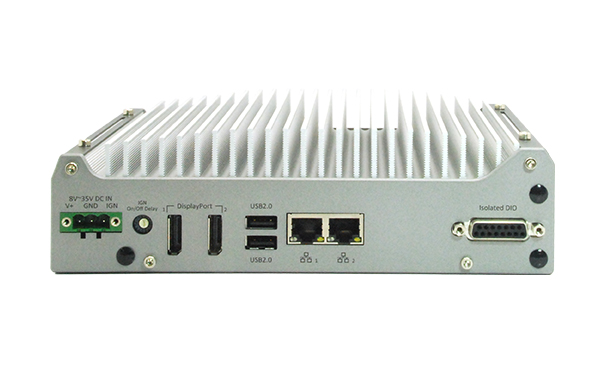

• Intel Core i3/i5/i7 Ivy Bridge ultra-compact fanless barebone system with Intel HM76 chipset
• configurable CPU power mode
• up to 8GB DDR3 SODIMM (1 slot)
• 1* internal 2,5" SATA III HDD/SSD
• 1* full size mSATA (SATA/USB/W_DISABLE#) with USIM socket
• 4* isolated DI with COS interrupt and 4* isolated DO
• 1* Intel 82579LM and 1* Intel I210 GbE ports
• Intel HD 4000 Graphics with 1*DVI-I (resolution 2048*1536 for VGA and 1920*1080 for DVI) and 2* DP (resolution 2560*1600)
• 2* Mini-PCIe expansion slots (1* full size with USIM card socket
• 1* half size)
• 4* USB 3.0 and 2* USB 2.0 ports
• 1* external CFast slot
• 1* RS232/422/485 (software-programmable) and 1* RS232 ports
• 1* Mic in and 1* Speaker out
• operating temperature -25°...+50/60/70°C @100% CPU load (depending on CPU power setting)
• vibration resistance up to 5Grms (5-500Hz 3 axes with SSD according to IEC60068-2-64)
• shock resistance up to 50Grms (half-sine 11ms duration with SSD according to IEC60068-2-27)
• power supply 8..35 VDC built in with 3-pin terminal block input
• 210*165*59mm
• 2,4kg
