Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,s-slot PCIe,MezIO

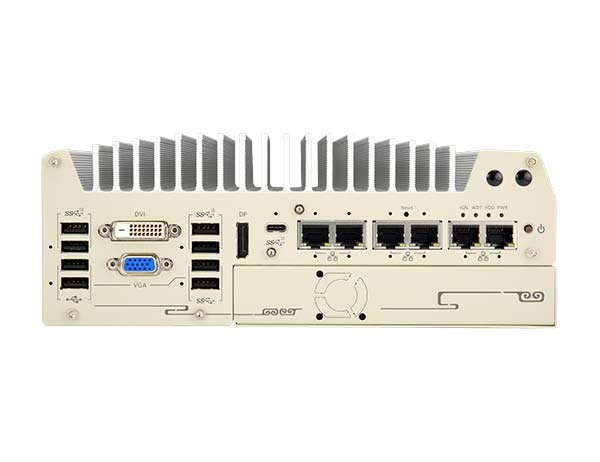

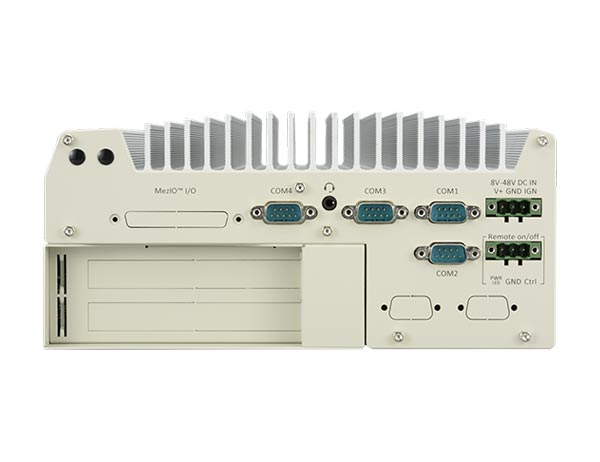

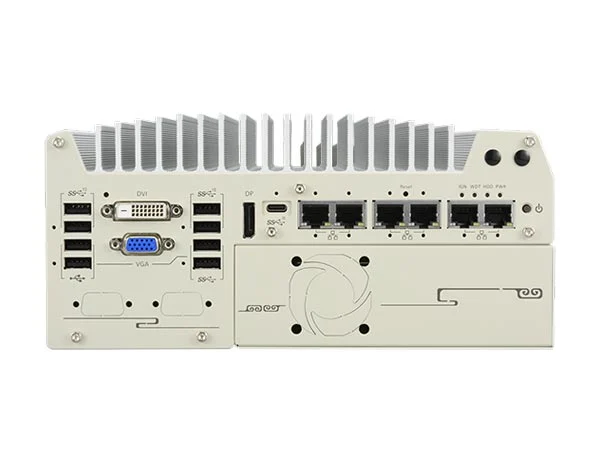

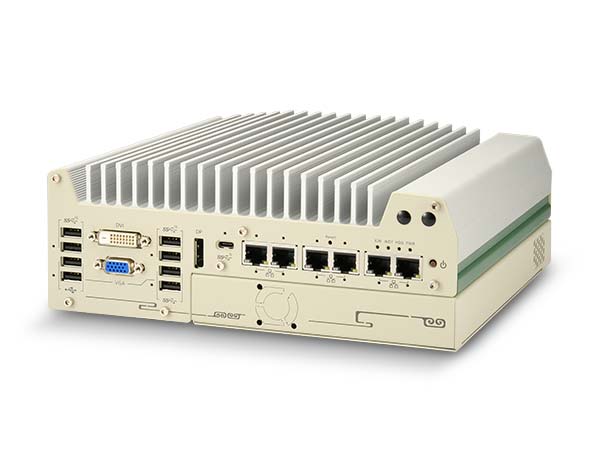

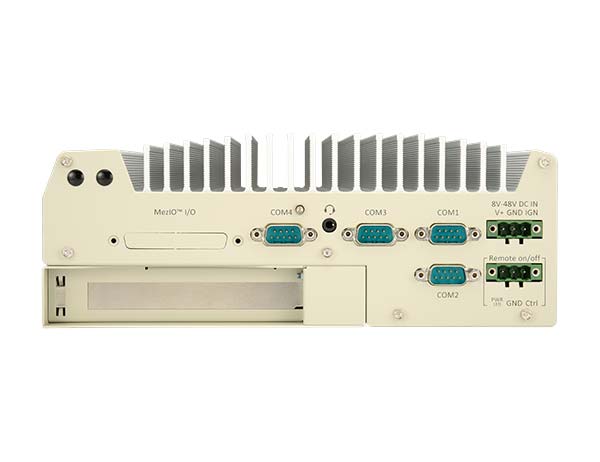

Nuvo-9006E

Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,s-slot PCIe,MezIO
Request a quote
  • Manufacturer Neousys Technology
  • Category: Nuvo-9000-Series
  • The Nuvo-9006E is a fanless high-performance embedded computer built for harsh industrial environments. It supports Intel BTL-S and 14th/13th/12th-Gen Core processors, up to 128 GB of DDR5 memory, and fast storage through M.2 Gen4x4 NVMe. With 5x 2.5GbE plus 1x Gigabit Ethernet, it is especially suited to network-intensive applications, and optional PoE+ is available on ports 3 through 6. The system also provides a PCIe Cassette, MezIO expansion, multiple USB interfaces including 20 Gbps Type-C, triple video outputs, and 8 to 48 VDC input with -25 to 70°C operation.
Intel® 14th/13th/12th Gen Core™ i9/i7/i5/i3 rugged embedded computer with LGA1700 socket (65 W/35 W TDP) and Intel® Q670E chipset. Supports up to 64 GB DDR5-4800 via 2× DIMM slots. Integrated Intel® UHD Graphics 770/730, cassette-less low-profile design, 1× hot-swappable 2.5? HDD/SSD tray (7 mm) + 1× internal 2.5? SATA (RAID 0/1), 5× 2.5GbE (Intel I226/I225) + 1× GbE (Intel I219-LM) LAN ports (PoE+ optional), 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen2, 2× USB 3.2 Gen1, 2× USB 2.0, VGA, DisplayPort, 2× RS-232/422/485, 2× RS-232, audio I/O, 1× M.2 2280 Gen4 NVMe slot, 1× mini-PCIe, 1× M.2 B-Key with SIM, MezIO® expansion, remote power control, rugged -25 °C…+70 °C fanless operation, 8–48 V DC input, wall-mount chassis 240×225×79 mm, 3.36 kg, Neousys.

Country of origin: Taiwan R.O.C.

Customs tariff number: 8471 5000 000

  • Supported CPU Generations Intel BTL-S/14th/13th/12th-Gen Core
  • Chipset Intel Q670E
  • Maximum Memory 128 GB
  • PCIe Cassette 1x PCIe x16 slot at Gen3, 8-lane signals
  • Ethernet Ports 5x 2.5GbE and 1x GbE
  • Optional PoE+ IEEE 802.3at PoE+ PSE for port 3 to port 6, 100 W total budget
  • USB Type-C 1x USB 3.2 Gen2x2
  • M.2 NVMe 1x M.2 2280 M key NVMe PCIe Gen4x4
  • Dimensions 240 x 225 x 90 mm
  • Operating Temperature -25 to 70 °C
