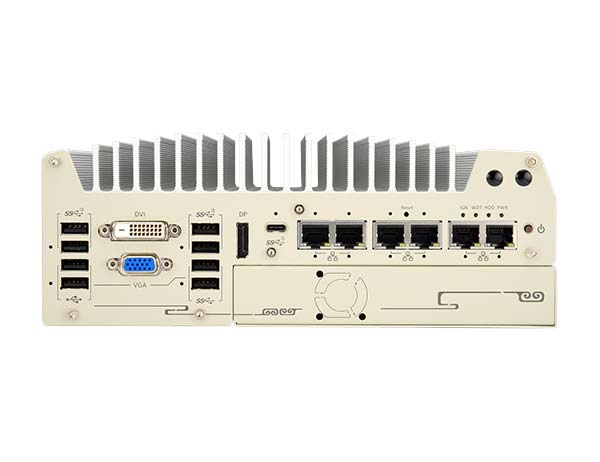

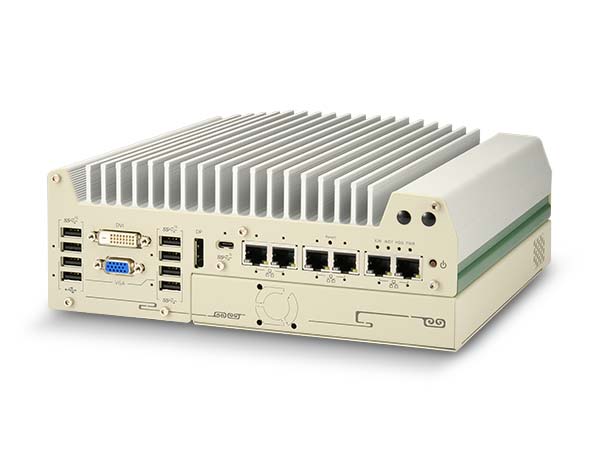

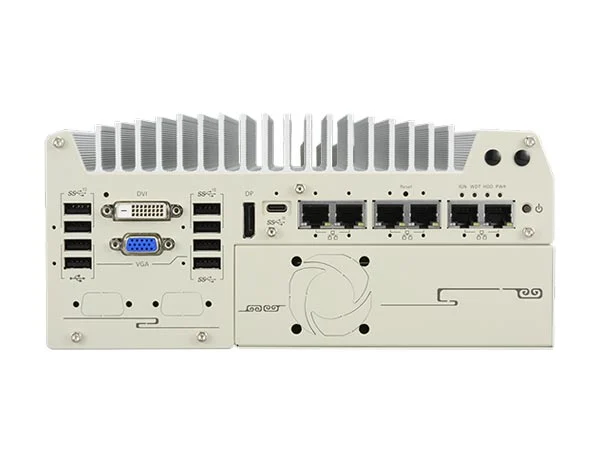

Nuvo-9006P-PoE - Neousys

Intel 14/13/12G rugged PC 6x2.5GbE,s-slot PCI,MezIO,PoE+

We provide rugged embedded computers powered by Intel® 14th/13th/12th-Gen Core™ processors with up to 24 cores and 32 threads. Our Nuvo-9000 series delivers exceptional computational performance with DDR5 memory support, PCIe Gen4 NVMe storage, and versatile I/O including up to 6× 2.5GbE ports, USB 3.2 type-C, and triple independent display outputs. Designed for harsh industrial environments, the systems feature fanless operation from -25°C to 70°C, patented expansion Cassettes for PCIe/PCI add-on cards, and the flexible MezIO® interface for function expansion. With proven reliability, high performance, and extensive connectivity, our rugged embedded platforms are optimized for applications ranging from industrial automation to in-vehicle computing and machine vision..

Description

  • Intel 14th/13th/12th Gen Core i9/i7/i5/i3 rugged embedded computer with LGA1700 socket (65W/35W TDP) and Intel Q670E chipset. Supports up to 64 GB DDR5-4800 via 2× SODIMM slots. Features integrated Intel UHD Graphics 770/730
  • 1× PCI Slo
  • 5× 2.5GbE + 1× GbE LAN ports
  • 1× USB 3.2 Gen2x2 Type-C
  • 4× USB 3.2 Gen2
  • 2× USB 3.2 Gen1
  • 2× USB 2.0
  • VGA
  • DVI-D
  • DisplayPort

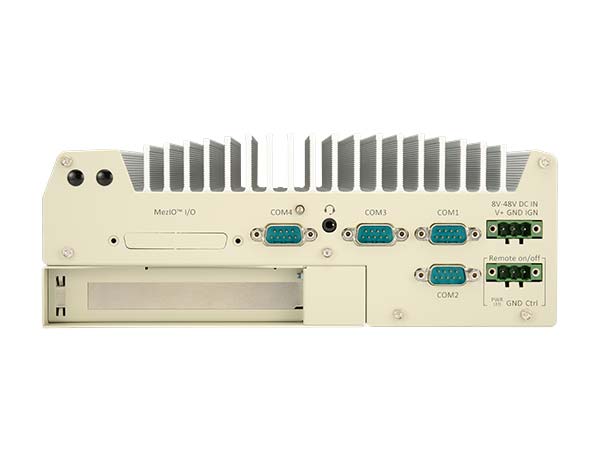

  • 2× RS-232/422/485
  • 2× RS-232
  • audio I/O
  • 2× 2.5" SATA HDD/SSD bays with RAID 0/1
  • 1× M.2 2280 Gen4 NVMe slot
  • 1× mini-PCIe
  • 1× M.2 B-Key with SIM
  • MezIO expansion port
  • remote power control
  • rugged -25 °C…+70 °C fanless operation
  • 8–48 V DC input
  • wall-mount chassis 240×225×90 mm
  • 3.58 kg
  • PoE+
  • Neousys.

Details

  • Width: 240 mm
  • Height: 90 mm
  • Depth: 225 mm
  • Net weight: 3.58 kg
  • Weight: 3.58kg
  • Manufacturer: Neousys
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000
