Comprehensive Product Summary – OPM‑10T Open Frame LCD Touch Monitor

---

### 1. Product Overview

Product Name: OPM‑10T
Model: OPM‑10T
Series: OPM Open Frame LCD Display Series
Article Number: OPM‑10T
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)

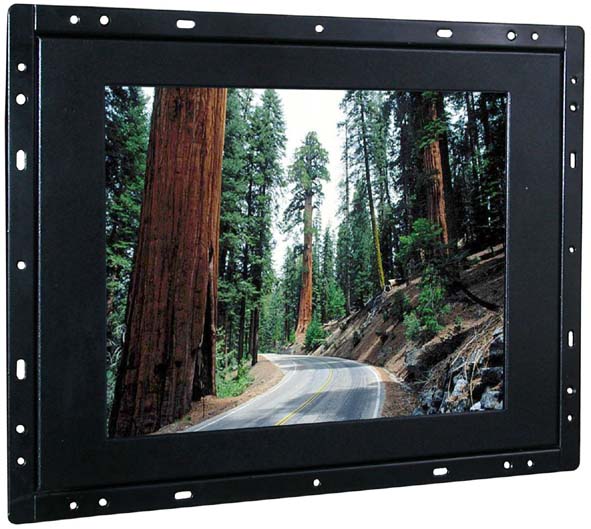

The OPM‑10T is a 10.4‑inch open‑frame LCD monitor with integrated resistive touchscreen technology, designed for industrial, commercial, and embedded system applications. It belongs to Acceed’s OPM series of open‑frame flat‑panel displays, which are engineered for integration into kiosks, control panels, automation systems, and other embedded display environments. The OPM‑10T combines a compact form factor, robust metal chassis, and reliable display performance with flexible mounting and connectivity options.

---

### 2. Key Features

- Display Type: 10.4‑inch SVGA TFT LCD panel
- Resolution: 800 × 600 pixels (SVGA)
- Touchscreen: Analog resistive touch interface for precise input
- Brightness: 230 cd/m² typical luminance
- Color Depth: 262,144 colors (18‑bit color)
- Input Interface: VGA analog input via DB‑15H connector
- Mechanical Design: Open‑frame structure with a stable metal back frame and open front for easy integration into custom housings or enclosures
- Cut‑out Dimensions: 268 × 191.5 mm
- Overall Dimensions: 294.6 × 218.1 mm
- MTBF (Backlight): 20,000 hours typical
- Mounting: Panel‑mount or custom integration; compatible with industrial enclosures
- Power Supply: External 12 V DC power input (typical 36–48 W adapter)
- Operating System Compatibility: Supports legacy and modern Windows environments (Windows 98/NT/2000/XP) and DOS for embedded applications
- Construction: Heavy‑duty steel chassis for durability and vibration resistance
- Control Interface: Rear‑panel OSD (On‑Screen Display) controls for brightness, contrast, color, and image alignment

The OPM‑10T is engineered for environments requiring a compact, durable, and easily integrated display solution. Its resistive touchscreen allows for reliable operation even with gloves or styluses, making it suitable for industrial and public‑access applications.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Size | 10.4 inches (diagonal) |
| Display Type | TFT Active Matrix LCD |
| Native Resolution | 800 × 600 (SVGA) |
| Maximum Colors | 262,144 (18‑bit) |
| Brightness (Luminance) | 230 cd/m² |
| Contrast Ratio | Approx. 200:1 (typical for OPM series) |
| Viewing Angle | Horizontal: +55°/‑60°; Vertical: +35°/‑55° (typical) |
| Response Time | 20 ms rise / 35 ms decay (typical for OPM series) |
| Pixel Pitch | 0.3075 × 0.3075 mm (approx.) |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifetime (MTBF) | 20,000 hours |
| Touchscreen Type | Analog resistive, 4‑wire |
| Touch Resolution | Continuous, analog detection |
| Touch Light Transmission | ≥79% |
| Touch Controller Interface | RS‑232 (standard) or USB (optional) |
| Touch Power Consumption | <5 V @ 100 mA |
| Touch Lifetime | ≥100 million touches |
| Input Signal | VGA analog (DB‑15H connector) |
| Optional Input | Composite AV input (optional) |
| OSD Controls | Brightness, contrast, H/V position, color, phase, clock, management |
| Power Input | 12 V DC (external adapter, 36–48 W) |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | ‑20 °C to +60 °C |
| Storage Humidity | 10%–95% @ 40 °C, non‑condensing |
| Vibration Resistance | 10–150 Hz, 0.15 mm amplitude, 10 cycles, 1 G |
| Shock Resistance | 30 G peak acceleration, 11 ms duration |
| Cut‑out Dimensions | 268 × 191.5 mm |
| Overall Dimensions (W × H) | 294.6 × 218.1 mm |
| Chassis Material | Heavy‑duty steel |
| Mounting Options | Open‑frame / panel mount |
| Weight | Approx. 1.5–2.0 kg (estimated based on size and construction) |
| Color / Finish | Industrial matte metal finish |
| MTBF (System) | 20,000 hours typical |

---

### 4. Functionality

The OPM‑10T functions as a stand‑alone or embedded display module for visual output and user interaction in industrial and commercial systems. Its open‑frame design allows integrators to mount the display behind custom bezels, panels, or enclosures, making it ideal for kiosks, vending machines, control consoles, and automation terminals.

How It Works:
- The TFT LCD panel displays video signals received through the VGA analog input.
- The resistive touchscreen overlays the display and detects pressure from a finger, stylus, or gloved hand.
- The touch controller converts analog touch signals into digital coordinates, transmitted via RS‑232 or USB to the host system.
- The On‑Screen Display (OSD) menu, accessible via rear‑panel buttons, allows adjustment of brightness, contrast, color balance, and image positioning.
- The external 12 V DC power adapter supplies stable power to the display electronics and backlight.

Use Cases and Applications:
- Industrial control panels and HMI (Human‑Machine Interface) systems
- Kiosk and point‑of‑information terminals
- Retail and POS (Point‑of‑Sale) systems
- Embedded computing systems and automation controllers
- Transportation and logistics terminals
- Medical and laboratory instrumentation displays
- Digital signage and interactive exhibits

Compatibility:
- Compatible with standard VGA output from PCs, embedded controllers, and industrial computers.
- Touchscreen drivers support legacy Windows operating systems (Windows 98, NT, 2000, XP) and DOS environments.
- Optional USB interface allows integration with modern systems.

---

### 5. Components & Accessories

Included Items:
- OPM‑10T open‑frame LCD monitor with integrated resistive touchscreen
- External 12 V DC power adapter (36–48 W)
- VGA signal cable (DB‑15 male‑to‑male)
- RS‑232 or USB touch controller cable (depending on configuration)
- Mounting brackets or screw kit for panel integration
- User manual and driver CD (for touchscreen interface)

Optional Accessories:
- USB touchscreen controller (alternative to RS‑232)
- Composite AV input module (for video sources)
- Extended‑length power and signal cables
- Protective front glass or custom bezel for specific installations
- VESA 75/100 mm mounting adapters (for compatible enclosures)

Connectors:
- Video Input: 15‑pin D‑Sub (VGA)
- Touch Interface: RS‑232 (DB‑9) or USB Type‑A/B (optional)
- Power Input: DC barrel connector (12 V DC)
- Optional AV Input: RCA composite connector

---

### 6. Installation & Setup

Requirements:
- Power supply: 12 V DC regulated adapter (included)
- Host system with VGA output and RS‑232 or USB port for touch interface
- Mounting surface or enclosure with cut‑out dimensions of 268 × 191.5 mm

Mounting Options:
- Panel Mount: The open‑frame design allows direct mounting behind a front panel or bezel using screws or brackets.
- Embedded Integration: Can be integrated into kiosks, terminals, or custom housings.
- VESA Mounting: Compatible with VESA 75/100 mm patterns (with optional adapter).

Configuration Steps:
1. Prepare the mounting cut‑out according to specified dimensions.
2. Secure the display using the provided brackets or screws.
3. Connect the VGA cable to the host system’s video output.
4. Connect the RS‑232 or USB cable for touchscreen communication.
5. Attach the 12 V DC power adapter and power on the unit.
6. Adjust display parameters using the OSD controls on the rear panel.
7. Install touchscreen drivers on the host system for full touch functionality.

Setup Notes:
- Ensure proper ventilation around the back of the unit to maintain optimal operating temperature.
- Avoid exposure to direct sunlight or high humidity environments.
- For embedded applications, ensure the front bezel provides adequate protection against dust and moisture.

---

### 7. Performance & Capabilities

Display Performance:
- The 10.4‑inch SVGA panel delivers clear, sharp images suitable for text, graphics, and video.
- The 230 cd/m² brightness ensures readability in indoor and semi‑bright environments.
- The 262K color depth provides smooth color gradients and accurate image reproduction.
- The 20/35 ms response time supports smooth motion display for typical industrial and GUI applications.

Touch Performance:
- The analog resistive touchscreen offers high accuracy and durability, supporting over 100 million touch activations.
- It operates reliably with gloved hands or styluses, making it ideal for industrial and public environments.
- The touch controller provides continuous resolution and stable coordinate tracking.

Power Efficiency:
- Typical power consumption is low, with the display operating efficiently from a 12 V DC source.
- The external adapter design minimizes heat generation within the display housing.

Reliability:
- The heavy‑duty steel chassis provides mechanical stability and vibration resistance.
- The backlight MTBF of 20,000 hours ensures long operational life in continuous‑use environments.
- The display is designed to withstand moderate shock and vibration, suitable for industrial installations.

Limitations:
- The 230 cd/m² brightness may not be sufficient for direct sunlight readability.
- The SVGA resolution (800×600) limits fine‑detail display compared to modern high‑resolution panels.
- Resistive touch technology, while durable, does not support multi‑touch gestures.

---

### 8. Standards & Compliance

Certifications and Compliance:
- Electrical Safety: Designed to comply with CE and FCC Class A/B standards for electromagnetic compatibility (typical for Acceed industrial displays).
- Environmental Compliance: RoHS‑compliant construction (lead‑free and environmentally safe materials).
- Mechanical Standards: VESA 75/100 mm mounting compatibility.
- Quality Assurance: Manufactured under ISO‑certified quality management systems.

Industry Standards Supported:
- VGA analog video standard (DB‑15 connector)
- RS‑232 serial communication standard for touch interface
- USB 1.1/2.0 compatibility (optional touch interface)
- Standard DC power input (12 V) for industrial electronics

---

### 9. Additional Information

Warranty:
Typically covered by a 1‑year limited manufacturer’s warranty against defects in materials and workmanship (standard for Acceed industrial displays). Extended warranty options may be available upon request.

Technical Support:
Acceed GmbH provides full technical support, including driver downloads, integration guidance, and troubleshooting assistance via their website and customer service channels.

Maintenance:
- Periodic cleaning of the touchscreen surface with a soft, non‑abrasive cloth is recommended.
- Ensure ventilation openings remain unobstructed to prevent overheating.
- Backlight replacement may be required after extended operation (20,000‑hour MTBF).

Software & Driver Updates:
Touchscreen drivers are available for legacy Windows operating systems (Windows 98, NT, 2000, XP) and DOS. For modern systems, USB controller options may include updated driver support for Windows 7/10 and Linux (depending on configuration).

Product Lifecycle & Availability:
The OPM‑10T is part of Acceed’s long‑term industrial product line, ensuring extended availability and support for OEM and system integrator projects. Customization options (e.g., front glass, interface selection, brightness enhancement) can be provided for volume orders.

---

### Summary

The Acceed OPM‑10T is a 10.4‑inch open‑frame LCD monitor with resistive touchscreen, designed for integration into industrial and commercial systems requiring a compact, durable, and reliable display solution. With its SVGA resolution, 230 cd/m² brightness, metal chassis, and 20,000‑hour backlight life, it delivers dependable performance in demanding environments. The analog VGA input, RS‑232/USB touch interface, and 12 V DC power supply ensure compatibility with a wide range of embedded and industrial computers.

Its open‑frame construction allows flexible mounting and integration, while the resistive touchscreen provides precise control even under harsh conditions. The OPM‑10T exemplifies Acceed’s commitment to robust, long‑lifecycle display solutions for automation, control, and embedded applications.
