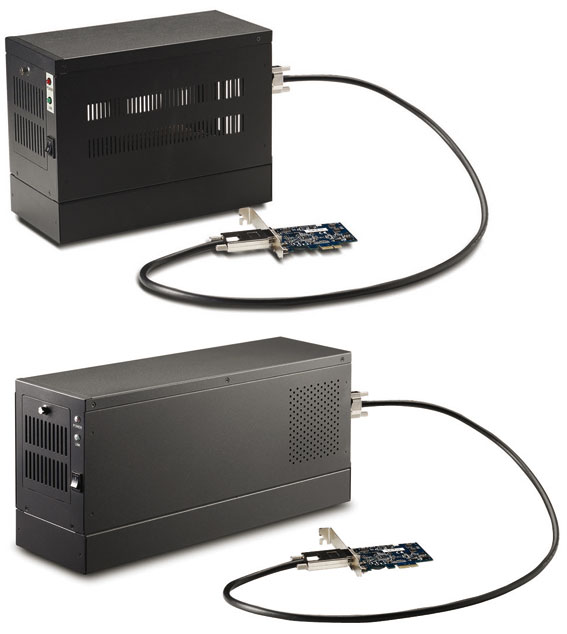

Comprehensive Product Summary – ADLINK PCES‑8581‑4S PCI Express‑to‑PCI Extension System
### 1. Product Overview
Product Name: PCI Express‑to‑PCI Extension System (4‑Slot)
Model: PCES‑8581‑4S
Series: PCES‑8581 Series (includes PCES‑8581‑4S and PCES‑8581‑13S)
Article Number: PCES‑8581‑4S
Manufacturer: ADLINK Technology Inc.
Product Type: PCI Express‑to‑PCI bus extension system with four available PCI slots
Intended Use: Expansion of PCI connectivity for host computers equipped with PCI Express slots
The ADLINK PCES‑8581‑4S is a complete PCI Express‑to‑PCI extension solution designed to expand the number of PCI slots available to a host PC. It enables remote control of up to four PCI devices through a high‑speed PCI Express x1 link, maintaining full hardware and software transparency. The system includes a host interface card (PCIe‑8560), an extension chassis (RK‑8005) with integrated PCI‑to‑PCI bridge (PCI‑8565), a 3 m shielded cable, and a 200 W AC power supply.
### 2. Key Features
- Transparent PCI Express‑to‑PCI Bridge: Provides complete hardware and software transparency; no additional drivers or software required.
- Remote PCI Device Control: Operates up to 7 m away from the host PC using a shielded twisted‑pair copper cable.
- High‑Speed PCI Express x1 Interface: 2.5 Gbps signaling rate per direction, 250 MB/s throughput.
- Four Available PCI Slots: 32‑bit/33 MHz PCI bus supporting 5 V and 3.3 V PCI cards.
- Compact Industrial Chassis: RK‑8005 shoebox‑size chassis (122 × 195 × 259 mm) with integrated 200 W power supply and 80 mm cooling fan.
- Extended Cable Options: 1 m, 3 m, and 7 m shielded cables (ACL‑EXPRESS‑1/3/7).
- Rugged Design: Suitable for high‑temperature, shock, and vibration environments.
- Plug‑and‑Play Operation: Devices in the extension chassis behave as if installed directly in the host system.
- Compliance: Conforms to PCI Express Base Specification 1.0a, PCI‑to‑PCI Bridge Architecture 1.2, and PCI Local Bus Specification 3.0.
- Applications: Industrial automation, test and measurement, video capture, aerospace, and high‑density I/O systems.
### 3. Technical Specifications
Host Interface Card – PCIe‑8560
- Compliance: PCI Express Base Specification Rev. 1.0a
- Interface: PCI Express x1 link (2.5 Gbps per direction)
- Data Throughput: 250 MB/s
- Dimensions: 69 mm (H) × 87 mm (W)
- Power Requirement: +3.3 V DC, 210 mA (max)
- Form Factor: Low‑profile PCI Express add‑on card
- Maximum Cable Length: 7 m
Bridge Card – PCI‑8565
- Compliance: PCI‑to‑PCI Bridge Architecture Rev. 1.2; PCI Local Bus Specification Rev. 3.0
- Bus Support: 32‑bit/33 MHz PCI bus, 5 V and 3.3 V signaling
- Dimensions: 64 mm (H) × 120 mm (W)
- Power Requirement: +3.3 V DC, 720 mA
- Form Factor: Low‑profile PCI add‑on card
Extension Chassis – RK‑8005
- Dimensions: 122 mm (W) × 195 mm (H) × 259 mm (D)
- Weight: 3.2 kg (7.04 lb)
- Backplane: 5 × 32‑bit/33 MHz full‑size PCI slots (1 for extension card, 4 available for user PCI cards)
- Power Supply: 200 W AC input (85 V AC – 265 V AC)
- Cooling: One 80 mm ball‑bearing fan
- Mounting: Wall‑mount kit included
Extension Cable – ACL‑EXPRESS‑1/3/7
- Length Options: 1 m, 3 m, 7 m
- Construction: Shielded twisted‑pair copper cable
- Signal Bandwidth: 2.5 Gbps
Environmental Specifications
- Operating Temperature: 0 °C to 50 °C
- Storage Temperature: –20 °C to 80 °C
- Relative Humidity: 10 % to 90 %, non‑condensing
### 4. Functionality
The PCES‑8581‑4S extends a host computer’s PCI bus through a PCI Express x1 link. The host card (PCIe‑8560) is installed in a PCI Express slot of the host PC. It communicates via a shielded cable with the PCI‑8565 bridge card located in the RK‑8005 extension chassis. The PCI‑8565 converts the PCI Express signals into a standard PCI bus, providing four available PCI slots for peripheral cards.
Use Cases and Applications:
- Expanding PCI slot availability for desktop or industrial PCs with limited PCI slots.
- Remote control of PCI devices in hazardous or high‑vibration environments.
- Isolation of PCI devices from electromagnetic interference generated by CPU or memory subsystems.
- Compact test and measurement setups requiring proximity to the Device Under Test (DUT).
- Integration into industrial automation, data acquisition, and video processing systems.
Compatibility:
- Compatible with standard PCI Express x1 slots on Intel‑based and other PC architectures.
- Supports standard PCI cards (32‑bit/33 MHz, 5 V or 3.3 V).
- No driver installation required; recognized by system BIOS as standard PCI devices.
### 5. Components & Accessories
Included in PCES‑8581‑4S Package:
- PCIe‑8560 host interface card
- RK‑8005 4‑slot extension chassis (pre‑installed with PCI‑8565 bridge card and 5‑slot backplane)
- ACL‑EXPRESS‑3 high‑speed 3 m cable
- AC power cord
- Wall‑mount kit
- User’s manual
Optional Accessories:
- ACL‑EXPRESS‑1 (1 m cable)
- ACL‑EXPRESS‑7 (7 m cable)
- Replacement power supply modules and fans available from ADLINK
Connectors and Indicators:
- PCIe‑8560: CN1 (PCI Express serial link connector), S1/S2 signal equalizer jumpers, D1 status LED.
- PCI‑8565: CN1 (serial link connector), JP1 (remote power‑on control), JP2 (spread spectrum clock control), D1 status LED.
- RK‑8005 Backplane (BP‑8005): ATX power connectors, fan connectors, LED headers, and power enable jumpers.
### 6. Installation & Setup
Requirements:
- Host PC with available PCI Express x1 slot.
- Stable AC power source (85 V AC – 265 V AC).
- Anti‑static handling precautions during installation.
Installation Procedure:
1. Power off the host PC and remove its cover.
2. Install the PCIe‑8560 card into an available PCI Express x1 slot.
3. Secure the card and close the chassis.
4. Install desired PCI cards into the RK‑8005 extension chassis (4 available slots).
5. Connect the ACL‑EXPRESS cable between the PCIe‑8560 (host) and PCI‑8565 (extension).
6. Power on sequence: first the extension chassis, then the host PC.
7. Power off sequence: first the host PC, then the extension chassis.
Mounting Options:
- Wall‑mount kit included for industrial or rack environments.
- Ensure adequate ventilation for the 80 mm cooling fan.
Configuration:
- No software configuration required; BIOS automatically detects devices behind the PCI bridge.
- Optional signal equalizer adjustments on PCIe‑8560 (S1/S2 jumpers) for long cable runs.
### 7. Performance & Capabilities
- Bus Bandwidth: 2.5 Gbps per direction (PCI Express x1 link).
- PCI Bus Speed: 32‑bit/33 MHz operation.
- Distance Capability: Up to 7 m between host and extension chassis.
- Power Output: 200 W integrated supply supports multiple PCI cards.
- Cooling: Active air cooling via 80 mm ball‑bearing fan.
- Efficiency: Auto‑switching power supply (85–265 V AC) ensures stable operation in global voltage ranges.
- Limitations: Supports one extension chassis per host PCIe slot (point‑to‑point architecture).
- Reliability: Designed for continuous operation in industrial environments with high vibration and temperature variations.
### 8. Standards & Compliance
- PCI Express Base Specification Rev. 1.0a
- PCI‑to‑PCI Bridge Architecture Specification Rev. 1.2
- PCI Local Bus Specification Rev. 3.0
- Electrical Safety and EMI: Meets industrial equipment requirements for EMC and safety when installed per manufacturer guidelines.
- Environmental Compliance: Designed for operation from 0 °C to 50 °C and storage from –20 °C to 80 °C.
- Trademark Acknowledgments: PCI Express is a registered trademark of the PCI‑SIG.
### 9. Additional Information
Warranty:
- Standard two‑year limited warranty (one year for products purchased in China).
- Warranty covers manufacturing defects and hardware failures under normal use.
- Exclusions include damage from improper installation, unauthorized repair, or environmental factors.
- RMA service available through ADLINK’s online portal (http://rma.adlinktech.com/policy/).
Support & Service Contacts:
- Headquarters: ADLINK Technology Inc., Taipei, Taiwan (+886‑2‑8226‑5877, service@adlinktech.com)
- Regional Offices: USA (Irvine, CA), Germany (Düsseldorf), China (Beijing, Shanghai, Shenzhen), Japan (Tokyo), India (Bangalore), South Korea (Seoul), Singapore.
Maintenance:
- Keep ventilation openings clear and clean fans periodically.
- Use anti‑static precautions when installing or removing cards.
- Replace fans or power supplies only with ADLINK‑approved components.
Firmware and Updates:
- No firmware updates required for operation; system is hardware‑transparent.
- BIOS updates on the host PC may improve resource allocation for complex PCI configurations.
Safety Instructions:
- Disconnect power before installation or maintenance.
- Operate only within specified temperature and humidity ranges.
- Avoid exposure to liquids, high humidity, or excessive dust.
- Use only qualified technicians for service and repairs.
### Summary
The ADLINK PCES‑8581‑4S is a robust, industrial‑grade PCI Express‑to‑PCI extension system that allows users to expand PCI connectivity and remotely manage PCI devices up to 7 meters from a host computer. With its transparent bridge architecture, no driver requirements, and compact RK‑8005 chassis, it is ideal for applications in industrial automation, test and measurement, and high‑density I/O environments. The system delivers high bandwidth, reliable signal integrity, and rugged construction for demanding industrial and laboratory deployments.
