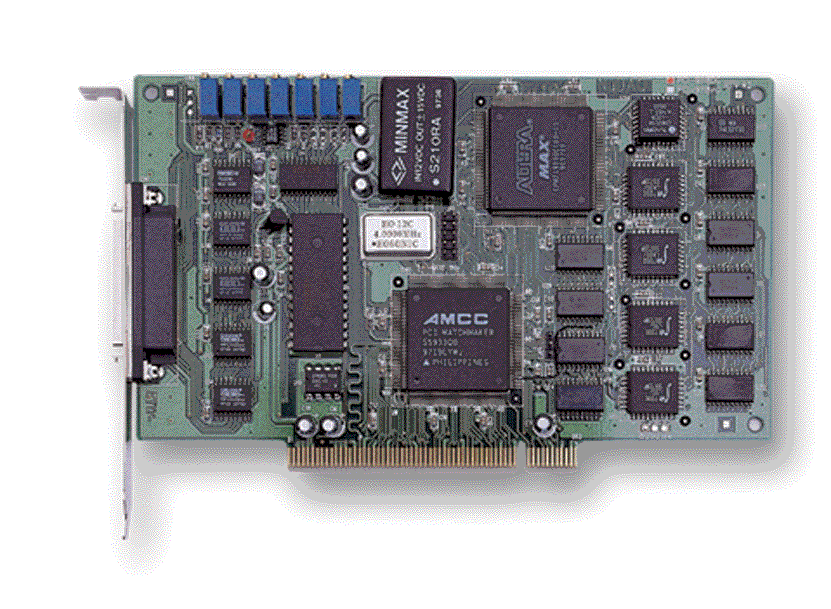

PCI-9118HG

PCI-9118HG - Adlink Technology Inc.

PCI AD Card 333kS/s 12bit 16SE/8DI 1kW FIFO high gain 2DA

A/D General Purpose PCI cards are PC add-on cards that provide a general purpose analog-to-digital conversion capability. These cards can be used to convert analog signals into digital signals for use in computers, allowing for better data accuracy and more efficient data transfer. They are also used in applications such as audio and video recording, medical imaging, and industrial automation..

Description

  • PCI bus AD card 333kS/s 1kFIFO 12bit 16SE/8DI
  • high gain/±0,005/0,05/0,5/5V 0..0,01/0,1/1/10V
  • with DC/DC converter
  • 2*DA 12 bit ±10/0-10V ~3µs
  • 4/4DIO
  • trigger: software
  • programm. pacer pre- post- middle-
  • external
  • burst mode sampling
  • 50pin SCSI-II female
  • 173*102mm
  • Adlink

Details

  • Width: 173 mm
  • Height: 102 mm
  • Manufacturer: Adlink Technology Inc.
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
