Comprehensive Product Summary – Neousys POC‑100RK Ultra‑Compact Fanless Controller
### 1. Product Overview
Product Name: POC‑100RK
Model: POC‑100RK
Series: POC‑100 Series – Ultra‑Compact Intel® Atom™ D525 Fanless Embedded Controller
Article Number: POC‑100RK
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

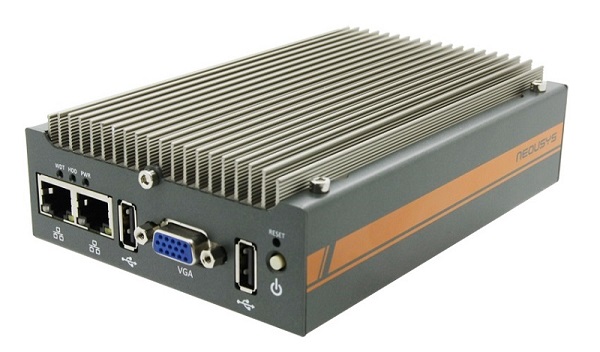

The Neousys POC‑100RK is a rugged, ultra‑compact, fanless embedded controller designed for industrial and embedded computing applications. It integrates an Intel® Atom™ D525 dual‑core processor, soldered DDR3 memory, dual Gigabit Ethernet ports, and multiple serial and USB interfaces within a compact 149 × 105 × 44 mm chassis. The POC‑100RK variant features a DC jack input for 12 V AC/DC adapter operation, optimized for environments where AC power is available.
### 2. Key Features
- Ultra‑Compact Design:
Footprint comparable to a 3.5‑inch hard drive (149 × 105 × 44 mm), enabling installation in space‑constrained environments.
- Fanless and Cable‑less Architecture:
Passive aluminum‑extrusion heat sink ensures reliable operation from –20 °C to +60 °C without active cooling.
- Intel® Atom™ D525 Processor:
Dual‑core 1.8 GHz CPU with Intel® ICH8‑M chipset for low‑power, high‑efficiency embedded computing.
- Integrated Graphics:
Intel® GMA 3150 GPU supporting VGA output up to 2048 × 1536 and 18‑bit LVDS output up to 1366 × 768 with backlight control.
- On‑board Memory:
2 GB DDR3 800 MHz SDRAM soldered directly to the board for vibration resistance.
- Dual Storage Options:
One 2.5‑inch SATA HDD/SSD bay and one mSATA socket for flexible storage configurations.
- Rich I/O Connectivity:
Two Intel® I210 Gigabit Ethernet ports, up to four COM ports (2 standard + 2 optional), three USB 2.0 ports, and one audio out.
- Expansion Capability:
One Mini PCI Express slot with USIM socket for wireless modules (Wi‑Fi, 3G, GPS, etc.).
- Versatile Mounting:
Standard wall‑mount design with optional DIN‑rail mounting kit.
- Wide DC Input Range:
Built‑in 8 – 25 V DC input circuitry; POC‑100RK uses a 2.5 mm DC jack for AC/DC adapter input.
- Industrial Reliability:
Shock resistance up to 50 Grms and vibration tolerance of 5 Grms (IEC 60068‑2‑27/‑64 compliant).
### 3. Technical Specifications
Processor: Intel® Atom™ D525 1.8 GHz dual‑core
Chipset: Intel® ICH8‑M I/O Control Hub
Graphics: Intel® GMA 3150 integrated GPU
Memory: 2 GB DDR3 800 MHz SDRAM (on‑board, soldered)

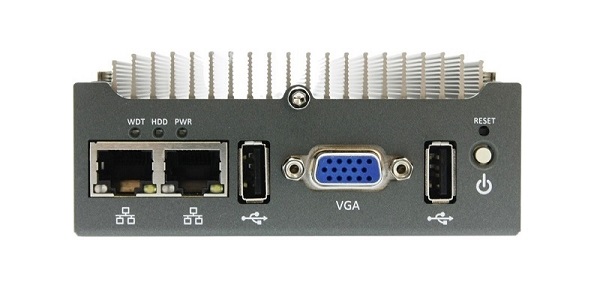

Ethernet: 2 × Intel® I210 Gigabit Ethernet ports
Video Outputs:
- 1 × VGA (DB‑15) up to 2048 × 1536 resolution
- 1 × 18‑bit LVDS with backlight control up to 1366 × 768 resolution

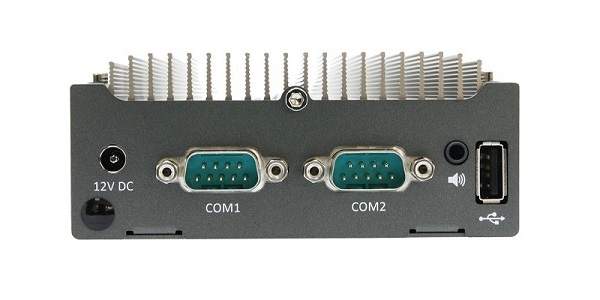

Serial Ports:
- 1 × software‑selectable RS‑232/422/485 (COM1)
- 1 × RS‑232 (COM2)
- Optional: 1 × RS‑232/422/485 (COM3) + 1 × RS‑232 (COM4)
USB: 3 × USB 2.0 ports (2 front, 1 rear)
Audio: 1 × Speaker‑out (Realtek ALC262 codec)
Expansion: 1 × Mini PCI Express slot with USIM socket
Storage: 1 × 2.5‑inch SATA HDD/SSD bay + 1 × mSATA socket
Power Input: 8 – 25 V DC built‑in converter
Connector (POC‑100RK): Ø 2.5 mm DC jack for AC/DC adapter
Power Consumption: Typical 11.6 W (0.97 A @ 12 V); Full Load 14.6 W (1.22 A @ 12 V)
Dimensions: 149 mm (W) × 105 mm (H) × 44 mm (D)
Weight: 1.0 kg (including one 2.5‑inch HDD)
Mounting: Wall‑mount (standard) / DIN‑rail (optional)
Operating Temperature: –20 °C to +60 °C (with SSD/mSATA); –10 °C to +50 °C (with HDD)
Storage Temperature: –40 °C to +85 °C
Humidity: 10 % – 90 %, non‑condensing
Vibration: 5 Grms, 5 – 500 Hz, 3 axes (IEC 60068‑2‑64)
Shock: 50 Grms, half‑sine 11 ms (IEC 60068‑2‑27)
EMC: CE/FCC Class A (EN 55022 & EN 55024)
### 4. Functionality
The POC‑100RK functions as a fully integrated embedded controller for industrial automation, machine control, and edge computing applications. Its Intel® Atom™ D525 CPU delivers dual‑core processing at low power consumption, while the fanless design ensures silent and maintenance‑free operation.
Typical Use Cases:
- Industrial machine control and monitoring
- IoT edge gateway and data acquisition nodes
- Transportation and vehicle control systems
- Digital signage and kiosk controllers
- Compact HMI and SCADA terminals
Compatibility:
Supports Windows XP, Windows 7 (32/64‑bit), and major Linux distributions (Ubuntu, Debian, Fedora, CentOS). Drivers for Intel I210 GbE and GMA 3150 graphics are provided on the Neousys Drivers & Utilities DVD.
Operation:
The system can be powered on via front panel button, external latched or non‑latched switch (AT/ATX mode), or Wake‑on‑LAN function. It supports remote on/off control and status LED outputs for integration into enclosed systems.
### 5. Components & Accessories
Included Items:
1. POC‑100RK controller unit
2. Neousys Drivers & Utilities DVD
3. Screw package for mounting and HDD installation
Optional Accessories:
- DIN‑rail mounting kit
- Additional COM port cable kit (COM3 + COM4)
- 60 W AC/DC power adapter (12 V, 5 A output)
- Mini‑PCIe modules (Wi‑Fi, 3G, GPS, RAID, etc.)
- LVDS and backlight cables for LCD panel integration
Internal Connectors and Headers:
- Status LED output header (PWR, HDD, WDT)
- Remote on/off and reset control header
- PS/2 keyboard/mouse header
- Internal USB 2.0 header (2 ports)
- Optional COM3/COM4 headers
- LVDS signal and backlight connectors
- Internal 5 V and 12 V DC power output (1.5 A each)
### 6. Installation & Setup
Power Connection:
POC‑100RK uses a 2.5 mm DC jack for 12 V AC/DC adapter input (rated voltage 16 V max). The unit accepts 8 – 25 V DC internally but should be operated with a 12 V adapter for safety.

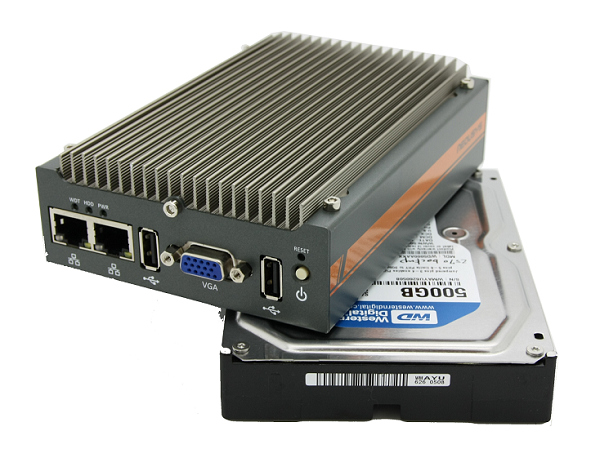

Storage Installation:
- 2.5‑inch HDD/SSD mounted via included bracket and SATA connector.
- mSATA SSD installed on on‑board socket with two M2.5 screws.
Expansion Module Installation:
Mini‑PCIe modules (Wi‑Fi, 3G, etc.) can be installed on the internal slot; antenna ports can be routed to the rear panel via SMA connectors.
Mounting Options:
- Wall‑mount (standard keyhole slots or M4 screw holes)
- Inside‑out or outside‑in surface mounting
- DIN‑rail mount (optional clip kit)
Power‑On Methods:
- Front panel power button (ATX mode)
- External latched switch (AT mode)
- External non‑latched switch (ATX mode)
- Wake‑on‑LAN via Intel I210 Ethernet controller
BIOS Configuration:
Accessible via F2 during boot; supports COM mode selection, SATA controller mode (AHCI/IDE), LVDS resolution settings, power recovery options, and watchdog timer configuration.
### 7. Performance & Capabilities
Processing Performance:
The Intel® Atom™ D525 dual‑core 1.8 GHz CPU provides adequate computing power for industrial control and embedded applications with low thermal output (~13 W TDP).
Graphics Performance:
Intel® GMA 3150 GPU supports VGA and LVDS outputs for dual display configurations. Resolutions up to 2048 × 1536 (VGA) and 1366 × 768 (LVDS) are supported.
Storage Performance:
Supports SATA II (3 Gb/s) interface for HDD/SSD and mSATA modules. AHCI mode enables NCQ and hot‑swap features on supported OS.
Networking:
Dual Intel® I210 Gigabit Ethernet controllers provide high‑reliability network connectivity with Wake‑on‑LAN support and advanced packet filtering.
Reliability & Durability:
Fanless design eliminates moving parts; soldered memory and cable‑less architecture enhance shock and vibration resistance. Operates continuously at full CPU load within specified temperature range.
Limitations:
- Maximum memory capacity fixed at 2 GB (on‑board)
- No native USB 3.0 support (USB 2.0 only)
- Single display output by default (VGA + optional LVDS)
- Limited CPU performance for heavy graphics or compute‑intensive tasks
### 8. Standards & Compliance
EMC Compliance:
- CE Class A (EN 55022 & EN 55024)
- FCC Class A (Part 15 of FCC Rules)
Environmental Testing:
- Vibration Test: IEC 60068‑2‑64 (5 Grms, 5–500 Hz, 3 axes)
- Shock Test: IEC 60068‑2‑27 (50 Grms, 11 ms half‑sine)
Safety and Reliability:
- Operating temperature validated under 100 % CPU load using Intel® Thermal Analysis Tool.
- Sub‑zero operation requires wide‑temperature HDD or SSD.
RoHS and WEEE:
Compliant with environmental directives for hazardous substance reduction and electronic waste management.
### 9. Additional Information
Warranty & Support:
Neousys provides standard manufacturer warranty and technical support for hardware and driver issues. Firmware and BIOS updates are available through official channels.
Maintenance:
Fanless design minimizes maintenance requirements. Periodic dust inspection and connector checks are recommended for long‑term operation.
Software & Drivers:
Drivers for Intel chipset, graphics, Ethernet, and audio are included on the Neousys Drivers & Utilities DVD. A “One‑Click” installation utility automatically detects the OS and installs all required drivers within minutes.
Operating System Support:
- Windows XP 32‑bit
- Windows 7 32/64‑bit
- Ubuntu 11.04 and later (32/64‑bit)
- Debian 6.0 and later
- Fedora 14 i386
- CentOS 6.4 32‑bit
Watchdog Timer (WDT):
Hardware WDT implemented via ITE8783 Super I/O chip. Programmable timeout (1–65535 ticks, seconds or minutes). Library and sample code provided for Windows and Linux applications.
BIOS Features:
- COM port mode selection (RS‑232/422/485)
- SATA controller mode (AHCI/IDE)
- LVDS resolution configuration
- Power recovery and Wake‑on‑LAN options
- Watchdog timer for boot process security
- Boot device selection and order management
Mechanical Design:
Aluminum extrusion heat sink serves as the entire chassis for efficient thermal dissipation. Cable‑less internal layout reduces failure points and simplifies assembly.
Reliability Testing:
Validated under continuous 100 % CPU load with Intel® Thermal Analysis Tool. System maintains stable operation within specified temperature limits using SSD or mSATA storage.
Documentation:
Comprehensive User’s Manual (Rev. A3, Nov 17 2014) includes installation guides, BIOS settings, pin definitions, and mechanical drawings.
### Summary
The Neousys POC‑100RK is a robust, energy‑efficient embedded controller engineered for industrial automation and embedded computing applications requiring compact form factor, reliable operation, and versatile I/O connectivity. Its Intel® Atom™ D525 processor balances performance and power efficiency, while the fanless design ensures silent and maintenance‑free operation in harsh environments. With dual Gigabit Ethernet, multiple serial interfaces, expandable storage, and wide temperature tolerance, the POC‑100RK serves as an ideal platform for machine control, data acquisition, and IoT edge applications where space and reliability are critical.
### 1. Product Overview
Product Name: POC‑100RK
Model: POC‑100RK
Series: POC‑100 Series – Ultra‑Compact Intel® Atom™ D525 Fanless Embedded Controller
Article Number: POC‑100RK
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys POC‑100RK is a rugged, ultra‑compact, fanless embedded controller designed for industrial and embedded computing applications. It integrates an Intel® Atom™ D525 dual‑core processor, soldered DDR3 memory, dual Gigabit Ethernet ports, and multiple serial and USB interfaces within a compact 149 × 105 × 44 mm chassis. The POC‑100RK variant features a DC jack input for 12 V AC/DC adapter operation, optimized for environments where AC power is available.
### 2. Key Features
- Ultra‑Compact Design:
Footprint comparable to a 3.5‑inch hard drive (149 × 105 × 44 mm), enabling installation in space‑constrained environments.
- Fanless and Cable‑less Architecture:
Passive aluminum‑extrusion heat sink ensures reliable operation from –20 °C to +60 °C without active cooling.
- Intel® Atom™ D525 Processor:
Dual‑core 1.8 GHz CPU with Intel® ICH8‑M chipset for low‑power, high‑efficiency embedded computing.
- Integrated Graphics:
Intel® GMA 3150 GPU supporting VGA output up to 2048 × 1536 and 18‑bit LVDS output up to 1366 × 768 with backlight control.
- On‑board Memory:
2 GB DDR3 800 MHz SDRAM soldered directly to the board for vibration resistance.
- Dual Storage Options:
One 2.5‑inch SATA HDD/SSD bay and one mSATA socket for flexible storage configurations.
- Rich I/O Connectivity:
Two Intel® I210 Gigabit Ethernet ports, up to four COM ports (2 standard + 2 optional), three USB 2.0 ports, and one audio out.
- Expansion Capability:
One Mini PCI Express slot with USIM socket for wireless modules (Wi‑Fi, 3G, GPS, etc.).
- Versatile Mounting:
Standard wall‑mount design with optional DIN‑rail mounting kit.
- Wide DC Input Range:
Built‑in 8 – 25 V DC input circuitry; POC‑100RK uses a 2.5 mm DC jack for AC/DC adapter input.
- Industrial Reliability:
Shock resistance up to 50 Grms and vibration tolerance of 5 Grms (IEC 60068‑2‑27/‑64 compliant).
### 3. Technical Specifications
Processor: Intel® Atom™ D525 1.8 GHz dual‑core
Chipset: Intel® ICH8‑M I/O Control Hub
Graphics: Intel® GMA 3150 integrated GPU
Memory: 2 GB DDR3 800 MHz SDRAM (on‑board, soldered)
Ethernet: 2 × Intel® I210 Gigabit Ethernet ports
Video Outputs:
- 1 × VGA (DB‑15) up to 2048 × 1536 resolution
- 1 × 18‑bit LVDS with backlight control up to 1366 × 768 resolution
Serial Ports:
- 1 × software‑selectable RS‑232/422/485 (COM1)
- 1 × RS‑232 (COM2)
- Optional: 1 × RS‑232/422/485 (COM3) + 1 × RS‑232 (COM4)
USB: 3 × USB 2.0 ports (2 front, 1 rear)
Audio: 1 × Speaker‑out (Realtek ALC262 codec)
Expansion: 1 × Mini PCI Express slot with USIM socket
Storage: 1 × 2.5‑inch SATA HDD/SSD bay + 1 × mSATA socket
Power Input: 8 – 25 V DC built‑in converter
Connector (POC‑100RK): Ø 2.5 mm DC jack for AC/DC adapter
Power Consumption: Typical 11.6 W (0.97 A @ 12 V); Full Load 14.6 W (1.22 A @ 12 V)
Dimensions: 149 mm (W) × 105 mm (H) × 44 mm (D)
Weight: 1.0 kg (including one 2.5‑inch HDD)
Mounting: Wall‑mount (standard) / DIN‑rail (optional)
Operating Temperature: –20 °C to +60 °C (with SSD/mSATA); –10 °C to +50 °C (with HDD)
Storage Temperature: –40 °C to +85 °C
Humidity: 10 % – 90 %, non‑condensing
Vibration: 5 Grms, 5 – 500 Hz, 3 axes (IEC 60068‑2‑64)
Shock: 50 Grms, half‑sine 11 ms (IEC 60068‑2‑27)
EMC: CE/FCC Class A (EN 55022 & EN 55024)
### 4. Functionality
The POC‑100RK functions as a fully integrated embedded controller for industrial automation, machine control, and edge computing applications. Its Intel® Atom™ D525 CPU delivers dual‑core processing at low power consumption, while the fanless design ensures silent and maintenance‑free operation.
Typical Use Cases:
- Industrial machine control and monitoring
- IoT edge gateway and data acquisition nodes
- Transportation and vehicle control systems
- Digital signage and kiosk controllers
- Compact HMI and SCADA terminals
Compatibility:
Supports Windows XP, Windows 7 (32/64‑bit), and major Linux distributions (Ubuntu, Debian, Fedora, CentOS). Drivers for Intel I210 GbE and GMA 3150 graphics are provided on the Neousys Drivers & Utilities DVD.
Operation:
The system can be powered on via front panel button, external latched or non‑latched switch (AT/ATX mode), or Wake‑on‑LAN function. It supports remote on/off control and status LED outputs for integration into enclosed systems.
### 5. Components & Accessories
Included Items:
1. POC‑100RK controller unit
2. Neousys Drivers & Utilities DVD
3. Screw package for mounting and HDD installation
Optional Accessories:
- DIN‑rail mounting kit
- Additional COM port cable kit (COM3 + COM4)
- 60 W AC/DC power adapter (12 V, 5 A output)
- Mini‑PCIe modules (Wi‑Fi, 3G, GPS, RAID, etc.)
- LVDS and backlight cables for LCD panel integration
Internal Connectors and Headers:
- Status LED output header (PWR, HDD, WDT)
- Remote on/off and reset control header
- PS/2 keyboard/mouse header
- Internal USB 2.0 header (2 ports)
- Optional COM3/COM4 headers
- LVDS signal and backlight connectors
- Internal 5 V and 12 V DC power output (1.5 A each)
### 6. Installation & Setup
Power Connection:
POC‑100RK uses a 2.5 mm DC jack for 12 V AC/DC adapter input (rated voltage 16 V max). The unit accepts 8 – 25 V DC internally but should be operated with a 12 V adapter for safety.
Storage Installation:
- 2.5‑inch HDD/SSD mounted via included bracket and SATA connector.
- mSATA SSD installed on on‑board socket with two M2.5 screws.
Expansion Module Installation:
Mini‑PCIe modules (Wi‑Fi, 3G, etc.) can be installed on the internal slot; antenna ports can be routed to the rear panel via SMA connectors.
Mounting Options:
- Wall‑mount (standard keyhole slots or M4 screw holes)
- Inside‑out or outside‑in surface mounting
- DIN‑rail mount (optional clip kit)
Power‑On Methods:
- Front panel power button (ATX mode)
- External latched switch (AT mode)
- External non‑latched switch (ATX mode)
- Wake‑on‑LAN via Intel I210 Ethernet controller
BIOS Configuration:
Accessible via F2 during boot; supports COM mode selection, SATA controller mode (AHCI/IDE), LVDS resolution settings, power recovery options, and watchdog timer configuration.
### 7. Performance & Capabilities
Processing Performance:
The Intel® Atom™ D525 dual‑core 1.8 GHz CPU provides adequate computing power for industrial control and embedded applications with low thermal output (~13 W TDP).
Graphics Performance:
Intel® GMA 3150 GPU supports VGA and LVDS outputs for dual display configurations. Resolutions up to 2048 × 1536 (VGA) and 1366 × 768 (LVDS) are supported.
Storage Performance:
Supports SATA II (3 Gb/s) interface for HDD/SSD and mSATA modules. AHCI mode enables NCQ and hot‑swap features on supported OS.
Networking:
Dual Intel® I210 Gigabit Ethernet controllers provide high‑reliability network connectivity with Wake‑on‑LAN support and advanced packet filtering.
Reliability & Durability:
Fanless design eliminates moving parts; soldered memory and cable‑less architecture enhance shock and vibration resistance. Operates continuously at full CPU load within specified temperature range.
Limitations:
- Maximum memory capacity fixed at 2 GB (on‑board)
- No native USB 3.0 support (USB 2.0 only)
- Single display output by default (VGA + optional LVDS)
- Limited CPU performance for heavy graphics or compute‑intensive tasks
### 8. Standards & Compliance
EMC Compliance:
- CE Class A (EN 55022 & EN 55024)
- FCC Class A (Part 15 of FCC Rules)
Environmental Testing:
- Vibration Test: IEC 60068‑2‑64 (5 Grms, 5–500 Hz, 3 axes)
- Shock Test: IEC 60068‑2‑27 (50 Grms, 11 ms half‑sine)
Safety and Reliability:
- Operating temperature validated under 100 % CPU load using Intel® Thermal Analysis Tool.
- Sub‑zero operation requires wide‑temperature HDD or SSD.
RoHS and WEEE:
Compliant with environmental directives for hazardous substance reduction and electronic waste management.
### 9. Additional Information
Warranty & Support:
Neousys provides standard manufacturer warranty and technical support for hardware and driver issues. Firmware and BIOS updates are available through official channels.
Maintenance:
Fanless design minimizes maintenance requirements. Periodic dust inspection and connector checks are recommended for long‑term operation.
Software & Drivers:
Drivers for Intel chipset, graphics, Ethernet, and audio are included on the Neousys Drivers & Utilities DVD. A “One‑Click” installation utility automatically detects the OS and installs all required drivers within minutes.
Operating System Support:
- Windows XP 32‑bit
- Windows 7 32/64‑bit
- Ubuntu 11.04 and later (32/64‑bit)
- Debian 6.0 and later
- Fedora 14 i386
- CentOS 6.4 32‑bit
Watchdog Timer (WDT):
Hardware WDT implemented via ITE8783 Super I/O chip. Programmable timeout (1–65535 ticks, seconds or minutes). Library and sample code provided for Windows and Linux applications.
BIOS Features:
- COM port mode selection (RS‑232/422/485)
- SATA controller mode (AHCI/IDE)
- LVDS resolution configuration
- Power recovery and Wake‑on‑LAN options
- Watchdog timer for boot process security
- Boot device selection and order management

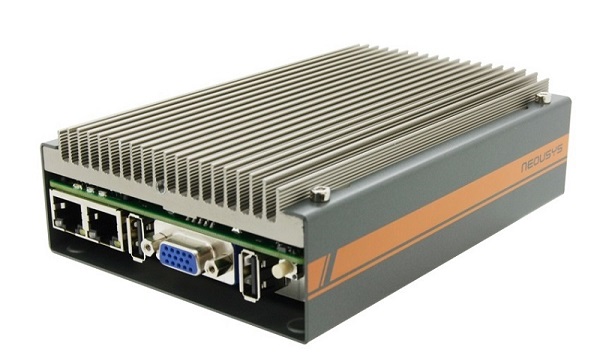

Mechanical Design:
Aluminum extrusion heat sink serves as the entire chassis for efficient thermal dissipation. Cable‑less internal layout reduces failure points and simplifies assembly.
Reliability Testing:
Validated under continuous 100 % CPU load with Intel® Thermal Analysis Tool. System maintains stable operation within specified temperature limits using SSD or mSATA storage.
Documentation:
Comprehensive User’s Manual (Rev. A3, Nov 17 2014) includes installation guides, BIOS settings, pin definitions, and mechanical drawings.
### Summary
The Neousys POC‑100RK is a robust, energy‑efficient embedded controller engineered for industrial automation and embedded computing applications requiring compact form factor, reliable operation, and versatile I/O connectivity. Its Intel® Atom™ D525 processor balances performance and power efficiency, while the fanless design ensures silent and maintenance‑free operation in harsh environments. With dual Gigabit Ethernet, multiple serial interfaces, expandable storage, and wide temperature tolerance, the POC‑100RK serves as an ideal platform for machine control, data acquisition, and IoT edge applications where space and reliability are critical.
-
POC-100_Datasheet.pdf
PDF Catalog
- Nuvo-PA-60W - 60W AC/DC Power Adapter for Nuvo-100x/20xx and POC series
