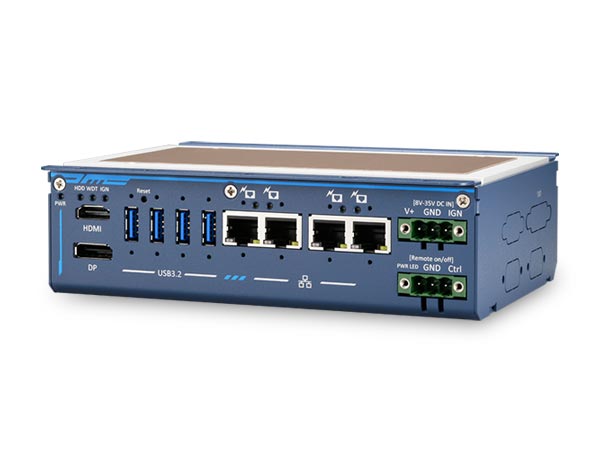

Ultra-compact fanless embedded controller with Intel Core i3-N305 (8C/8T, 1.8/3.8 GHz, 15W), Intel UHD Graphics with 32 EUs, up to 16GB DDR5-4800, 4x GbE with IEEE 802.3at PoE+ on ports 1-4, 4x USB 3.2 Gen2, DP++ and HDMI 1.4b, 4 isolated DI and 4 isolated DO, M.2 2280 M-key NVMe/SATA storage, full-size mini-PCIe, MezIO expansion, 8 to 35V DC input, -25 to 60°C fanless operation.
- Processor Intel Core i3-N305
- CPU Cores and Threads 8C/8T
- Base/Turbo Frequency 1.8/3.8 GHz
- TDP 15 W
- Processor Intel Alder Lake Core i3-N305
- CPU Cores / Threads 8C/8T
- CPU Frequency 1.8/3.8 GHz
- Graphics Intel UHD Graphics with 32 EUs
- Integrated Graphics Intel UHD Graphics with 32 EUs
- Maximum Memory 16 GB
- Memory Type DDR5-4800 SDRAM
- Memory Socket 1x SODIMM
- Memory Socket 1x SODIMM socket
- TPM dTPM 2.0

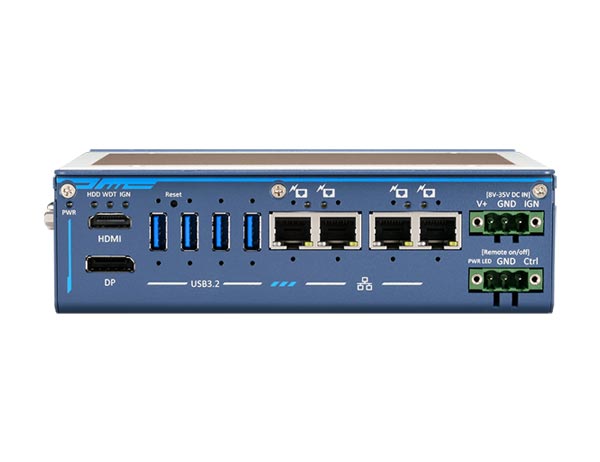

- Ethernet Ports 4x GbE
- Ethernet Controller Intel I350-AM4
- PoE Support IEEE 802.3at PoE+ on port #1 to #4
- PoE Support 4x IEEE 802.3at PoE+
- DisplayPort 1x DP++
- HDMI 1x HDMI 1.4b
- Maximum Display Resolution 4096 x 2160
- Maximum Display Refresh Rate 30 Hz
- DisplayPort Output 1x DP++ up to 4096 x 2160 @ 60Hz
- HDMI Output 1x HDMI 1.4b up to 3840 x 2160 @ 30Hz

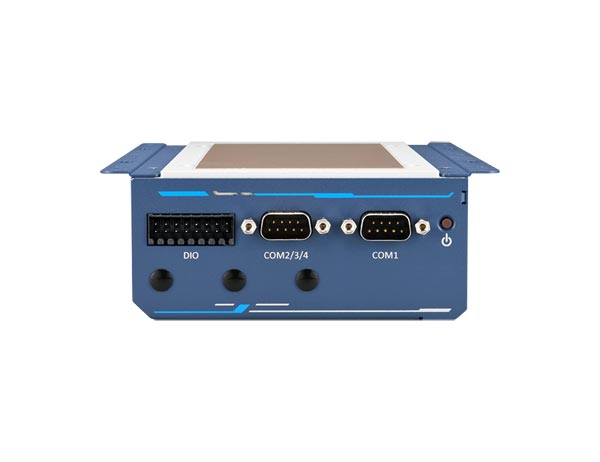

- COM1 1x software-programmable RS-232/422/485
- COM2/3/4 3x 3-wire RS-232 or 1x RS-422/485 on COM2
- USB Ports 4x USB 3.2 Gen2 with screw-lock
- Digital Input Channels 4 CH
- Digital Output Channels 4 CH
- Isolated Digital Input Channels 4 channels
- Isolated Digital Output Channels 4 channels
- Digital I/O 4 isolated DI; 4 isolated DO
- M.2 Storage 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD; supports SATA
- M.2 Slot 1x M.2 2280 M key socket
- Storage Interface PCIe Gen3 x1 for NVMe SSD; supports SATA signal
- Mini-PCIe 1x full-size mini PCI Express socket with internal micro SIM socket
- Expandable I/O 1x MezIO expansion interface
- Mini-PCIe Slot 1x full-size mini PCI Express with internal micro SIM socket
- DC Input 8 to 35 V DC
- Remote Control and LED Output 1x 3-pin pluggable terminal block
- Remote Control 3-pin pluggable terminal block for remote control and power LED output
- Dimensions 175.8 x 115.5 x 51.65 mm
- Weight 1.2 kg
- Mounting Wall-mount
- Form Factor Wall-mount ultra-compact embedded controller
- Connector 1x 3-pin DC input terminal block; 1x 3-pin remote control terminal block; 4x GbE; 4x USB 3.2 Gen2; 1x DP++; 1x HDMI; serial ports
- Dimensions 175.8 x 115.5 x 51.65 mm
- Operating Temperature -25 to 60 °C
- Storage Temperature -40 to 85 °C
- Humidity 10% to 90%, non-condensing
- Vibration MIL-STD-810H, Method 514.8, Category 4
- Shock MIL-STD-810H, Method 516.8, Procedure I
- Operating Temperature -25°C to 60°C
- EMC CE; FCC Class A; EN 55032; EN 55035
- Heatsink Design Flattop heatsink
- Cooling Design Flattop heatsink fanless design
- Key Features Intel Core i3-N305; fanless flattop heatsink; 4x PoE+ GbE; 4x USB 3.2 Gen2; DP++ and HDMI; isolated DIO; DDR5-4800; M.2 NVMe; mini-PCIe; MezIO expansion; wide-temperature operation
- AI Inference Support Intel OpenVINO optimized
- Bus Interface Mini-PCIe; MezIO
- Resolution 4096 x 2160 @ 60Hz (DP++); 3840 x 2160 @ 30Hz (HDMI)
