Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+
Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+ Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+ Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+

POC-960GC-PoE

Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+
Request a quote
  • Manufacturer Neousys Technology
  • Category: No category
  • The POC-960GC-PoE is the PoE+ variant of Neousys Technology’s compact edge AI GPU computer. It combines the AMD Ryzen PRO 8640U with support for an NVIDIA low-profile GPU up to 70 W, making it suitable for AI inference, machine vision, and robotics workloads. Compared with the base model, this version adds IEEE 802.3at PoE+ on the four Gigabit Ethernet ports for direct connection of compatible powered devices. The system is further equipped with up to 32 GB DDR5-5600 memory, M.2 NVMe storage, two Mini-PCIe slots, 1x 2.5GbE, 4x USB 3.2 Gen 2, isolated DIO, and a 12 to 35 VDC input.
Compact GPU computer based on AMD Ryzen PRO 8640U processor with support for NVIDIA low-profile GPU up to 70W, up to 32 GB DDR5-5600 SDRAM, 1x M.2 2280 NVMe slot, 2x full-size Mini-PCIe, 1x 2.5GbE, 4x GbE with IEEE 802.3at PoE+ option on ports 2 to 5, 4x USB 3.2 Gen 2, 1x HDMI 2.0b, 1x software-programmable RS-232/422/485, 4-CH isolated DI and 4-CH isolated DO, 12-35V DC input, and wall-mount chassis for compact edge AI and machine vision deployments.
  • Processor Model AMD Ryzen PRO 8640U
  • Supported Discrete GPU NVIDIA low-profile GPU card up to 70W
  • PoE Standard IEEE 802.3at PoE+
  • PoE Ports Port #2 to #5
  • Total PoE Power Budget 100 W
  • Dimensions 175 x 159 x 77 mm
  • Form Factor Ultra-compact wall-mount GPU computer

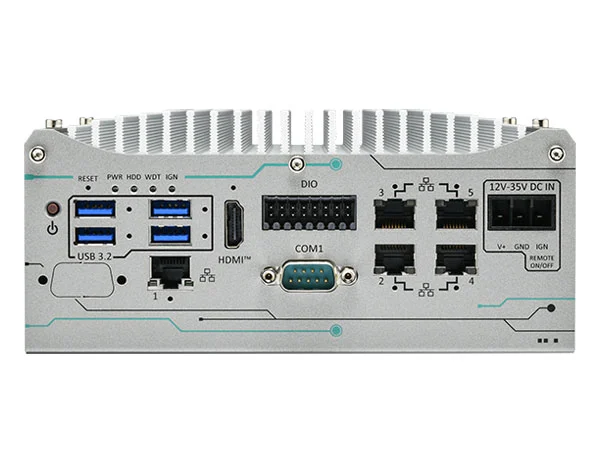

  • Connector 3-pin pluggable terminal block; HDMI 2.0b; 5x Ethernet; 4x USB 3.2 Gen 2; COM; DIO
  • Dimensions 175 x 159 x 77 mm
  • DC Input Range 12 to 35 VDC
  • Operating Temperature -25 to 60 °C
  • Operating Temperature -25°C to 60°C
  • Bus Interface PCIe Gen4 x16 slot with 8-lane signals; Mini-PCIe; M.2 PCIe Gen3 x4
  • Digital I/O 4 isolated DI, 4 isolated DO
  • Resolution 3840 x 2160 @ 60Hz
  • Key Features AMD Ryzen PRO 8640U; supports NVIDIA low-profile GPU up to 70W; up to 32 GB DDR5-5600; 4x GbE with IEEE 802.3at PoE+; 1x 2.5GbE; 4x USB 3.2 Gen 2; M.2 NVMe; 2x Mini-PCIe; isolated DIO; 12-35V DC input
