PXI-8164 - Adlink Technology Inc.

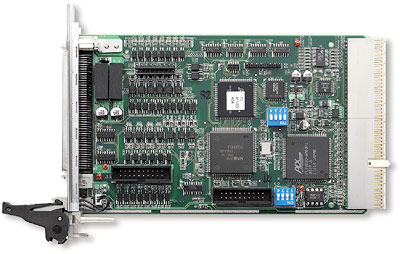

PXI Advanced 4 axis Motion Control Card
We offer a wide range of PC Add-On Cards, DIO Cards and Motion Control Plug-In Cards that are designed to meet the needs of a variety of industrial applications. Our Motion Control / EtherCAT PXI/PXIe/cPCI cards provide a complete solution for motion control applications, enabling users to quickly and easily connect and control multiple axes of motion..
Description
- PXI bus advanced 4 axis stepping and servo motor motion control card
- pulse output rate up to 6,55MHz
- 2-4 axis linear interpolation
- any 2 of 4 axis circular interpolation
- multi axis continouos interpolation
- changing speed or position on the fly
- 28bit up/down counter for incremental encoder
- 100pin SCSI II connector
- Adlink
Details
- Connectors: SCSI-II-100f
- Width: 160 mm
- Height: 100 mm
- Manufacturer: Adlink Technology Inc.
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Downloads
Accessories
-
DIN-100S-01
100pin SCSI-II termination board DIN rail w/o cable -
DIN-814M0
Panel for J2S-A Mitsubishi servo amplifier -
DIN-814M-J3A0
Panel for J3A Mitsubishi servo amplifier -
DIN-814P-A40
Panel for MNAS A4 Panasonic servo amplifier -

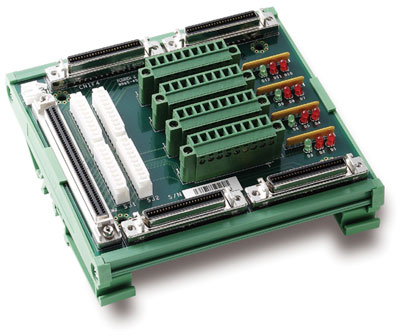

DIN-814PA0
Panel for MNAS A Panasonic servo amplifier -
DIN-814Y0
Panel for Sigma II Yaskawa servo amplifier -
ACL-102100-1
100pin SCSI-II cable 1m
